Collection: Wire, Cable, Rope Fixing

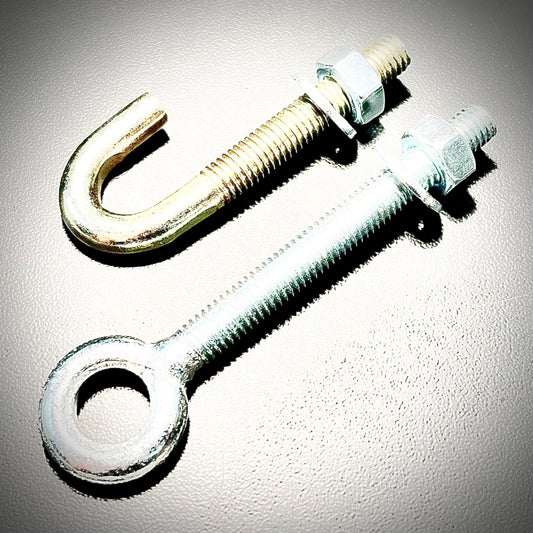

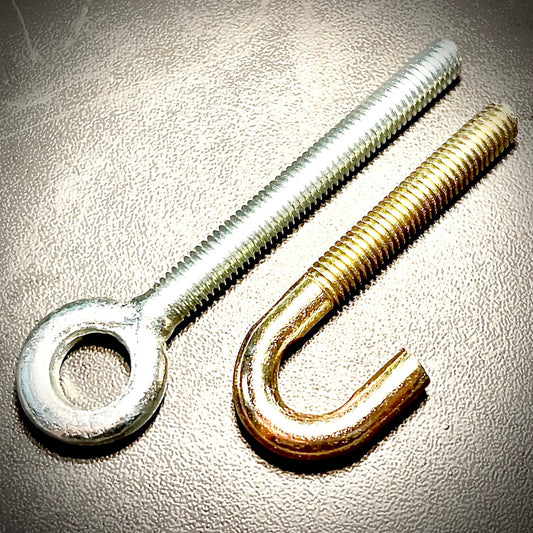

M6, M8, M10 and M12 Forged Eyebolts and Forged Hook Bolts, 4.8 Grade (mild steel) with Full Hexagon Nut and Form A Washer, Zinc Plated
Fixaball sell forged eyebolts and hookbolts
Eyebolt and Hookbolt Applications:
Eyebolts and Hookbolts are used to hang wire (catenary wire), string and rope. The bolts can be screwed directly into wood, pushed through a pre-drilled hole and fastened via a nut and washer or they can be set into masonry applications using epoxy resin. An eyebolt offers slighly more of a secure fixing as the eye is closed and a hookbolt may be used for temporary/ intermittent hanging solutions.
Eyebolt Dimensions
Fixaball Fixing and Fasteners UK |
Thread Type |
Diameter of Thread |
Length of Thread |
External Eye Diameter |
M6 |
6mm |
50mm |
18mm |
M8 |
8mm |
70mm |
22mm |
M10 |
10mm |
80mm |
25mm |
M12 |
12mm |
100mm |
32mm |
