M14 x 1.5P, Socket Screw, Cap Head, High Tensile/ 12.9, Self-Colour, DIN 912.

M14 x 1.5mm Pitch (fine), Allen/ Hexagonal Socket, Cap Head, Screw/ Bolt, High Tensile (Grade 12.9), DIN 912. Fixaball sells all lengths of M14 x 1.5mm, fine pitch, cap head, allen screw/...
£3.15

M14 x 1.5mm Pitch (fine), Allen/ Hexagonal Socket, Cap Head, Screw/ Bolt, High Tensile (Grade 12.9), DIN 912.

Fixaball sells all lengths of M14 x 1.5mm, fine pitch, cap head, allen screw/ bolts at the best internet prices with free post.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

M14 x 1.5P (fine pitch) Allen Socket, Cap Head, Bolt/ Screw lengths available:

M14-1.50x30 MM,(FT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M14-1.50x35 MM,(FT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M14-1.50x40 MM,(FT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M14-1.50x50 MM,(FT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M14-1.50x55 MM,(FT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M14-1.50x60 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M14-1.50x80 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M14-1.50x100 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR



Allen/ Hexagon Socket Screw/ Bolts

Socket Cap Screws come as 'sets' and 'bolts'. The, ‘SET’, term is used to describe a fastener that is fully threaded in lengths up to and around 1 inch (from the underside of the head. Over 1 inch in length the fastener will have a, 'shoulder,' or unthreaded area under the head. This space of unthreaded area confirms that the fastener is now a bolt (cap head, bolt in this case). Some people might simply call them Allen or, 'Allan bolts,' in association with the Allen, Hexagonal Key which is used to tighten and loosen the fastener. So, ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head.

Materials: High Tensile (12.9 Grade) - Self-colour.

Grade 12.9 Steel has a higher carbon content than your regular 8.8 high tensile steel and is therefore better for hardness and rigidity. Zinc provides a shiny metallic finish and some resistance to weathering.

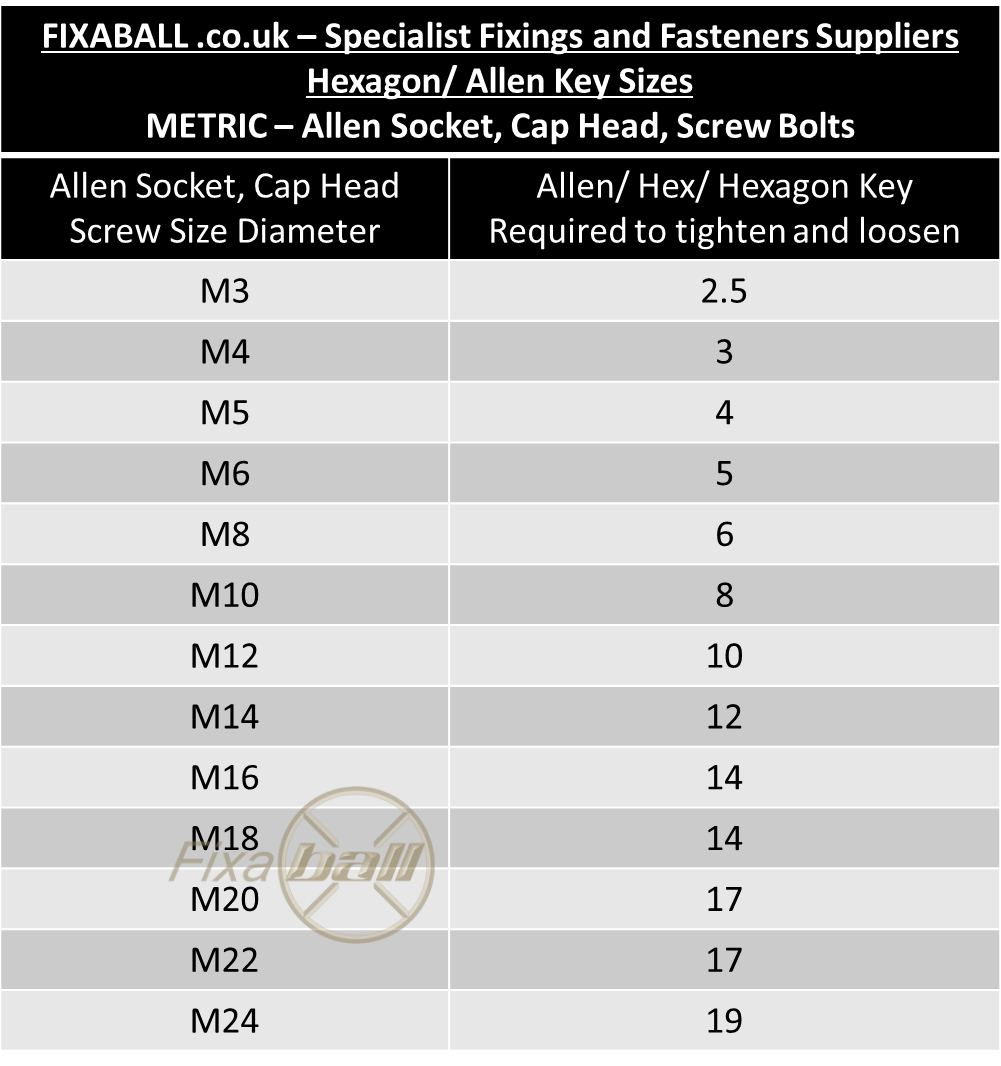

FIXABALL – Specialist Fixings and Fasteners Suppliers

Hexagon/ Allen Key Sizes

METRIC – Allen Socket, Cap Head, Screw Bolts

Allen Socket, Cap Head Screw Size Diameter

Allen/ Hex/ Hexagon Key Required to tighten and loosen

M3

2.5

M4

3

M5

4

M6

5

M8

6

M10

8

M12

10

M14

12

M16

14

M18

14

M20

17

M22

17

M24

19


    Metric Coarse and Metric Fine threads are in millimetre (mm) units and referes to the distance between the helical coils. The Metric measurement system was developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Standard (most commonly used) Coarse Threads are used for heavier loads e.g. Fabricating the Eiffel Tower and Fine Threads are used for lighter loads prone to vibrations e.g. motor and machine applications. Coarse threads are the, 'normal', most common versions.

     Image is for illustrative purposes only.
