M8 - M24 Full Hex Nuts Fine Pitch Self Colour BZP Gr8 DIN934
M8 - M24 Full Hex Nuts Fine Pitch Self Colour BZP Gr8 DIN934
Impossible de charger la disponibilité du service de retrait
Postal Notification: Royal Mail 2nd Class delivers between 5-10 days, 5% of the time. Choose 1st or tracked at checkout for time sensitive shipments.
M8, M10, M12, M14, M16, M20, M22, M24, Full Haxagon Nuts, Super Fine, Extra Fine and Fine Pitch, Material Grade 8, Self-Colour and Zinc/ BZP, DIN 934
These Hexagon Full Nuts are not Standard (regular/ most common) Thread Pitch, they are Fine, Extra or Super Fine Pitch.
Fixaball, sell M8, M10, M12, M16, M14, M20, M22, M24, Full Nuts, Fine Pitch, Steel Grade 8, DIN 934,
Units of Measurement for Metric Thread Types
Metric Coarse and Metric Fine are in Millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Description of Sizes, Grade, Finish and Thread Pitches Available
| Fullnuts Fine Pitch DIN 934 Cl.8 S/Col - M8 x 1.00 |
| Fullnuts Extra Fine Pitch DIN 934 Cl.8 S/Col - M10 x 1.00 |
| Fullnuts Fine Pitch DIN 934 Cl.8 S/Col - M10 x 1.25 |
| Fullnuts Super Fine Pitch DIN 934 Cl.8 S/Col - M12 x 1.0 |
| Fullnuts Extra Fine Pitch DIN 934 Cl.8 S/Col - M12 x 1.25 |
| Fullnuts Fine Pitch DIN 934 Cl.8 S/Col - M12 x 1.50 |
| Half Nut Fine Pitch DIN 934 Cl.8 S/Col - M12 x 1.50 |
| Fullnuts Fine Pitch DIN 934 Bright Steel S/Col - M14 x 1.5 |
| Fullnuts Fine Pitch DIN 934 Cl.8 ZINC/ BZP - M14 x 1.5 |
| Fullnuts Fine Pitch DIN 934 Cl.8 S/Col - M16 x 1.50 |
| Fullnuts Fine Pitch DIN 934 Cl.8 S/Col - M20 x 1.50 |
| Fullnuts Super Fine Pitch DIN 934 Cl.8 ZINC/ BZP - M22 x 1.50 |
| Fullnuts Super Fine Pitch DIN 934 Cl.8 ZINC/ BZP - M22 x 2.0, 2 week lead |
| Fullnuts Super Fine Pitch DIN 934 Cl.8 S/Col - M24 x 1.0 |
| Fullnuts Fine Pitch DIN 934 Cl.8 S/Col - M24 x 1.50, 2 week lead |
Full Hexagonal Nuts
Nuts are almost always used opposite a mating bolt to fasten a stack of parts together. The two partners are kept together by a combination of their threads' friction, a slight stretch of the bolt, and compression of the parts.
Nuts are most commonly hexagonal in shape. It is important to use the correct sized spanners to avoid, ‘rounding off,’ the nut. Otherwise, if using an adjustable spanner you must ensure it is full tightened over the flat faces.
|
FIXABALL – Specialist Fixings and Fasteners Spanner Sizes METRIC - Hexagon NUT |
|
|
Thread Size/ Diameter |
Spanner Size |
|
M3 (3mm) |
5.5mm |
|
M4 (4mm) |
7mm |
|
M5 (5mm) |
8mm |
|
M6 (6mm) |
10mm |
|
M8 (8mm) |
13mm |
|
M10 (10mm) |
17mm |
|
M12 (12mm) |
19mm |
|
M14 (14mm) |
22mm |
|
M16 (16mm) |
24mm |
|

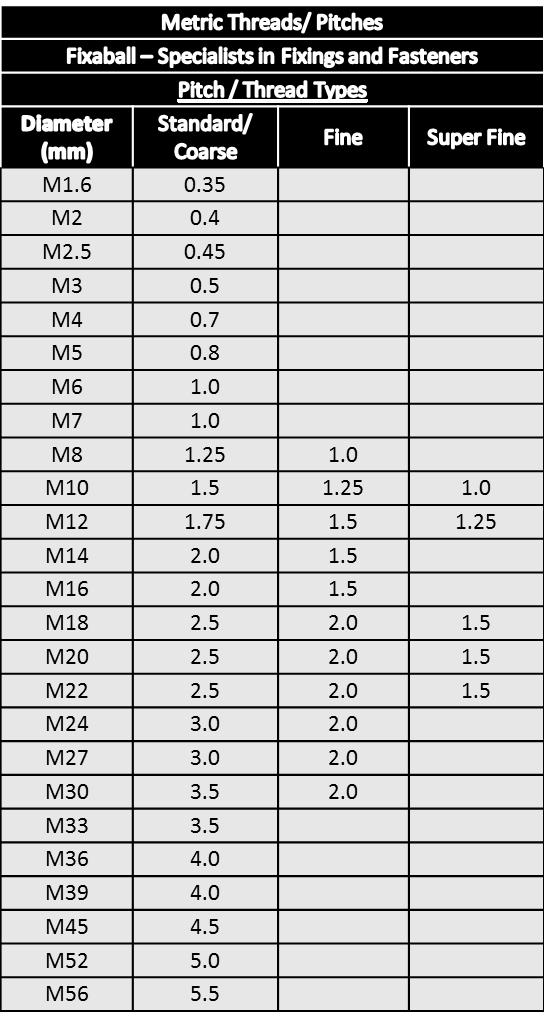

Metric Threads/ Pitches |
|||
|
Fixaball – Specialists in Fixings and Fasteners |
|||
|
Pitch / Thread Types |
|||
|
Diameter (mm) |
Standard/ Coarse |
Fine |
Super Fine |
|
M1.6 |
0.35 |
||
|
M2 |
0.4 |
||
|
M2.5 |
0.45 |
||
|
M3 |
0.5 |
||
|
M4 |
0.7 |
||
|
M5 |
0.8 |
||
|
M6 |
1.0 |
||
|
M7 |
1.0 |
||
|
M8 |
1.25 |
1.0 |
|
|
M10 |
1.5 |
1.25 |
1.0 |
|
M12 |
1.75 |
1.5 |
1.25 |
|
M14 |
2.0 |
1.5 |
|
|
M16 |
2.0 |
1.5 |
|
|
M18 |
2.5 |
2.0 |
1.5 |
|
M20 |
2.5 |
2.0 |
1.5 |
|
M22 |
2.5 |
2.0 |
1.5 |
|
M24 |
3.0 |
2.0 |
|
|
M27 |
3.0 |
2.0 |
|
|
M30 |
3.5 |
2.0 |
|
|
M33 |
3.5 |
||
|
M36 |
4.0 |
||
|
M39 |
4.0 |
||
|
M45 |
4.5 |
||
|
M52 |
5.0 |
||
|
M56 |
5.5 |
||
Images are for illustration purposes only.
