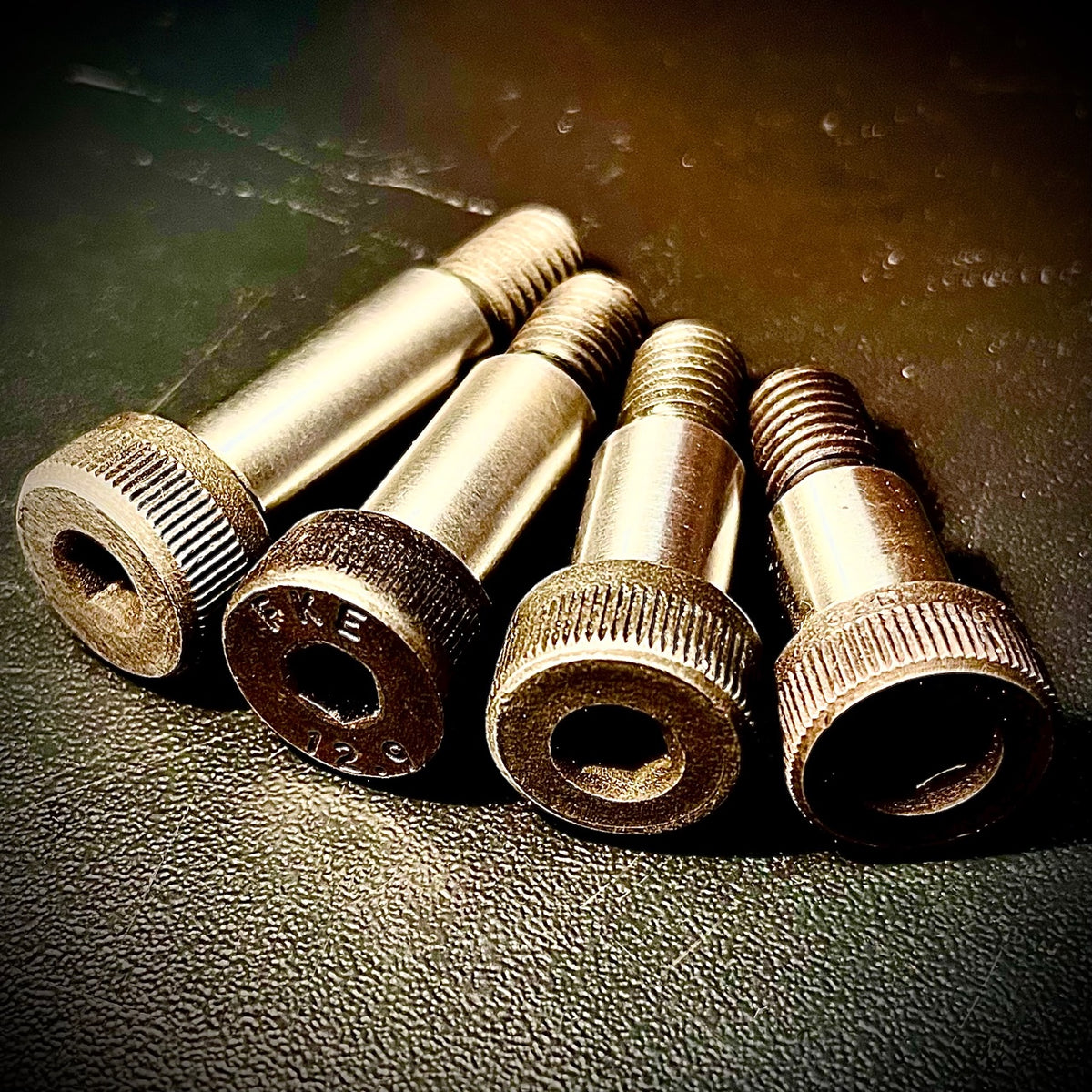

METRIC - Shoulder Cap Screw

M20 x 24mm Socket Shoulder Cap High Tensile 12.9 DIN 9841

M20 x 24mm Socket Shoulder Cap High Tensile 12.9 DIN 9841

Prezzo di listino £24.56 GBP
Prezzo di listino Prezzo scontato £24.56 GBP
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
No. of Items in Pack
Shoulder Diameter x Length

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M20 Thread, 24mm Shoulder Socket Cap Screw/ Bolts, High Tensile, Grade 12.9, DIN 9841, BS 4168, ISO 7379

Fixaball sells all sizes of M20, METRIC, Shoulder, Cap Screw/ Bolts in high tensile, grade 12.9.

Shoulder Socket Cap Screw/ Bolt Description

Shoulder Socket Cap Screws are high tensile and hardness strength fasteners with an Internal Hex or Allen key drive style head. The shoulder is a cylindrical unthreaded area before the thread, allowing for rotation of parts and are used in moving parts and other mechanical applications.

Material

Blackened alloy steel, high tensile 12.9 (Hardness 38 HRC, tensile strength 1200 N/mm²)

Technical Notes

ISO 7379. Temperature range -50°C to +300°C.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'No. of Items in Pack' and 'Shoulder Diameter x Shoulder Length' and 'Quantity' of packs selection from the drop down menus.



Metric M20 Thread, 12.9 Grade, Shoulder Cap Screw Bolt Descriptions

Socket Shoulder Caps Description Thread Type Shoulder Diameter (mm) Thread Diameter (mm) Shoulder Length (mm)
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 40
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 50
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 55
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 60
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 65
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 70
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 80
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 90
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 100
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 110
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 120



Table: To show metric socket, shoulder bolt dimensions

Fixaball – Specialists in Fixings and Fasteners

METRIC Socket, Shoulder Bolt Dimensions

All dimensions in mm

Thread Diameter

Thread Length

(Max)

Length of Shoulder

Diameter of Shoulder

(Max)

Socket Head Diameter

Hex/ Allen Key Size

M20

27.4

40, 50, 60, 70, 80, 90, 100, 120

23.98

36

12



Image is for illustrative purposes only
