Metric - Cap Head

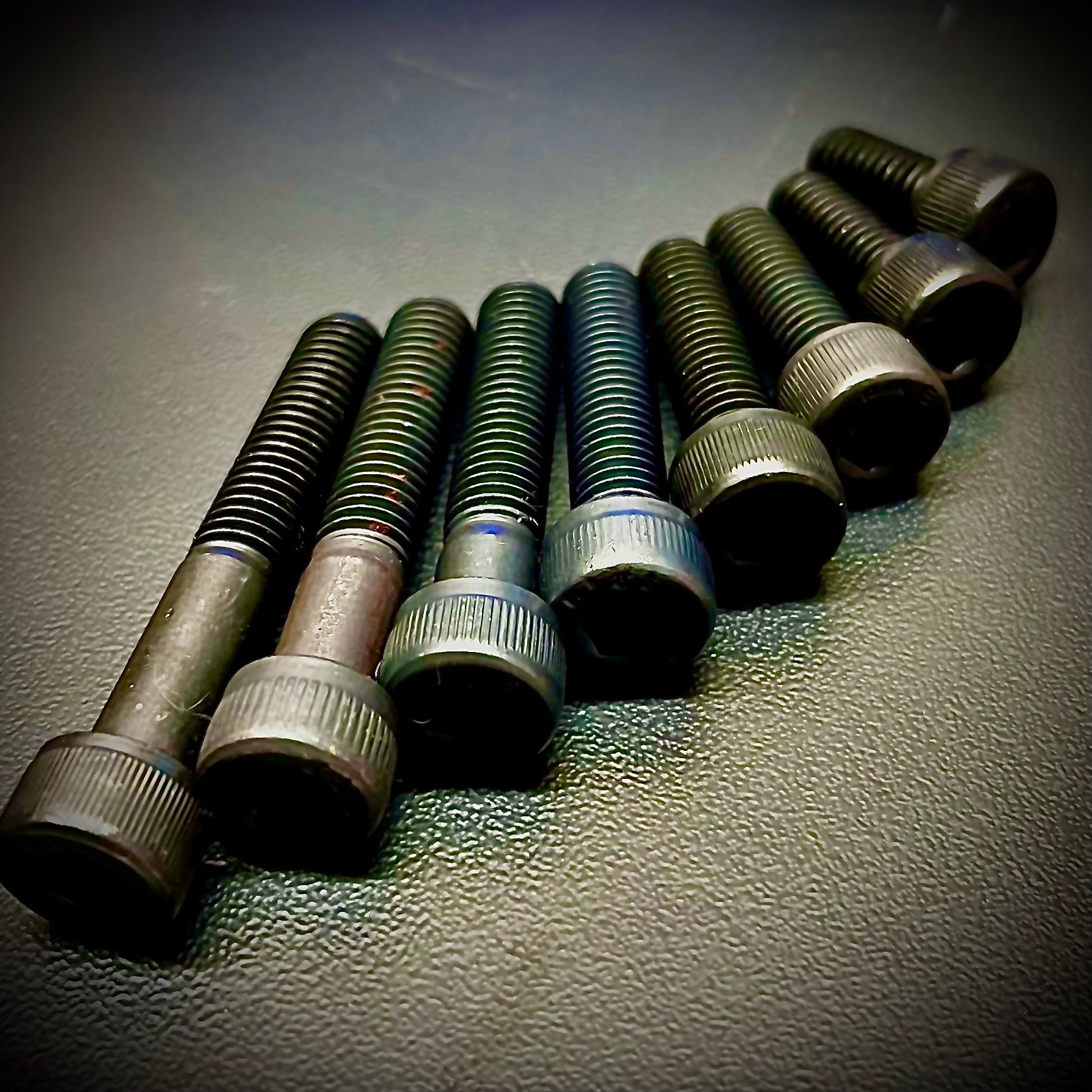

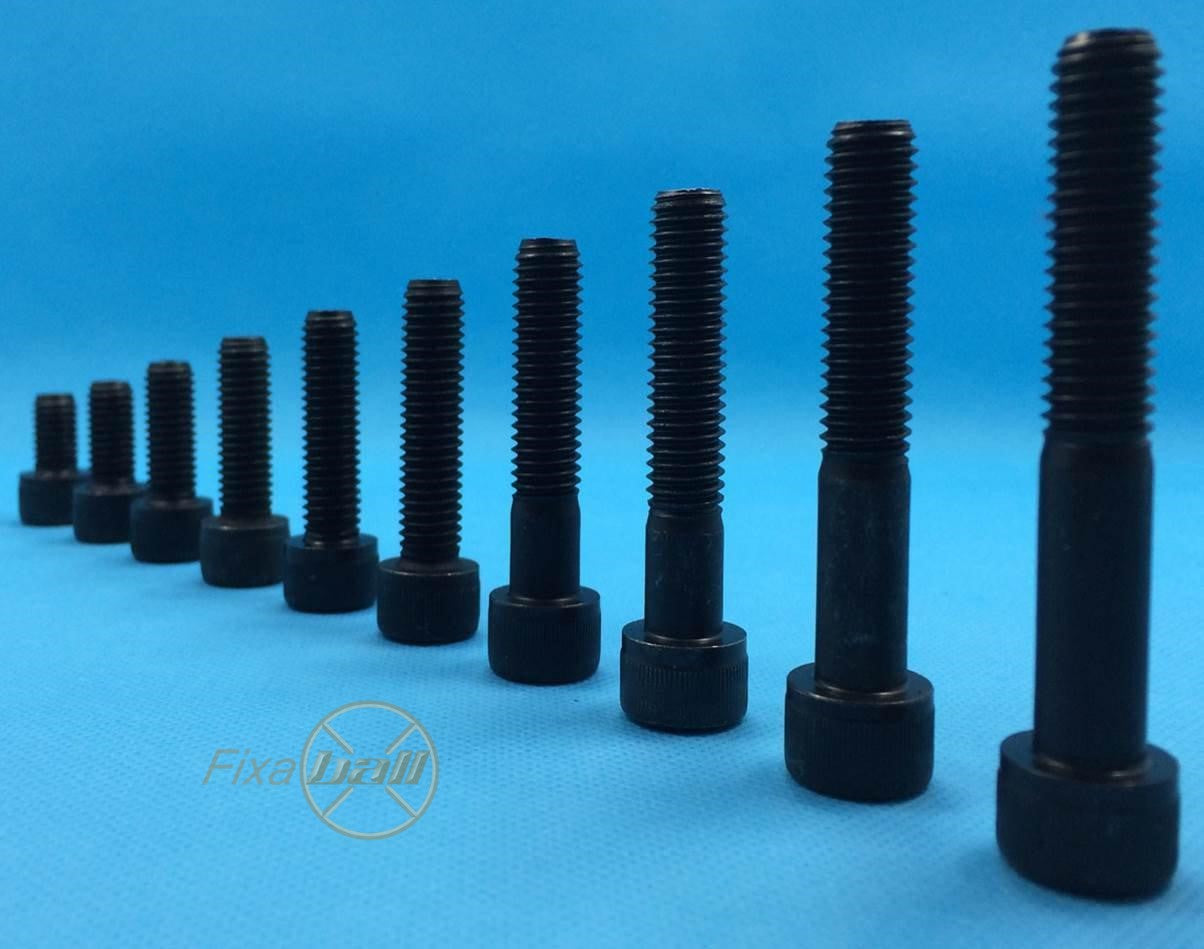

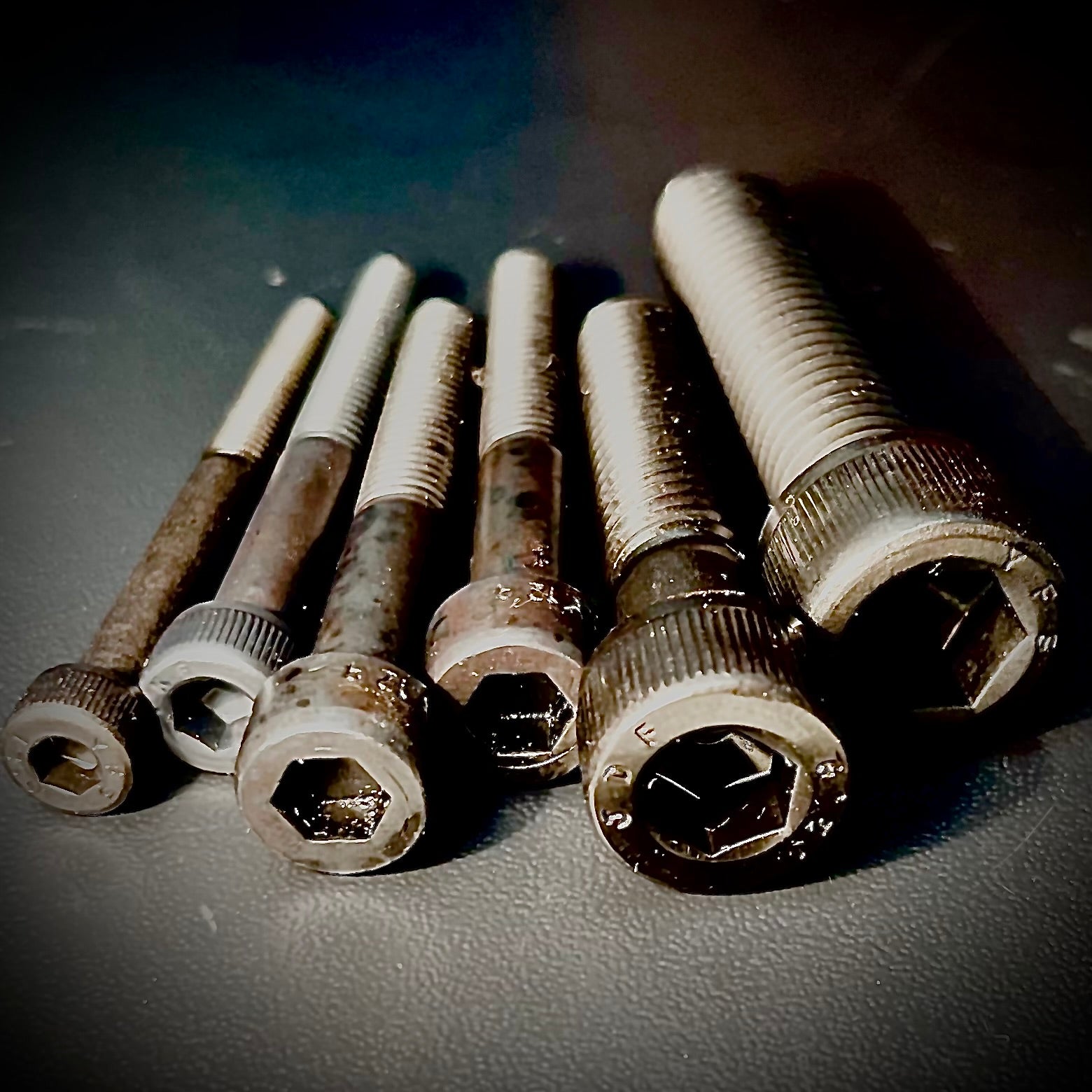

M8 x Over 70mm Socket Cap Allen Screw Bolt 12.9 Self Colour

M8 x Over 70mm Socket Cap Allen Screw Bolt 12.9 Self Colour

Prezzo di listino £2.97 GBP
Prezzo di listino Prezzo scontato £2.97 GBP
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
No. of Items in Pack
Length (mm)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M8 x over and including 70mm, Cap Head, Allen/ Hexagon Socket Screw/ Bolt, High Tensile Steel, Grade 12.9, Self Colour, DIN 912, ISO 4762

Fixaball sells all llengths of M8, Self Colour, Cap, Cylindrical Head, Allen/ Hexagon Socket, Screw/ Bolt, High Tensile Steel, Grade 12.9.

Description: M8 socket cap screw/ bolts.
Material:
High Tensile Steel Grade 12.9
Coating/ Finish:
Self Colour/ Black.
Thread:
Threads are metric coarse M8 x 1.25mm pitch.
Head diameter:
13.2mm.
Head height:
8mm.
Allen key size:
6mm.
Standard:
DIN 912.
Note:
Bolt lengths do not include the head.

What is a socket cap screw/ bolt?

The, ‘Socket Cap Screw/ Allen Bolt,’ term is used to describe a fastener that is either fully or partially threaded. A screw is fully threaded and a bolt is partialy threaded. Some engineers may call them screws if the person uses the shorter length range of sizes. The thread stays the same length as the fastener gets longer and the maximum length of thread is equal to 2.5 times the diameter (or thereabouts). ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head. Here, you can use a hexagon key (Allen Key) to tighten and loosen the fastener. 'Cap' refers to the cylindrical shaped head.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'No. of Items in Pack', 'Length' and 'Quantity' of packs, selection from the drop down menus.



M8 Cap Head, Allen/ Hexagon Socket Screw/ Bolt, High Tensile Steel, Grade 12.9, Self Colour lengths available

(FT - Fully Threaded, PT - Partially Threaded)

M8-1.25x70 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x75 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x80 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x85 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x95 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x100 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x105 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x110 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x115 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x120 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x125 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x130 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x140 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x150 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x160 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M8-1.25x170 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR



FIXABALL – Specialist Fixings and Fasteners Suppliers

Hexagon/ Allen Key Sizes

METRIC – Allen Socket, Cap Head, Screw Bolts

Allen Socket, Cap Head Screw Size Diameter

Allen/ Hex/ Hexagon Key Required to tighten and loosen

M8

6



Allen socket, Cap Head Screw/ Bolt  Applications

An allen socket, cap head screw is best used in engineering applications where you are joining components under heat and or high compression, tension, torque or shearing stress. For example, fastening together automotive or machinery parts. Allen socket, cap head screw/ bolts are designed to be used as a temporary fastener where components need maintenance or should be replaced due to functional wear.



Material: High Tensile (12.9 Grade) - Plain/ Self Colour

Material/ Finish

Appearance

Level of Corrosion Resistance

Typical Application

High Tensile Steel 12.9

Self-Colour (black with no surface treatment)

Low, without further surface treatment

No exposure to moisture.

Often Greased/ Oiled



Grade 12.9 Steel has a higher carbon content than your regular 8.8 high tensile steel and is therefore better for hardness and rigidity. Zinc provides a shiny metallic finish and some resistance to weathering.

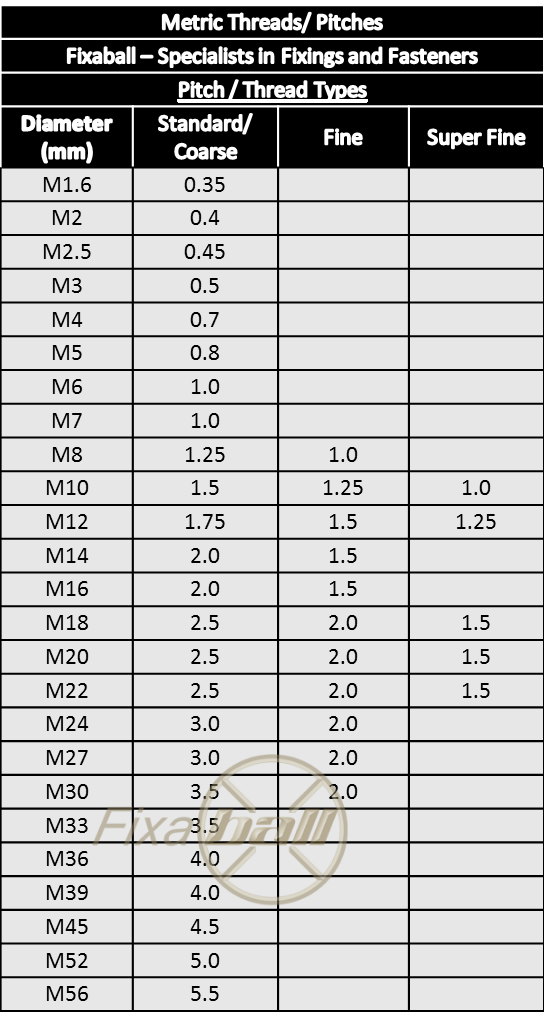

Metric Coarse threads are in millimetre (mm) units and were developed to simplify the imperial systems. A coarse thread has less helical coils per mm and is used for heavier/ higher torque loads. Coarse threads are the, 'normal', most common versions.



 Image is for illustrative purposes only.
