16mm Diameter Hex Nut, Sleeve Masonry Anchors, Zinc

16mm Diameter Hex Nut, Sleeve Masonry Anchors, Zinc 16mm Diameter, M12 Hex Nut and Stud, Sleeve Masonry Anchors for Brick/ Block, Concrete, Stone. Zinc plated, ‘NUT’ Type.  Fixaball sell all lengths...
£6.81

16mm Diameter Hex Nut, Sleeve Masonry Anchors, Zinc

16mm Diameter, M12 Hex Nut and Stud, Sleeve Masonry Anchors for Brick/ Block, Concrete, Stone. Zinc plated, ‘NUT’ Type.

Fixaball sell all lengths of 16mm diameter hex nut, sleeve, masonry anchors, at the best internet prices, with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible. Postage upgrades available at checkout.

Please make your 'no. of items in pack' and 'quantity' of packs, selection from the drop down menus.

16mm Diameter Hex Nut Sleeve Anchor Lengths and Hole Sizes

Thread Diameter Anchor Hole Size Anchor Length
M12 16mm 65mm
M12 16mm 110mm
M12 16mm 150mm



Hex Nut Sleeve Anchor Description

A hex nut sleeve anchor is an expansion anchor for fixing to all types of masonry, brick and non-porous stone. The Hex Nut sleeve anchor is a thin walled sleeve anchor suitable for use in concrete, stone, brickwork, perforated bricks and dense concrete blocks. The diagonal slot enables the small gaps to be pulled down and a positive clamping force to be exerted through the fixture.

Material Finish - Zinc

Use a zinc plated, masonry anchor when you need to hold materials/ fixtures in the dry. Using a zinc sleeve anchor in the wet will negatively effect it's reliability, dramatically and make it fail in a relatively shorter time.



Installation

Drill the correct size hole, clear/ clean the hole, place the anchor in the hole, set the anchor by tightening the nut. Avoid over tightening the nut.

Table to show important sleeve anchor dimensions:

FIXABALL

Sleeve Anchor – ‘NUT’ Type

All measurements in mm

Sleeve Anchor Size

Drilled Hole Size

Fixture Hole Size

Thread Diameter

Max. Fixture Thickness

Minimum Hole Depth

8 x 40

8

10

M6

12

35

8 x 65

8

10

M6

37

40

8 x 85

8

10

M6

50

40

10 x 40

10

12

M8

3

45

10 x 50

10

12

M8

12

45

10 x 75

10

12

M8

35

45

10 x 100

10

12

M8

50

45

10 x 125 10 12 M8 50 45

12 x 60

12

15

M10

12

50

12 x 75

12

15

M10

27

60

12 x 100

12

15

M10

50

60

12 x 125

12

15

M10

80

60

16 x 65

16

19

M12

6

60

16 x 110

16

19

M12

106

65

16 x 150

16

19

M12

140

65

20 x 80

20

24

M16

81

70

20 x 110

20

24

M16

113

70

20 x 150

20

24

M16

157

70

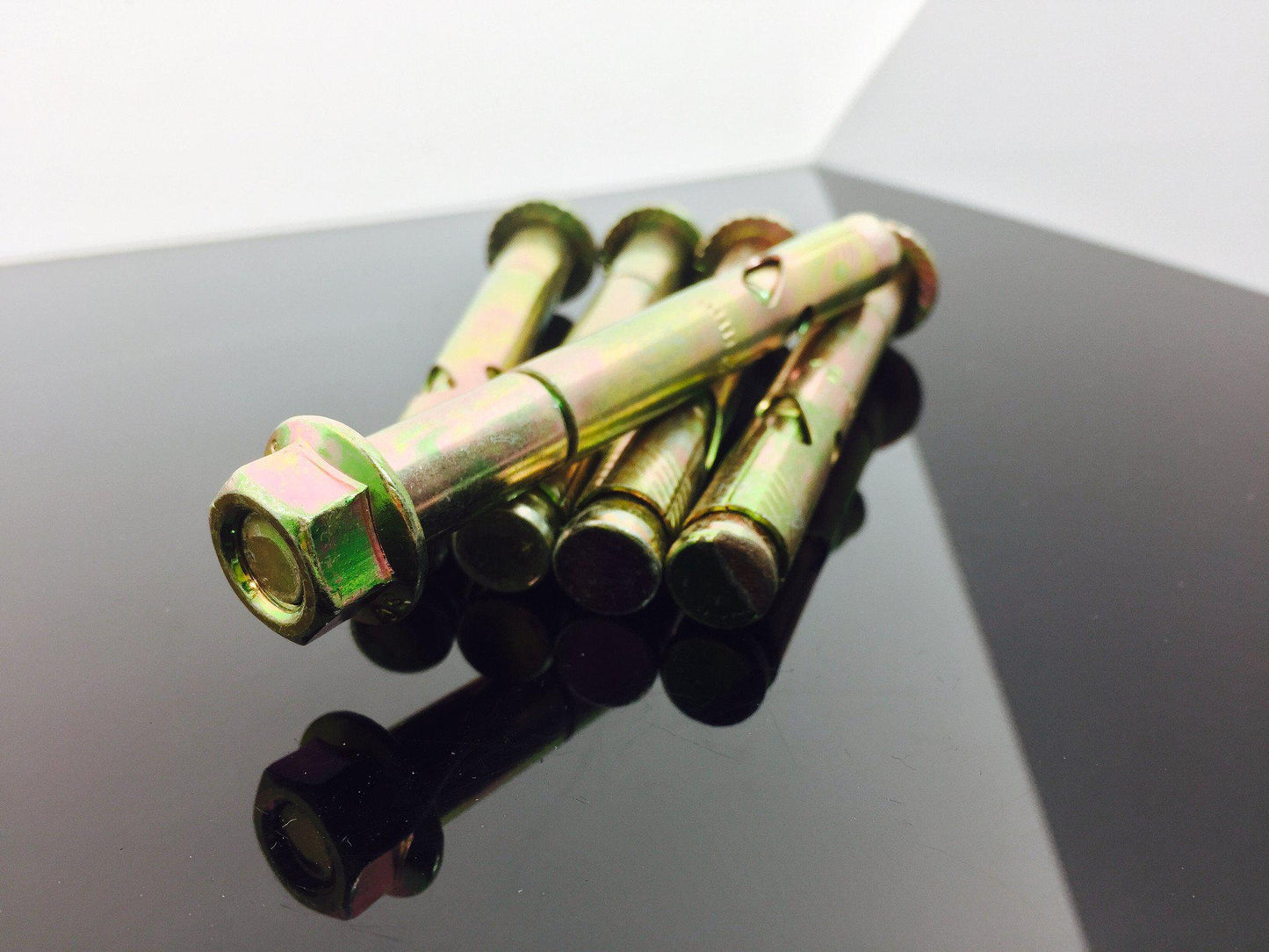

Image is for illustrative purposes only.
