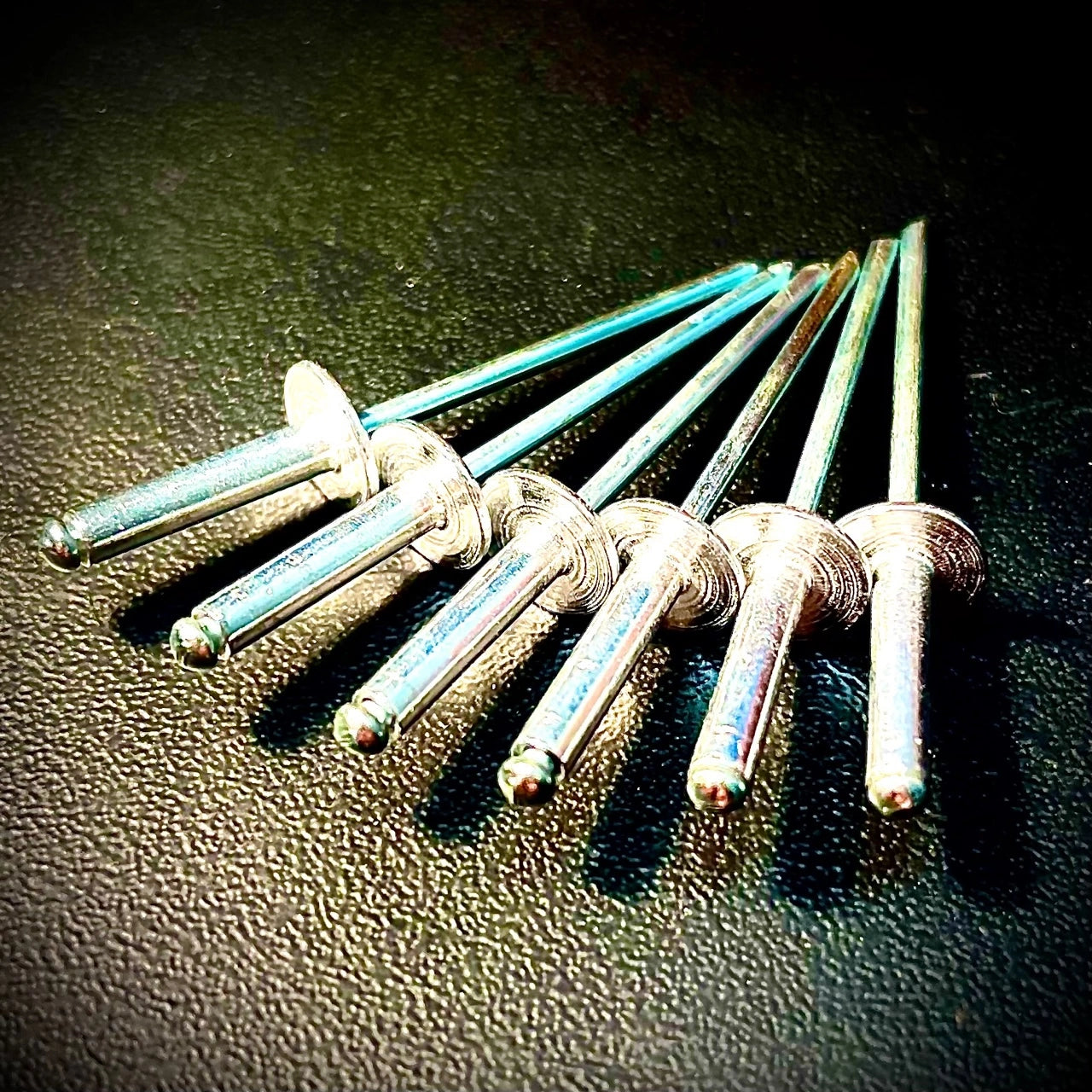

3.2mm Pop Rivets, Large Flange, Aluminium.

3.2mm, Blind/ Pop Rivets, Large Flange, Aluminium. Fixaball sell all lengths of 3.2mm, large flange, aluminium, blind rivets at the best prices, with free delivery. Orders placed before 2pm are dispatched same...
£2.39

3.2mm, Blind/ Pop Rivets, Large Flange, Aluminium.

Fixaball sell all lengths of 3.2mm, large flange, aluminium, blind rivets at the best prices, with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your size and pack quantity selection from the drop down menus.

Large Flange Pop Rivet Diameter: 3.2mm

Large Flange Pop Rivet Lengths Available:

3.2 X 6 Aluminium / Steel Large Flange Head Rivets
3.2 X 10 Aluminium / Steel Large Flange Head Rivets
3.2 X 12 Aluminium / Steel Large Flange Head Rivets
3.2 X 14 Aluminium / Steel Large Flange Head Rivets
3.2 X 16 Aluminium / Steel Large Flange Head Rivets



Large Flange Rivets

Large Flange Rivets are used in a multitude of industries such as aerospace, automotive, rail, HVAC, white goods, electronics, DIY and general engineering.

  • Body Material - Aluminium (AlMg2.5).
  • Mandrel Material - Steel Zinc & Clr Tri3.
  • Large flange, blind rivets normally used with a washer, for joining softer materials. The large flange and washer distributes the load better without damaging the joined materials.
  • Aluminium body with zinc plated steel mandrel.

Installation

The rivet assembly is inserted into a hole drilled through the parts to be joined and a specially designed tool is used to draw the mandrel into the rivet. This expands the blind end of the rivet and then the mandrel snaps off. Unlike solid rivets, blind rivets can be inserted and fully installed in a joint from only one side of a part or structure, "blind" to the opposite side. Due to this feature, blind rivets are used mainly when access to the joint is available from only one side. The rivet is placed in a drilled hole and is set by pulling the mandrel head into the rivet body, expanding the rivet body and causing it to expand against the reverse side. As the head of the mandrel reaches the face of the blind side material, the pulling force is resisted, and at a predetermined force, the mandrel snaps at its break point. A tight joint formed when deformation of the rivet occurs when joining parts are held tightly. The mandrel is removed before inserting another rivet.

Removal

Drill through where the mandrel was removed.

FIXABALL Specialist Fixings and Fasteners Suppliers

Large Flange, Alu/ Steel, Blind Rivets

RIVET

LENGTH

(A)

GRIP

RANGE

(B)

FLANGE DIAMETER

(C)

FLANGE THICKNESS

(D)

MANDREL DIAMETER

(E)

6mm

0.5mm-3.5mm

9.5mm

1.1mm

1.8mm

8mm

3.5mm-5.5mm

10mm

5.5mm-7mm

12mm

7mm-9mm

16mm

9mm-11mm

Image is for illustrative purposes only.
