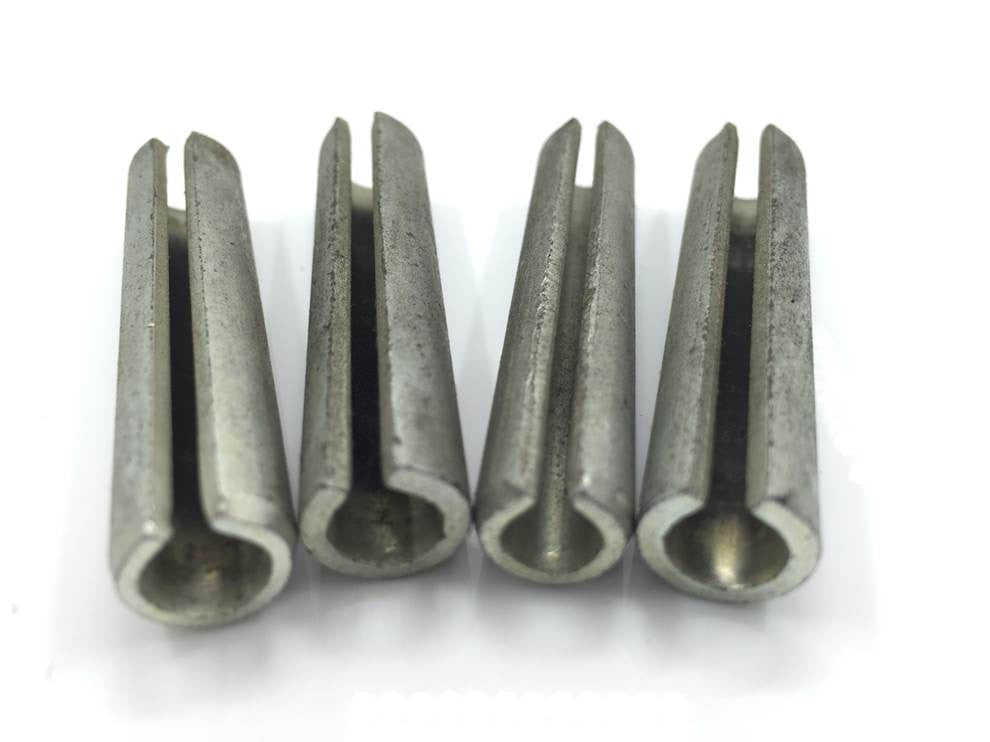

6mm, Slotted Spring Pins, A1 Stainless Steel, Heavy Type.

6mm, Slotted Spring Pin/ Tension Pin, A1 STAINLESS STEEL, Heavy Type, ISO 8752  Fixaball sells 6mm diameter, A1 stainless steel, slotted spring tension pins at the best internet prices, with free delivery. Orders placed...
£2.14

6mm, Slotted Spring Pin/ Tension Pin, A1 STAINLESS STEEL, Heavy Type, ISO 8752

Fixaball sells 6mm diameter, A1 stainless steel, slotted spring tension pins at the best internet prices, with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'No. of Items in Pack', 'Length' and 'Quantity' of pack selection from the drop down menus.

6mm Slotted Spring Pin/ Tension Pin, A1 STAINLESS STEEL, Heavy Type, Lengths available

6.0 X 12 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL
6.0 X 14 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL
6.0 X 16 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL
6.0 X 18 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL
6.0 X 20 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL
6.0 X 24 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL
6.0 X 26 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL
6.0 X 28 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL
6.0 X 30 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL
6.0 X 32 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL
6.0 X 36 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL
6.0 X 40 SLOTTED SPRING PIN HEAVY TYPE ISO 8752 A1 STAINLESS STEEL



What is a Sellock Roll Pin/ Spring Pin/ Tension Pin?

A spring pin (also called tension pin or roll pin) is a mechanical fastener that secures the position of two or more parts of a machine relative to each other. Sellock roll pins have a body diameter which is larger than the hole diameter, and a chamfer on either one or both ends to facilitate starting the pin into the hole. The spring action of the pin allows it to compress as it assumes the diameter of the hole as it is struck with a hammer into the hole. The radial force exerted by the pin against the hole wall retains it in the hole, therefore a spring pin is considered a self-retaining fastener. Spring pins are designed for use in double shear applications.

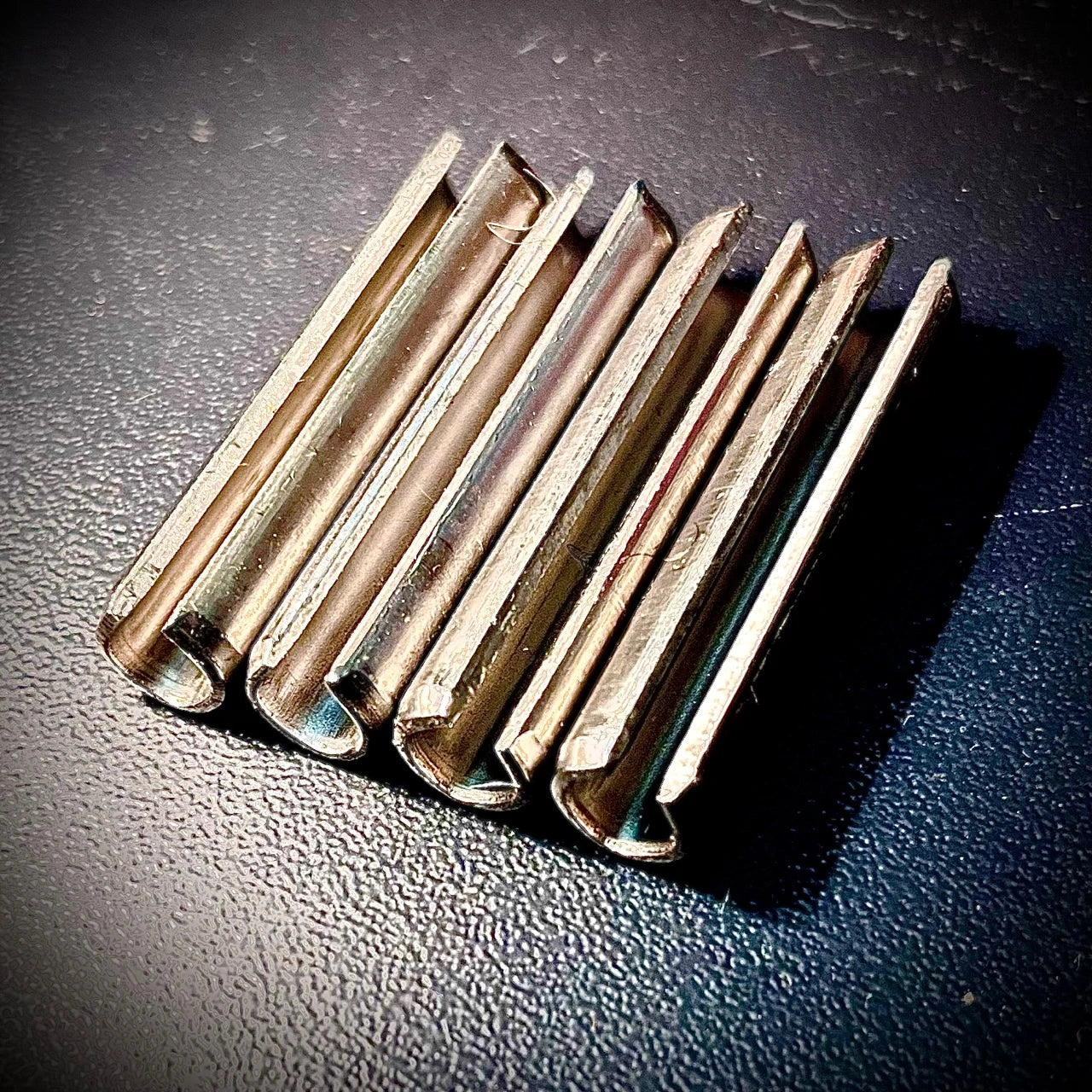

Heavy Duty

Light Duty

Image is for illustrative purposes only.
