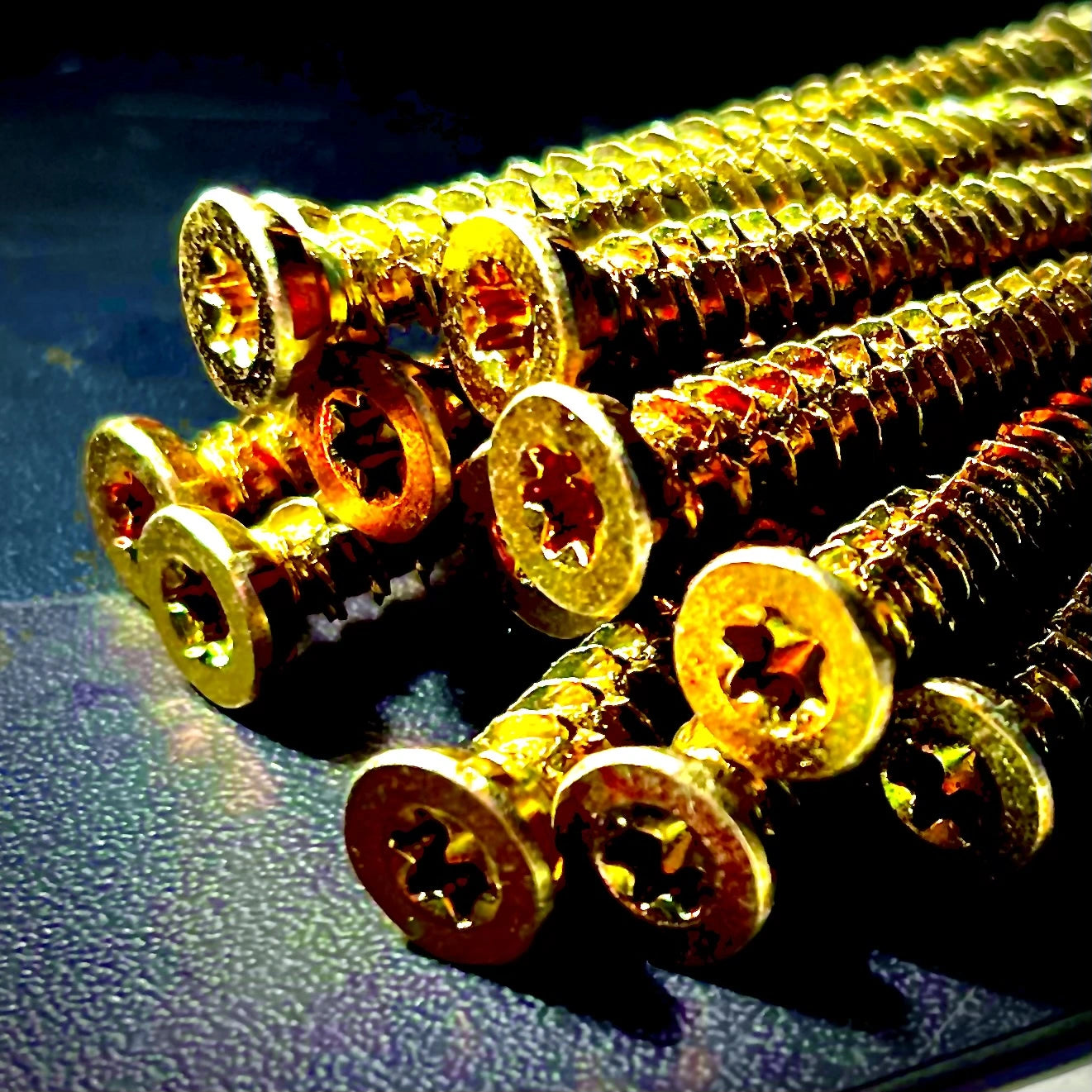

7.5mm, Concrete Frame Screw, Countersunk, Torx, Zinc

Concrete/ Masonry/ Countersunk Frame Screw for Window & Door Frames - UPVC and Timber Frames Fixaball sells all lengths of 7.5mm, T30 Torx Drive Concrete Frame Screws. Concrete/ Masonry Frame Screw...
£2.14

Concrete/ Masonry/ Countersunk Frame Screw for Window & Door Frames - UPVC and Timber Frames

Fixaball sells all lengths of 7.5mm, T30 Torx Drive Concrete Frame Screws.

Concrete/ Masonry Frame Screw Description

  • Concrete frame screws (hardened steel, self-tapping)
  • Specially designed self-tapping masonry fixing (no plug needed)
  • Finish: Zinc yellow passivated screw.

Features & benefits

  • Virtually stress free fixing, allowing close to edge applications.
  • Torx head screw for increased torque control.
  • Through-fixing, eliminating the need for marking and re-positioning.
  • High load capacity with interlocking thread into the base material.
  • Simply screws in to a pre-drilled hole cutting its own self tapping thread without the need for a sleeve or plug.
  • Probably the most versatile universal fixing available for today’s tradesman.
  • Requires: Torx T30 bit
  • Drill Size: 6mm

Applications

  • Widely used for baton, window and door frame fixing.
  • Suitable for most masonry substrates including concrete and brickwork.

Countersunk Concrete Masonry rame Screw Fixing Lengths Available:

7.5 x 50mm Concrete Screws C/W T30 Bit
7.5 X 60mm Concrete Screws C/W T30 Bit
7.5 X 80mm Concrete Screws C/W T30 Bit
7.5 X 90mm Concrete Screws C/W T30 Bit
7.5 X 100mm Concrete Screws C/W T30 Bit
7.5 X 120mm Concrete Screws C/W T30 Bit
7.5 X 150mm Concrete Screws C/W T30 Bit
7.5 x 180mm Concrete Screws C/W T30 Bit

Orders placed before 2pm are dispatched same day (Mon-Fri).

Please make you select your size requirement from the drop down menus at the top of the page.



    Metric Size

    Insert Bit Size

    Drill Size

    Min. Hole Depth

    Max. Fixing

    7.5 x 40mm

    T30

    6mm

    45mm

    5mm

    7.5 x 50mm

    T30

    6mm

    45mm

    10mm

    7.5 x 60mm

    T30

    6mm

    45mm

    20mm

    7.5 x 70mm

    T30

    6mm

    45mm

    30mm

    7.5 x 80mm

    T30

    6mm

    45mm

    40mm

    7.5 x 90mm

    T30

    6mm

    45mm

    55mm

    7.5 x 100mm

    T30

    6mm

    45mm

    60mm

    7.5 x 112mm

    T30

    6mm

    45mm

    70mm

    7.5 x 122mm

    T30

    6mm

    45mm

    80mm

    7.5 x 132mm

    T30

    6mm

    45mm

    90mm

    7.5 x 152mm

    T30

    6mm

    45mm

    110mm

    7.5 x 182mm

    T30

    6mm

    45mm

    130mm

    7.5 x 202mm

    T30

    6mm

    45mm

    150mm
