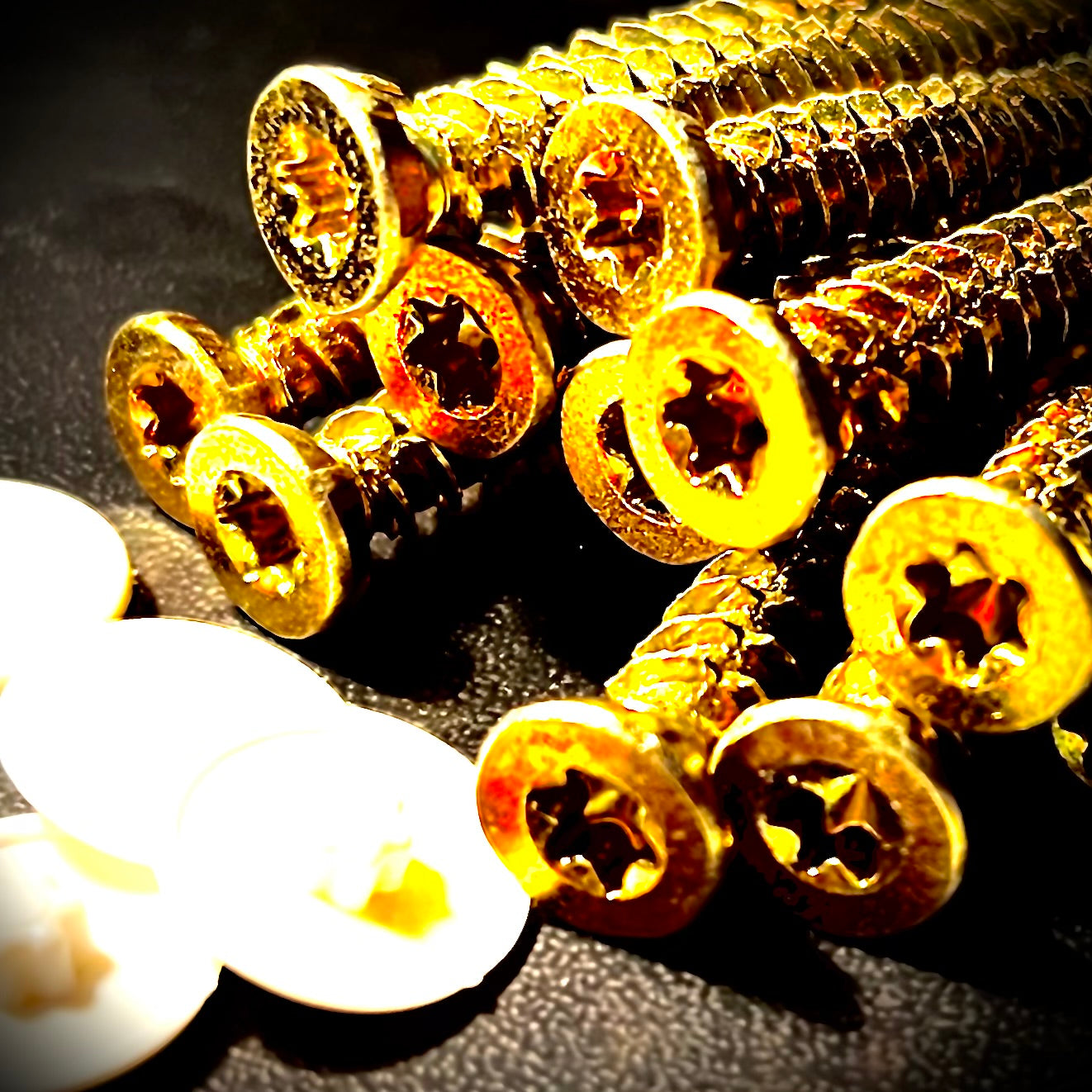

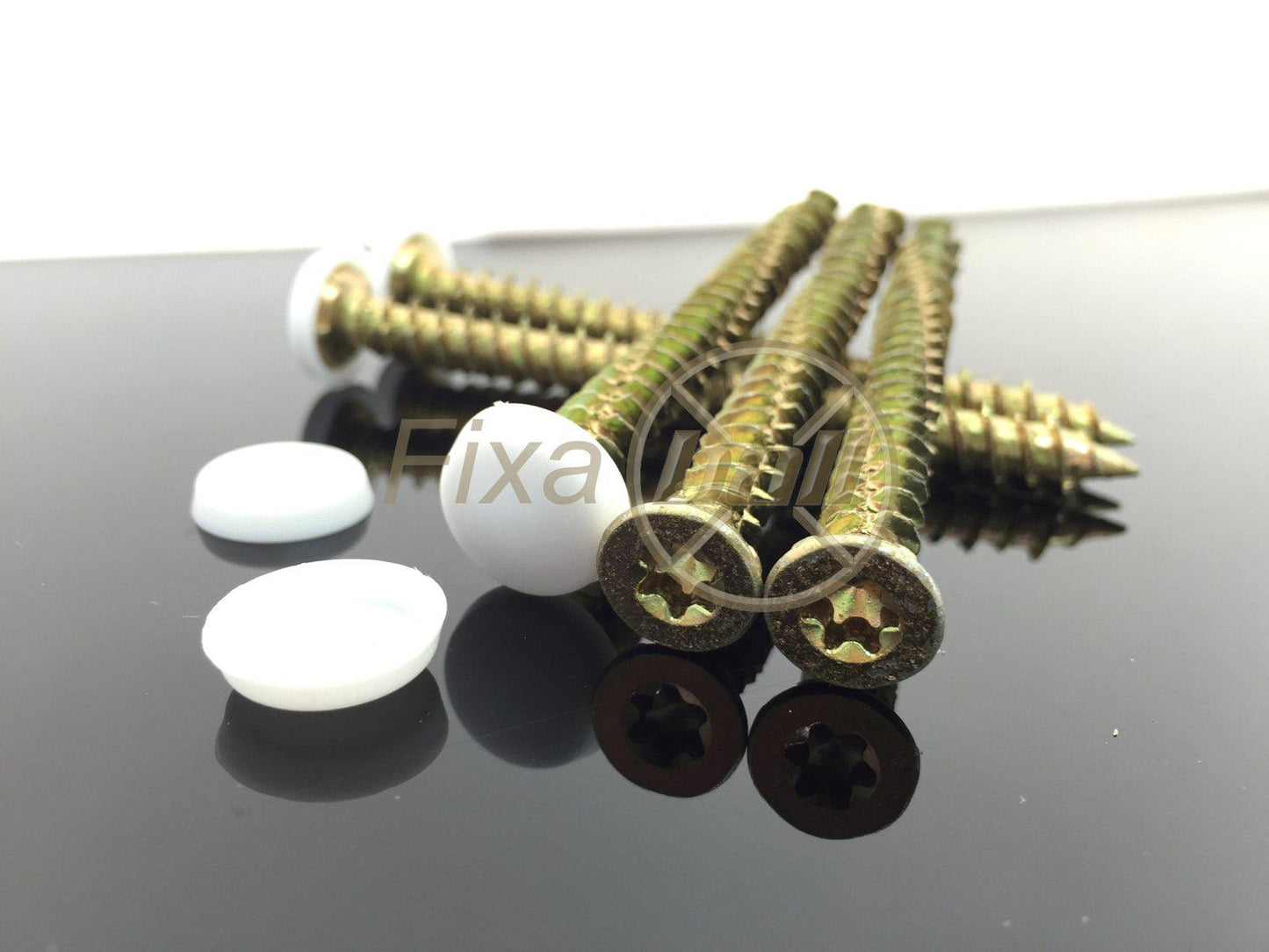

7.5mm, Concrete Frame Screw, White Cap, Countersunk, Torx , Zinc.
White Caps, Concrete/ Masonry/ Countersunk Frame Screw for Window & Door Frames - UPVC and Timber Frames
Fixaball sells all lengths of 7.5mm, T30 Torx Drive Concrete Frame Screws.
Concrete/ Masonry Frame Screw Description
- Concrete frame screws (hardened steel, self-tapping)
- Specially designed self-tapping masonry fixing (no plug needed)
- Finish: Zinc yellow passivated screw.
Features & benefits
- Virtually stress free fixing, allowing close to edge applications.
- Torx head screw for increased torque control.
- Through-fixing, eliminating the need for marking and re-positioning.
- High load capacity with interlocking thread into the base material.
- Simply screws in to a pre-drilled hole cutting its own self tapping thread without the need for a sleeve or plug.
- Probably the most versatile universal fixing available for today’s tradesman.
- Requires: Torx T30 bit
- Drill Size: 6mm
Applications
- Widely used for baton, window and door frame fixing.
- Suitable for most masonry substrates including concrete and brickwork.
Countersunk Concrete Masonry rame Screw Fixing Lengths Available:
7.5 x 50mm Concrete Screws C/W T30 Bit |
7.5 X 60mm Concrete Screws C/W T30 Bit |
7.5 X 80mm Concrete Screws C/W T30 Bit |
7.5 X 90mm Concrete Screws C/W T30 Bit |
7.5 X 100mm Concrete Screws C/W T30 Bit |
7.5 X 120mm Concrete Screws C/W T30 Bit |
7.5 X 150mm Concrete Screws C/W T30 Bit |
7.5 x 180mm Concrete Screws C/W T30 Bit |
Orders placed before 2pm are dispatched same day (Mon-Fri).
Please make you select your size requirement from the drop down menus at the top of the page.
Metric Size |
Insert Bit Size |
Drill Size |
Min. Hole Depth |
Max. Fixing |
7.5 x 40mm |
T30 |
6mm |
45mm |
5mm |
7.5 x 50mm |
T30 |
6mm |
45mm |
10mm |
7.5 x 60mm |
T30 |
6mm |
45mm |
20mm |
7.5 x 70mm |
T30 |
6mm |
45mm |
30mm |
7.5 x 80mm |
T30 |
6mm |
45mm |
40mm |
7.5 x 90mm |
T30 |
6mm |
45mm |
55mm |
7.5 x 100mm |
T30 |
6mm |
45mm |
60mm |
7.5 x 112mm |
T30 |
6mm |
45mm |
70mm |
7.5 x 122mm |
T30 |
6mm |
45mm |
80mm |
7.5 x 132mm |
T30 |
6mm |
45mm |
90mm |
7.5 x 152mm |
T30 |
6mm |
45mm |
110mm |
7.5 x 182mm |
T30 |
6mm |
45mm |
130mm |
7.5 x 202mm |
T30 |
6mm |
45mm |
150mm |
