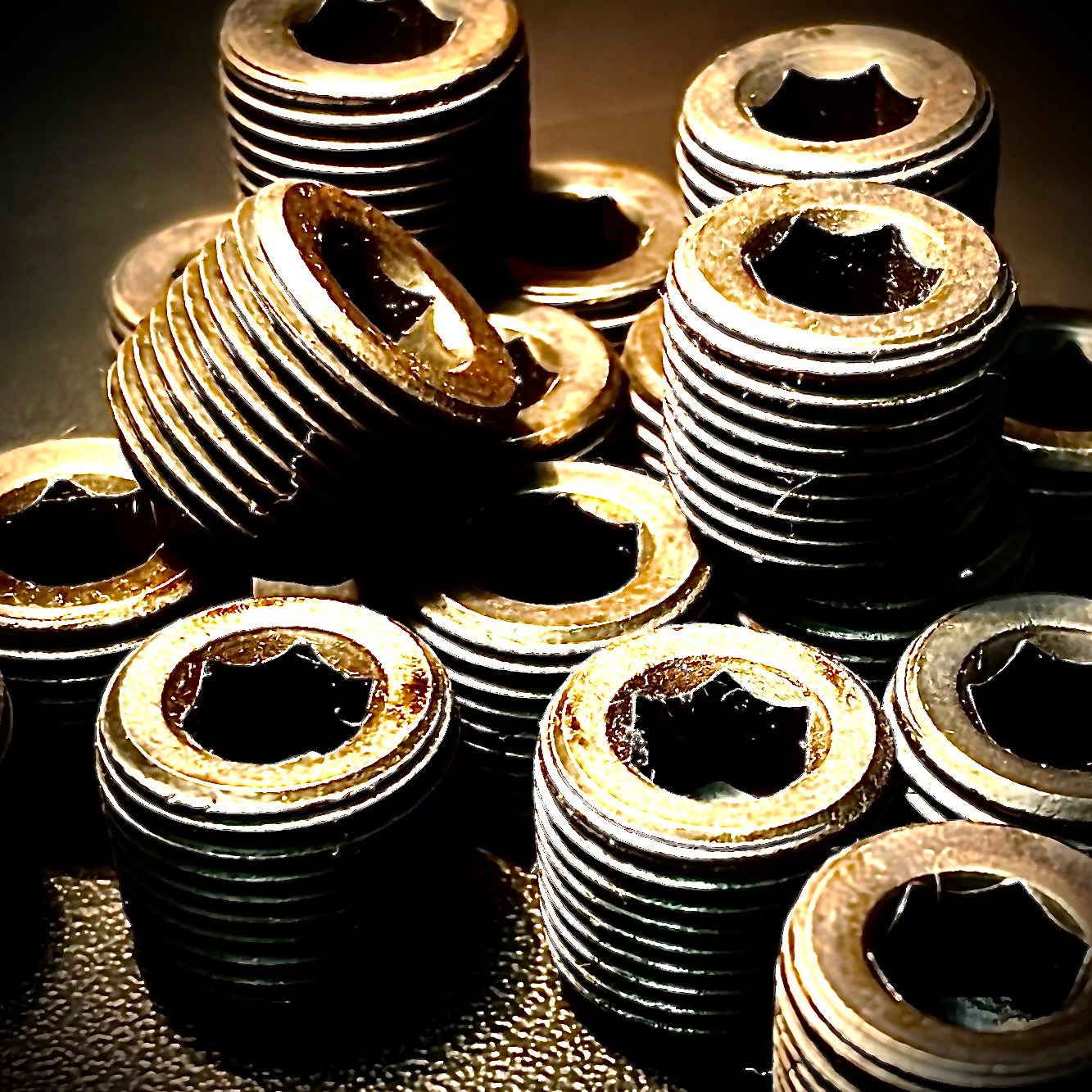

Grub - Taper Pressure Pipe Plug

BSPT Taper Pressure Pipe Plug Allen Socket Screw Steel Self Colour BS21

BSPT Taper Pressure Pipe Plug Allen Socket Screw Steel Self Colour BS21

Regular price £2.49 GBP
Regular price Sale price £2.49 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
No. of Items in Pack
BSPT Diameter - TPI x Length

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

BSPT Taper Pressure Pipe Plug, Allen Socket Set Screw, Steel, Self Colour, BS 21, ASME B31.3

Fixaball sells all diameters of 3/4" long, BSPT Taper Pressure Pipe Plug, Allen Socket Set Screw, Steel, Self Colour, BS 21.
  • BSPT (British Standard Pipe Taper)
  • British Standards BS 21
  • High strength fastener with hexagon (Allen key) drive
  • Used for hydraulic and pneumatic applications, natural gas, oil, steam and water
  • 3/4" per foot taper
  • Inserted into the end of matching female BSPT threads in pipes and fittings
  • Provide a pressure tight seal with no leakage between the threads
  • Taper Pressure Plugs seal at pressures up to 5,000 psi and without a sealing compound
  • Manufactured in accordance with ASME B31.3
  • Alloy steel heat treated to HRC 36-43



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'No. of Items in Pack', 'Size' and 'Quantity' of packs selection from the drop down menus.



BSPT Taper Pressure Pipe Plug, Size, Threads Per Inch, Length and Description

1/8"-28x3/4" PIPE PLUGS BSPT SELF COLOUR
1/4"-19x3/4" PIPE PLUGS BSPT SELF COLOUR
3/8"-19x3/4" PIPE PLUGS BSPT SELF COLOUR
1/2"-14x3/4" PIPE PLUGS BSPT SELF COLOUR
5/8”"-14x3/4" PIPE PLUGS BSPT SELF COLOUR
3/4"-14x3/4" PIPE PLUGS BSPT SELF COLOUR
1"-11x3/4" PIPE PLUGS BSPT SELF COLOUR
1 1/4"-11x3/4" PIPE PLUGS BSPT SELF COLOUR
1 1/2"-11x3/4" PIPE PLUGS BSPT SELF COLOUR



Important Information about determining the BPST size you need

BSP sizes do not match up with what you measure on a steel rule. The size system was originally based on the inside diameter of the pipe to be fitted,

To determine the thread size (approximately), measure the outside diameter ().D) of the pipe in imperial/ inches (easiest dimension to take) and subtract 1/4" or 0.25" from the O.D measurement. So, if you measure an O.D of !" then the fitting you need is most likely 3/4" or 0.75"

Important Imperial BSPT Taper Pressure Pipe Plug Dimensions

Fixaball Fixings and Fasteners UK
BSP Fitting Size Measured Male Thread O.D. Measured Female Thread O.D.
 Imperial mm inch mm inch
1/8” 9,5 37 8.4 0.33
1/4' 12,8 0.5 11.2 44
3/8” 16.3 0.64 147 0.59
112” 20.4 0.8 18.3 0.72
518” 22,5 0,89 20.6 0.81
3/4” 259 1 02 239 0.94
1” 326 1.28 29.7 1.17
1.1/4” 41.1 1.62 38.6 1.52
1.11” 47 1.85 445 1.75
58.6 2.31 56.4 2.22
2.1/2' 74.1 2.92 71.9 2.83
£3.00 86.6 3.41 84.6 3.33



Image is for illustrative purposes only.
