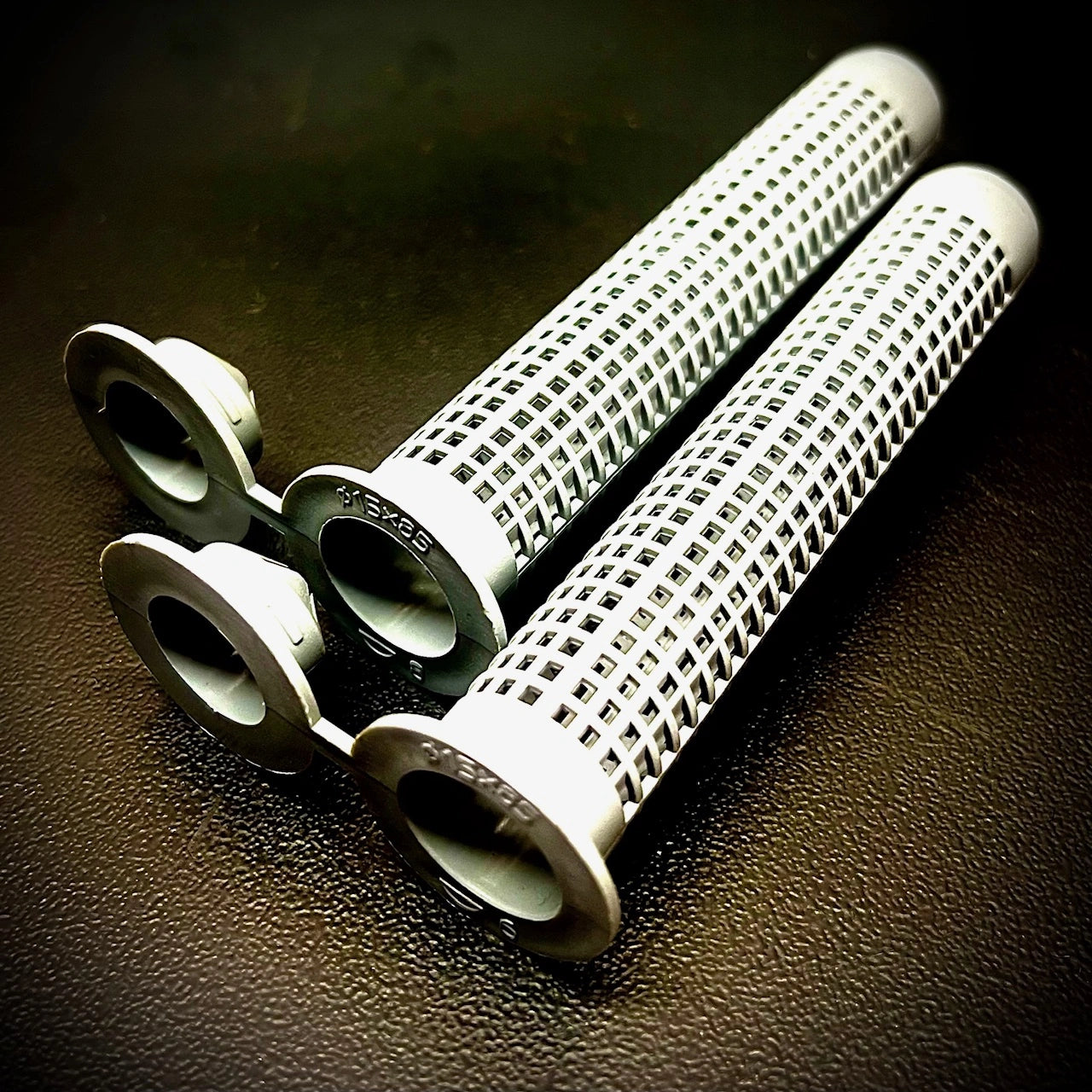

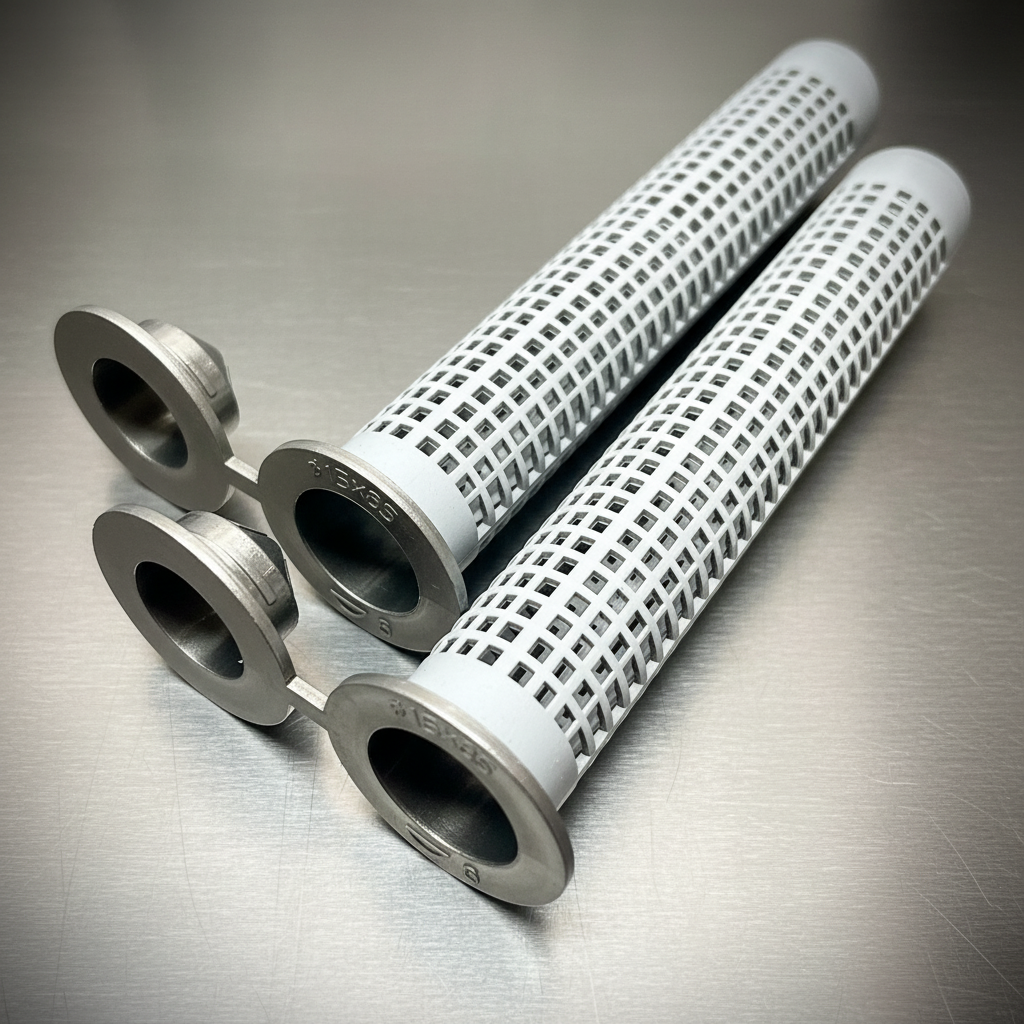

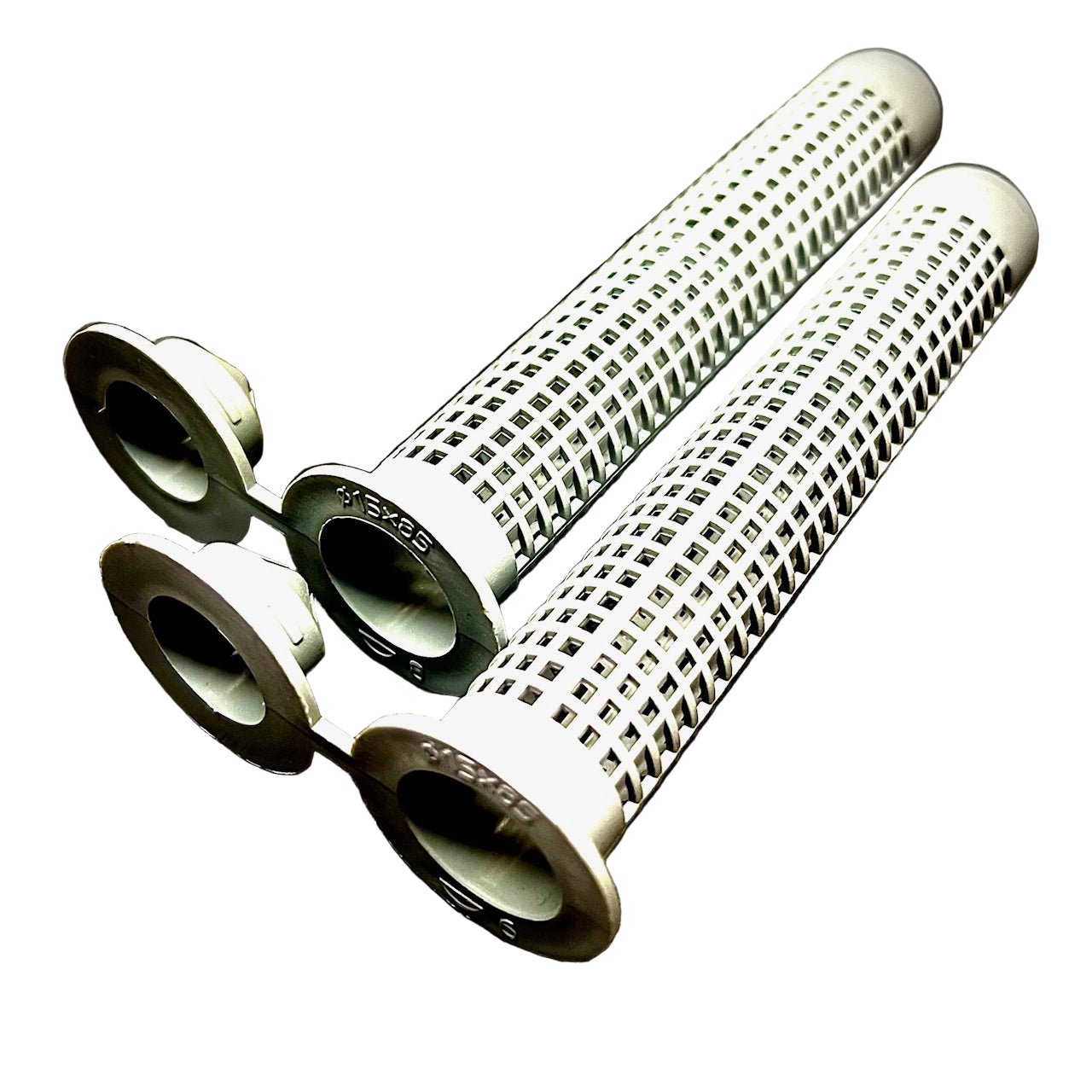

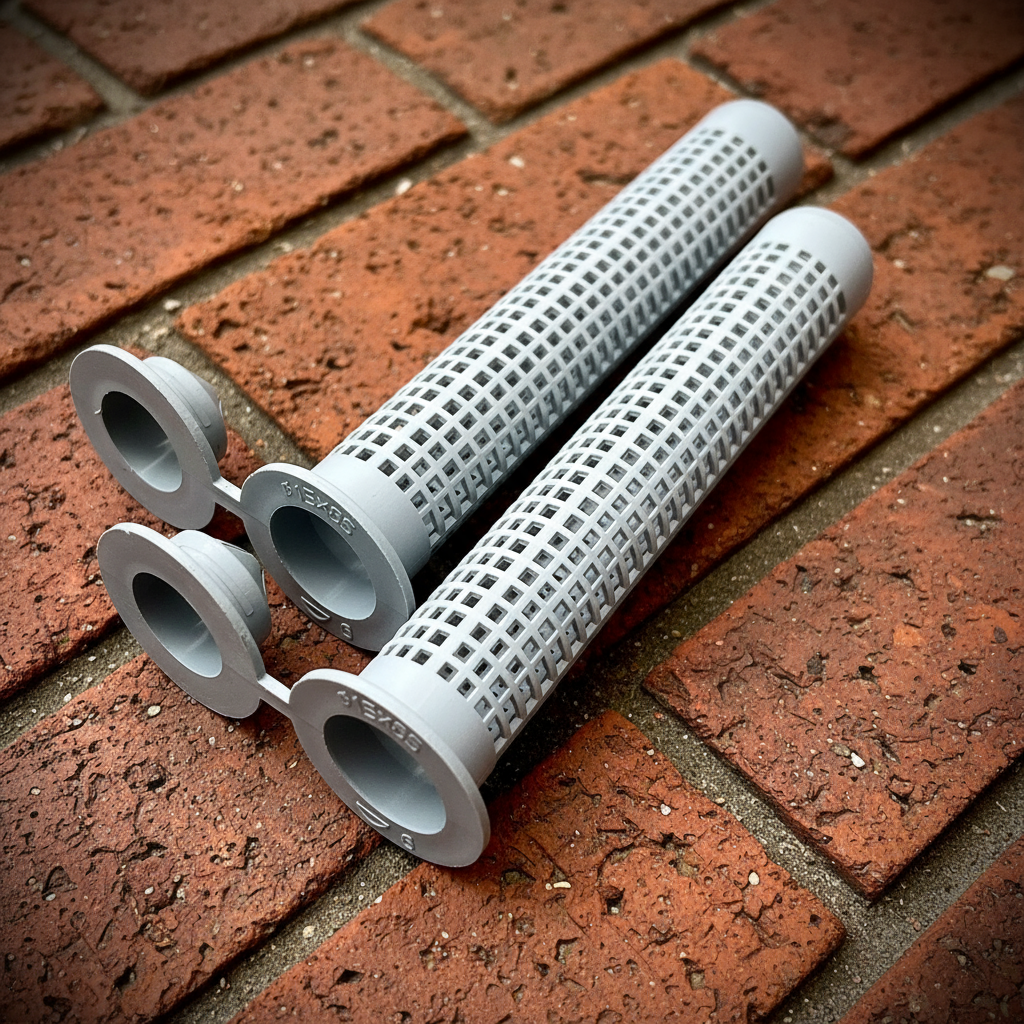

Chemical Anchor Sleeve, Plastic/ Nylon.

Chemical Anchor Sleeve, Plastic/ Nylon, with Allignment Collar Fixaball.co.uk sells quality chemical anchor resin sleeves, at the best internet prices, with free delivery. Orders placed before 2pm are usually dispatched...
£2.69

Chemical Anchor Sleeve, Plastic/ Nylon, with Allignment Collar

Fixaball.co.uk sells quality chemical anchor resin sleeves, at the best internet prices, with free delivery.

Orders placed before 2pm are usually dispatched same day (Mon-Fri).

Please make your size and pack quantity selection from the drop down menus.

Purpose

They are plastic, nylon mesh so that the resin can pass through into the voids of the hollow substrate, spread the load of the anchor stud, fixing heavy loads, securely.

They can be used in the following hollow, masonry applications:

  • Slab
  • Sand-lime Brick
  • Brick
  • Lightweight Concrete Block

They aren't suitable for cracked, hollow masonry

Advantages

  • Reduces/ controls consumption of resin
  • User-friendly installation in hollow substrates
  • Hole cleaning is not necessary
  •

    Installation

  • Insert the threaded bar/ studding into the centre of the sleeve.
  • Fixaball Fixings and Fasteners

    All Sizes in MM

    Sleeve Diameter

    Sleeve Length

    Hole Diameter

    Minimum Hole Depth

    Suitable Threaded bar

    12

    50

    12

    80

    M8

    15

    85

    16

    110

    M10, M12

    20

    85

    22

    110

    M16



    1. Drill the hole square and remove large chippings.

    2. Insert the sleeve in the hole so that it's top lip is flush with the surface of the substrate.

    3. Apply the resin in 100 % of depth of the hole

    4. The stud must be held in the centre of the sleeve and set in the centre for maximum effecieny

    5. After the resin has set, do not over tighten the fixing to avoid breaking the fix.



    Image is for illustrative purposes only.
