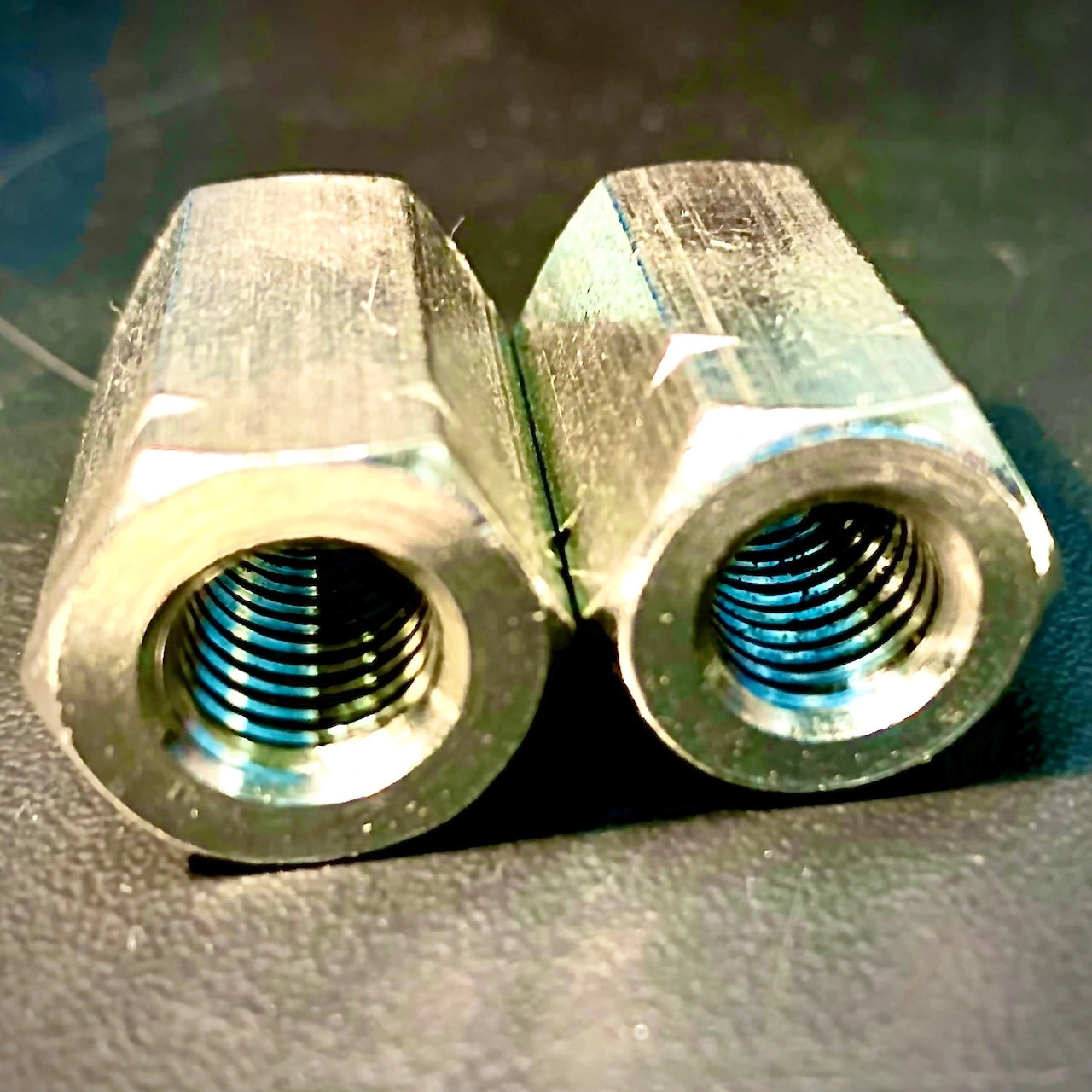

Hex Allthread Connector Nut, A2/ 304 Stainless Steel, M6, M8, M10, M12, M16, M20, M24

Hex Allthread Connector Nut, A2/ 304 Stainless Steel, M6, M8, M10, M12, M16, M20, M24 A2/ 304 Stainless Steel, Hexagon Threaded Bar/ Rod Connector Nut M6, M8, M10, M12, M16,...
£5.87

Hex Allthread Connector Nut, A2/ 304 Stainless Steel, M6, M8, M10, M12, M16, M20, M24

A2/ 304 Stainless Steel, Hexagon Threaded Bar/ Rod Connector Nut M6, M8, M10, M12, M16, M20, M24,

Fixaball sells all diameters of A2/ 304 Stainless Steel, Metric, Hexagon, Threaded Bar/ Rod, Connector Nuts, at the best internet prices, with free post.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

A2/ 304 Stainless Steel, Hexagon Threaded Bar/ Rod Connector Nut Sizes Available

M6 X 30 HEXAGON CONNECTOR NUT (10mm A/F) A2 STAINLESS STEEL
M8 X 24 HEXAGON CONNECTOR NUT (13mm A/F) A2 STAINLESS STEEL
M10 X 30 HEXAGON CONNECTOR NUT (17mm A/F) A2 STAINLESS STEEL
M12 X 36 HEXAGON CONNECTOR NUT (19mm A/F) A2 STAINLESS STEEL
M16 X 48 HEXAGON CONNECTOR NUT (24mm A/F) A2 STAINLESS STEEL
M20 X 60 HEXAGON CONNECTOR NUT (30mm A/F) A2 STAINLESS STEEL



Hexagon Threaded Bar/ Rod Connector Nut Application

A hexagon connector nut is used as a coupling 2 threaded bars together. To fasten the rods you would turn the connector nut clockwise/ to the right (righty-tighty) until the threaded bar reaches half way up the nut. Then, turn the connecting threaded bar (wearing hand protection) into the open end until it meets the other that's altready inserted.

Use an adjustable spanner or correct sized spanner to tighten or reease the threaded bar connection.

These connector nuts are standard coarse thread and will fit the following standard metric diameters/ threads)

Diameter (d)

Standard Coarse Thread Pitch

s

e

M6
1mm
10
11.1
M8
1.25mm
13
15
M10
1.5mm
17
19.6
M12
1.75mm
19
21.9
M16
2mm
24
27.7
M20
2.5mm
30
34.6
M24
3mm
36
41.6
M30
3.5mm
46
53.1
