J-Fix Spin in, Chemical Anchor Resin Capsules.
J-Fix Hammer In, Chemical Resin Capsules
Fixaball sells all sizes of J-Fix, hammer in chemical resin caps at the best internet prices and with free, first class delivery.
Orders placed before 2pm are usually dispatched same day (Mon-Fri).
Please make your size and pack quantity selection from the drop down menus at the top of the page.
Chemical Resin Caps - Important Dimensions
Fixaball.co.uk – J-Fix Hammer In, Chemical Resin Capsules |
|||
Diameter of Stud/ Capsule Diameter |
Anchor Hole Diameter |
Capsule Length |
Qty Per Box |
10mm |
13 |
90mm |
10 |
12mm |
15 |
110mm |
10 |
16mm |
20 |
125mm |
10 |
20mm |
25 |
175mm |
6 |
24mm |
30 |
210mm |
6 |
30mm |
38 |
265mm |
6 |
Advantages of using Chemical Anchor Capsules:
- They offer an easy fixing for many types of application. Use one capsule per hole, with no need for mixing, no waste and no mess.
- They are quick-setting to offer a fast and simple fixing for stud and re-bar.
- They are suitable for smaller jobs with fewer fixings and for overhead anchoring or close edge fixing.
- They ensure that no load stress is imparted into the base material, and are therefore ideally suited for high load
- Ideal for anchoring structural steel columns, beams, and for machinery hold down. They are also suitable for installing handrails, balustrades and safety barriers.
They work on the basic principle of having a base resin and a hardener, or catalyst that mix (hence the term, “chemical anchor”). This happens when the all-thread studding/ bar/ rod is twisted into the pre-drilled hole. The capsule breaks and the aggregate and hardener mix to create a substance harder that the material you are fixing to. You can see the hardener inside the capsule; you must return any capsules that do not flow. It means that the hardener and resin has already mixed.

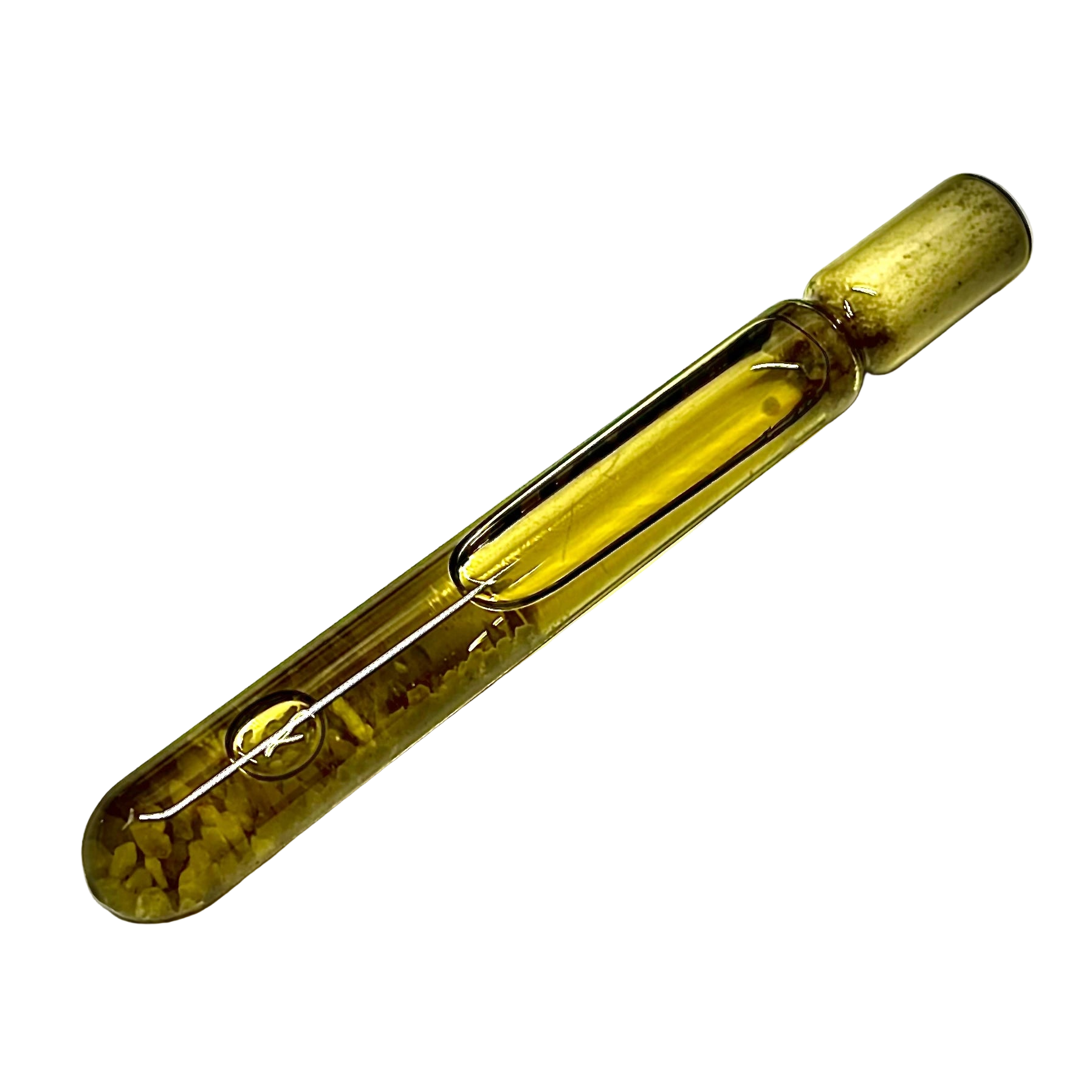

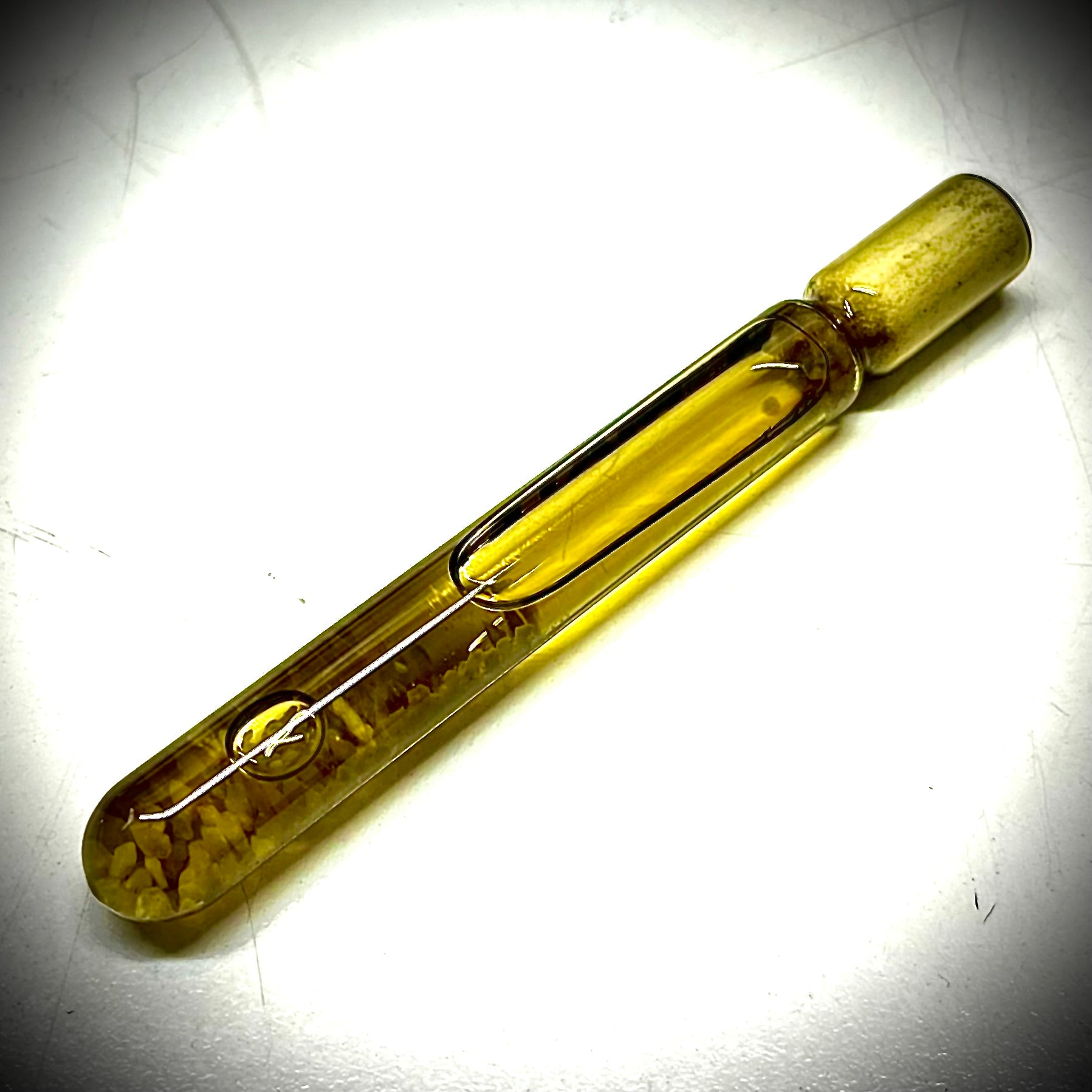

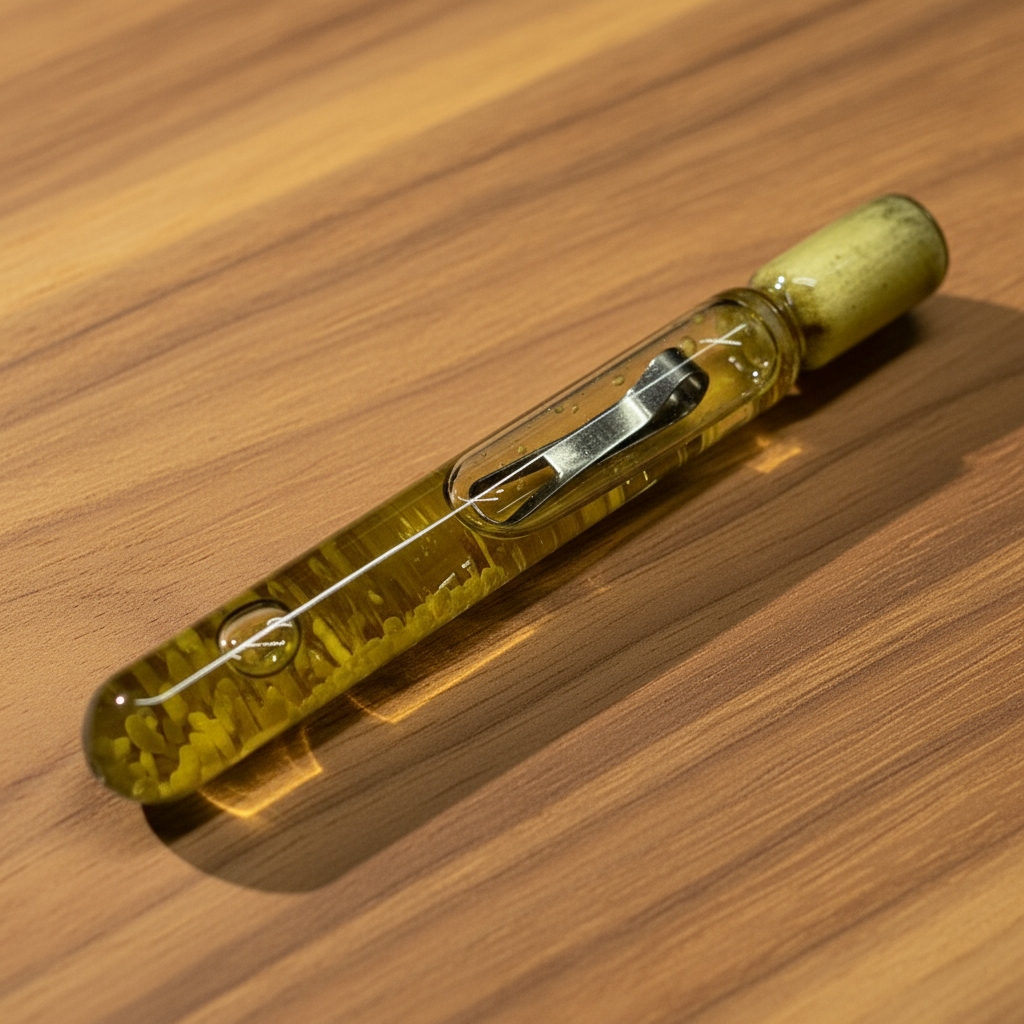

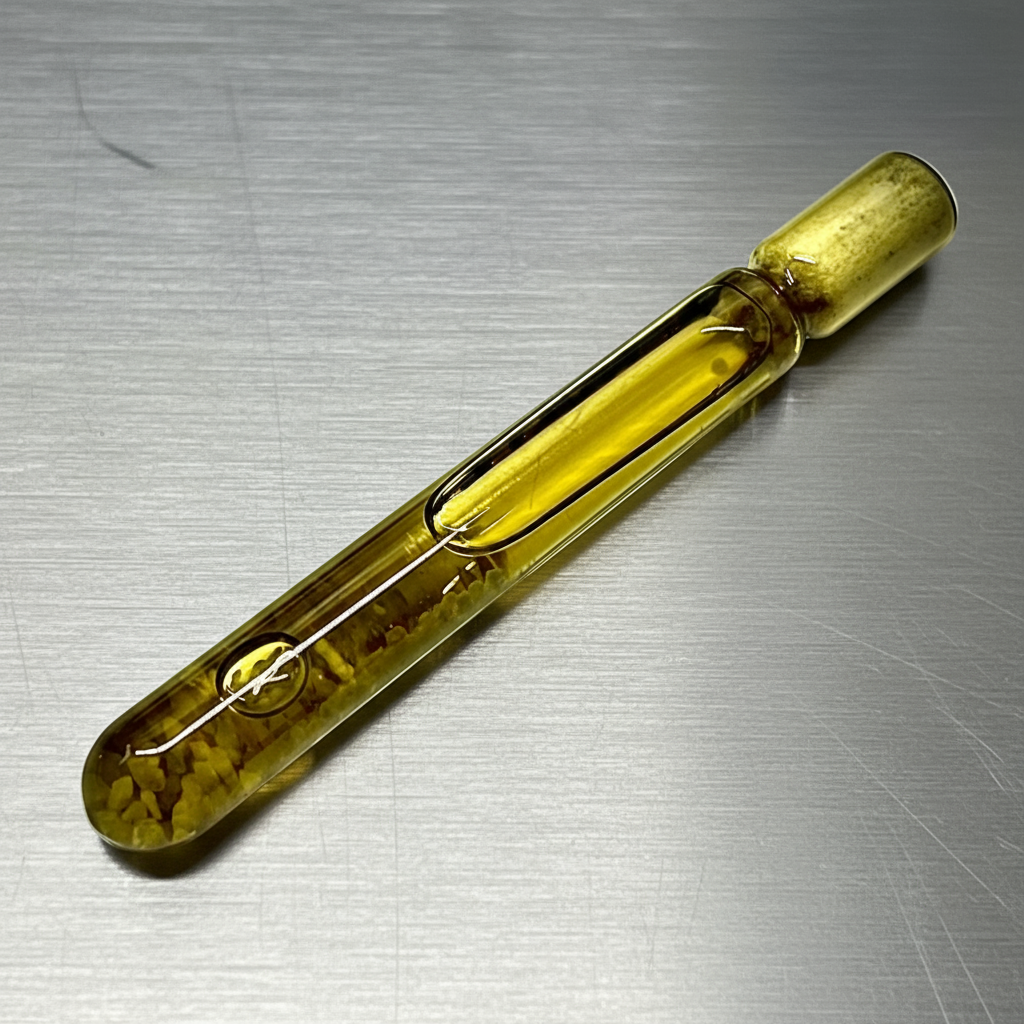

Image is for illustrative purposes only.
These are not mixed packs.
