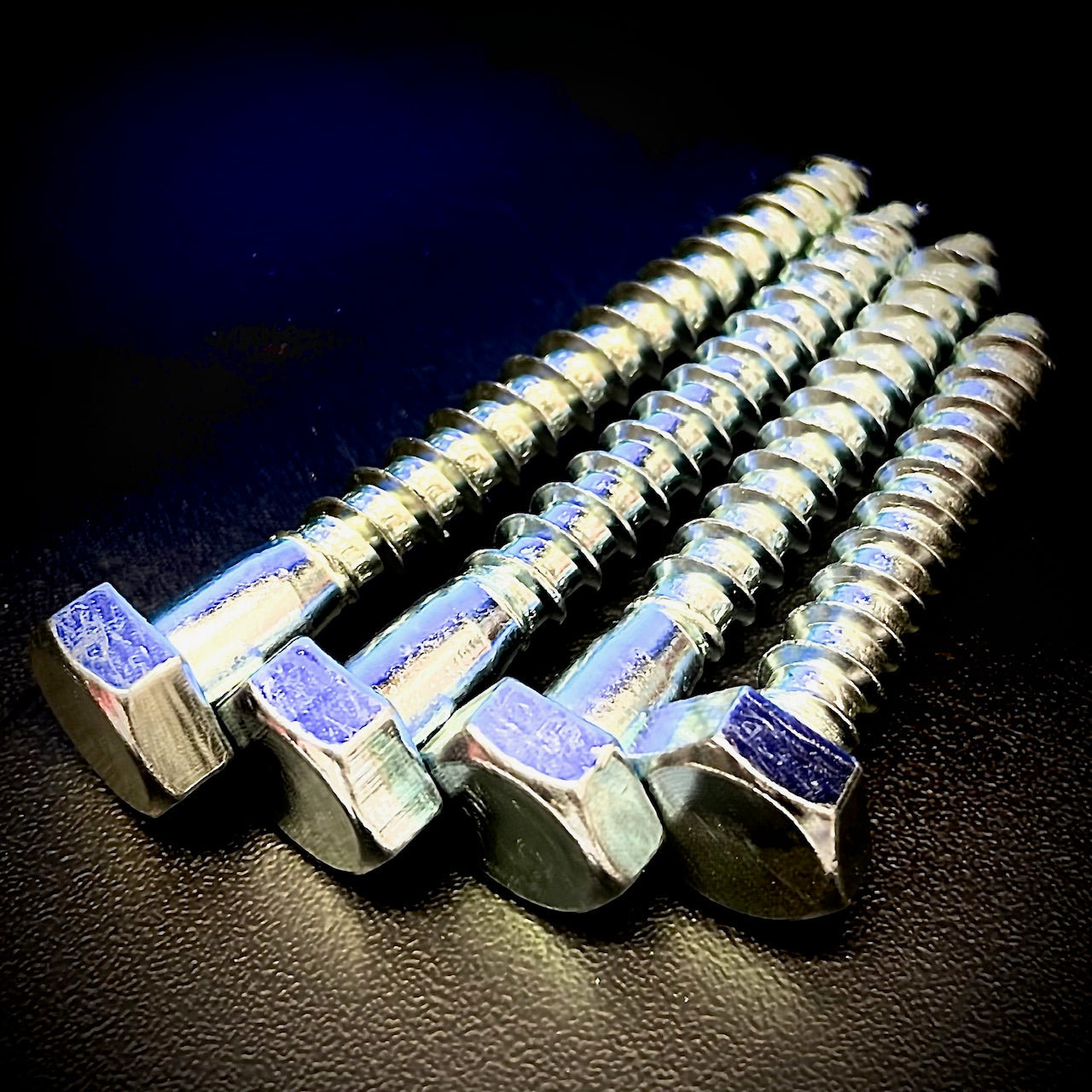

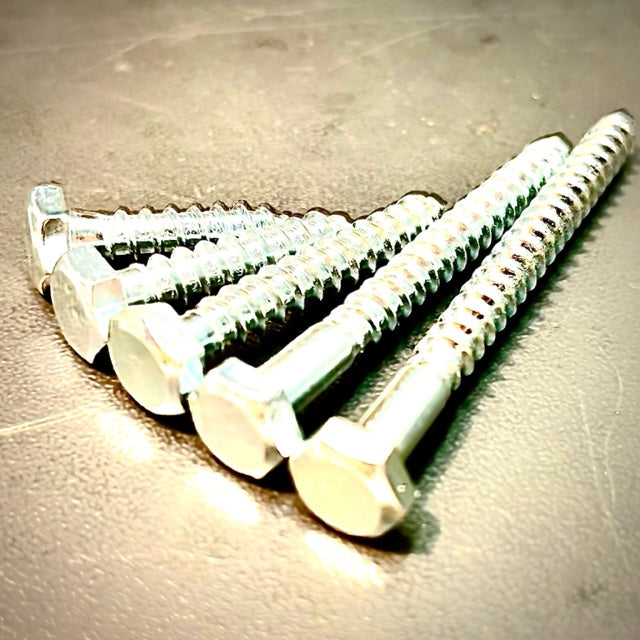

M10/ 10mm, Hex, Coach screw, Zinc, Heavy Duty, Wood/ Masonry Screw.

M10/ 10mm diameter, Hexagon Head, Coach Screw, Zinc, Heavy Duty, Wood/ Masonry Screw, DIN 571 Fixaball sells all lengths of 10mm diameter hexagon headed, heavy duty, coach screws at the...
£3.25

M10/ 10mm diameter, Hexagon Head, Coach Screw, Zinc, Heavy Duty, Wood/ Masonry Screw, DIN 571

Fixaball sells all lengths of 10mm diameter hexagon headed, heavy duty, coach screws at the best internet prices, with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

Please make your 'No. of Items in Pack',  'Length' and 'Quantity' of packs selection from the drop down menus.

Drive Type: HEX SOCKET

M10/ 10mm diameter, Zinc, Hexagon Head, Coach Screw Lengths Available

Hex Hd Coachscrew DIN571 BZP - M10 x 30
Hex Hd Coachscrew DIN571 BZP - M10 x 40
Hex Hd Coachscrew DIN571 BZP - M10 x 50
Hex Hd Coachscrew DIN571 BZP - M10 x 60
Hex Hd Coachscrew DIN571 BZP - M10 x 65
Hex Hd Coachscrew DIN571 BZP - M10 x 70
Hex Hd Coachscrew DIN571 BZP - M10 x 75
Hex Hd Coachscrew DIN571 BZP - M10 x 80
Hex Hd Coachscrew DIN571 BZP - M10 x 90
Hex Hd Coachscrew DIN571 BZP - M10 x 100
Hex Hd Coachscrew DIN571 BZP - M10 x 110
Hex Hd Coachscrew DIN571 BZP - M10 x 120
Hex Hd Coachscrew DIN571 BZP - M10 x 130
Hex Hd Coachscrew DIN571 BZP - M10 x 140
Hex Hd Coachscrew DIN571 BZP - M10 x 150
Hex Hd Coachscrew DIN571 BZP - M10 x 160
Hex Hd Coachscrew DIN571 BZP - M10 x 180
Hex Hd Coachscrew DIN571 BZP - M10 x 200



Hex Head Coach Screw Dimensions

Diameter

Pitch

Pilot Hole Needed

Hex Drive Socket Size

M6

2.5

4.5 - 5mm

10mm

M8

3

6.5 - 7mm

13mm

M10

3.5

8.5 – 9mm

17mm

M12

4

10 – 10.5mm

19mm

M16

5

14 – 14.5mm

24mm

M20

6

18mm

30mm



For use with Wood or Masonry with a Nylon Plug.

CE Approved. A pilot hole maybe required when being used with certain hardwoods to avoid splitting

Conforms to DIN 571 standard.

Length is from tip to underside of the head

Image is for illustrative purposes only.
