Loose Anchor Bolt

M10 Loose Bolt High Tensile 8.8 Masonry Shield Anchor Zinc

M10 Loose Bolt High Tensile 8.8 Masonry Shield Anchor Zinc

Regular price £6.02 GBP
Regular price Sale price £6.02 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
No. of Items in Pack
Max Material Thickness

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

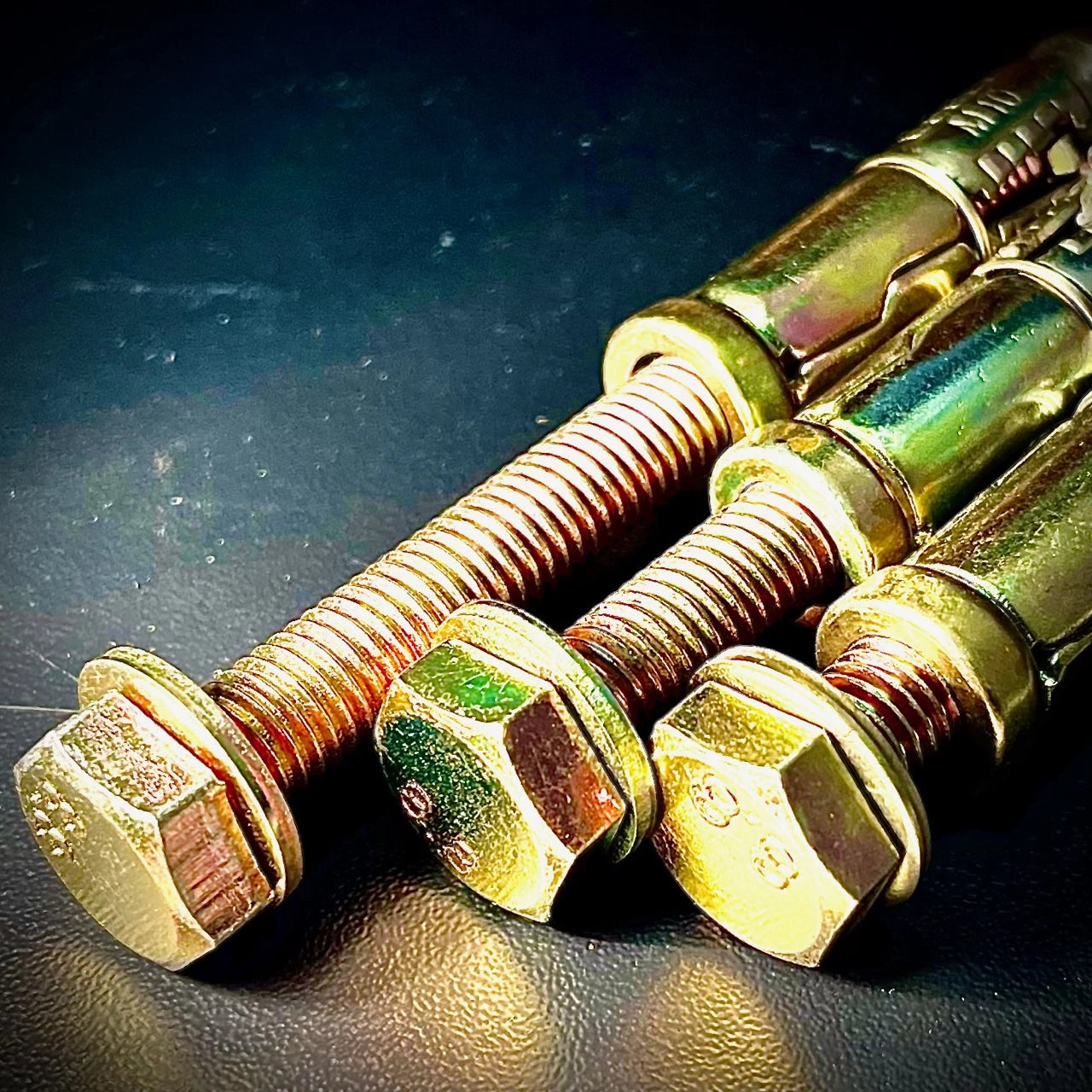

M10, 10mm Diameter Threaded, Hex Head, Loose Bolt with Masonry Shield, Heavy Duty Masonry Anchor Fixing, High Tensile (8,8), Zinc, ZYP.

Fixaball sells all lengths of M10 Loose Hex Bolt, Heavy Duty Masonry Anchors.

Optimising your fixings holding capacity.

  • Clean the hole using an appropriate sized brush
  • Installation Temp is 0°: make sure water does not seep into the hole. The expansion water to ice could crack the concrete. Under wet conditions, use a specified injection resin.
  • Introduce the anchor through the material to be fixed into the hole up to the embedment depth, according to the values on the table. Use a hammer to ensure the required depth. Do not apply any intermediate layer between the material to be fixed and the washer, such as sealing products.
  • Apply the specified torque with a torque wrench.
  • In the case the holes on the material to be fixed have a bigger diameter than required, it is necessary to insert a thicker washer and of a bigger diameter. But please, note that this procedure does not ensure a correct distribution of shear loads amongst all the anchors of a same group, and this shear load is applied only to the anchors with a correct diameter on the material to be fixed.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your size and pack quantity selection from the drop down menus.



Important Loose Bolt Anchor Performance Dimensions

Thread Diameter of Hex Bolt Shield Hole Size Max Fix.Thickness
M10 16mm 10mm
M10 16mm 25mm
M10 16mm 50mm
M10 16mm 75mm



NOTE: the 1st dimension refers to the thread diameter and not the hole diameter. Please see the table below for further information on what masonry drill bit to use. The 2nd dimension refers to the maximum fixture thickness (space between the underside of the head and the shield +/- 5mm). The 3rd dimension is the actual length of the hex-bolt/ hex-set that goes into the sheild (in brackets).

Installation of Shield Anchors

When drilling holes you must respect the specified minimum depth and diameters shown in the table below. Holes must be square to the surface of the base material (e.g concrete) for safety during installation and to optimise holding capacity. Use the material/ fixture as a template to dill accurate locations.

If drilling through concrete that has rebar reinforcements, special care must be taken to avoid damaging them. If some rebar is encountered, abort the hole, repair with high quality mortar and create a new hole, no less than twice the diameter of the shield anchor, away.


    Table: Shows typical masonry shield values and measurements

    All measurements in Metric - mm (all lengths are taken from under the hexagan head)

    Thread Diameter

    Hole Diameter

    Hole Depth

    Fixture/ Material Clearance Hole

    Centre Spacing Between Holes

    Minimum Distance From Edge of Material

    Tensile/ Pull Load

    k/N (tonnes)

    Shear Load k/N (tonnes)

    Torque to tighten Nm

    M6

    12

    50

    7 - 8

    120

    80

    3.5

    2.1

    6.5

    M8

    14

    55

    9 – 10

    150

    100

    4.8

    4.4

    15

    M10

    16

    65

    11 – 12

    180

    120

    6.2

    6.1

    27

    M12

    20

    85

    13 – 14

    250

    160

    9.7

    12.4

    50

    M16

    25

    125

    17 - 18

    290

    190

    21.3

    27.6

    120

    All specifications are true with correct installation


    Socket size guide:
    M6 - 10mm Spanner
    M8 - 15mm Spanner
    M10 - 17mm Spanner
    M12 - 19mm Spanner
    M16 - 24mm Spanner
    M20 - 30mm Spanner
