M10, Socket Screw, Cap Head, High Tensile/ 12.9, Zinc, DIN 912.

M10 (Metric - 10mm Dia), Allen Socket, Cap Head, Bolt/ Screw, Standard Coarse Pitch/ 1.5mm, High Tensile (12.9), Zinc Plated, DIN 912. Fixaball sells all lengths of M10, zinc plated, Allen Socket,...
£2.79

M10 (Metric - 10mm Dia), Allen Socket, Cap Head, Bolt/ Screw, Standard Coarse Pitch/ 1.5mm, High Tensile (12.9), Zinc Plated, DIN 912.

Fixaball sells all lengths of M10, zinc plated, Allen Socket, Cap Head, Bolt/ Screw at the best internet prices with free delivery.

Orders placed before 2pm are usually dispatched same day (Mon-Fri).

M10 Allen Socket, Cap Head, Bolt/ Screw lengths at Fixaball:



FIXABALL – Specialist Fixings and Fasteners Suppliers

Hexagon/ Allen Key Sizes

METRIC – Allen Socket, Cap Head, Screw Bolts

Allen Socket, Cap Head Screw Size Diameter

Allen/ Hex/ Hexagon Key Required to tighten and loosen

M3

2.5

M4

3

M5

4

M6

5

M8

6

M10

8

M12

10

M14

12

M16

14

M18

14

M20

17

M22

17

M24

19

Socket Screw is short for, 'Socket Set Screw' or could be a generic term including the 'bolt' version. The, ‘Socket Screw,’ term is used to describe a fastener that is fully threaded in lengths up to and around 1 inch (from the underside of the head). Over around 1 inch in length the fastener will have a, 'shoulder,' or unthreaded, plain shank under the head. This space of unthreaded area confirms that the fastener is now a bolt (cap head, bolt in this case). A little confusing, no? Some engineers may call them screws if the person only uses the shorter length range of sizes, under an inch or so. Some people might simply call them Allen or, 'Allen bolts,' if they've never seen it written down in association with the Allen, Hexagonal Key. So, ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head. Here, you can use a hexagon key (Allen Key) to tighten and loosen the fastener.

Material: High Tensile (12.9 Grade) - Plain/ Zinc

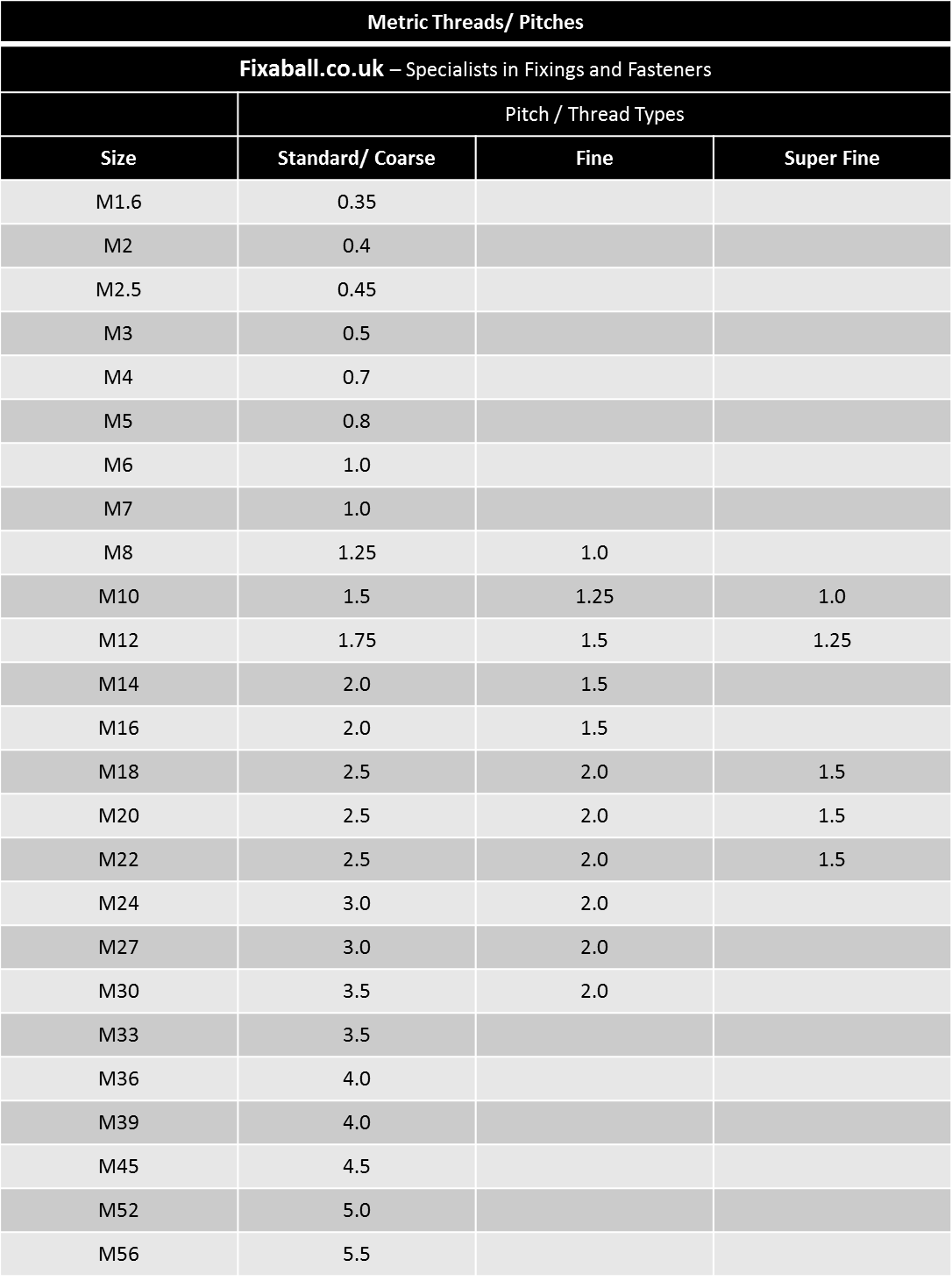

    Metric Coarse and Metric Fine threads are in millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations. Coarse threads are the, 'normal', most common versions.

     Image is for illustrative purposes only.



       Alternative names:

      • Cap screws/ Cap screw/ Capscrews/ Capscrew.
      • Allen cap/ Allen cap head/ Allen cap screw/ Allen cap/ Allen bolt, cap head/ Allen bolt, cap screw/ Allan Cap/ Allan cap head/ Allan capscrew.
      • Socket screw/ socket screws/ Socket cap screw/ Socket capscrews/ Socket cap, bolt.
