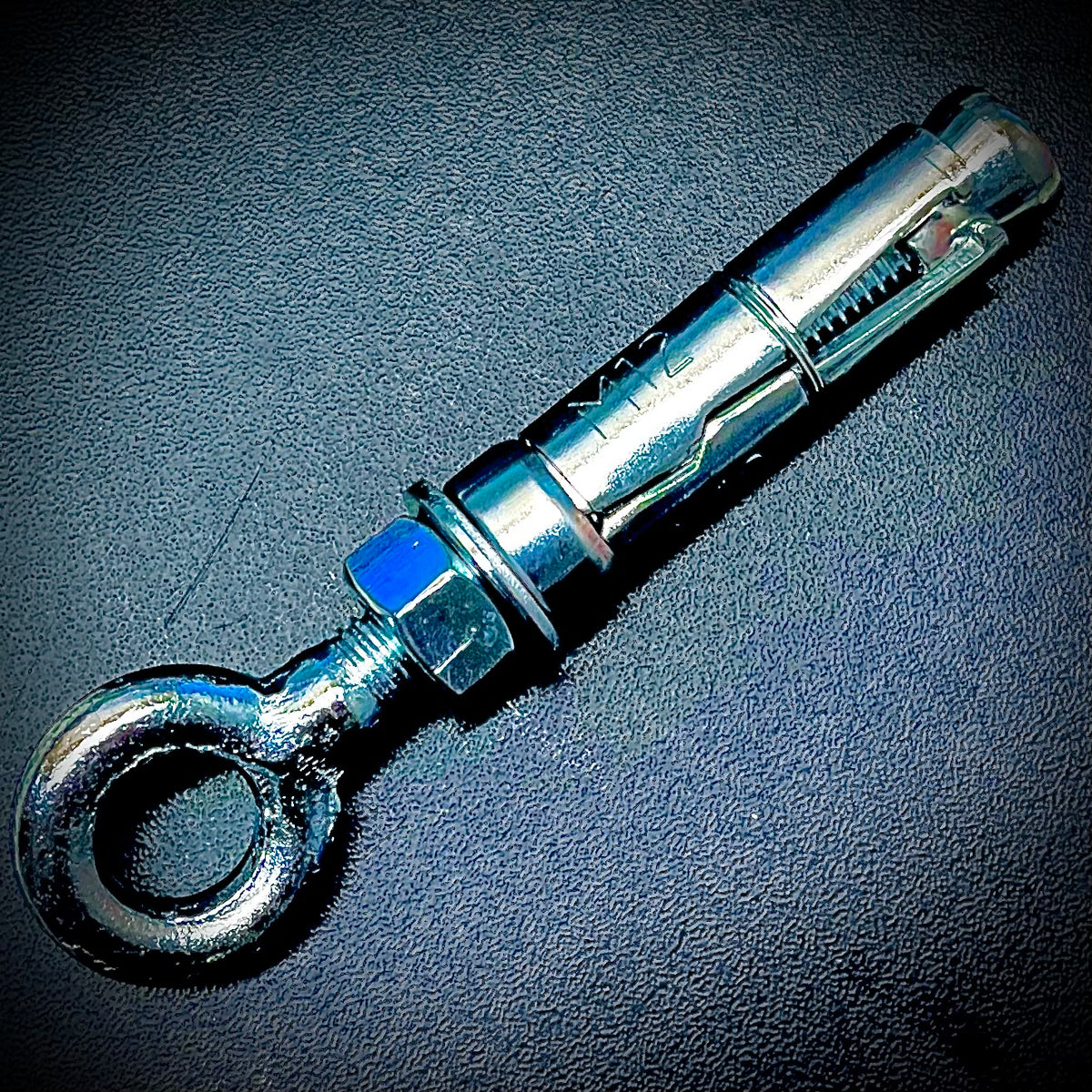

M10, Eye Bolt, High Tensile, Masonry Shield Anchor, Zinc
M10, Eye Bolt, Shield Anchor, Heavy Duty Masonry Anchor
Fixaball sells M10 eye bolt, masonry shield anchors.
How to install an eyebolt masonry anchor
Drill the correct size hole, clear/ clean the hole, place the anchor in the hole, set the anchor by tightening the nut.
Socket size guide:
M6 - 10mm
M8 - 15mm
M10 - 17mm
M12 - 19mm
M16 - 24mm
M20 - 30mm
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please make your size and pack quantity selection from the drop down menus.
Expansion anchor for fixing to all types of masonry, brick/ block and non-porous stone.
Diameters available: M10
Table: Shows typical masonry shield values and measurements
|
Fixaball - Specialist at Fasteners and Fixings All measurements in Metric - mm |
|||||||||
|
Thead Diameter |
Eye/ hole Diameter |
Hole Diameter |
Hole Depth |
Fixture/ Material Clearance Hole |
Center Spacing Between Holes |
Minimum Distance From Edge of Material |
Tensile/ Pull Load k/N (tonnes) |
Shear Load k/N (tonnes) |
Torque to tighten Nm |
|
M6 |
9 - 9.5 |
12 |
50 |
7 - 8 |
120 |
80 |
3.5 |
2.1 |
6.5 |
|
M8 |
10 - 13 |
14 |
55 |
9 – 10 |
150 |
100 |
4.8 |
4.4 |
15 |
|
M10 |
14 - 15 |
16 |
65 |
11 – 12 |
180 |
120 |
6.2 |
6.1 |
27 |
|
M12 |
16 - 20 |
20 |
85 |
13 – 14 |
250 |
160 |
9.7 |
12.4 |
50 |
|
M16 |
20 - 25 |
25 |
125 |
17 - 18 |
290 |
190 |
21.3 |
27.6 |
120 |
|
All specifications are true with correct installation |
|||||||||
Image is for illustrative purposes only.
