Projecting Anchor Bolt

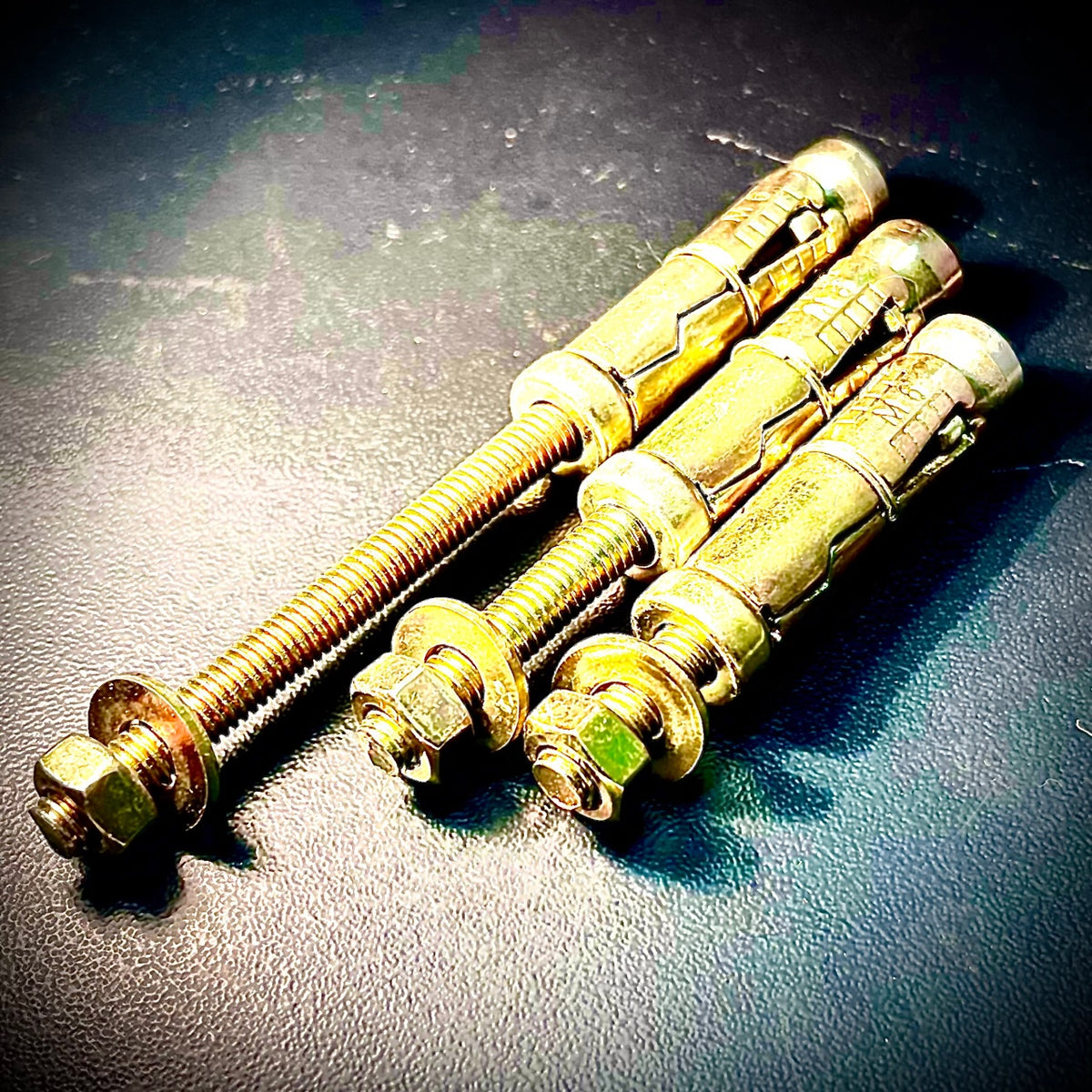

M10 Projecting Bolt Nut Stud Shield Masonry Concrete Anchor Zinc

M10 Projecting Bolt Nut Stud Shield Masonry Concrete Anchor Zinc

Regular price £5.99 GBP
Regular price Sale price £5.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
No. of Items in Pack
Max Material Thickness

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

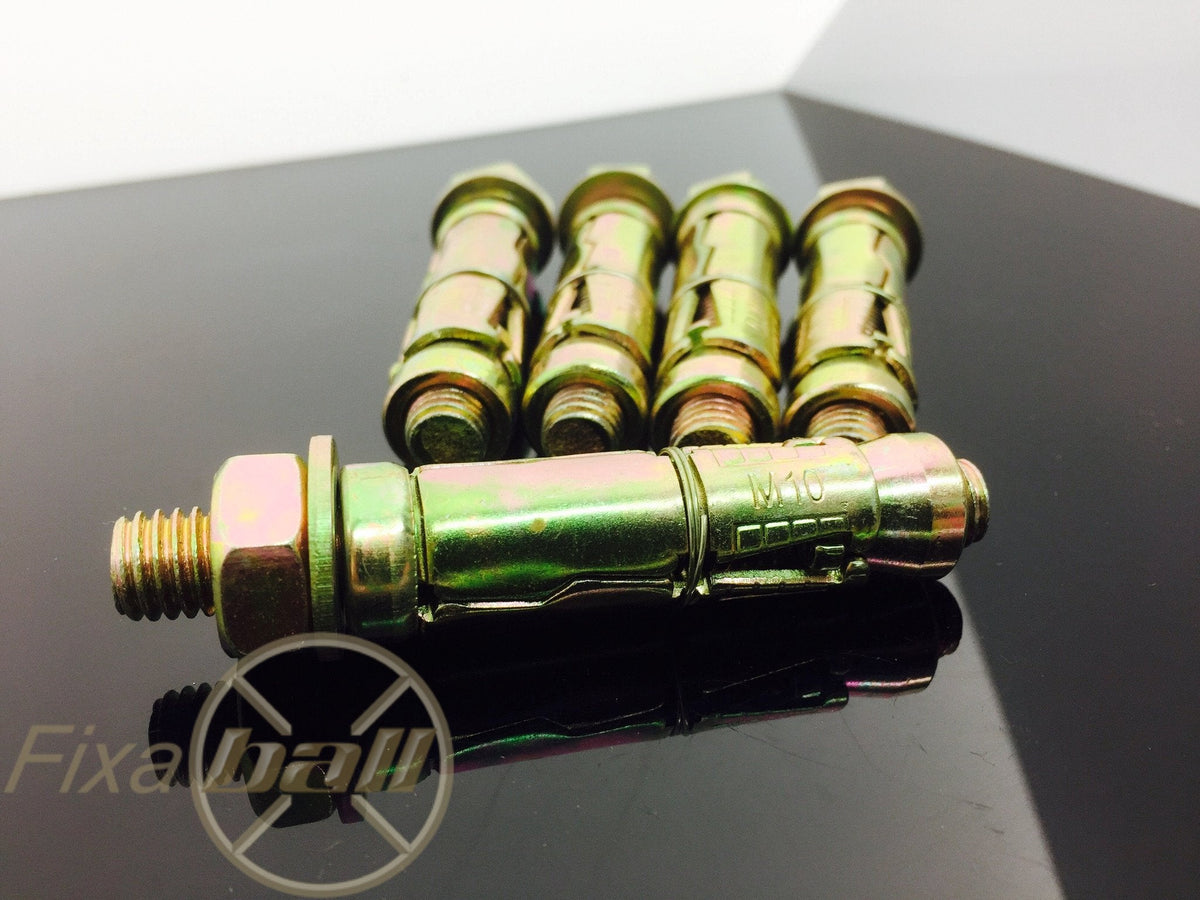

M10, 10mm Diameter Stud - Shield Anchor - Heavy Duty Fixing - Brick/ Masonry, Rawl/ Wall Bolt, Nut and Stud Type.

Fixaball sells lengths of M10/ 10mm Diameter, 'nut type' projecting bolt, masonry anchors.

What is a projecting bolt and where are they most commonly applied?

Projecting Bolt, Masonry Shield Anchor is a heavy duty, builder’s masonry, expansion anchor, for fixing heavy materials and fixtures. They are most commonly used on walls as the pertruding stad helps to hang items in situ.

It can be used in concrete, brick/ block and non-porous stone.

It comprises of a 3 part shield, threaded bar (high tensile - grade 8.8), nut and washer. It is an expansion anchor that pushes outwards at 3 points as the nut is tightened.

Application

  • Projecting bolts are used when material/ fixtures need to be held in place during installation.
  • The projecting threaded bar is used as a locator.
  • Care must be taken not to damage the thread during installation.
  • Shield anchors have an added advantage of being able to function with holes that vary in size/ quality.
  • A shield anchor will only ever be as good as the grade of material that it’s being fixed to.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'no. of items in pack' and 'quantity' of packs, selection from the drop down menus



Max joining thicknesses available: 10mm, 30mm, 50mm, 70mm


    Installation

    Drill the correct sized hole, clear/ clean the hole (brush and air pump), place the anchor in the hole, set the fixture/ material in place, fix by tightening the nut.

    Table: Shows typical masonry shield anchor properties

    All measurements in Metric - mm

    Thead Diameter

    Hole Diameter

    Hole Depth

    Fixture/ Material Clearance Hole

    Center Spacing Between Holes

    Minimum Distance From Edge of Material

    Tensile/ Pull Load

    k/N (tonnes)

    Shear Load k/N (tonnes)

    Torque to tighten Nm

    M6

    12

    50

    7 - 8

    120

    80

    3.5

    2.1

    6.5

    M8

    14

    55

    9 – 10

    150

    100

    4.8

    4.4

    15

    M10

    16

    65

    11 – 12

    180

    120

    6.2

    6.1

    27

    M12

    20

    85

    13 – 14

    250

    160

    9.7

    12.4

    50

    M16

    25

    125

    17 - 18

    290

    190

    21.3

    27.6

    120

    All specifications are true with correct installation



    Image is for illustrative purposes only.
