M10 Thread, Socket, Shoulder Cap, High Tensile, 12.9, DIN 9841.
M10 Thread, M12 Shoulder Socket Cap Screw/ Bolts, High Tensile, Grade 12.9, DIN 9841, BS 4168, ISO 7379.
Fixaball sells all sizes of M10, Metric, Shoulder, Cap Screw/ Bolts in high tensile, steel grade 12.9.
Shoulder Socket Cap Screw/ Bolt Description
Shoulder Socket Cap Screws are high tensile and hardness strength fasteners with an Internal Hex or Allen key drive style head. The shoulder is a cylindrical unthreaded area before the thread, allowing for rotation of parts and are used in moving parts and other mechanical applications.
Material
Blackened alloy steel, high tensile 12.9 (Hardness 38 HRC, tensile strength 1200 N/mm²)
Technical Notes
ISO 7379. Temperature range -50°C to +300°C.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please make your 'No. of Items in Pack' and 'Shoulder Diameter x Shoulder Length' and 'Quantity' of packs selection from the drop down menus.
Metric M10 Thread, 12.9 Grade, Shoulder Cap Screw Bolt Descriptions
| Socket Shoulder Caps Description | Thread Type | Shoulder Diameter (mm) | Thread Diameter (mm) | Shoulder Length (mm) |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 16 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 20 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 25 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 30 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 35 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 40 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 45 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 50 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 60 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 70 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 75 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 80 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 90 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 100 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 110 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 120 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 140 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 150 |
| Socket Shoulders | Standard Range | METRIC Coarse Thread | M12 | M10 | 160 |

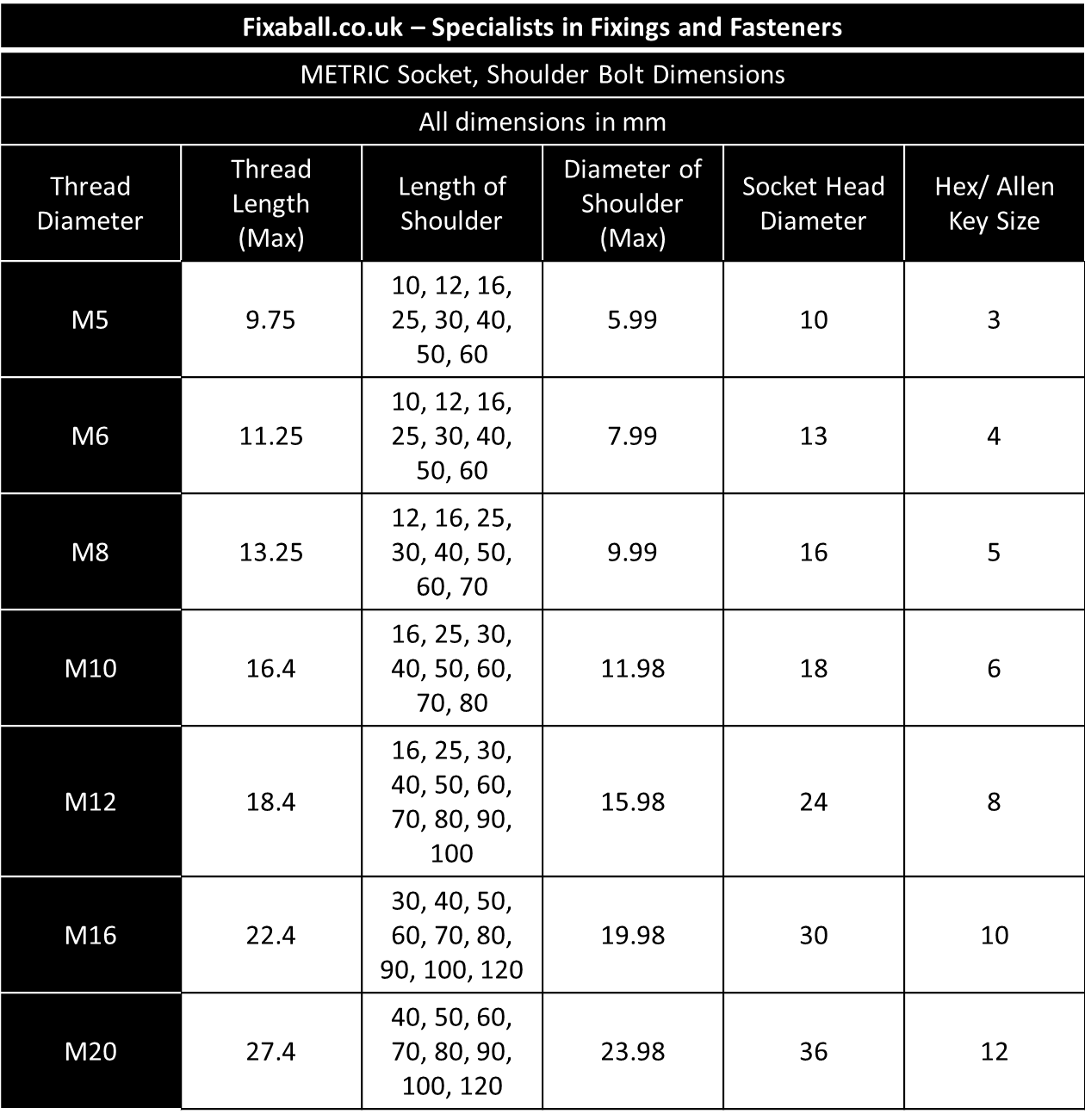

Table: To show metric socket, shoulder bolt dimensions
|
Fixaball – Specialists in Fixings and Fasteners |
|||||
|
METRIC Socket, Shoulder Bolt Dimensions |
|||||
|
All dimensions in mm |
|||||
|
Thread Diameter |
Thread Length (Max) |
Length of Shoulder |
Diameter of Shoulder (Max) |
Socket Head Diameter |
Hex/ Allen Key Size |
|
M5 |
9.75 |
10, 12, 16, 25, 30, 40, 50, 60 |
5.99 |
10 |
3 |
|
M6 |
11.25 |
10, 12, 16, 25, 30, 40, 50, 60 |
7.99 |
13 |
4 |
|
M8 |
13.25 |
12, 16, 25, 30, 40, 50, 60, 70 |
9.99 |
16 |
5 |
|
M10 |
16.4 |
16, 25, 30, 40, 50, 60, 70, 80 |
11.98 |
18 |
6 |
|
M12 |
18.4 |
16, 25, 30, 40, 50, 60, 70, 80, 90, 100 |
15.98 |
24 |
8 |
|
M16 |
22.4 |
30, 40, 50, 60, 70, 80, 90, 100, 120 |
19.98 |
30 |
10 |
|
M20 |
27.4 |
40, 50, 60, 70, 80, 90, 100, 120 |
23.98 |
36 |
12 |
Material
Blackened alloy steel, high tensile 12.9 (Hardness 38 HRC, tensile strength 1200 N/mm²)
Technical Notes
ISO 7379. Temperature range -50°C to +300°C.
Torque to:
M5 = 7,5Nm. M6 = 13 Nm. M8 = 33 Nm. M10 = 60 Nm. M12 = 120 Nm. M16 = 270 Nm.

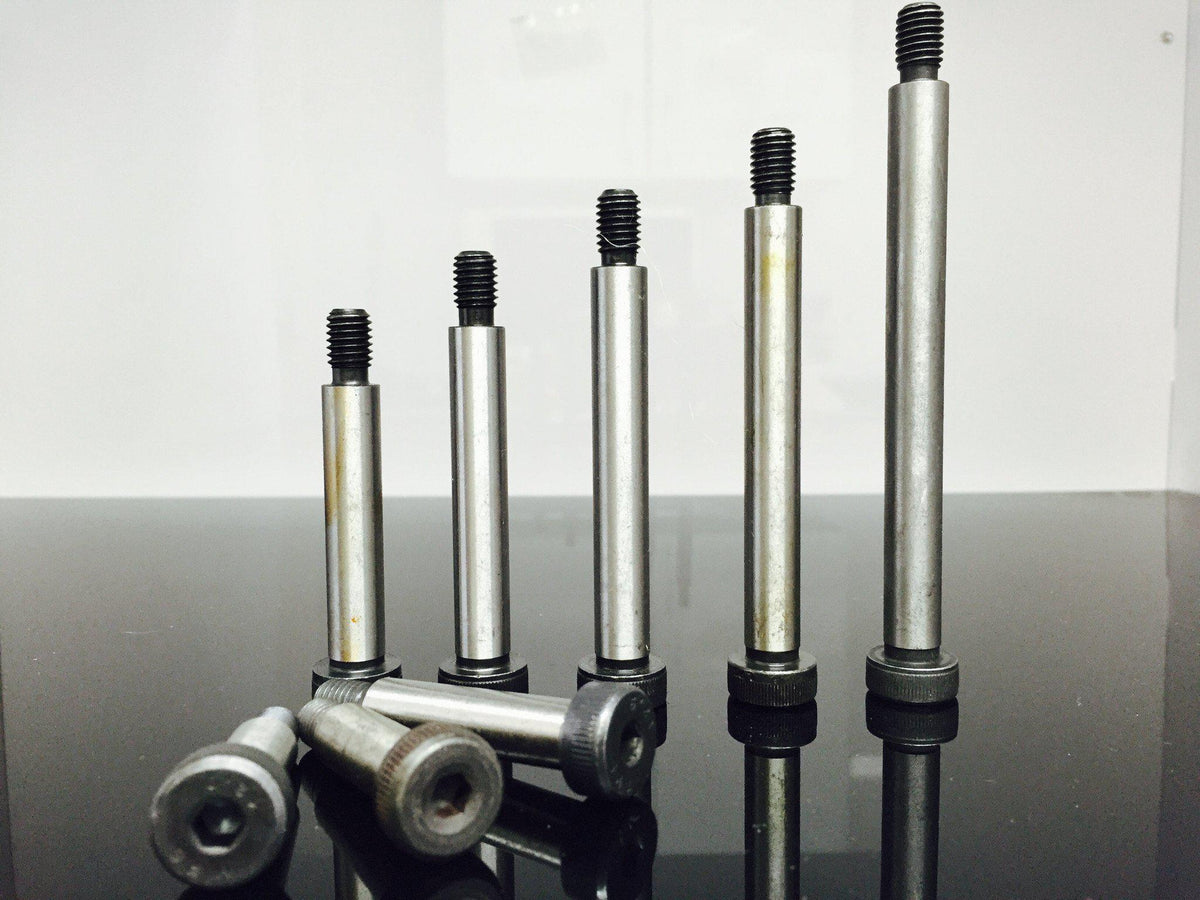

Image is for illustrative purposes only.
