Throughbolt, Anchor

M10 Throughbolts Galvanised Heavy Duty Masonry Concrete Anchor

M10 Throughbolts Galvanised Heavy Duty Masonry Concrete Anchor

Regular price £4.63 GBP
Regular price Sale price £4.63 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
No. of Items in Pack
Length (mm)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M10 - Throughbolts - Rag Bolts - Heavy Duty, Concrete/ Masonry Anchor, Hot Dip Galvanised - All Lengths

Fixaball sells all lengths of M10 through bolts, Hot Dip Galvanised.

What is a Throughbolt? (also known as Rag Bolt)

Through bolt, expansion, masonry anchors are used for fixing materials to non-cracked concrete/ masonry (brick/ blocks), and non-porous stone.

Hot Dipped Galvanized
A torque controlled anchor suitable for use in concrete over C20/25. Hot dipped galvanised to a minimum of 45 microns.

Advantages of a Through Bolt

  • High Performance, cost effective anchor for non-cracked substrates eg. concrete
  • Suitable for reduced embedment to avoid contact with rebars/ reinforcement cages.
  • Holes are the same diameter as the fixings so the fixing can be passed through the fixture after locating it in the right position.
  • Cold formed body provides consistent dimensional accuracy and material stability
  • High load-bearing capacity


Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'no of items in pack', 'length', and 'quantity', of packs selection from the drop down menus.


M10 Through Bolt Lengths Available

Anchor Hole Size Anchor Length
10mm 60mm
10mm 70mm
10mm 85mm
10mm 105mm
10mm 125mm

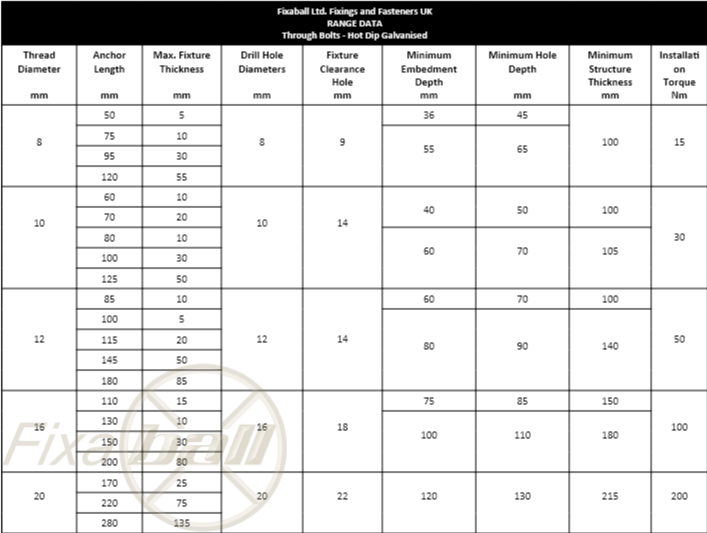

Table to show important installation settings/ measurements:

All measurements in mm

Size



Anchor

Fixture

Diameter

Length

Max. Thickness

Hole Diameter

M10

10

65

5

-

11

80

20

10

85

25

15

95

35

25

115

55

45

130

70

60

140

80

70

150

90

80

180

120

110


Installation and Advice

  • Before installation, check the concrete’s strength in order to make sure its class/ standard is suitable.
  • The concrete base must be compact and porosity insignificant.
  • Installation temperature range for base material: -5 / + 40 ºC (80 ºC for a short
  • period of time).
  • Minimum installation depth values must always be respected: for anchors’ depth, for anchor-to-anchor distances and for anchor-to-edge distances.
  • Drilling must be performed by respecting the specified minimum depth and diameter, perpendicular to the base material’s surface. The holes on the material to be fixed may be used as templates.
  • When drilling near any reinforcement areas, special care must be taken to avoid damaging them. If drilling is aborted because a reinforcement area has been encountered, it is advisable to drill a new hole at a minimum distance of at least twice the aborted drill hole diameter. This advisable distance may be reduced, as long as the aborted hole is previously filled up with high-resistant mortar.
  • It is necessary to clean the holes thoroughly free of dust and debris with a suitably sized brush.
  • When temperature is below 0ºC, make sure water does not seep into the hole, as this fact could cause subsequent cracks on the concrete, due to ice pressure.
  • Introduce the anchor through the material to be fixed into the hole up to the embedment depth, according to the values on the table. It is possible to use a hammer to ensure the required depth. Do not apply any intermediate layer between the material to be fixed and the washer, such as sealing products.
  • Apply the specified torque with a torque wrench.
  • In the case the holes on the material to be fixed have a bigger diameter than required, it is necessary to insert a thicker washer and of a bigger diameter. But please, note that this procedure does not ensure a correct distribution of shear loads amongst all the anchors of a same group, and this shear load is applied only to the anchors with a correct diameter on the material to be fixed.

Image is for illustrative purposes only.
