M10 x 1P Extra Fine, Socket Screw, Cap Head, High Tensile/ 12.9, DIN 912.

M10 x 1P Extra Fine, Socket Screw, Cap Head, High Tensile/ 12.9, DIN 912. M10 x 1.0mm Pitch, Extra Fine  Thread, Allen Socket, Cap Head, Bolt/ Screw, High Tensile (12.9), DIN...
£3.76

M10 x 1P Extra Fine, Socket Screw, Cap Head, High Tensile/ 12.9, DIN 912.

M10 x 1.0mm Pitch, Extra Fine  Thread, Allen Socket, Cap Head, Bolt/ Screw, High Tensile (12.9), DIN 912,

Fixaball sells all lengths of M10 x 1mm Pitch, self-colour, allen socket cap screw/ bolts at the best internet prices with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible,

M10 x 1P (extra fine pitch) Allen Socket, Cap Head, Bolt/ Screw lengths available:

M10-1.00x30 MM,(FT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M10-1.00x35 MM,(FT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M10-1.00x40 MM,(FT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M10-1.00x45 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M10-1.00x50 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M10-1.00x60 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M10-1.00x70 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M10-1.00x80 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M10-1.00x90 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M10-1.00x100 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR



Allen/ Hexagon Socket Screw/ Bolts

Socket Cap Screws come as 'sets' and 'bolts'. The, ‘SET’, term is used to describe a fastener that is fully threaded in lengths up to and around 1 inch (from the underside of the head. Over 1 inch in length the fastener will have a, 'shoulder,' or unthreaded area under the head. This space of unthreaded area confirms that the fastener is now a bolt (cap head, bolt in this case). Some people might simply call them Allen or, 'Allan bolts,' in association with the Allen, Hexagonal Key which is used to tighten and loosen the fastener. So, ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head.

Materials: High Tensile (12.9 Grade) - Self-colour.

Grade 12.9 Steel has a higher carbon content than your regular 8.8 high tensile steel and is therefore better for hardness and rigidity. Zinc provides a shiny metallic finish and some resistance to weathering.

FIXABALL – Specialist Fixings and Fasteners Suppliers

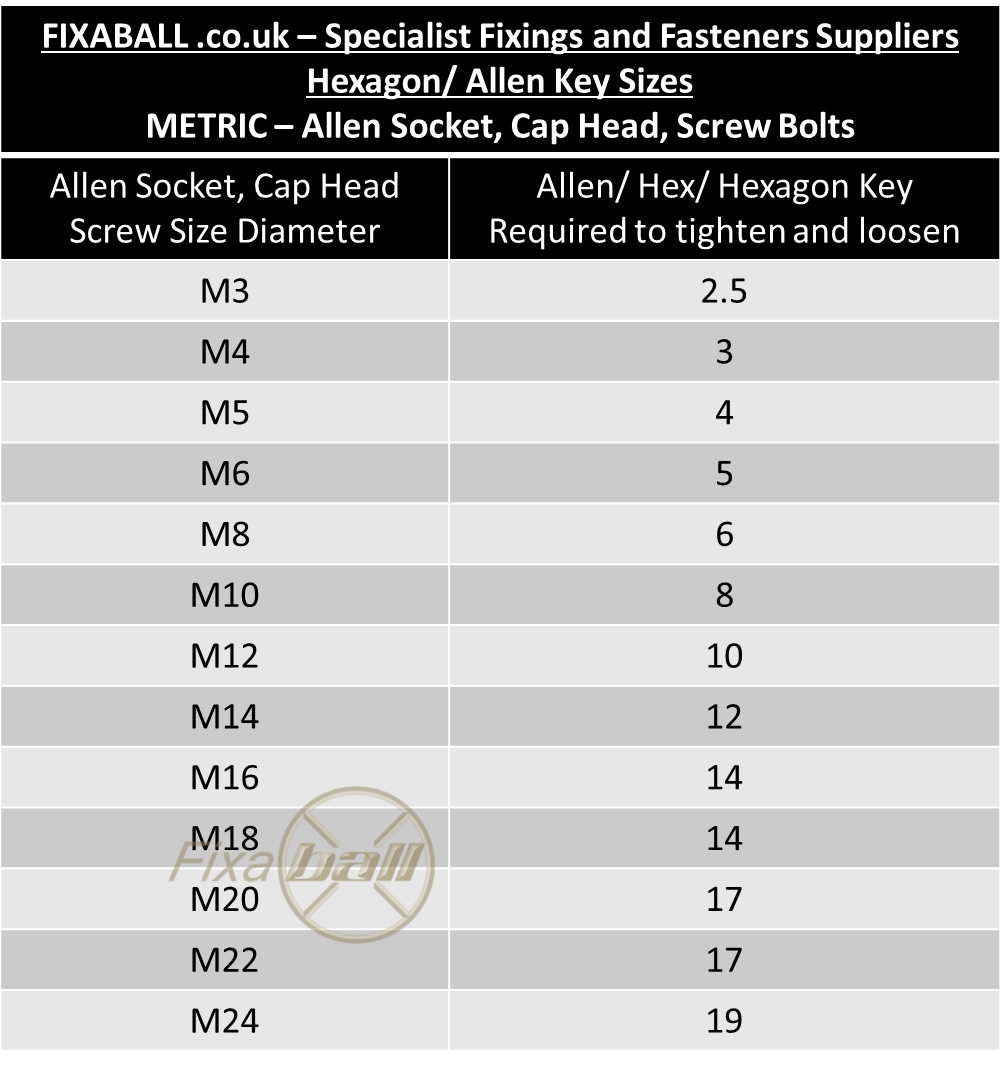

Hexagon/ Allen Key Sizes

METRIC – Allen Socket, Cap Head, Screw Bolts

Allen Socket, Cap Head Screw Size Diameter

Allen/ Hex/ Hexagon Key Required to tighten and loosen

M3

2.5

M4

3

M5

4

M6

5

M8

6

M10

8

M12

10

M14

12

M16

14

M18

14

M20

17

M22

17

M24

19



Material:

Material/ Finish

Appearance

Level of Corrosion Resistance

Typical Application

High Tensile Steel (12.9 Grade)

Self-Colour (black with no surface treatment)

Low, without further surface treatment

No exposure to moisture.

Often Greased/ Oiled

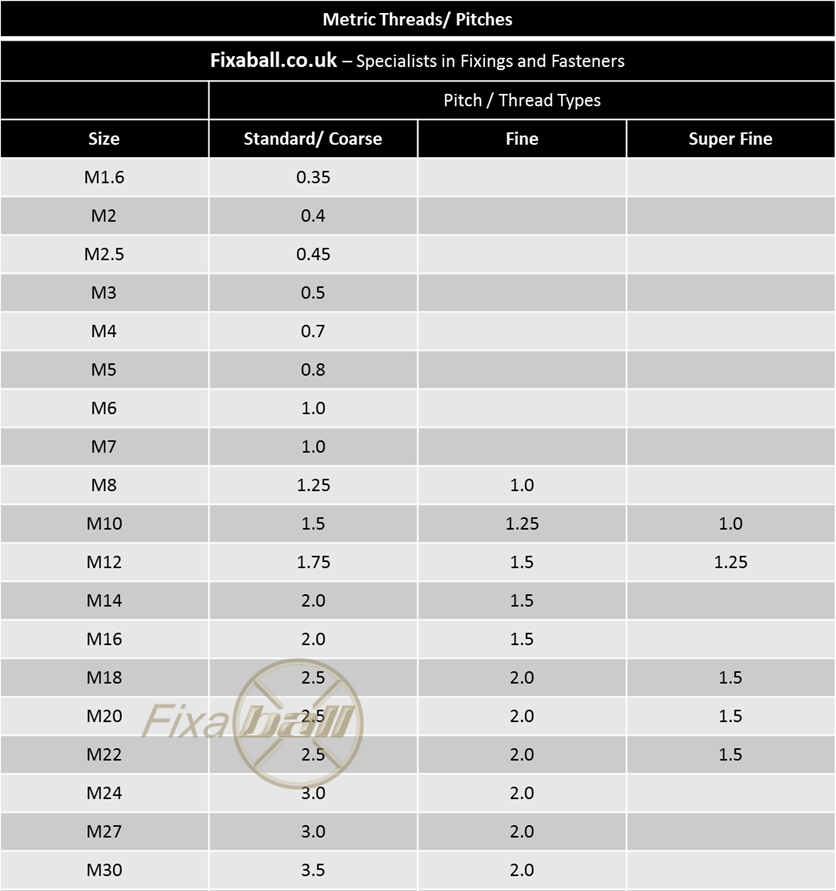

Metric Coarse and Metric Fine threads are in millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations. Coarse threads are the, 'normal', most common versions.

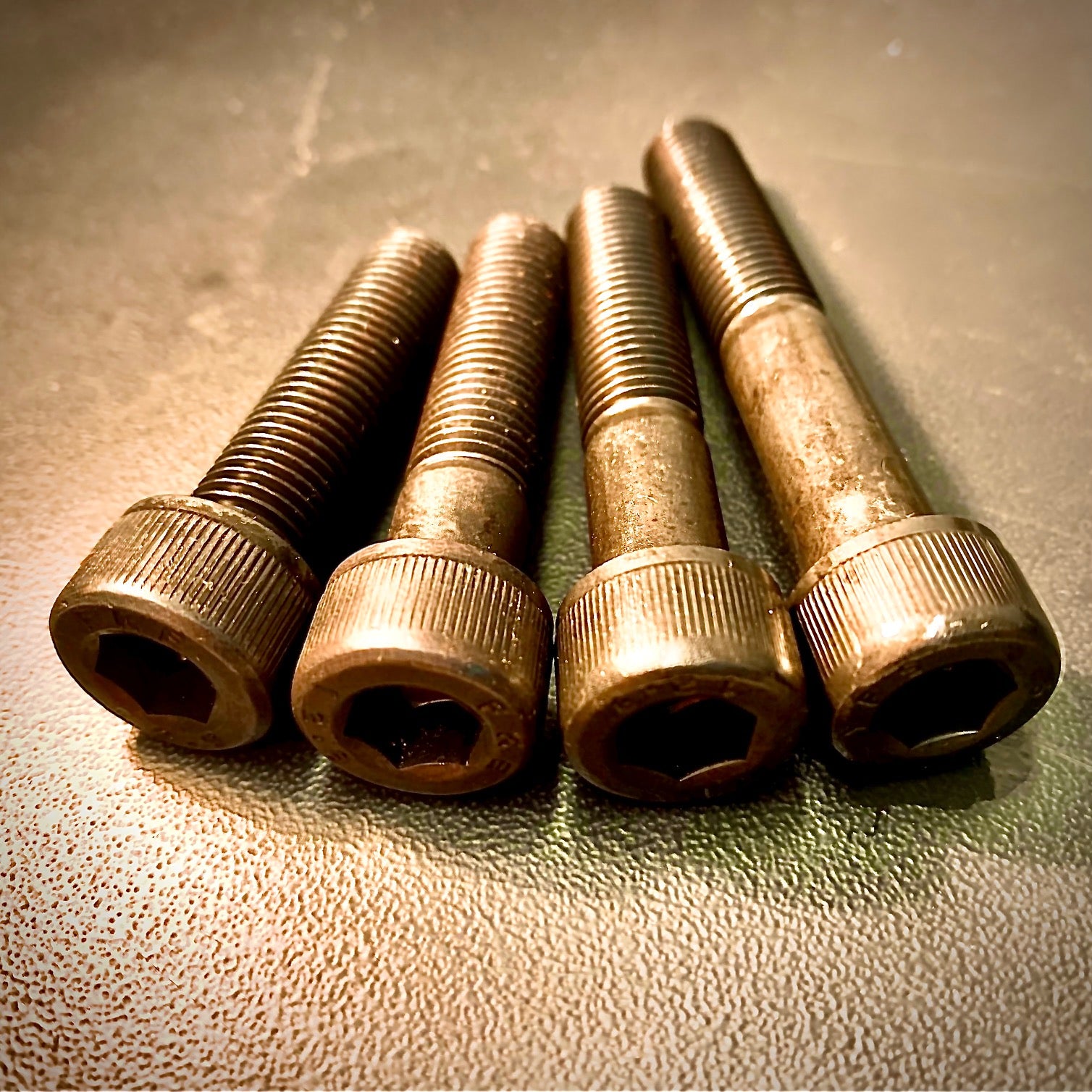

 Image is for illustrative purposes only.
