M10 x Over 70mm, Socket Cap Screw, High Tensile/ 12.9, DIN 912.
M10 x over and including 70mm, Cap Head, Allen/ Hexagon Socket Screw/ Bolt, High Tensile Steel, Grade 12.9, Self Colour, DIN 912, ISO 4762
M10, Metric - 10mm Diameter, Standard Coarse Thread - 1.5mm Pitch
Fixaball sells all lengths of M10, Self Colour, Cap, Cylindrical Head, Allen/ Hexagon Socket, Screw/ Bolt, High Tensile Steel, Grade 12.9.
What is a socket cap screw/ bolt?
The, ‘Socket Cap Screw/ Allen Bolt,’ term is used to describe a fastener that is either fully or partially threaded. A screw is fully threaded and a bolt is partially threaded. Some engineers may call them screws if the person uses the shorter length range of sizes. The thread stays the same length as the fastener gets longer and the maximum length of thread is equal to 2.5 times the diameter (or thereabouts). ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head. Here, you can use a hexagon key (Allen Key) to tighten and loosen the fastener. 'Cap' refers to the cylindrical shaped head.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
M10 Cap Head, Allen/ Hexagon Socket Screw/ Bolt, High Tensile Steel, Grade 12.9, Self Colour lengths available
(FT - Fully Threaded, PT - Partially Threaded)
| M10-1.50x70 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x75 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x80 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x85 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x90 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x100 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x105 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x110 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x120 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x130 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x140 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x150 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x160 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x170 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x180 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x200 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x220 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
| M10-1.50x300 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR |
|

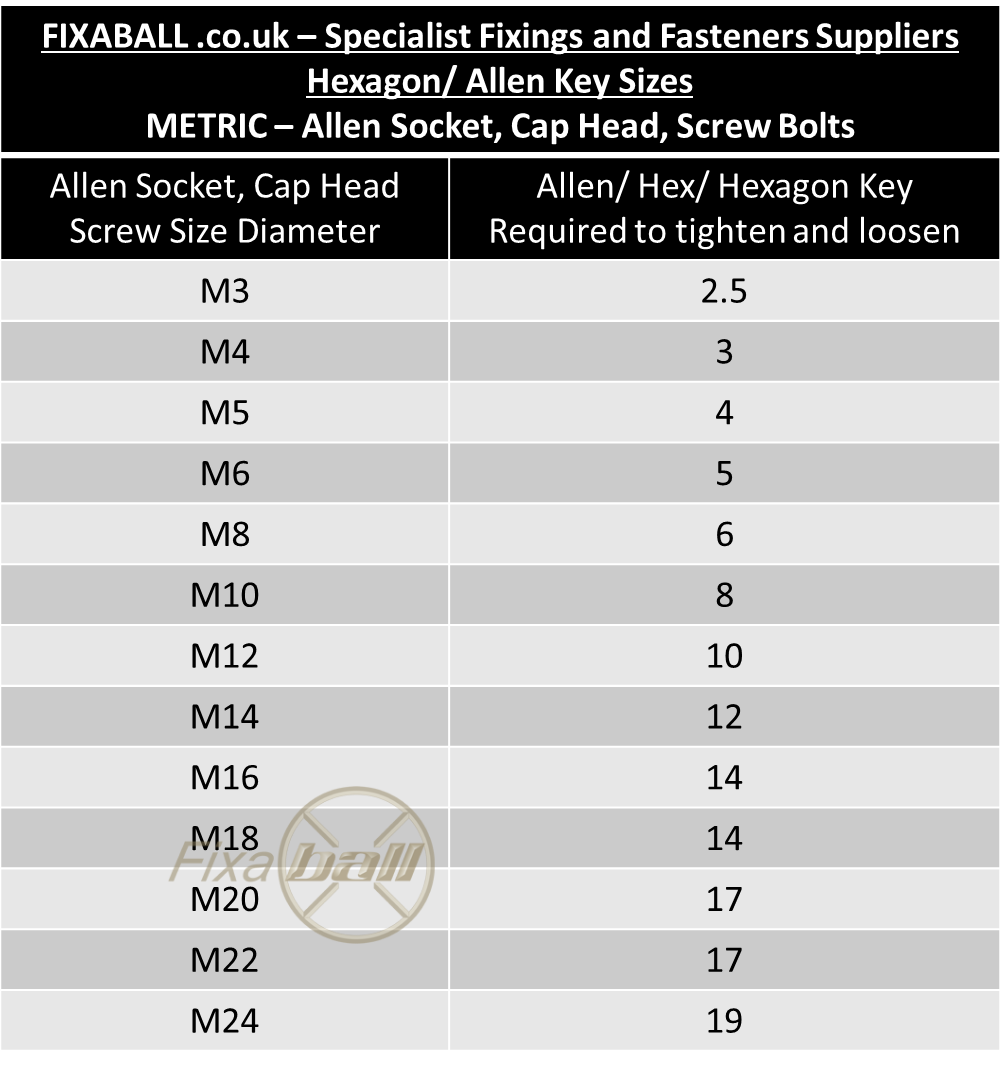

FIXABALL – Specialist Fixings and Fasteners Suppliers Hexagon/ Allen Key Sizes METRIC – Allen Socket, Cap Head, Screw Bolts |
|
|
Allen Socket, Cap Head Screw Size Diameter |
Allen/ Hex/ Hexagon Key Required to tighten and loosen |
|
M3 |
2.5 |
|
M4 |
3 |
|
M5 |
4 |
|
M6 |
5 |
|
M8 |
6 |
|
M10 |
8 |
|
M12 |
10 |
|
M14 |
12 |
|
M16 |
14 |
|
M18 |
14 |
|
M20 |
17 |
|
M22 |
17 |
|
M24 |
19 |
Material Properties
|
Material/ Finish |
Appearance |
Level of Corrosion Resistance |
Typical Application |
|
High Tensile Steel, Grade 12.9 |
Self-Colour (black with no surface treatment) |
Low, without further surface treatment |
No exposure to moisture. Often Greased/ Oiled |
Metric Coarse and Metric Fine threads are in millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations. Coarse threads are the, 'normal', most common versions.
Image is for illustrative purposes only.
