M12, Hex Bolt, A4/ 316 Stainless Steel. DIN 931.

M12, Hexagon Head, Bolts, A4/ 316 Stainless Steel, DIN 931 Fixaball sell all lengths of Metric, M12, A4/ 316 hexagon head bolts. Hexagon Bolt Bolt is the term used for a partially threaded...
£4.05

M12, Hexagon Head, Bolts, A4/ 316 Stainless Steel, DIN 931

Fixaball sell all lengths of Metric, M12, A4/ 316 hexagon head bolts.

Hexagon Bolt

Bolt is the term used for a partially threaded fastener (part plain shank, bolt), with a hexagon shaped head, designed to be used with a nut and washer.

Material:

A4 Stainless Steel (marine) also known as 316. Marine grade stainless has a very high resistance to corrosion

Thread

Metric Coarse Thread - measured in Millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.

Bolt Thread Length

The thread length of a shoulder bolt/ plain shank bolt tends to be 2.5 times the diameter of the fastener. Please ask for exact measurements if the shoulder is crucial.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your, ‘Number of Items in Pack', 'Length', and ‘Quantity’, (of packs) selection from the drop down menus.

M12, A4/ 613 Metric Hex Bolt Lengths available:

M12 X 40 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 50 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 60 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 70 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 80 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 90 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 100 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 110 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 120 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 130 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 140 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 150 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 160 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 170 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 180 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 190 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 200 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 210 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 220 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL
M12 X 230 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL





Metric Threads/ Pitches

Fixaball – Specialists in Fixings and Fasteners



Pitch / Thread Types

Size

Standard/ Coarse

Fine

Super Fine

M1.6

0.35



M2

0.4



M2.5

0.45



M3

0.5



M4

0.7



M5

0.8



M6

1.0



M7

1.0



M8

1.25

1.0



M10

1.5

1.25

1.0

M12

1.75

1.5

1.25

M14

2.0

1.5



M16

2.0

1.5



M18

2.5

2.0

1.5

M20

2.5

2.0

1.5

M22

2.5

2.0

1.5

M24

3.0

2.0



M27

3.0

2.0



M30

3.5

2.0



M33

3.5



M36

4.0



M39

4.0



M45

4.5



M52

5.0



M56

5.5



Bolt vs Screw

A screw screws into something, a bolt joins several things together from both sides of materials joined. A screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank)

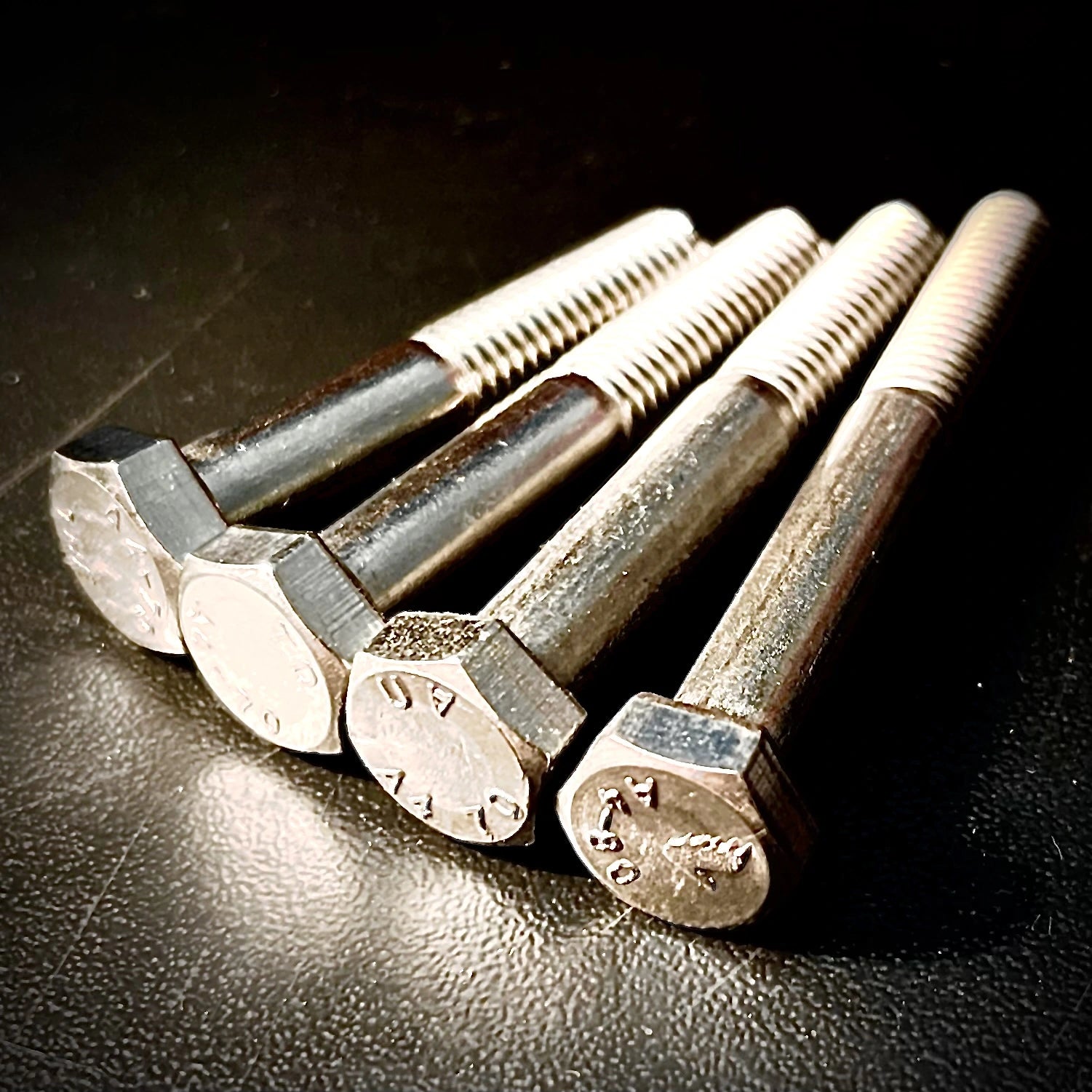

Image is for illustrative purposes only.
