M12, Socket Screw, Cap Head, A2/ 304 Stainless Steel, DIN 912.

M12, 12mm Diameter (1.75mm Pitch) Standard Coarse Thread, Allen Socket, Cap Head, Screw/ Bolt, A2/ 304 Stainless Steel, DIN 912, Fixaball sells lengths of M10 x 1.5mm Pitch (Standard Coarse Thread),...
£2.65

M12, 12mm Diameter (1.75mm Pitch) Standard Coarse Thread, Allen Socket, Cap Head, Screw/ Bolt, A2/ 304 Stainless Steel, DIN 912,

Fixaball sells lengths of M10 x 1.5mm Pitch (Standard Coarse Thread), A2/ 304 Stainless Steel, Allen Socket Cap Screw/ Bolts at the best internet prices with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

M12, Socket Screw, Cap Head, A2/ 304 Stainless Steel, DIN 912 lengths available:

M12, Socket Screw, Cap Head, A2/ 304 Stainless Steel, DIN 912 descriptions:

M12 X 20 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 25 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 30 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 35 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 40 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 45 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 50 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 55 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 60 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 65 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 70 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 75 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 80 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 85 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 90 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 95 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL
M12 X 100 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL



Socket Cap Head Fasteners come as 'sets' and 'bolts'. The, ‘SET’, term is used to describe a fastener that is fully threaded in lengths up to and around 1 inch (from the underside of the head. Over 1 inch in length the fastener will have a, 'shoulder,' or unthreaded area under the head. This space of unthreaded area confirms that the fastener is now a bolt (cap head, bolt in this case). Some people might simply call them Allen or, 'Allan bolts,' in association with the Allen, Hexagonal Key which is used to tighten and loosen the fastener. So, ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head.



FIXABALL – Specialist Fixings and Fasteners Suppliers

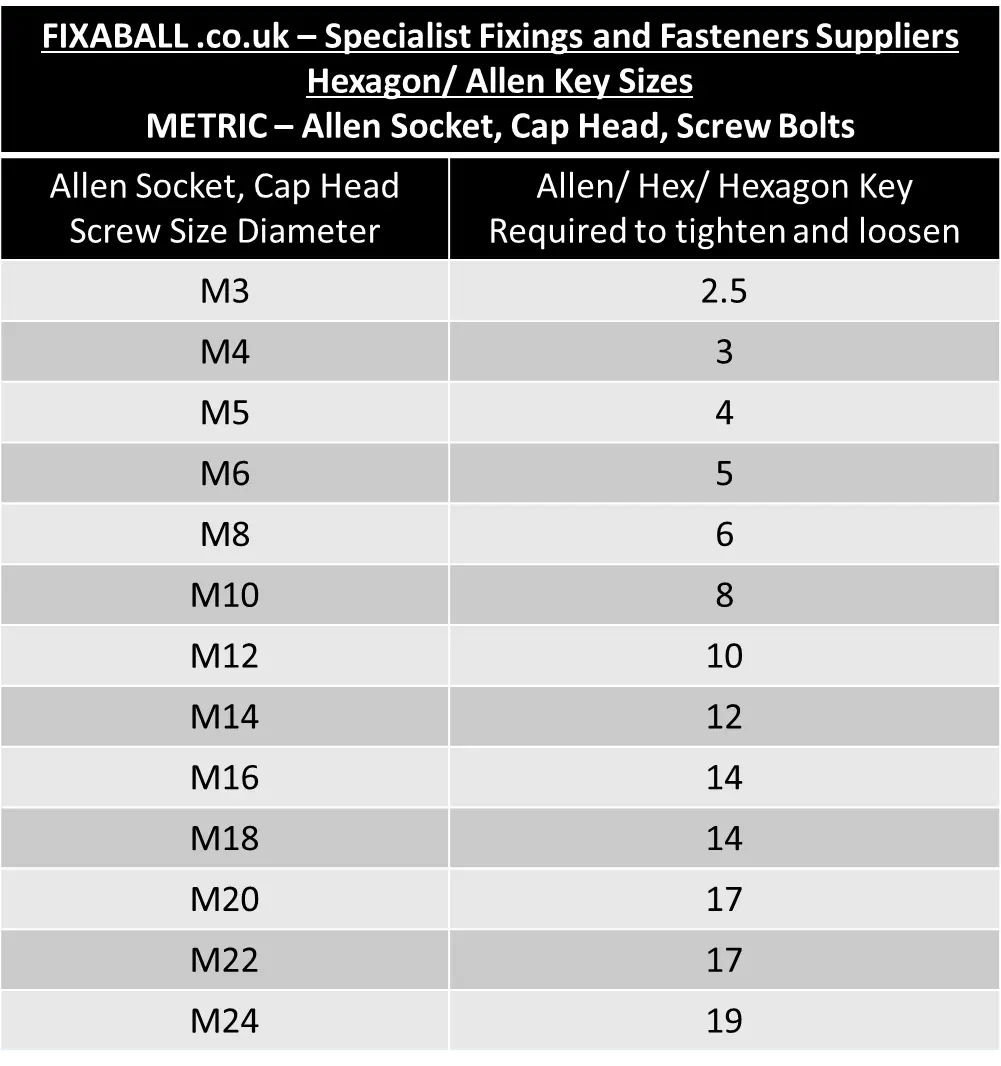

Hexagon/ Allen Key Sizes

METRIC – Allen Socket, Cap Head, Screw Bolts

Allen Socket, Cap Head Screw Size Diameter

Allen/ Hex/ Hexagon Key Required to tighten and loosen

M3

2.5

M4

3

M5

4

M6

5

M8

6

M10

8

M12

10

M14

12

M16

14

M18

14

M20

17

M22

17

M24

19

Material: A2/ 304 Stainless Steel.

Material/ Finish

Appearance

Level of Corrosion Resistance

Typical Application

A2/ 304 Stainless Steel

Dull Shine

External

Intermittent weathering

Metric Coarse and Metric Fine threads are in millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations. Coarse threads are the, 'normal', most common versions.

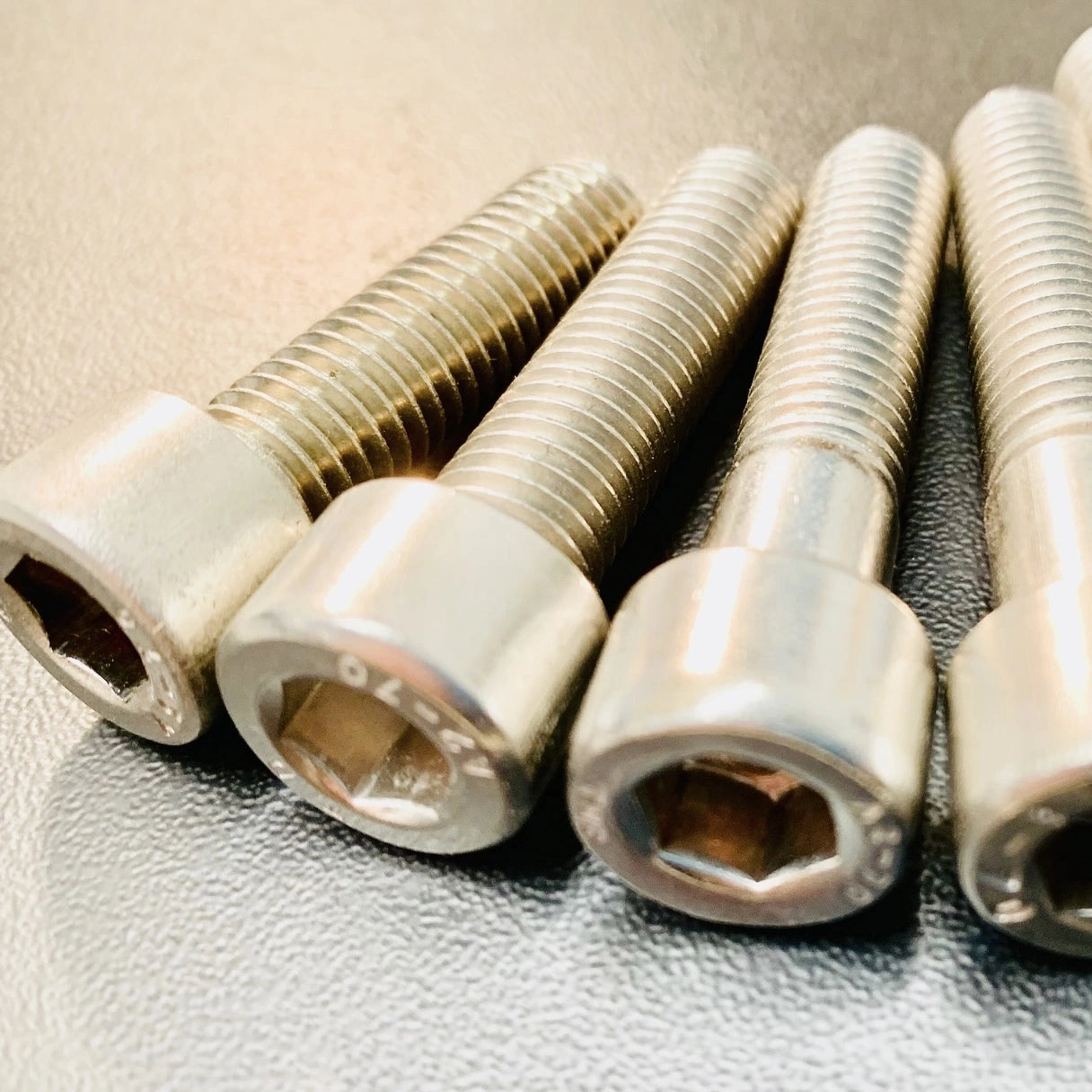

 Image is for illustrative purposes only.
