Throughbolt, Anchor

M12 Throughbolts ZYP Heavy Duty Masonry Concrete Anchor

M12 Throughbolts ZYP Heavy Duty Masonry Concrete Anchor

Regular price £5.52 GBP
Regular price Sale price £5.52 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
No, of Items in Pack
Length (mm)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M12, Throughbolts, ZYP, Heavy Duty, Masonry Anchor - All Lengths.

Fixaball sells all lengths of M12 throughbolts, in zinc.

Advantages of a Throughbolt

  • High Performance, cost effective anchor for non-cracked substrates eg. concrete
  • Suitable for reduced embedment to avoid contact with rebars/ reinforcement cages.
  • Holes are the same diameter as the fixings so the fixing can be passed through the fixture after locating it in the right position.
  • Cold formed body provides consistent dimensional accuracy and material stability
  • High load-bearing capacity.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'no of items in pack''length', and 'quantity', of packs selection from the drop down menus.



Throughbolt, expansion, masonry anchors are used for fixing materials to non-cracked concrete/ masonry (brick/ blocks), and non-porous stone.

M12 Throughbolt Lengths Available

Anchor Hole Size Anchor Length
12mm 80mm
12mm 100mm
12mm 120mm
12mm 140mm
12mm 180mm

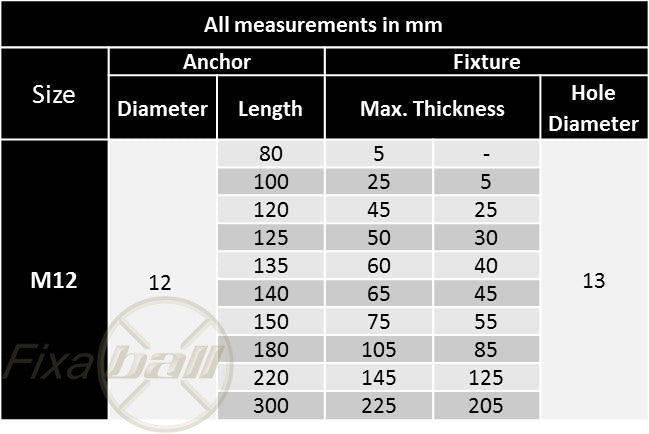

    Table to show important installation settings/ measurements:

    All measurements in mm

    Size

    Anchor

    Fixture

    Diameter

    Length

    Range of Joining Thickness

    Hole Diameter

    M6

    6

    50

    10

    -

    7

    65

    25

    5

    85

    45

    25

    100

    60

    40

    M8

    8

    50

    5

    -

    9

    60

    10

    -

    65

    15

    -

    75

    25

    10

    80

    30

    15

    85

    35

    20

    95

    45

    30

    115

    65

    50

    140

    90

    75

    150

    100

    85

    Size

    Anchor

    Fixture

    Diameter

    Length

    Max. Thickness

    Hole Diameter

    M10

    10

    65

    5

    -

    11

    80

    20

    10

    85

    25

    15

    95

    35

    25

    115

    55

    45

    130

    70

    60

    140

    80

    70

    150

    90

    80

    180

    120

    110

    M12









    12









    80

    5

    -

    13

    100

    25

    5

    120

    45

    25

    125

    50

    30

    135

    60

    40

    140

    65

    45

    150

    75

    55

    180

    105

    85

    220

    145

    125

    300

    225

    205

    Size

    Anchor

    Fixture

    Diameter

    Length

    Max. Thickness

    Hole Diameter

    M16

    16

    100

    5

    -

    18

    105

    10

    -

    125

    25

    5

    140

    40

    20

    150

    50

    30

    160

    60

    40

    180

    80

    60

    220

    120

    100

    280

    180

    160

    M20

    20

     125



    22



     160

    40

    20

    200

    80

    60

     300

    180

    160

    M24

    24

    180

    30

    20

    26

    260

    115

    100

    300

    155

    140



    Installation and Advice

    • Before installation, check the concrete’s strength in order to make sure its class/ standard is suitable.
    • The concrete base must be compact and porosity insignificant.
    • Installation temperature range for base material: -5 / + 40 ºC (80 ºC for a short
    • period of time).
    • Minimum installation depth values must always be respected: for anchors’ depth, for anchor-to-anchor distances and for anchor-to-edge distances.
    • Drilling must be performed by respecting the specified minimum depth and diameter, perpendicular to the base material’s surface. The holes on the material to be fixed may be used as templates.
    • When drilling near any reinforcement areas, special care must be taken to avoid damaging them. If drilling is aborted because a reinforcement area has been encountered, it is advisable to drill a new hole at a minimum distance of at least twice the aborted drill hole diameter. This advisable distance may be reduced, as long as the aborted hole is previously filled up with high-resistant mortar.
    • It is necessary to clean the holes thoroughly free of dust and debris with a suitably sized brush.
    • When temperature is below 0ºC, make sure water does not seep into the hole, as this fact could cause subsequent cracks on the concrete, due to ice pressure.
    • Introduce the anchor through the material to be fixed into the hole up to the embedment depth, according to the values on the table. It is possible to use a hammer to ensure the required depth. Do not apply any intermediate layer between the material to be fixed and the washer, such as sealing products.
    • Apply the specified torque with a torque wrench.
    • In the case the holes on the material to be fixed have a bigger diameter than required, it is necessary to insert a thicker washer and of a bigger diameter. But please, note that this procedure does not ensure a correct distribution of shear loads amongst all the anchors of a same group, and this shear load is applied only to the anchors with a correct diameter on the material to be fixed.

    Image is for illustrative purposes only.
