M12 x 1.25P Extra Fine, Socket Screw, Cap, H.T/ 12.9, Self-Colour, DIN 912.

M12 x 1.25 Pitch (Extra Fine Thread), Cap Head, Socket Screw/ Allen Bolt, High Tensile (12.9), DIN 912. Fixaball sells all lengths of M12 x 1.25mm (extra fine) Pitch, self-colour, allen/...
£2.53

M12 x 1.25 Pitch (Extra Fine Thread), Cap Head, Socket Screw/ Allen Bolt, High Tensile (12.9), DIN 912.

Fixaball sells all lengths of M12 x 1.25mm (extra fine) Pitch, self-colour, allen/ hex socket cap screw/ boltss at the best internet prices with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

M12 x 1.25P Socket Cap Screw lengths at Fixaball:

M12-1.25x20 MM,(FT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR - Out of Stock, please ask
M12-1.25x25 MM,(FT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x30 MM,(FT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x35 MM,(FT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x40 MM,(FT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x45 MM,(FT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x50 MM,(FT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x55 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x60 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x70 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x75 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x80 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x90 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x100 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.25x120 MM,(PT) SOCKET HEAD CAP SCREW 12.9 EXTRA FINE ISO 4762 / DIN 912 SELF COLOUR



M12 x 1.25P (fine pitch) Allen Socket, Cap Head, Bolt/ Screw lengths available:

Socket Cap Screws come as 'sets' and 'bolts'. The, ‘SET’, term is used to describe a fastener that is fully threaded in lengths up to and around 1 inch (from the underside of the head. Over 1 inch in length the fastener will have a, 'shoulder,' or unthreaded area under the head. This space of unthreaded area confirms that the fastener is now a bolt (cap head, bolt in this case). Some people might simply call them Allen or, 'Allan bolts,' in association with the Allen, Hexagonal Key which is used to tighten and loosen the fastener. So, ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head.

Materials:

Material/ Finish

Appearance

Level of Corrosion Resistance

Typical Application

High Tensile Steel

Self-Colour (black with no surface treatment)

Low, without further surface treatment

No exposure to moisture.

Often Greased/ Oiled

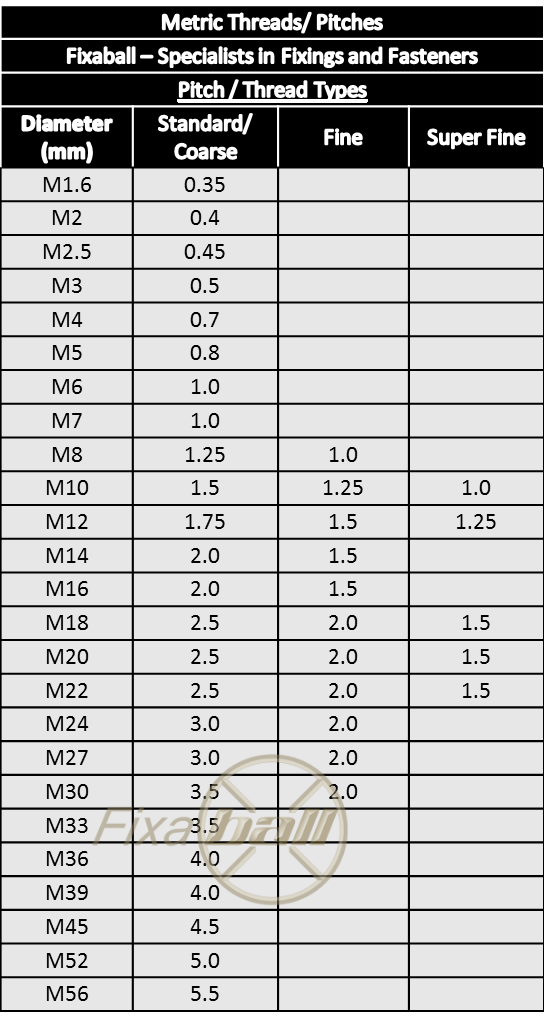

Metric Coarse and Metric Fine threads are in millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations. Coarse threads are the, 'normal', most common versions.

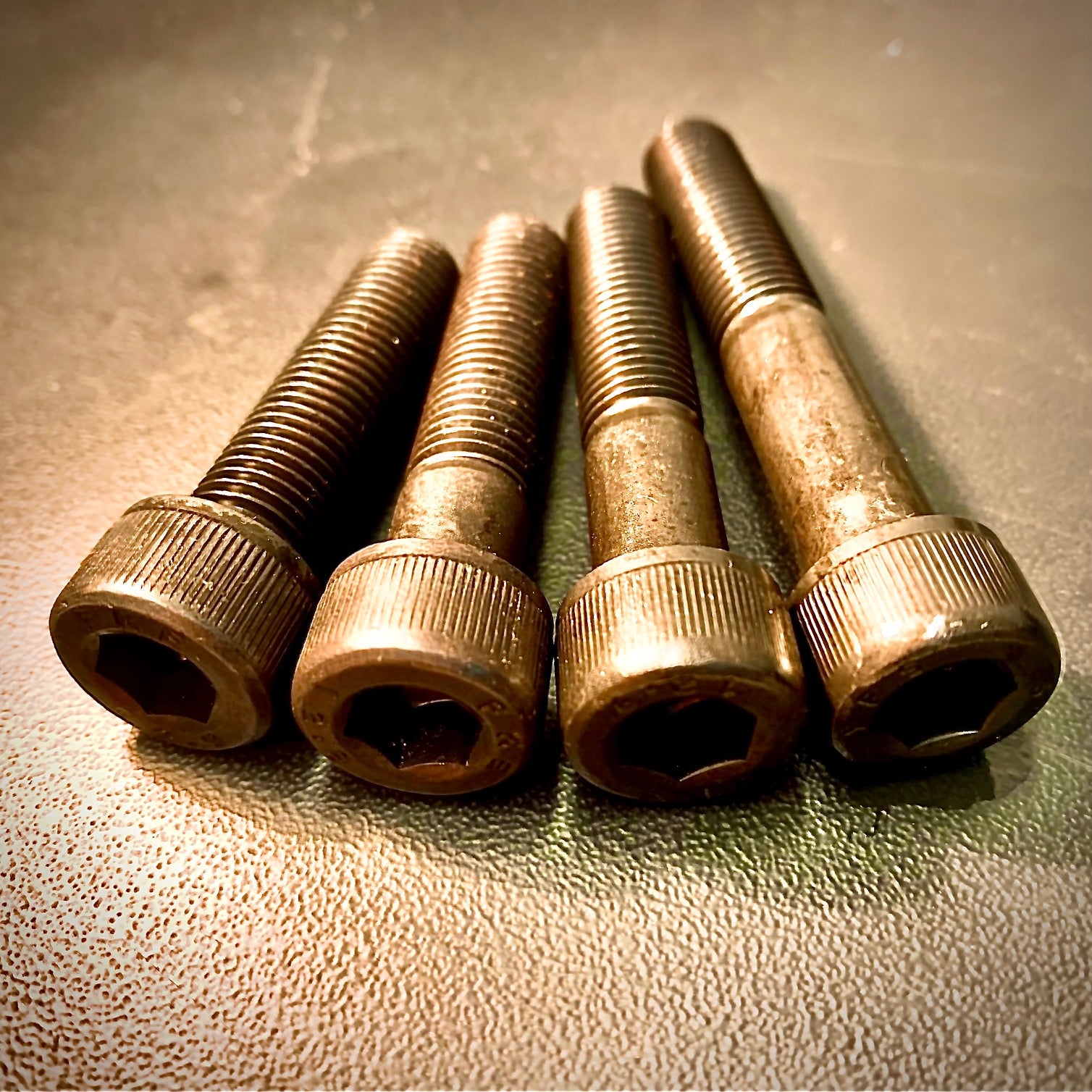

 Image is for illustrative purposes only.
