M12 x 1.5P x >110mm, Socket, Cap, HT/ 12.9, Self-Colour, DIN 912.

M12 x 1.5P x >110mm, Socket, Cap, HT/ 12.9, Self-Colour, DIN 912. M12 x 1.5mm Pitch (fine) x OVER and including 110mm long, Allen/ Hexagonal Socket, Cap Head, Screw/ Bolt, High...
£18.63

M12 x 1.5P x >110mm, Socket, Cap, HT/ 12.9, Self-Colour, DIN 912.

M12 x 1.5mm Pitch (fine) x OVER and including 110mm long, Allen/ Hexagonal Socket, Cap Head, Screw/ Bolt, High Tensile (Grade 12.9), DIN 912.

Fixaball sells all lengths of M12 x 1.5mm, fine pitch, cap head, allen screw/ bolts at the best internet prices with free post.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

M12 x 1.5P (fine pitch) Allen Socket, Cap Head, Bolt/ Screw lengths available:

M12-1.50x110 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.50x120 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.50x130 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.50x140 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.50x150 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR
M12-1.50x160 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR

SEE OTHER LISTING FOR LENGTHS UNDER AND INCLUDING 100MM



M12 x 1.25P (fine pitch) Allen Socket, Cap Head, Bolt/ Screw lengths available:

Socket Cap Screws come as 'sets' and 'bolts'. The, ‘SET’, term is used to describe a fastener that is fully threaded in lengths up to and around 1 inch (from the underside of the head. Over 1 inch in length the fastener will have a, 'shoulder,' or unthreaded area under the head. This space of unthreaded area confirms that the fastener is now a bolt (cap head, bolt in this case). Some people might simply call them Allen or, 'Allan bolts,' in association with the Allen, Hexagonal Key which is used to tighten and loosen the fastener. So, ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head.

Materials:

Material/ Finish

Appearance

Level of Corrosion Resistance

Typical Application

High Tensile Steel

Self-Colour (black with no surface treatment)

Low, without further surface treatment

No exposure to moisture.

Often Greased/ Oiled

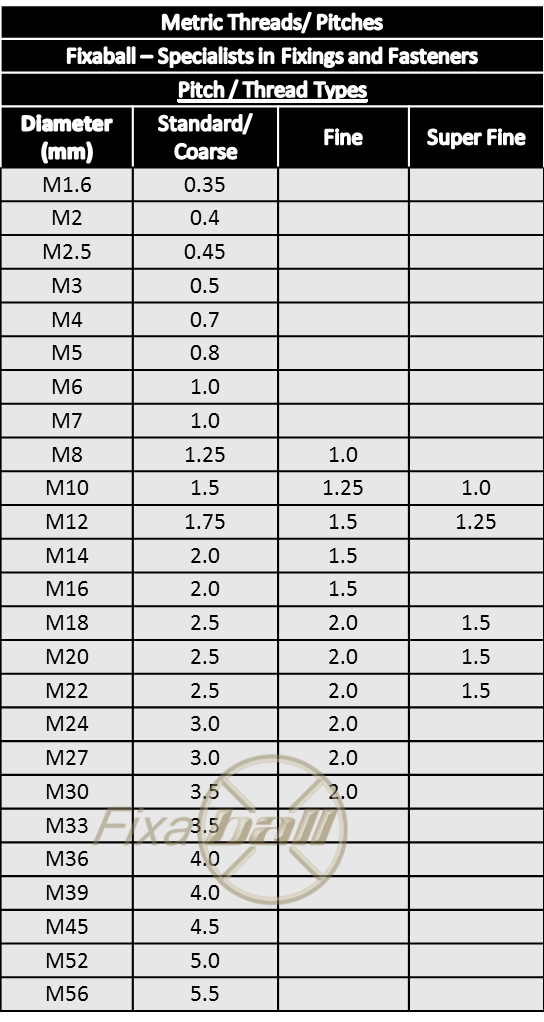

Metric Coarse and Metric Fine threads are in millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations. Coarse threads are the, 'normal', most common versions.

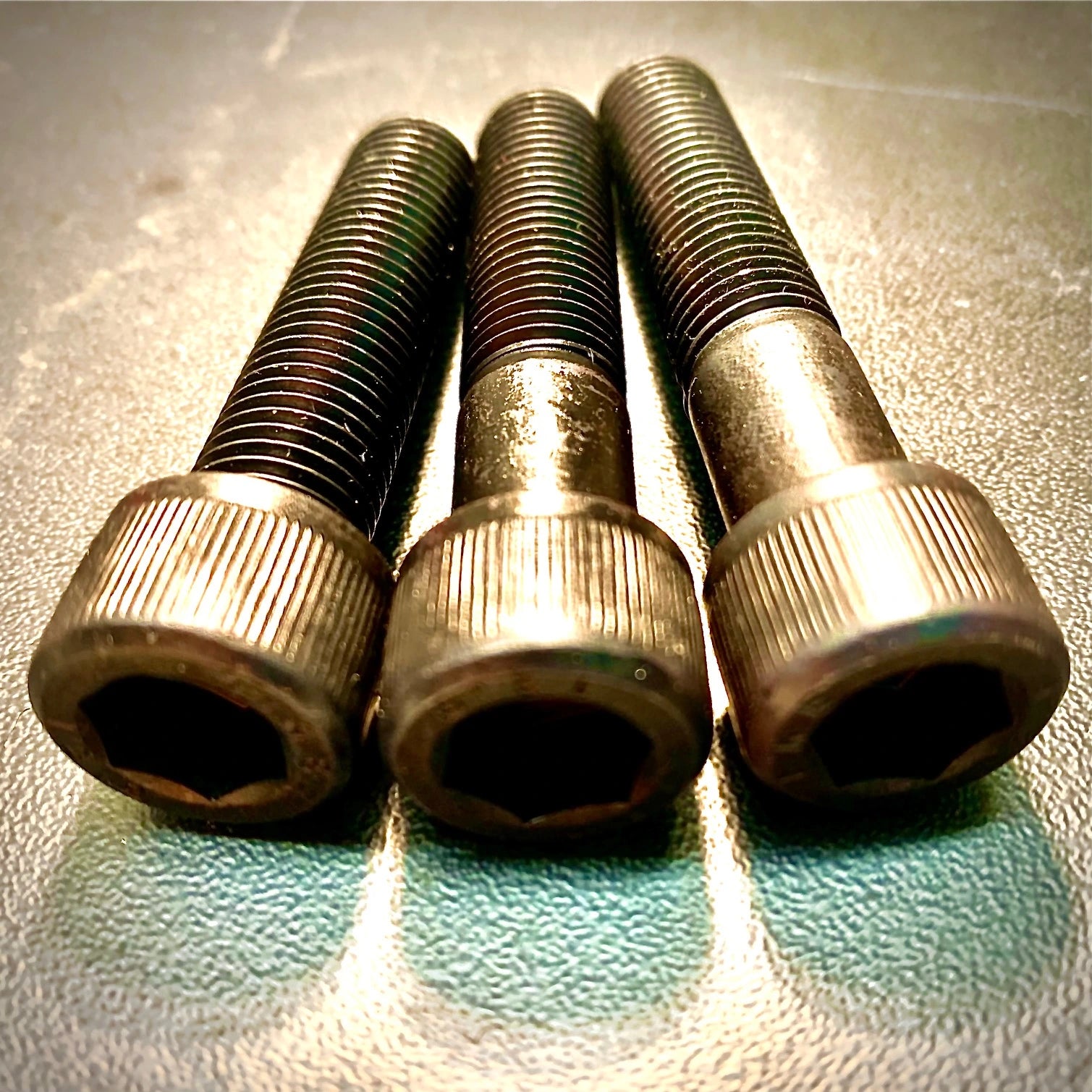

 Image is for illustrative purposes only.
