Concrete Screw - Hex - Heavy Duty

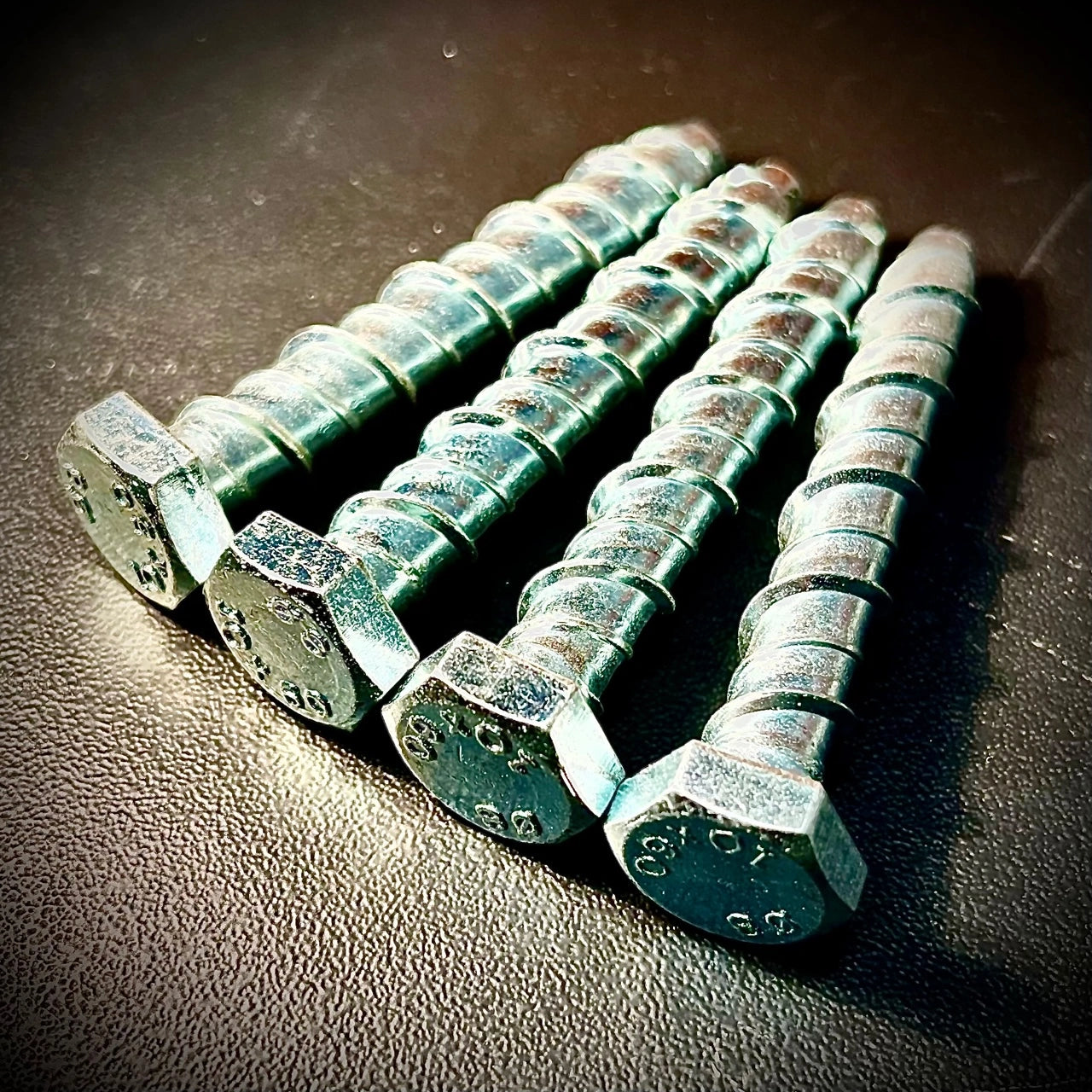

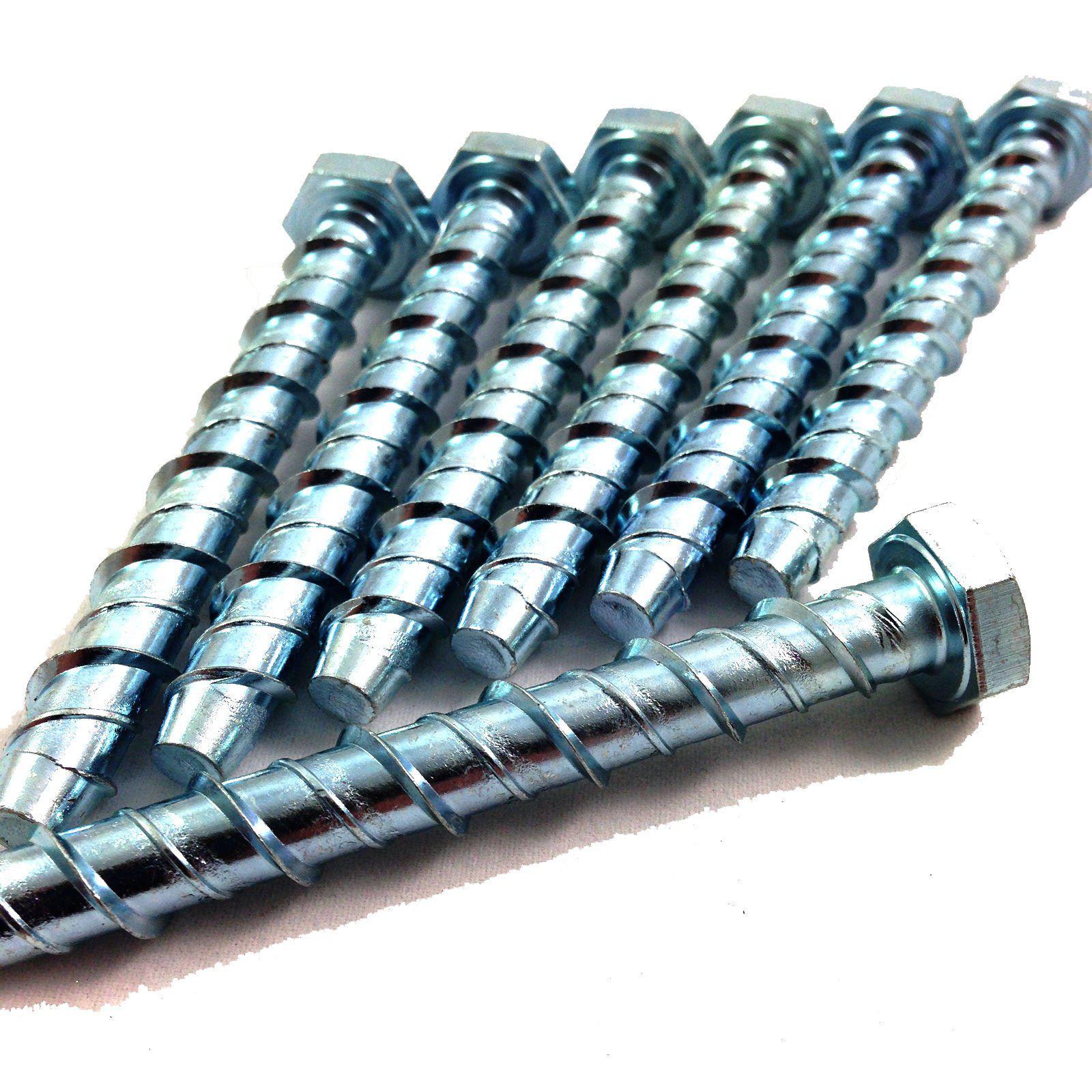

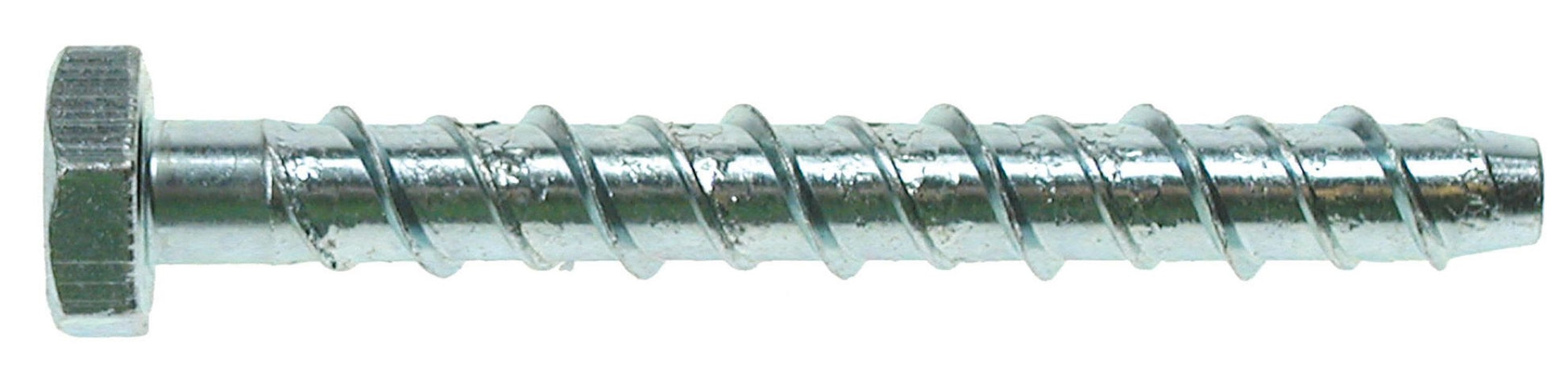

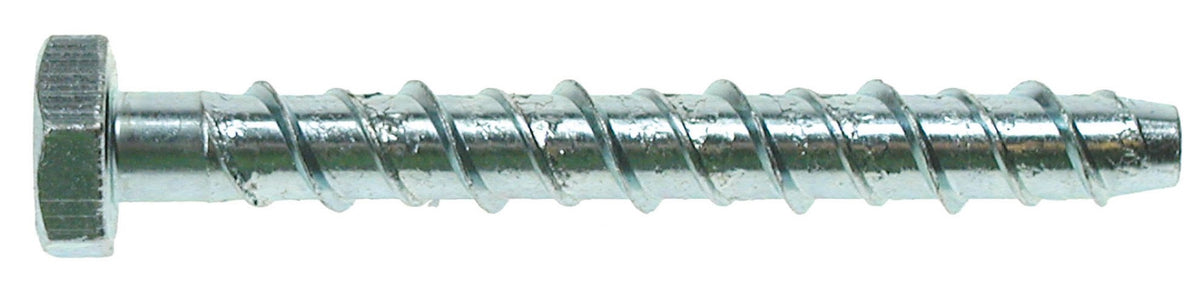

M14 Hex Concrete Anchor Screw Self-Tapping High Tensile Zinc

M14 Hex Concrete Anchor Screw Self-Tapping High Tensile Zinc

Regular price £12.96 GBP
Regular price Sale price £12.96 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Pack Quantity
Hole Size (mm) x Length (mm)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M14, JCP Anker, Masonry Concrete Anchor Screw, Self Tapping, Hexagon Head, Zinc Plated (Lightening/ Thunder/ Anker Bolt, type).

Fixaball sells all lengths of M14 concrete screw bolt anchors.

M14 concrete screw anchors Installation

Simply drill a hole using the correct masonry drill bit, remove the dust and debris and twist in with a socket wrench/ hexagon adapter. No need for plastic plugs as the thread in the concrete is created as you insert the anchor. Do not put any stress/ load onto the concrete screws until the concrete has fully cured. Use an additional washer to spread the load of the fixing.



These bolts are classed as non-expansion anchors which mean they won't stress the concrete when fixing.



M14 Hexagonal Head, Concrete Screw

The concave thread design taps its own thread and provides a rapid, low torque installation with exceptional pull out resistance. It also allows the user to adjust or remove the bolt ensuring a secure and accurate installation. This stress free, non-expansion through fixing is a solution for medium duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as through bolts, shield, sleeve and drop-in anchors.

Always 'over drill' the hole's depth by 10/ 20mm

Gauge of the screws is the diameter of the shank and not the total diameter, including the thread.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'no of items in pack''length', and 'quantity', of packs selection from the drop down menus.



M14, Masonry Concrete Anchor Screw Lengths Available:

Ankerbolts - Hex Head. - 14mm x 75mm. BZP.
Ankerbolts - Hex Head. - 14mm x 100mm. BZP.
Ankerbolts - Hex Head. - 14mm x 130mm. BZP.
Ankerbolts - Hex Head. - 14mm x 150mm. BZP.
Ankerbolts - Hex Head. - 14mm x 200mm. BZP.



Helpful Information

Bolt/ Hole Size (shank diameter)

Total Diameter (including Thread)

Masonry Drill Bit Size

Socket Size (to fit hex head)

M6

8mm

6mm

10mm

M8

10mm

8mm

15mm

M10

12mm

10mm

17mm

M12

14mm

12mm

19mm

M16

18mm

16mm

27mm



Image is for illustrative purposes only.
