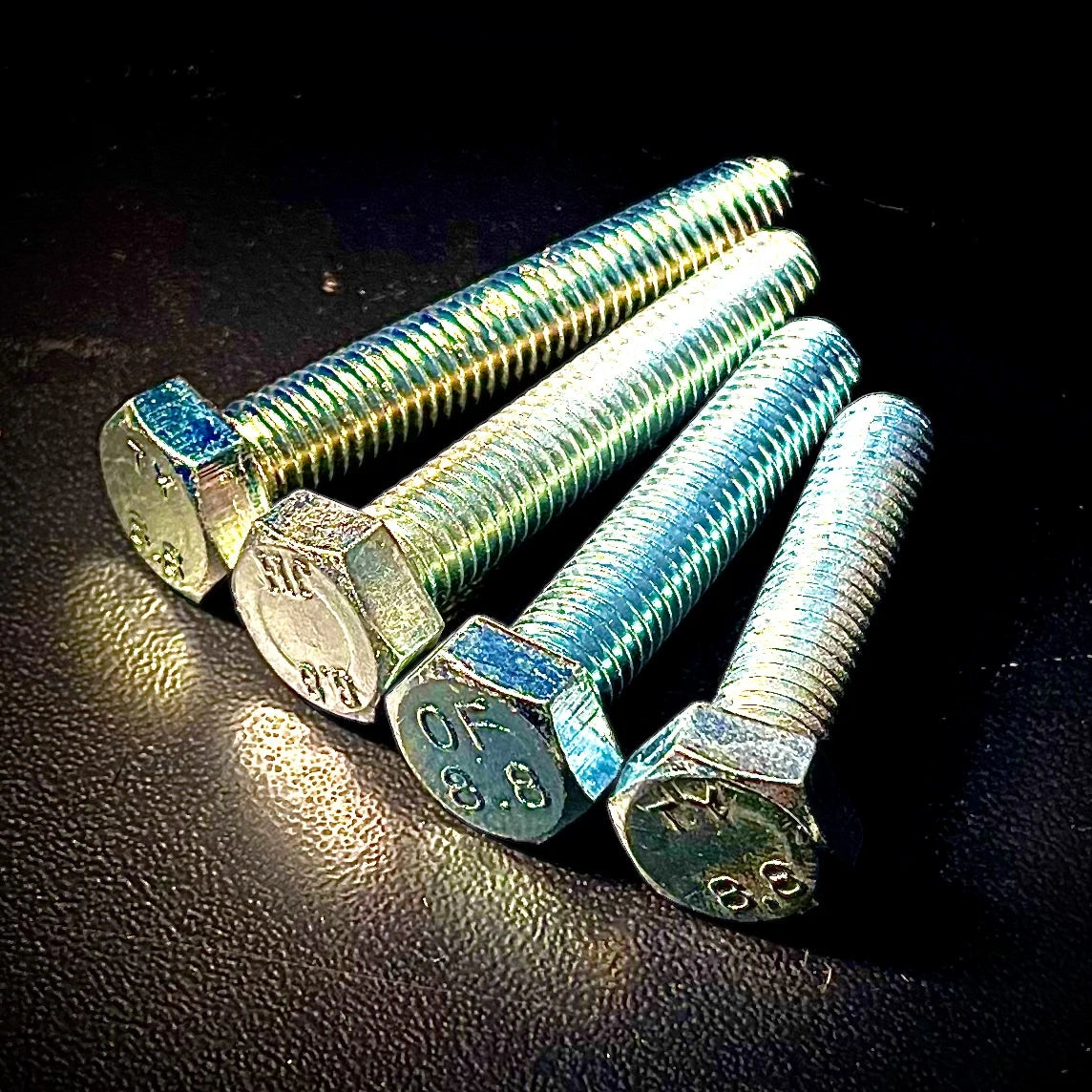

M16 x Under 100mm, Hex Set Screw, High Tensile/ 8.8, Zinc, DIN 933.

M16 (16mm Dia. 2.00 Pitch, Standard Coarse Thread) Hexagon Head, Set Screw, Set Screw, Hex Head, High Tensile, Grade 8.8 Steel, Zinc Plated. DIN 933. Fixaball sells all lengths of M16, zinc,...
£3.41

M16 (16mm Dia. 2.00 Pitch, Standard Coarse Thread) Hexagon Head, Set Screw, Set Screw, Hex Head, High Tensile, Grade 8.8 Steel, Zinc Plated. DIN 933.

Fixaball sells all lengths of M16, zinc, hexagon head, set screws (fully threaded shank).

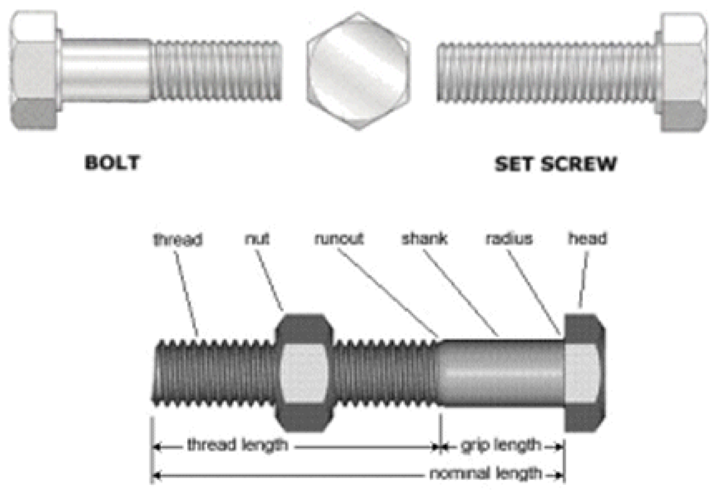

Hex Head Set Screw is similar to a hex head, bolt and can be used in a similar way. The difference is that a set is fully threaded and a bolt is not. A bolt has a part-plain shank that will reduce damage to a hole where you will expect movement and vibrations. A set might be used to fix something to a permanent position and has better flexibility with fastening with it’s longer threaded area.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'No. of Items in Pack', 'Length', and 'Quantity' of packs selection from the drop down menus.

Head Type

Hexagon Head.

M16 A2 Stainless Steel Hex Set Screw Lengths Available:

M16 X 25 HEX SET 8.8 DIN 933 BZP
M16 X 30 HEX SET 8.8 DIN 933 BZP
M16 X 35 HEX SET 8.8 DIN 933 BZP
M16 X 40 HEX SET 8.8 DIN 933 BZP
M16 X 45 HEX SET 8.8 DIN 933 BZP
M16 X 50 HEX SET 8.8 DIN 933 BZP
M16 X 55 HEX SET 8.8 DIN 933 BZP
M16 X 60 HEX SET 8.8 DIN 933 BZP
M16 X 65 HEX SET 8.8 DIN 933 BZP
M16 X 70 HEX SET 8.8 DIN 933 BZP
M16 X 75 HEX SET 8.8 DIN 933 BZP
M16 X 80 HEX SET 8.8 DIN 933 BZP
M16 X 90 HEX SET 8.8 DIN 933 BZP
M16 X 100 HEX SET 8.8 DIN 933 BZP



Spanner Sizes

FIXABALL – Specialist Fixings and Fasteners

Spanner Sizes

METRIC - Hexagon Head Bolts/ Sets

Thread Size/ Diameter

Spanner Size

M3 (3mm)

5.5mm

M4 (4mm)

7mm

M5 (5mm)

8mm

M6 (6mm)

10mm

M8 (8mm)

13mm

M10 (10mm)

17mm

M12 (12mm)

19mm

M14 (14mm)

22mm

M16 (16mm)

24mm

Threads

This listing is for standard coarse thread, shoulder bolts.

Metric Threads are measured in Millimetres (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.



Metric Threads/ Pitches

Fixaball – Specialists in Fixings and Fasteners



Pitch / Thread Types

Size

Standard/ Coarse

Fine

Super Fine

M1.6

0.35



M2

0.4



M2.5

0.45



M3

0.5



M4

0.7



M5

0.8



M6

1.0



M7

1.0



M8

1.25

1.0



M10

1.5

1.25

1.0

M12

1.75

1.5

1.25

M14

2.0

1.5



M16

2.0

1.5



M18

2.5

2.0

1.5

M20

2.5

2.0

1.5

M22

2.5

2.0

1.5

M24

3.0

2.0



M27

3.0

2.0



M30

3.5

2.0



M33

3.5



M36

4.0



M39

4.0



M45

4.5



M52

5.0



M56

5.5









Image is for illustrative purposes only.
