M16 x Under 120mm, Hex Bolt, A2/ 304 Stainless Steel. DIN 931.

M16 x Under and Including 120mm, Hex Head, Bolts, Partially Threaded Bolts in A2-70/ 304 Stainless Steel, DIN 931 Fixaball sells all lengths of M12 Hexagon Bolts in A2-70/ 304 Stainless Steel....
£5.90
Size

M16 x Under and Including 120mm, Hex Head, Bolts, Partially Threaded Bolts in A2-70/ 304 Stainless Steel, DIN 931

Fixaball sells all lengths of M12 Hexagon Bolts in A2-70/ 304 Stainless Steel.

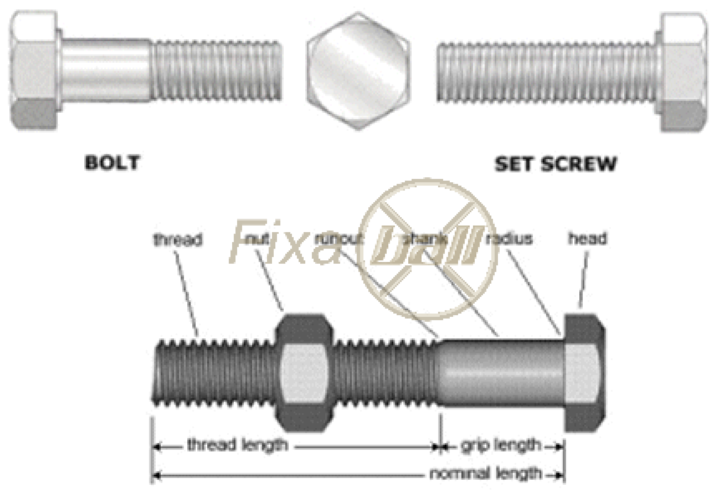

Hex-Bolt vs Hex-Set Screw

A set screw fastens materials together by twisting it directly through the last component, into a pre-threaded hole, pulling everything together. A shoulder bolt fastens materials by passing them through pre drilled holes in the adjoining materials and cramping them between the head at one end and a nut on the other. Additional washers are often used to spread the load further. A set screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank). A bolt is used when you know the length you need and a set screw can be used as a bolt if you need more flexibility in the length.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please choose your, 'No. of Items in Pack', 'Length', and 'Quantity', of packs selection from the drop down menus.

M16 Hex Bolt Length Available:

M16 X 50 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 55 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 60 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 65 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 70 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 75 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 80 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 85 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 90 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 95 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 100 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 110 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 120 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL



Head Type
Hexagon Head.


Spanner Sizes



FIXABALL – Specialist Fixings and Fasteners Spanner Sizes METRIC - Hexagon Head Bolts/ Sets
Thread Size/ Diameter Spanner Size
M3 (3mm) 5.5mm
M4 (4mm) 7mm
M5 (5mm) 8mm
M6 (6mm) 10mm
M8 (8mm) 13mm
M10 (10mm) 17mm
M12 (12mm) 19mm
M14 (14mm) 22mm
M16 (16mm) 24mm
Threads
This listing is for standard coarse thread, shoulder bolts.
Metric Threads are measured in Millimeters (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.



Metric Threads/ Pitches
Fixaball – Specialists in Fixings and Fasteners
  Pitch / Thread Types
Size Standard/ Coarse Fine Super Fine
M1.6 0.35
M2 0.4
M2.5 0.45
M3 0.5
M4 0.7
M5 0.8
M6 1.0
M7 1.0
M8 1.25 1.0
M10 1.5 1.25 1.0
M12 1.75 1.5 1.25
M14 2.0 1.5
M16 2.0 1.5
M18 2.5 2.0 1.5
M20 2.5 2.0 1.5
M22 2.5 2.0 1.5
M24 3.0 2.0
M27 3.0 2.0
M30 3.5 2.0
M33 3.5
M36 4.0
M39 4.0
M45 4.5
M52 5.0
M56 5.5
Fixaball M16 Hex bolts material:
A2/ 304 Stainless Steel
Image is for illustrative purposes only.
