METRIC, Hex-Bolt plus Nut and Washers

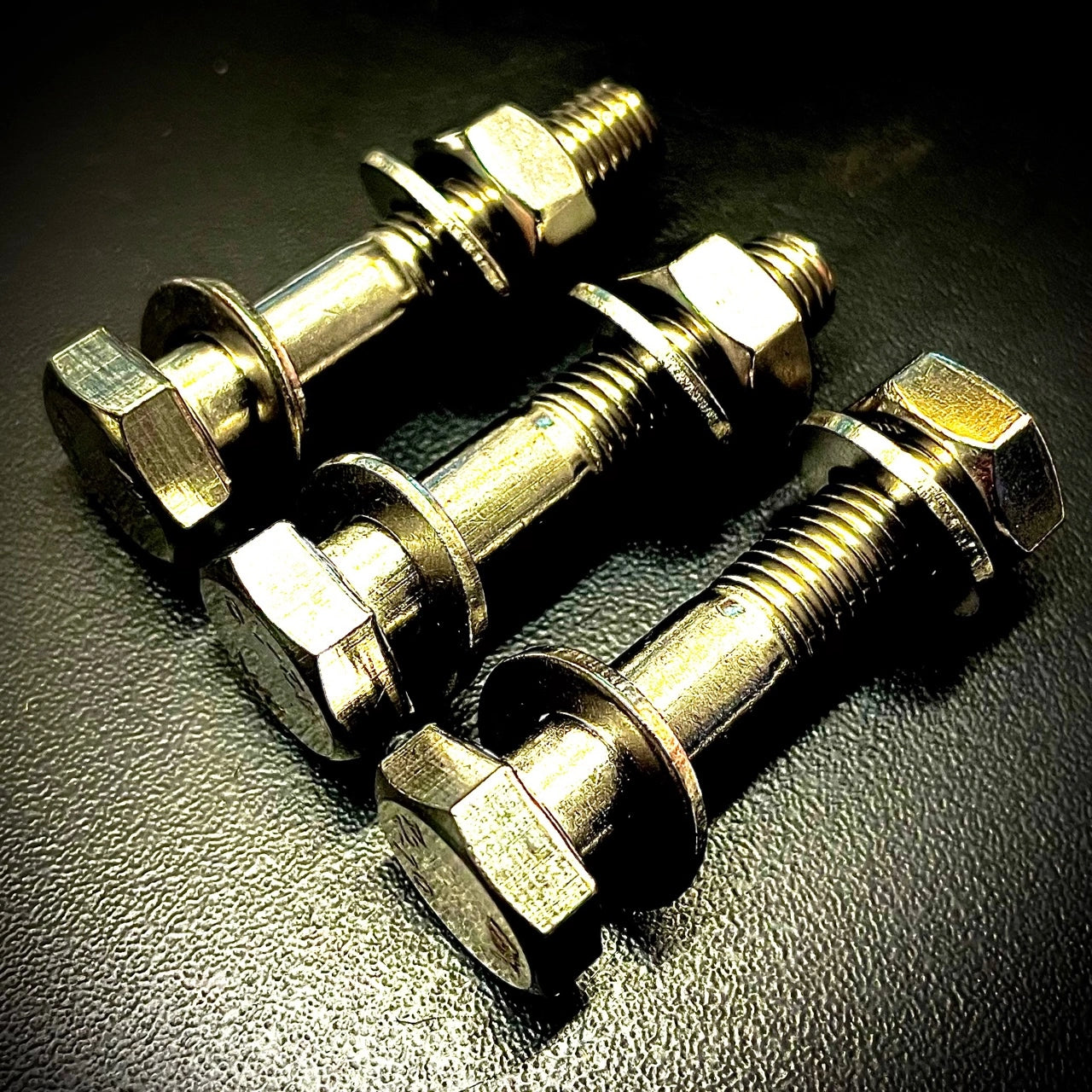

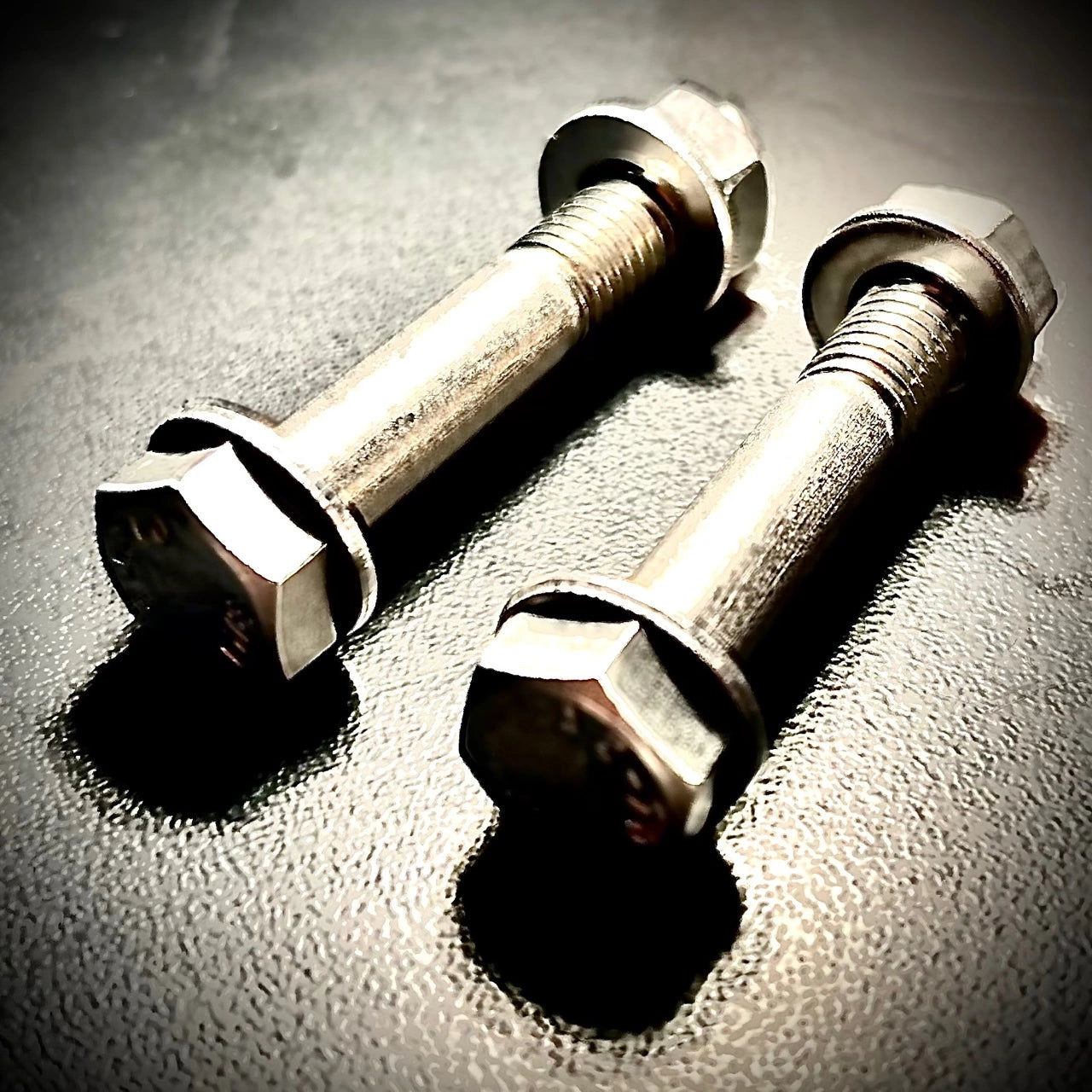

M16 x Under 120mm Hex Bolt Nut Washers A2 304 Stainless Steel

M16 x Under 120mm Hex Bolt Nut Washers A2 304 Stainless Steel

Regular price £9.05 GBP
Regular price Sale price £9.05 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
No. of Items in Pack
Length (mm)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M16 x Under and Including 120mm, Hexagon Head, Partially Threaded Bolts in A2-70/ 304 Stainless Steel, DIN 931, plus Nut and Washer

Fixaball sells all lengths of M12 Hexagon Bolts in A2-70/ 304 Stainless Steel, plus Nut and Washers.

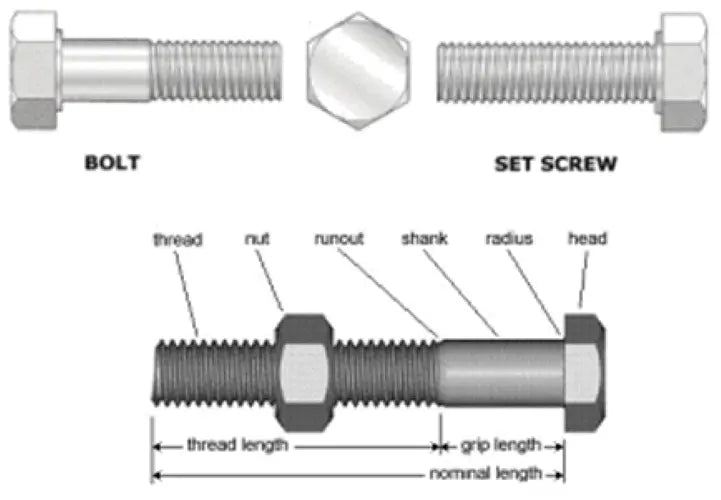

Hex-Bolt vs Hex-Set Screw

set screw fastens materials together by twisting it directly through the last component, into a pre-threaded hole, pulling everything together. A bolt fastens materials by passing them through pre drilled holes in the adjoining materials and cramping them between the head at one end and a nut on the other. Additional washers are often used to spread the load further. A set screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank). A bolt is used when you know the length you need and a set screw can be used as a bolt if you need more flexibility in the length.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please choose your, 'No. of Items in Pack', 'Length', and 'Quantity', of packs selection from the drop down menus.



M16 Hex Bolt Length Available:

M16 X 50 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 55 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 60 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 65 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 70 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 75 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 80 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 85 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 90 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 95 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 100 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 110 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M16 X 120 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL

*Red = request lengths

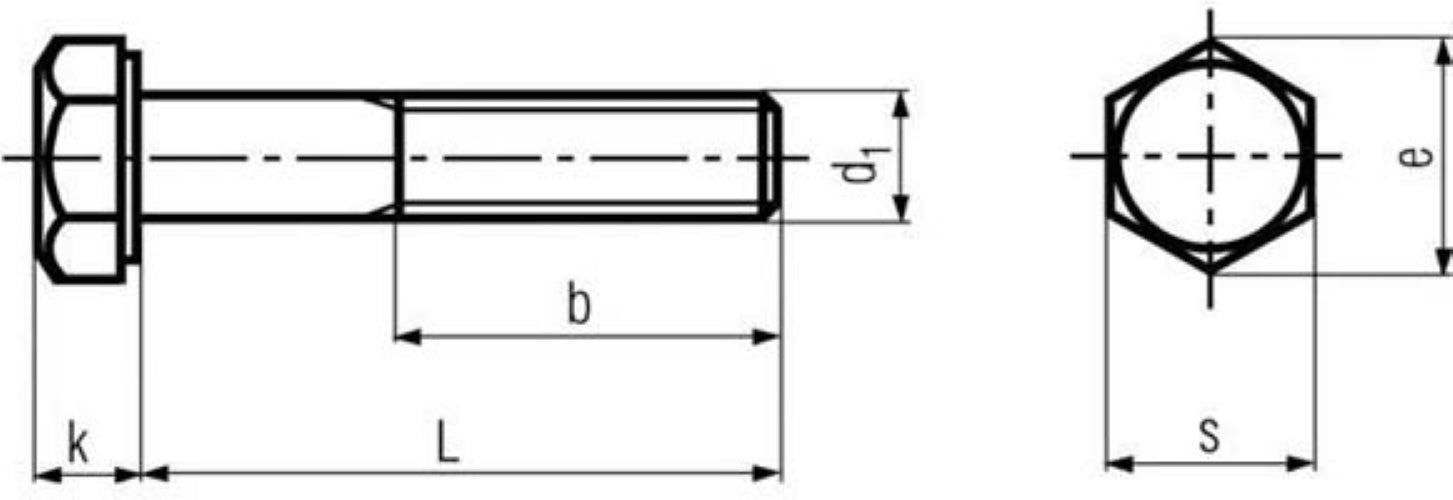

Head Type

Hexagon Head.

Spanner Sizes

FIXABALL – Specialist Fixings and Fasteners

Spanner Sizes

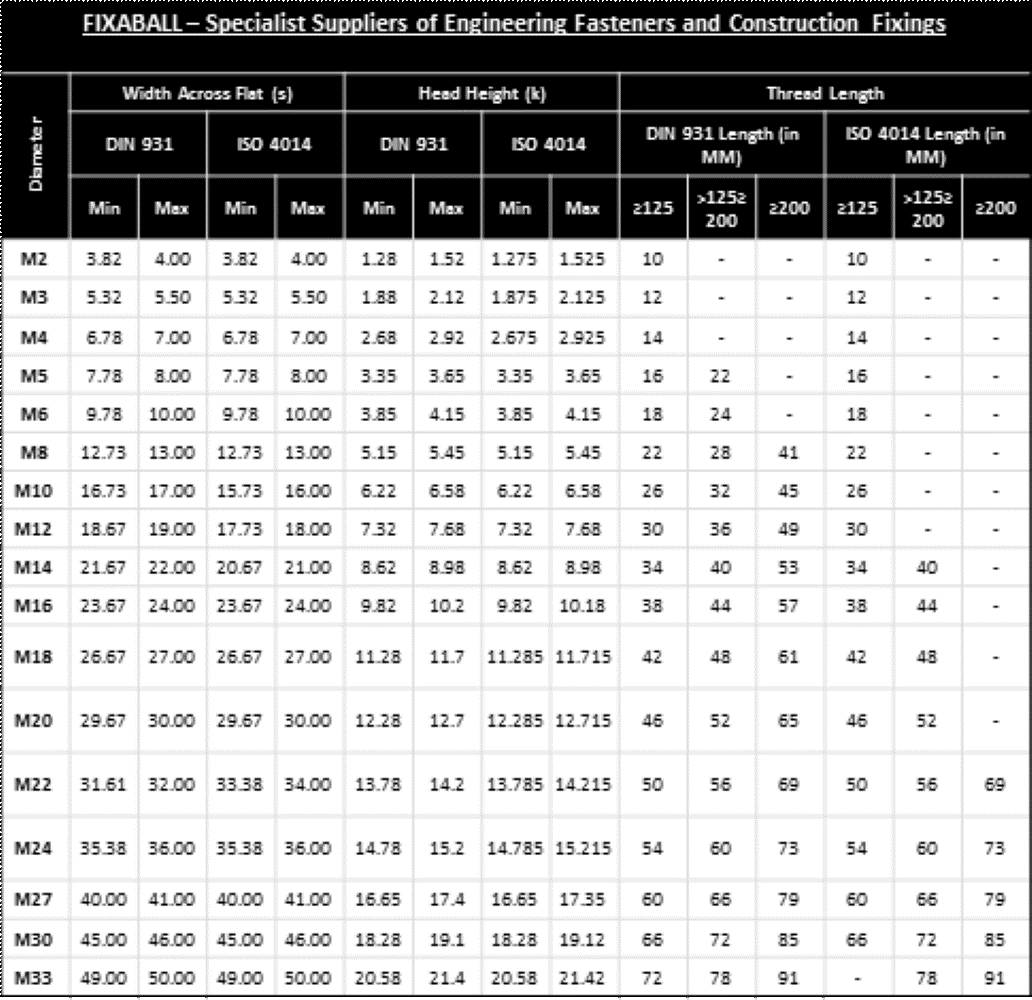

METRIC - Hexagon Head Bolts/ Sets

Thread Size/ Diameter

Spanner Size

M16 (16mm)

24mm



METRIC THREADS

Metric Coarse dimensions are measured in Millimetres (mm) units and were developed to simplify the imperial systems. A coarse thread has less helical coils per mm and is used for heavier/ higher torque loads.



Metric Threads/ Pitches

Fixaball – Specialists in Fixings and Fasteners



Pitch / Thread Types

Size

Standard/ Coarse

Fine

M16

2.0

1.5



Image is for illustrative purposes only.
