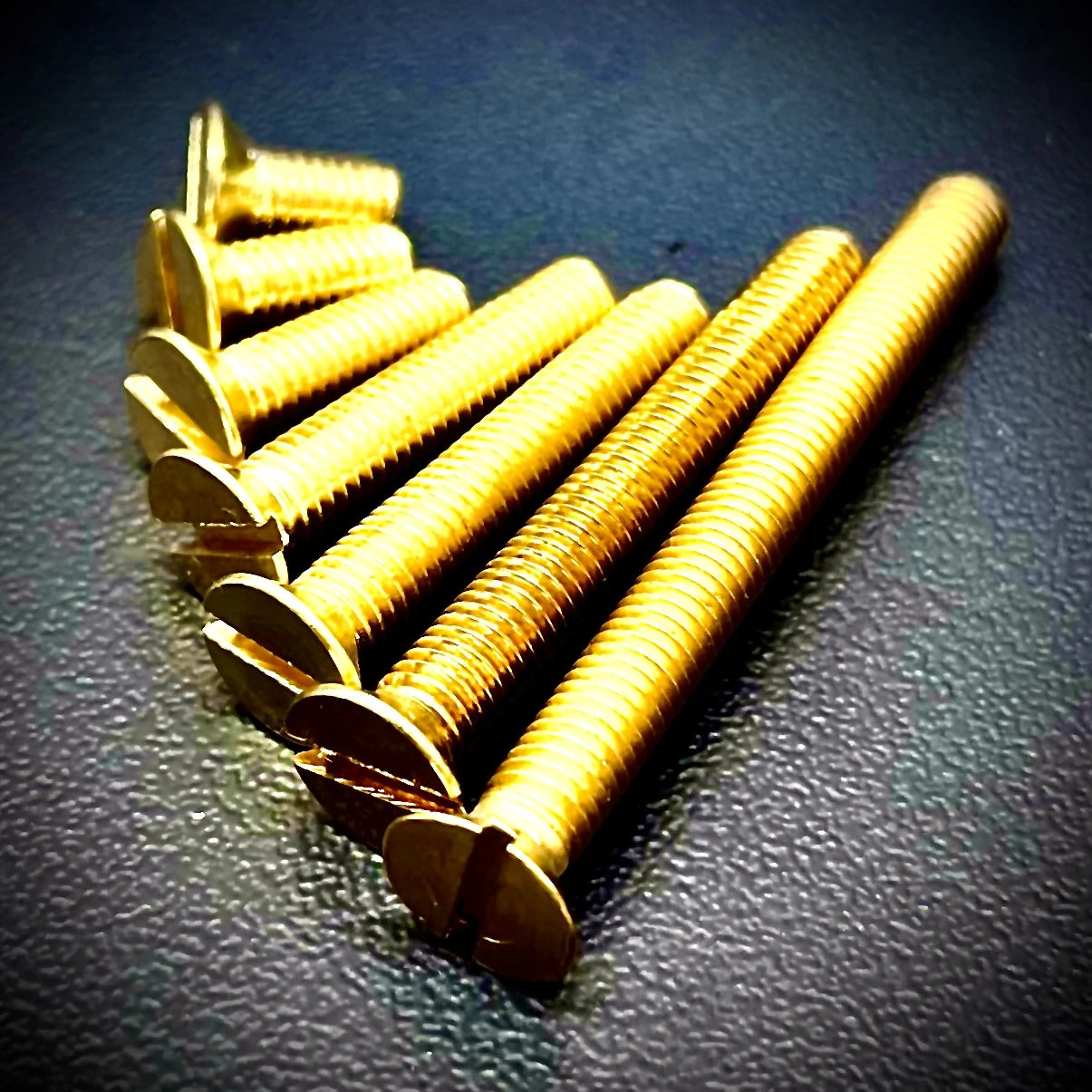

M2.5 Machine Screws, Slotted, Countersunk, Brass, DIN 963.

M2.5, Machine Screws, Slotted. Countersunk, Brass, DIN 963 Fixaball sells lengths of M2.5 countersunk, slotted machine screws in solid brass. A machine screw is a fastening device similar to a bolt but having...
£4.66

M2.5, Machine Screws, Slotted. Countersunk, Brass, DIN 963

Fixaball sells lengths of M2.5 countersunk, slotted machine screws in solid brass.

machine screw is a fastening device similar to a bolt but having a pozidrive or slotted head which allows it to be turned with a screwdriver. It is usually applied to fastening metal components together that are pre threaded and not expected to withstand a heavy load/ force.

Countersunk Screws

A countersunk screw is used to fasten components, leaving a flush surface finish. Their length is measured from the end of the screw to the other, furthest end, at the top of the head.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'Length' and, 'No. of Items in Pack' and 'Quantity' of packs selection from the drop down menus

Fixaball – Specialist Fixings and Fasteners Suppliers

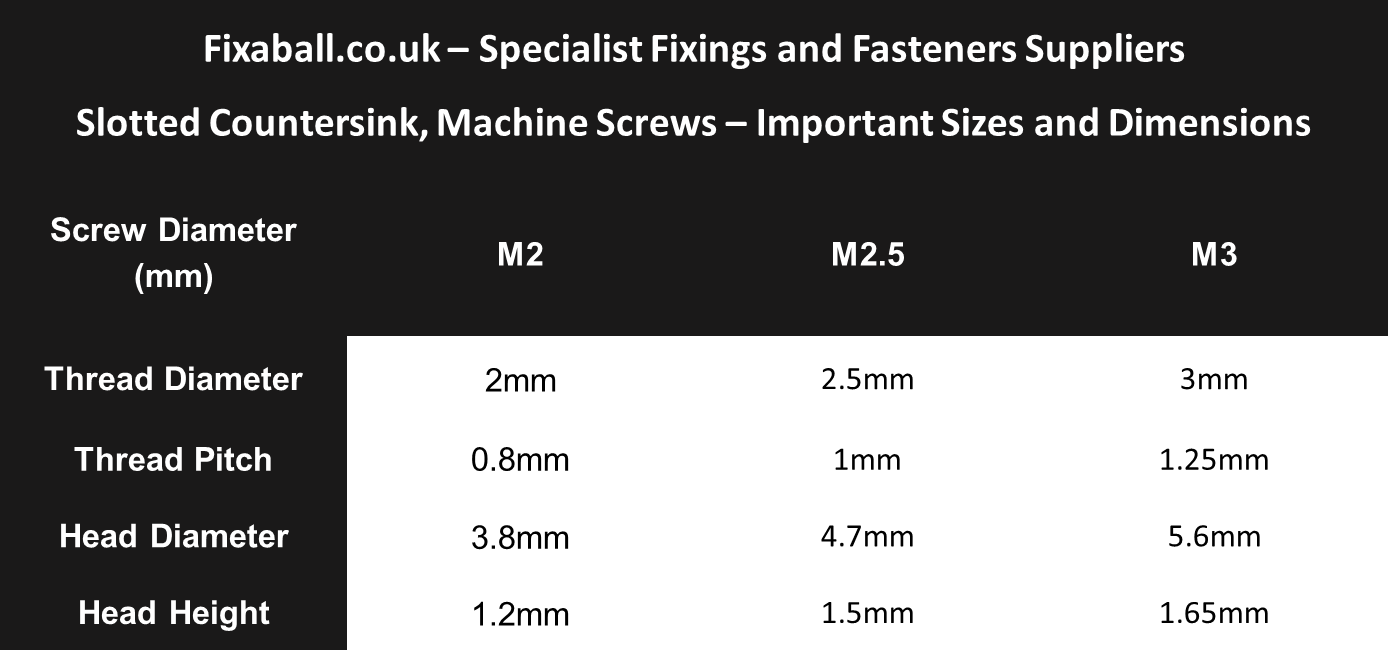

Slotted Countersink, Machine Screws – Important Sizes and Dimensions

Screw Diameter (mm)

M2

M2.5

M3

Thread Diameter

2mm

2.5mm

3mm

Thread Pitch

0.8mm

1mm

1.25mm

Head Diameter

3.8mm

4.7mm

5.6mm

Head Height

1.2mm

1.5mm

1.65mm

  • Manufactured from brass DIN 963

Image is for illustrative purposes only.
