M2.5, Machine Screws, Slotted, Pan, A2/ 304 Stainless Steel, DIN 85.

M2.5/ 2.5mm Machine Screws, Slotted Pan, A2/ 304 Stainless Steel, DIN 85 Fixaball sells all lengths of M2.5, A2/ 304 Stainless Steel, Slotted, Pan, Machine Screws at the best internet prices, with free delivery. Orders...
£3.25

M2.5/ 2.5mm Machine Screws, Slotted Pan, A2/ 304 Stainless Steel, DIN 85

Fixaball sells all lengths of M2.5, A2/ 304 Stainless Steel, Slotted, Pan, Machine Screws at the best internet prices, with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'Length' and, 'No. of Items in Pack' and 'Quantity' of packs selection from the drop down menus.

M2.5/ 2.5mm, Machine Screws, Slotted, Pan, A2/ 304 Stainless Steel, DIN 85 Lengths Available

M2.5 X 4 SLOT PAN MACHINE SCREW DIN 85 A2 STAINLESS STEEL
M2.5 X 5 SLOT PAN MACHINE SCREW DIN 85 A2 STAINLESS STEEL
M2.5 X 6 SLOT PAN MACHINE SCREW DIN 85 A2 STAINLESS STEEL
M2.5 X 8 SLOT PAN MACHINE SCREW DIN 85 A2 STAINLESS STEEL
M2.5 X 10 SLOT PAN MACHINE SCREW DIN 85 A2 STAINLESS STEEL
M2.5 X 12 SLOT PAN MACHINE SCREW DIN 85 A2 STAINLESS STEEL
M2.5 X 16 SLOT PAN MACHINE SCREW DIN 85 A2 STAINLESS STEEL
M2.5 X 20 SLOT PAN MACHINE SCREW DIN 85 A2 STAINLESS STEEL
M2.5 X 25 SLOT PAN MACHINE SCREW DIN 85 A2 STAINLESS STEEL



What is a Machine Screw?

A machine screw is a fastening device similar to a bolt but having a pozidrive or slotted head which allows it to be turned with a screwdriver. It is usually applied to fastening metal components together that are pre threaded and not expected to withstand a heavy load/ force.

Some important Machine Screws, Slotted, Countersunk, A2/ 304 Stainless Steel, DIN 85 dimensions:

Fixaball – Fixings and Fasteners Suppliers

Machine Screws, Slotted, Pan Head

Screw Diameter (mm)

M1.6

M2

M2.5

M3

M3.5

M4

M5

M6

Thread Diameter

1.6mm

2mm

2.5mm

3mm

3mm

4mm

5mm

6mm

Thread Pitch

0.35mm

0.4mm

0.45mm

0.5mm

0.5mm

0.7mm

0.8mm

1mm

Head Diameter

3.2mm

4mm

5mm

6mm

5.6mm

7.5mm

9.2mm

12mm

Head Height

1.4mm

1.6mm

2mm

2.4mm

1.65mm

2.2mm

2.5mm

4.6mm

  • Screw lengths are measured from the underside of the head.
  • Manufactured from A2 stainless steel for improved corrosion resistance.

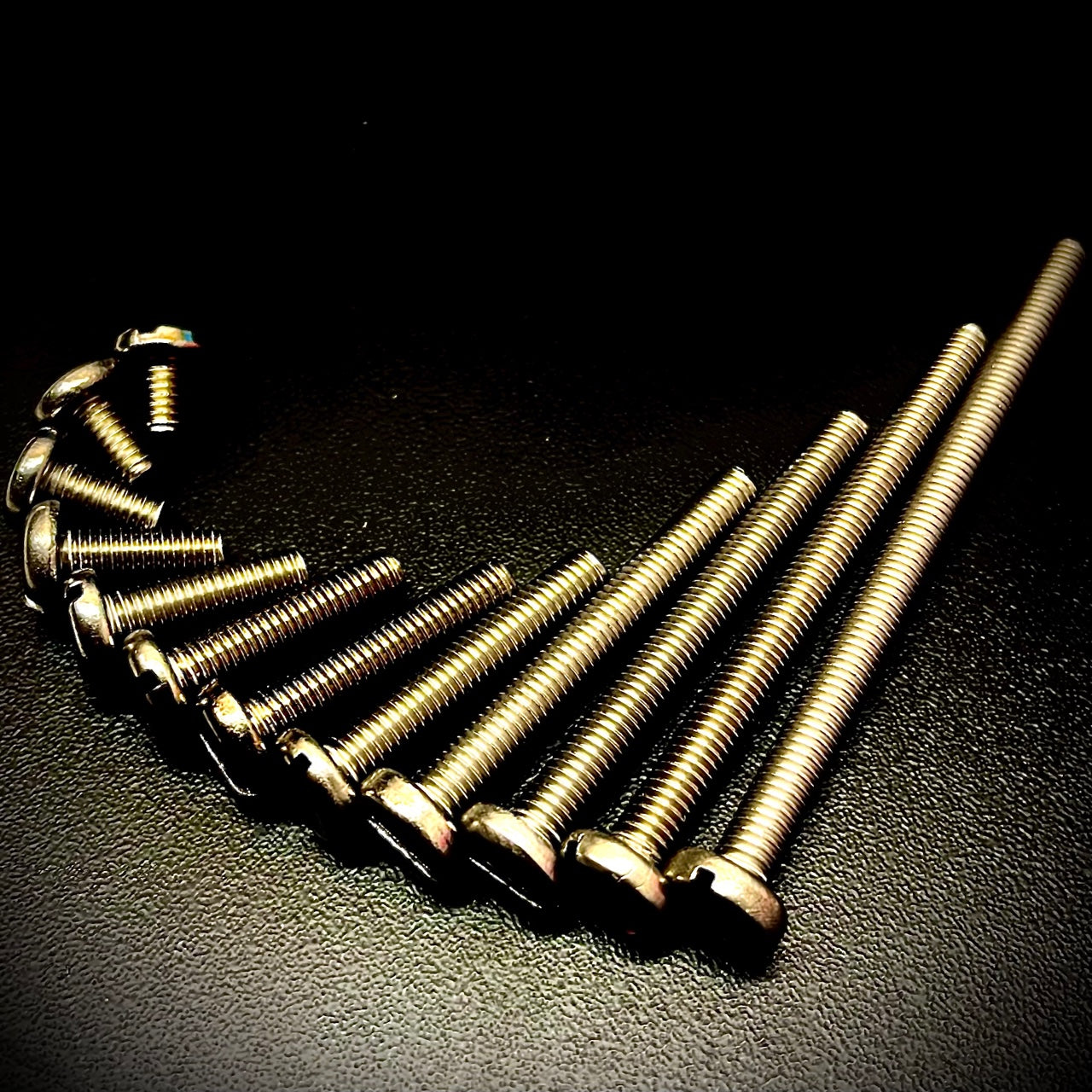

Image is for illustrative purposes only.
