M20 Thread, Socket Shoulder Cap High Tensile,12.9, DIN 9841.

M20 Thread, Socket, Shoulder Cap, High Tensile,12.9, DIN 9841. M20 Thread, M24 Shoulder Socket Cap Screw/ Bolts, High Tensile, Grade 12.9, DIN 7379, BS 4168, ISO 7379. Fixaball sells all sizes of M20,...
£44.34

M20 Thread, Socket, Shoulder Cap, High Tensile,12.9, DIN 9841.

M20 Thread, M24 Shoulder Socket Cap Screw/ Bolts, High Tensile, Grade 12.9, DIN 7379, BS 4168, ISO 7379.

Fixaball sells all sizes of M20, METRIC, Shoulder, Cap Screw/ Bolts in high tensile, grade12.9, at the best internet prices, with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

Please make your 'No. of Items in Pack' and 'Shoulder Diameter x Shoulder Length' and 'Quantity' of packs selection from the drop down menus.

Metric M20 Thread, 12.9 Grade, Shoulder Cap Screw Bolt Descriptions

Socket Shoulder Caps Description Thread Type Shoulder Diameter (mm) Thread Diameter (mm) Shoulder Length (mm)
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 30
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 40
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 50
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 55
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 60
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 65
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 70
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 80
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 90
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 100
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 110
Socket Shoulders | Standard Range METRIC Coarse Thread M24 M20 120



Table: To show metric socket, shoulder bolt dimensions

Fixaball – Specialists in Fixings and Fasteners

METRIC Socket, Shoulder Bolt Dimensions

All dimensions in mm

Thread Diameter

Thread Length

(Max)

Length of Shoulder

Diameter of Shoulder

(Max)

Socket Head Diameter

Hex/ Allen Key Size

M5

9.75

10, 12, 16, 25, 30, 40, 50, 60

5.99

10

3

M6

11.25

10, 12, 16, 25, 30, 40, 50, 60

7.99

13

4

M8

13.25

12, 16, 25, 30, 40, 50, 60, 70

9.99

16

5

M10

16.4

16, 25, 30, 40, 50, 60, 70, 80

11.98

18

6

M12

18.4

16, 25, 30, 40, 50, 60, 70, 80, 90, 100

15.98

24

8

M16

22.4

30, 40, 50, 60, 70, 80, 90, 100, 120

19.98

30

10

M20

27.4

40, 50, 60, 70, 80, 90, 100, 120

23.98

36

12

Material

Blackened alloy steel, high tensile 12.9 (Hardness 38 HRC, tensile strength 1200 N/mm²)

Technical Notes

ISO 7379. Temperature range -50°C to +300°C.

Torque to:

M5 = 7,5Nm. M6 = 13 Nm. M8 = 33 Nm. M10 = 60 Nm. M12 = 120 Nm. M16 = 270 Nm.

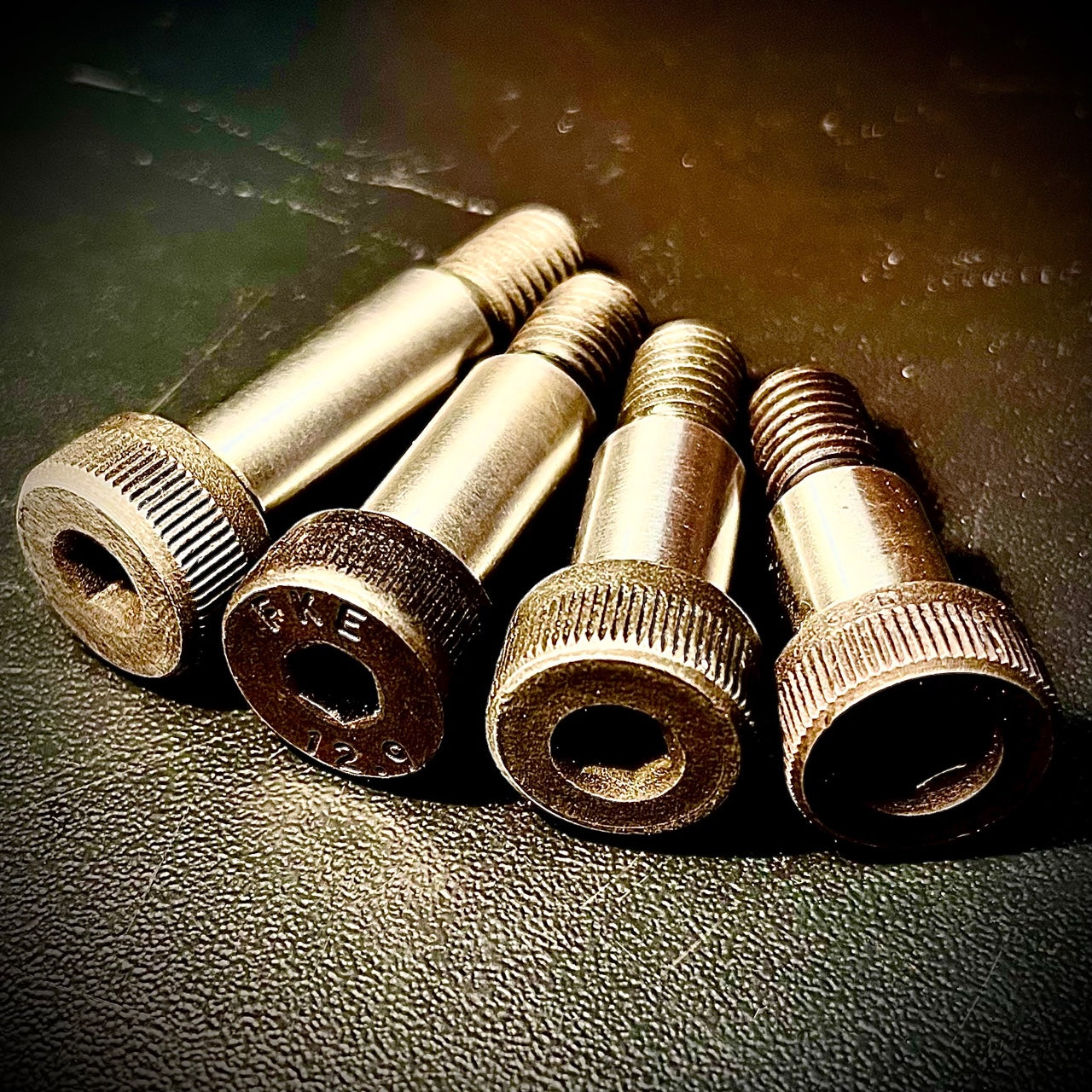

Image is for illustrative purposes only
