M20 x Over 140mm, Hex Bolt, A2/ 304 Stainless Steel, DIN 931.

M20 x Over and Including 140mm, Hex Head, Bolts, Partially Threaded Bolts in A2-70/ 304 Stainless Steel, DIN 931 Fixaball sells all lengths of M20 Hexagon Head Bolts in A2-70/ 304 Stainless...
£15.99 £18.43
Size

M20 x Over and Including 140mm, Hex Head, Bolts, Partially Threaded Bolts in A2-70/ 304 Stainless Steel, DIN 931

Fixaball sells all lengths of M20 Hexagon Head Bolts in A2-70/ 304 Stainless Steel.

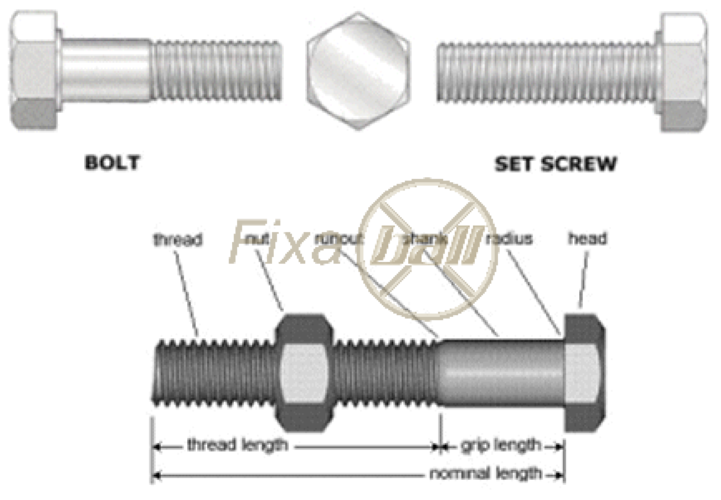

Hex-Bolt vs Hex-Set Screw

A set screw fastens materials together by twisting it directly through the last component, into a pre-threaded hole, pulling everything together. A shoulder bolt fastens materials by passing them through pre drilled holes in the adjoining materials and cramping them between the head at one end and a nut on the other. Additional washers are often used to spread the load further. A set screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank). A bolt is used when you know the length you need and a set screw can be used as a bolt if you need more flexibility in the length.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please choose your, 'No. of Items in Pack', 'Length', and 'Quantity', of packs selection from the drop down menus.

M20 Hex Bolt Lengths available:

M20 X 140 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 150 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 160 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 170 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 180 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 190 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 200 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 210 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 220 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 230 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 240 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 250 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 260 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 270 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL
M20 X 270 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL



Head Type

Hexagon Head.

Spanner Sizes

FIXABALL – Specialist Fixings and Fasteners

Spanner Sizes

METRIC - Hexagon Head Bolts/ Sets

Thread Size/ Diameter

Spanner Size

M3 (3mm)

5.5mm

M4 (4mm)

7mm

M5 (5mm)

8mm

M6 (6mm)

10mm

M8 (8mm)

13mm

M10 (10mm)

17mm

M12 (12mm)

19mm

M14 (14mm)

22mm

M16 (16mm)

24mm

Threads

This listing is for standard coarse thread, shoulder bolts.

Metric Threads are measured in Millimetres (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.



Metric Threads/ Pitches

Fixaball – Specialists in Fixings and Fasteners



Pitch / Thread Types

Size

Standard/ Coarse

Fine

Super Fine

M1.6

0.35



M2

0.4



M2.5

0.45



M3

0.5



M4

0.7



M5

0.8



M6

1.0



M7

1.0



M8

1.25

1.0



M10

1.5

1.25

1.0

M12

1.75

1.5

1.25

M14

2.0

1.5



M16

2.0

1.5



M18

2.5

2.0

1.5

M20

2.5

2.0

1.5

M22

2.5

2.0

1.5

M24

3.0

2.0



M27

3.0

2.0



M30

3.5

2.0



M33

3.5



M36

4.0



M39

4.0



M45

4.5



M52

5.0



M56

5.5





Image is for illustrative purposes only.
