M3.5, Machine Screws, Slotted, Pan Head, Brass, DIN 85.

M3.5 Machine Screws, Slotted. Pan Head, Brass, DIN 85 Fixaball sells all lengths of M3.5 pan head, slotted machine screws in solid brass, at the best internet prices. Orders placed before 2pm...
£3.85

M3.5 Machine Screws, Slotted. Pan Head, Brass, DIN 85

Fixaball sells all lengths of M3.5 pan head, slotted machine screws in solid brass, at the best internet prices.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible,

Please make your size and pack quantity selection from the drop down menus.



M3.5 Machine Screws, Slotted. Pan Head, Brass, DIN 85 lengths available:

M3.5 X 10 Din 85 Brass Slot Pan M/C
M3.5 X 16 Din 85 Brass Slot Pan M/C
M3.5 X 20 Din 85 Brass Slot Pan M/C
M3.5 X 35 Din 85 Brass Slot Pan M/C
M3.5 X 50 Din 85 Brass Slot Pan M/C



M3.5 Machine Screws, Slotted. Pan Head, Brass, DIN 85

A machine screw is a fastening device similar to a bolt but having a pozidrive or slotted head which allows it to be turned with a screwdriver. It is usually applied to fastening metal components together that are pre threaded and not expected to withstand a heavy load/ force.

Choose any length from the drop down menu. You may need to re-set the option boxes to 'select' in order to view all available options.

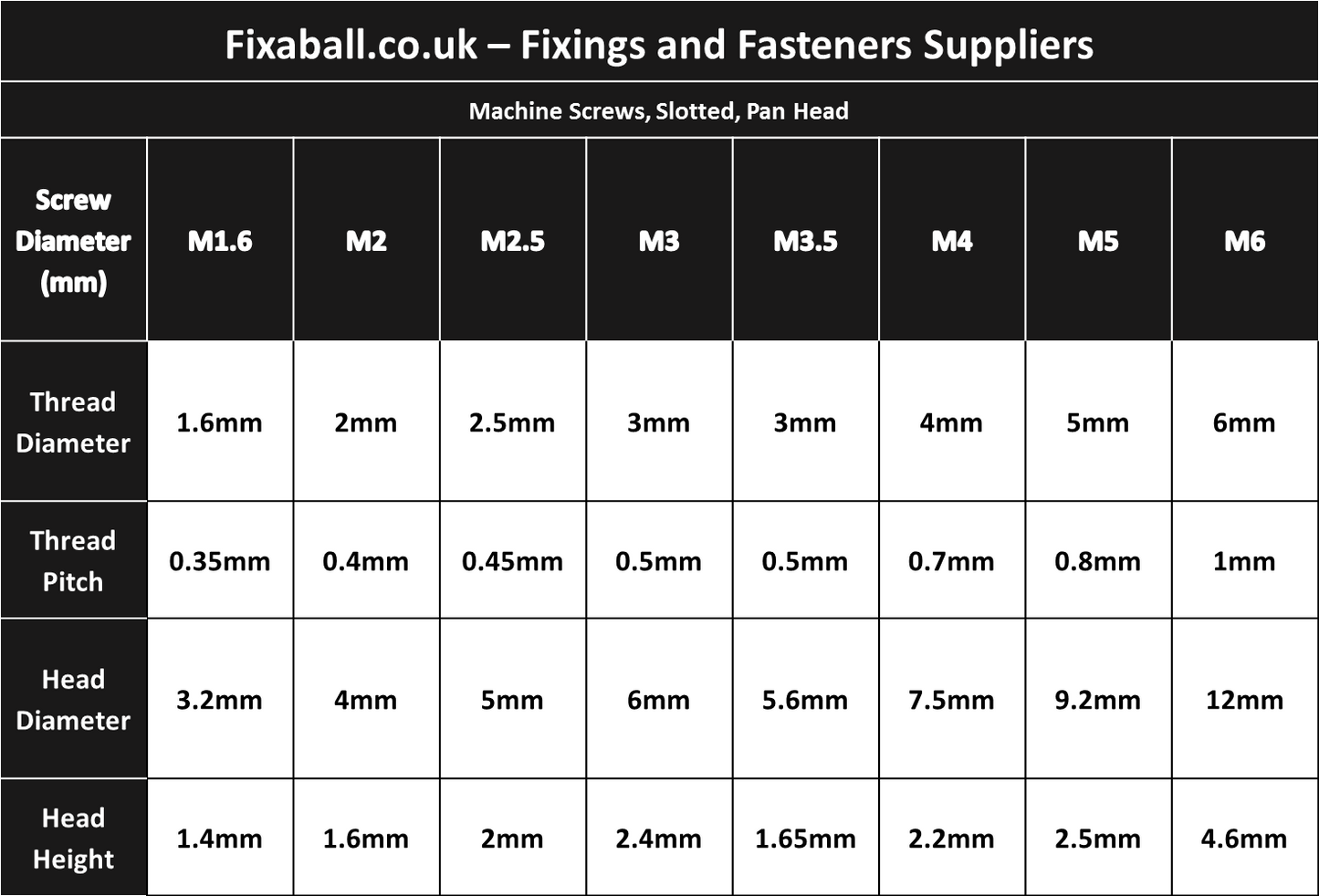

Screw Diameter (mm)

M3

M4

M5

Thread Diameter

3mm

4mm

5mm

Thread Pitch

0.5mm

0.7mm

0.8mm

Head Diameter

5.6mm

7.5mm

9.2mm

Head Height

1.65mm

2.2mm

2.5mm



  • Manufactured from brass DIN 963

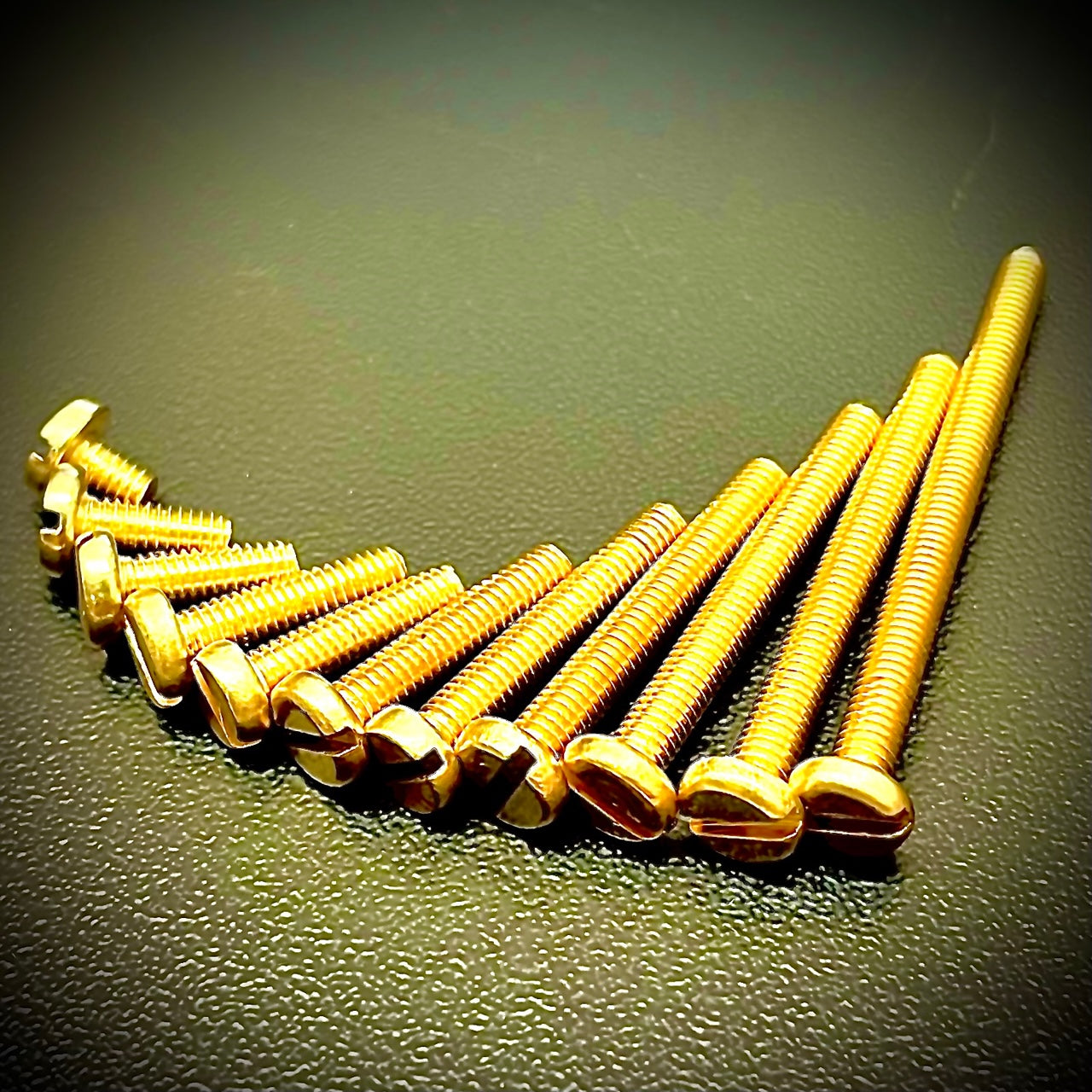

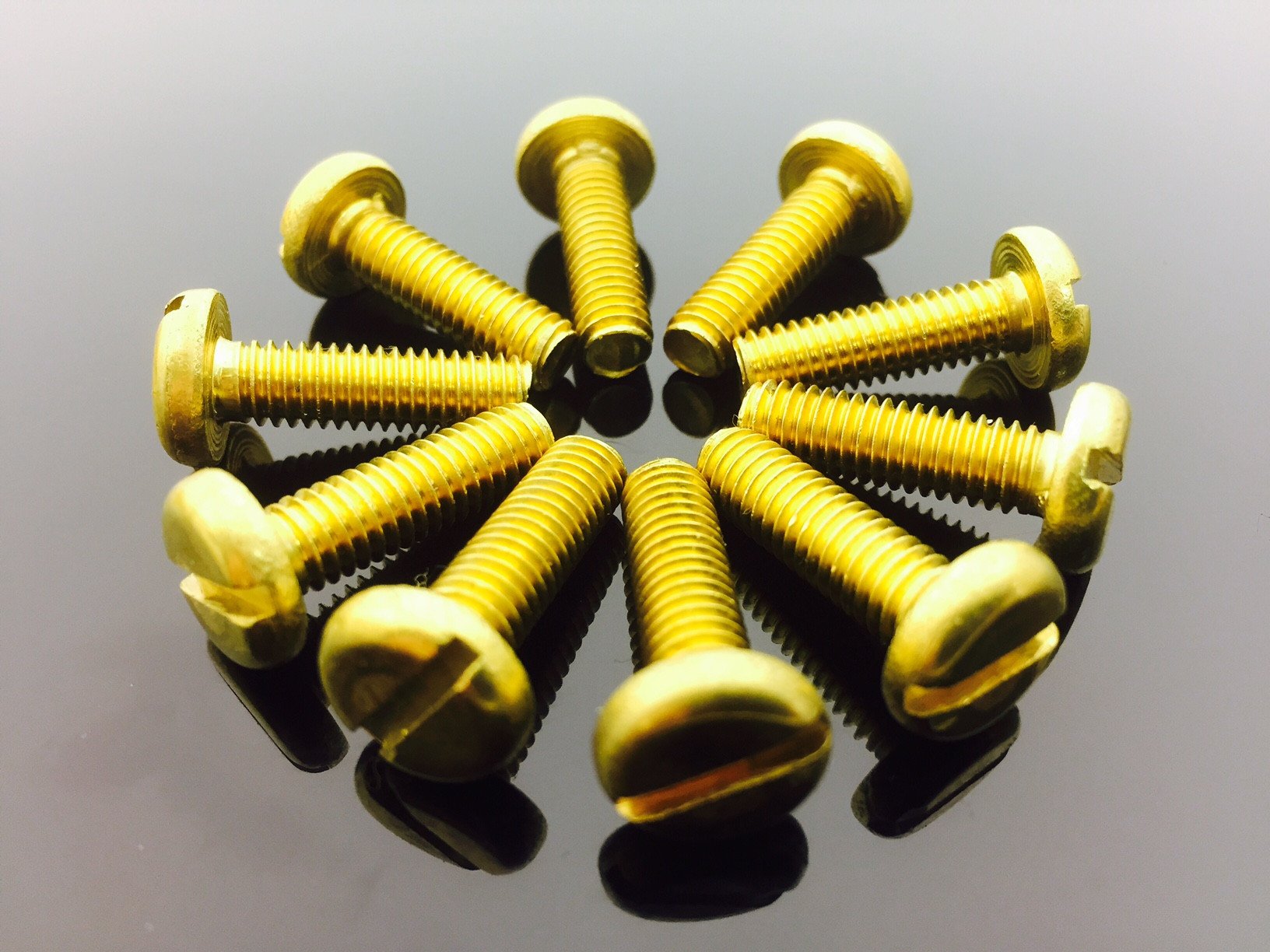

Image is for illustrative purposes only.
