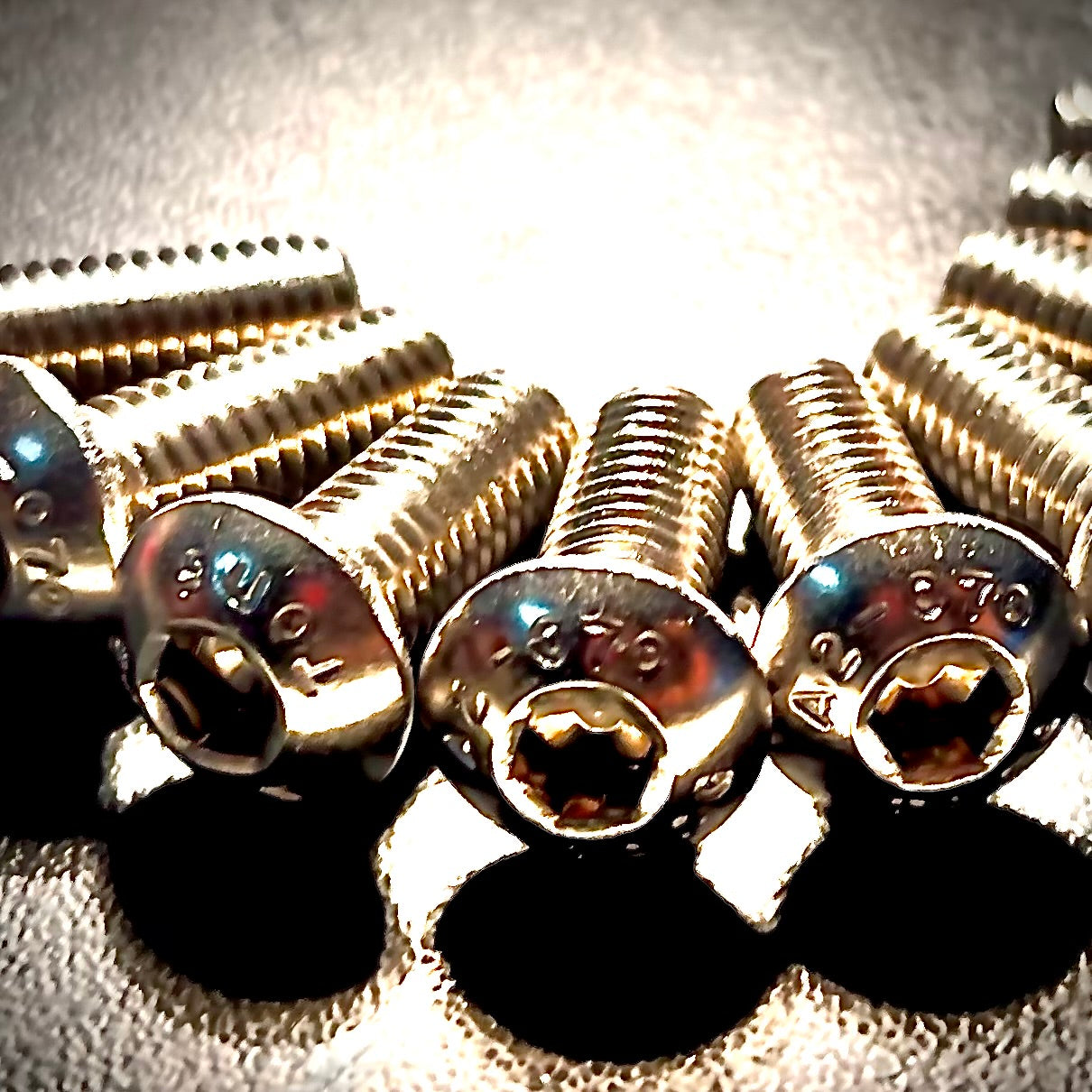

M3, Socket Screw, Button/ Round, A2/ 304 Stainless Steel, DIN 9427.
M3, Socket Screw Button Head/ Allen Bolt, A2/ 304 Stainless Steel, DIN 9427, ISO 7380, BS 4168, ASME B18.3.4M.
Fixaball sells all lengths of M3, Allen/ Hexagon Socket, Button Screw/ Boltss at the best internet prices and free delivery.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please make your size and pack quantity selection from the drop down menus at the top of the page.
M3, Socket Screw Button Head/ Allen Bolt, A2/ 304 Stainless Steel Lengths Available
| M3 X 6 SOCKET BUTTON ISO 7380-1 A2 STAINLESS STEEL |
| M3 X 8 SOCKET BUTTON ISO 7380-1 A2 STAINLESS STEEL |
| M3 X 9 SOCKET BUTTON ISO 7380-1 A2 STAINLESS STEEL |
| M3 X 10 SOCKET BUTTON ISO 7380-1 A2 STAINLESS STEEL |
| M3 X 12 SOCKET BUTTON ISO 7380-1 A2 STAINLESS STEEL |
| M3 X 16 SOCKET BUTTON ISO 7380-1 A2 STAINLESS STEEL |
| M3 X 20 SOCKET BUTTON ISO 7380-1 A2 STAINLESS STEEL |
| M3 X 25 SOCKET BUTTON ISO 7380-1 A2 STAINLESS STEEL |
| M3 X 30 SOCKET BUTTON ISO 7380-1 A2 STAINLESS STEEL |
Button Socket Description
A socket screw with a button head is usually applied to fasten components where aesthetics (looks) are more important. The domed shaped or 'half spherical' shape of the head softens it's appearance and touch.
Chart to show the important dimensions of button sockets, DIN 7380
( LENGTHS: All bolts and set screws are always measured from the underside of the head)
|
Fixaball Dimensions Chart Socket Screw Button Head Fasteners |
|||||
|
Size |
Thread Diameter |
Pitch (Standard Coarse) |
Head Diameter |
Head Height |
Allen/ Hex Key Size |
|
M3 |
3mm |
0.5mm |
5.7mm |
1.65mm |
2 |
|
M4 |
4mm |
0.7mm |
7.6mm |
2.2mm |
2.5 |
|
M5 |
5mm |
0.8mm |
9.5mm |
2.75mm |
3 |
|
M6 |
6mm |
1.0mm |
10.5mm |
3.3mm |
4 |
|
M8 |
8mm |
1.25mm |
14mm |
4.4mm |
5 |
A2/ 304 Stainless Steel Material Properties
Manufactured from A2/ 304 Stainless Steel (STANDARD) for weathering resistance
|
Material/ Finish |
Appearance |
Level of Corrosion Resistance |
Typical Application |
|
A2/ 304 Stainless Steel |
Dull Shine |
External |
- Intermittent weathering - Hygiene |
METRIC THREAD
Metric Coarse and Metric Fine
Are in Millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.
Image is for illustrative purposes only.
