M4, Socket Screw, Button, High Tensile/ 10.9, Self-Colour, DIN 9427

M4, Button Head, Socket Screw/ Allen Bolt, High Tensile (10.9), Self-Colour/ Black, ISO 7380, DIN 9427, BS 4168, ASME B18.3.4M Fixaball sells all lengths of M4, high tensile (10.9), self colour, socket, button screw/...
£2.39

M4, Button Head, Socket Screw/ Allen Bolt, High Tensile (10.9), Self-Colour/ Black, ISO 7380, DIN 9427, BS 4168, ASME B18.3.4M

Fixaball sells all lengths of M4, high tensile (10.9), self colour, socket, button screw/ bolts at the best internet prices and free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible,

Please make your size and pack quantity selection from the drop down menus at the top of the page.

M4, Button Head, Socket Screw/ Allen Bolt Lengths available:

FT: Fully Threaded, PT: Partially Threaded

M4-0.70x6 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x8 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x10 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x12 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x14 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x15 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x16 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x18 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x20 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x22 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x25 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x30 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x35 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x40 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x45 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR
M4-0.70x50 MM,(FT) METRIC SOCKET BUTTON HEAD ISO7380 COARSE 10.9 SELF COLOUR



Important Information

M3; 0.5mm pitch, 3mm thread diameter, 5.7mm head diameter, 1.65mm head height, allen key size 2mm.

M4; 0.7mm pitch, 4mm thread diameter, 7.6mm head diameter, 2.2mm head height, allen key size 2.5mm.

M5; 0.8mm pitch, 5mm thread diameter, 9.5mm head diameter, 2.75mm head height, allen key size 3mm.

M6; 1.0mm pitch, 6mm thread diameter, 10.5mm head diameter, 3.3mm head height, allen key size 4mm.

M8; 1.25mm pitch, 8mm thread diameter, 14mm head diameter, 4.4mm head height, allen key size 5mm.



All bolts and set screws are measured from the underside of the head.



Material/ Finish

Appearance

Level of Corrosion Resistance

Typical Application

High Tensile Steel

Self-Colour (black with no surface treatment)

Low, without further surface treatment

-          No exposure to moisture

-          Often Greased/ Oilied

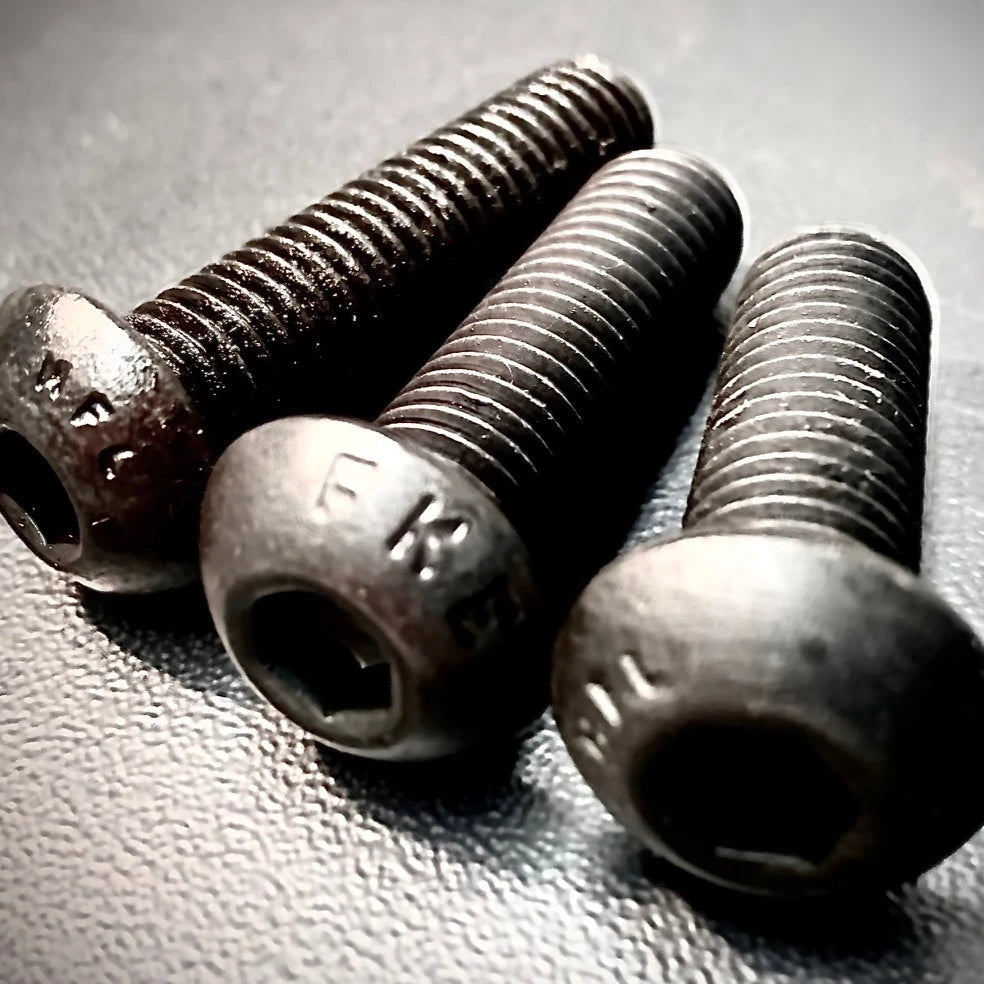

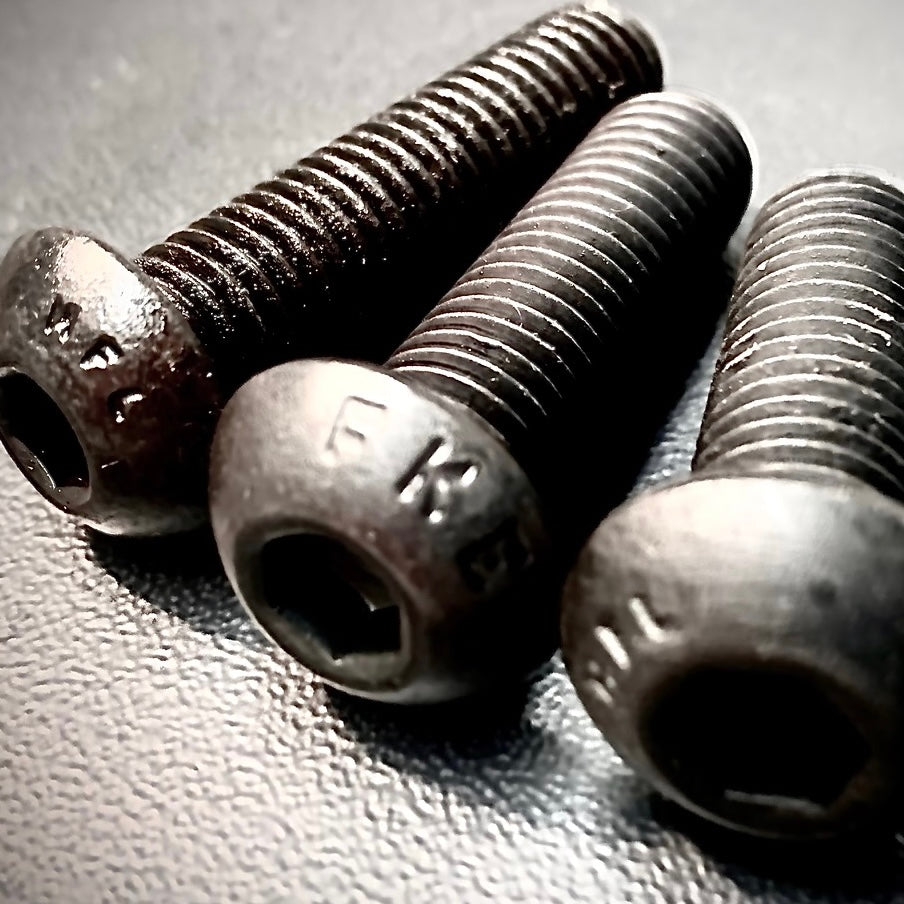

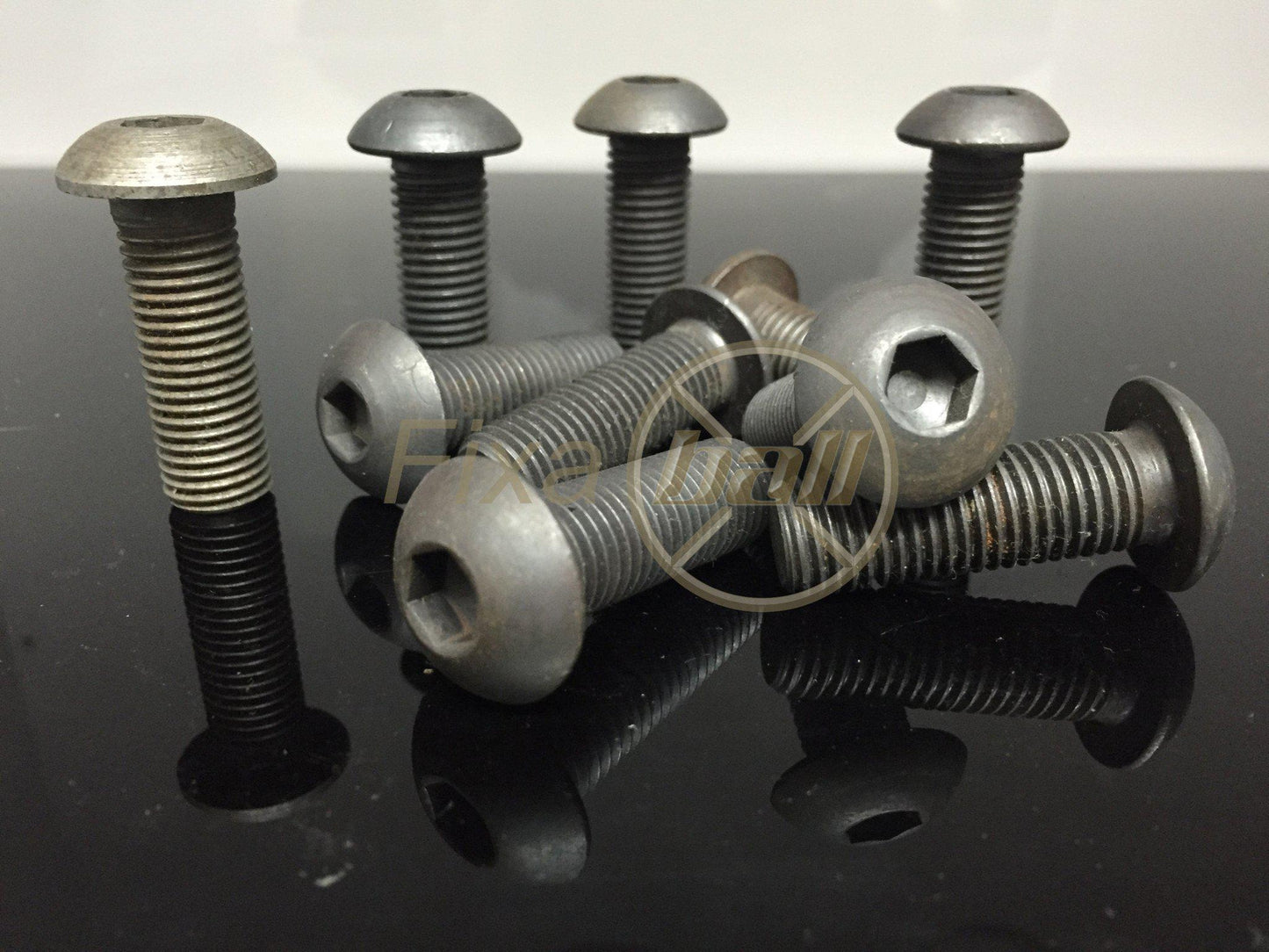

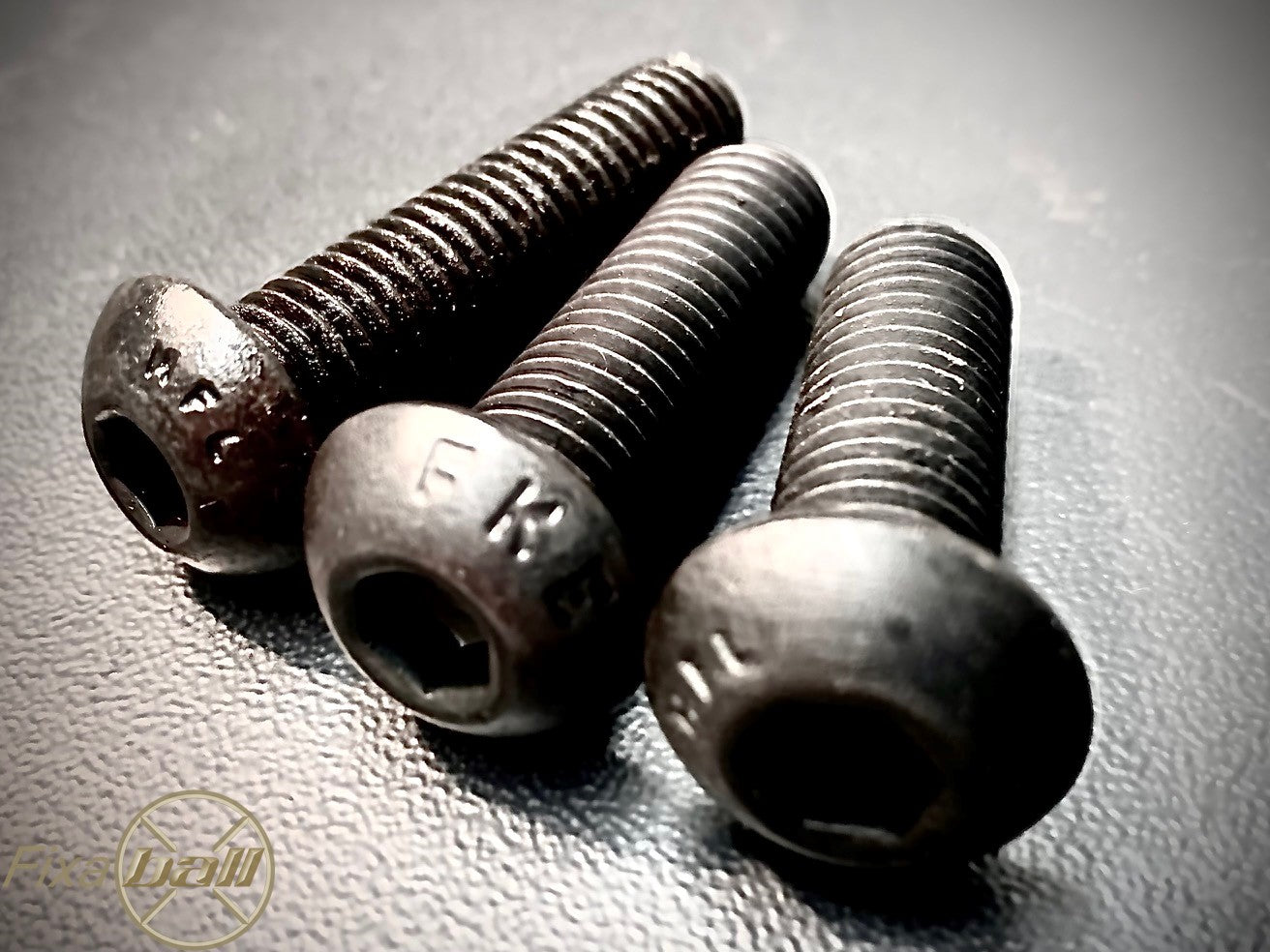

Image is for illustrative purposes only.
