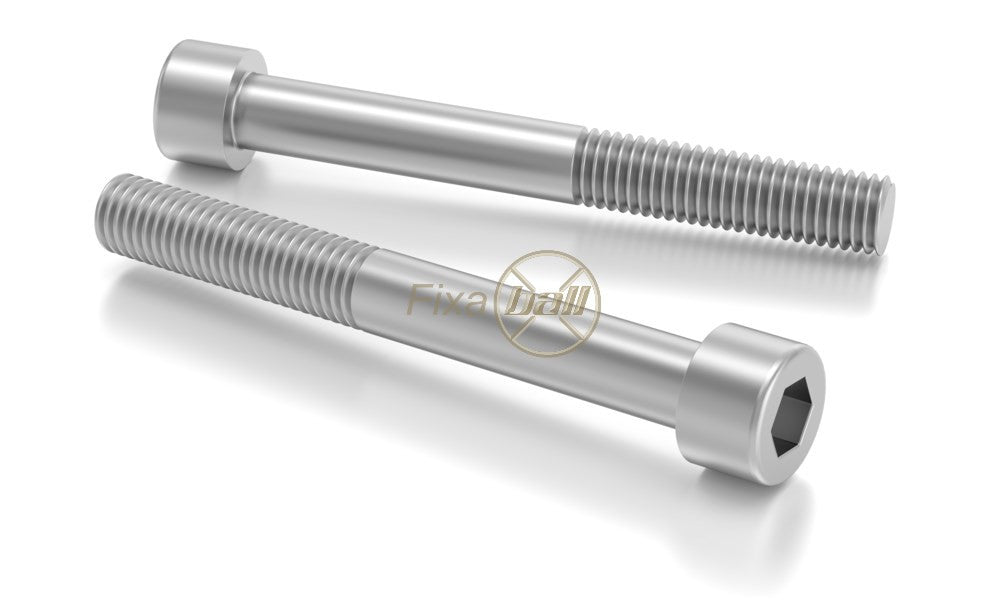

M4, Socket Screw, Cap, A2/ 304 Stainless Steel, DIN 912.

M4, 4mm Diameter x 0.7mm Pitch, Standard Coarse Thread, Cap Head, Hexagon Socket Screw/ Allen Bolt, High Tensile (12.9), Self-Colour, DIN 912, ISO 4762. Fixaball sells lengths of M4 x 0.7mm Pitch (Standard Coarse...
£2.18

M4, 4mm Diameter x 0.7mm Pitch, Standard Coarse Thread, Cap Head, Hexagon Socket Screw/ Allen Bolt, High Tensile (12.9), Self-Colour, DIN 912, ISO 4762.

Fixaball sells lengths of M4 x 0.7mm Pitch (Standard Coarse Thread), A2/ 304 Stainless Steel, Allen Socket Cap Screw/ Bolts at the best internet prices with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

M4, Socket Screw, Cap Head, A2/ 304 Stainless Steel, DIN 912 lengths available:

    • 6mm
    • 8mm
    • 10mm
    • 12mm
    • 16mm
    • 20mm
    • 25mm
    • 30mm
    • 40mm
    • 50mm

    M4, Socket Screw, Cap Head, A2/ 304 Stainless Steel, DIN 912 descriptions:

    M4 X 6 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL
    M4 X 8 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL
    M4 X 10 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL
    M4 X 12 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL
    M4 X 16 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL
    M4 X 20 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL
    M4 X 25 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL
    M4 X 30 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL
    M4 X 35 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL
    M4 X 40 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL
    M4 X 45 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL
    M4 X 50 SOCKET CAP SCREW DIN 912 / ISO 4762 A2 STAINLESS STEEL

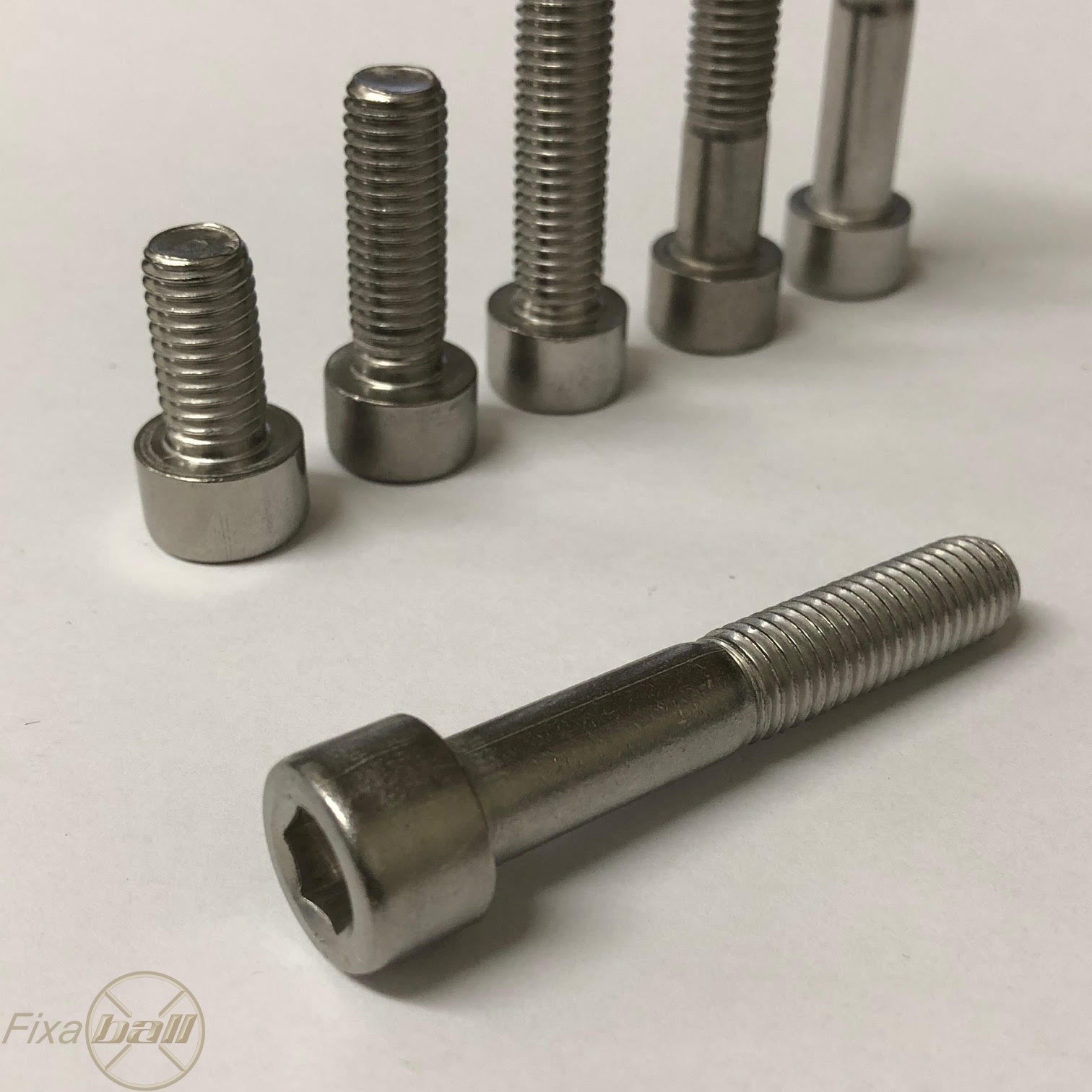

    Socket Cap Head Fasteners come as 'sets' and 'bolts'. The, ‘SET’, term is used to describe a fastener that is fully threaded in lengths up to and around 1 inch (from the underside of the head. Over 1 inch in length the fastener will have a, 'shoulder,' or unthreaded area under the head. This space of unthreaded area confirms that the fastener is now a bolt (cap head, bolt in this case). Some people might simply call them Allen or, 'Allan bolts,' in association with the Allen, Hexagonal Key which is used to tighten and loosen the fastener. So, ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head.

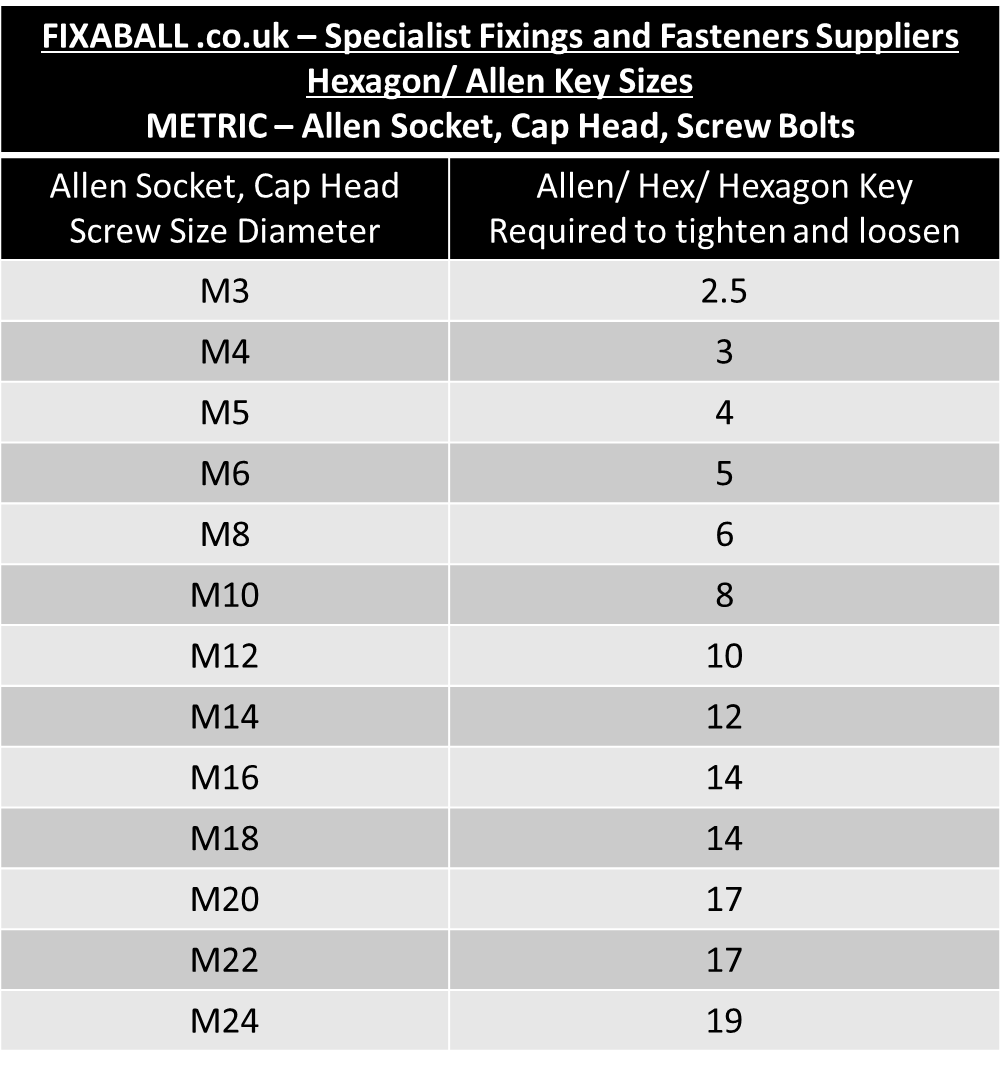

    FIXABALL – Specialist Fixings and Fasteners Suppliers

    Hexagon/ Allen Key Sizes

    METRIC – Allen Socket, Cap Head, Screw Bolts

    Allen Socket, Cap Head Screw Size Diameter

    Allen/ Hex/ Hexagon Key Required to tighten and loosen

    M3

    2.5

    M4

    3

    M5

    4

    M6

    5

    M8

    6

    M10

    8

    M12

    10

    M14

    12

    M16

    14

    M18

    14

    M20

    17

    M22

    17

    M24

    19

    Material: A2/ 304 Stainless Steel.

    Material/ Finish

    Appearance

    Level of Corrosion Resistance

    Typical Application

    A2/ 304 Stainless Steel

    Dull Shine

    External

    Intermittent weathering

      Metric Coarse and Metric Fine threads are in millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations. Coarse threads are the, 'normal', most common versions.

       Image is for illustrative purposes only.
