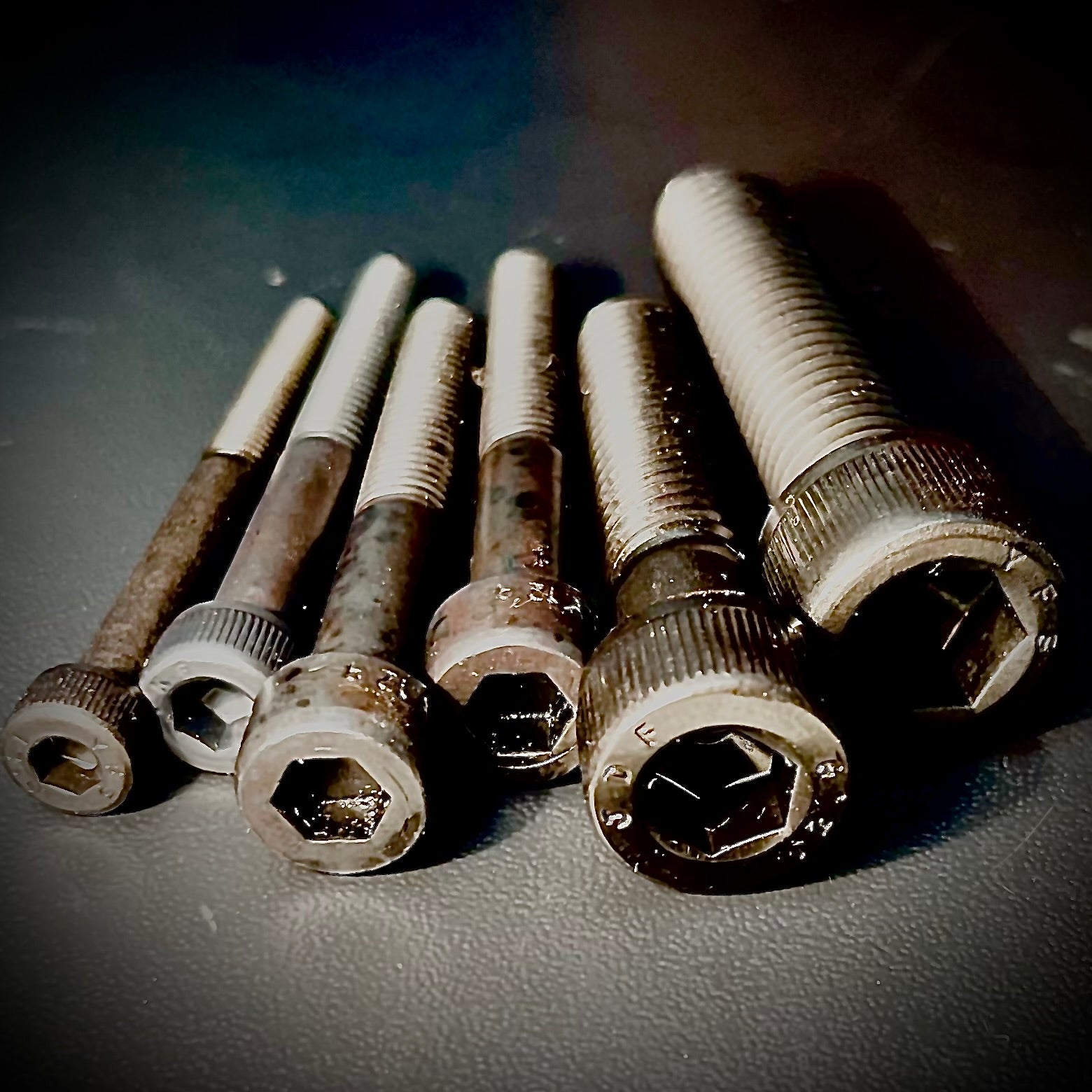

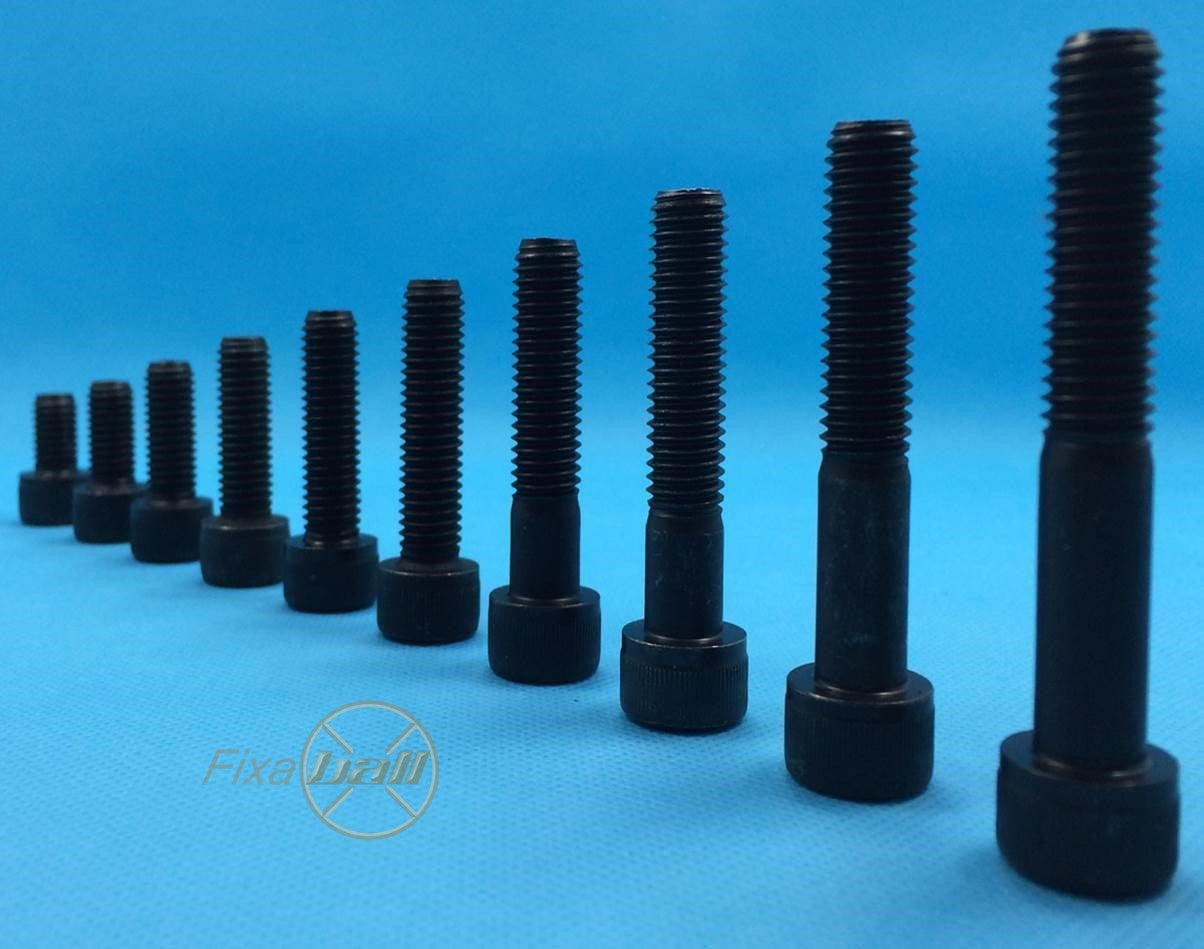

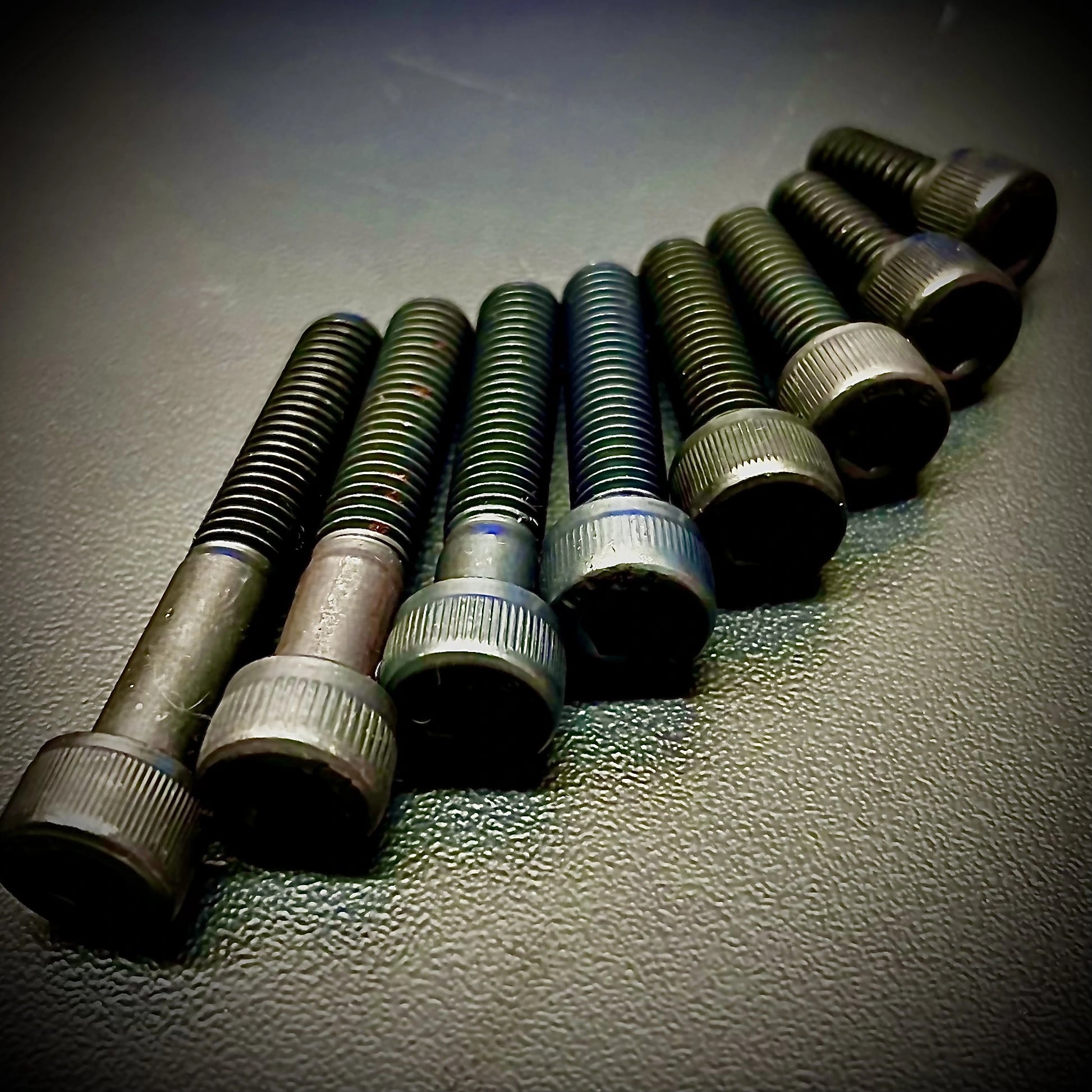

M4 x > 40mm, Socket Screw, Cap Head, High Tensile/ 12.9, Self Colour, DIN 912.

M4 x over and including 40mm, Cap Head, Allen/ Hexagon Socket Screw/ Bolt, High Tensile Steel, Grade 12.9, Self Colour, DIN 912, ISO 4762 M4, Metric - 4mm Diameter, Standard...
£2.39

M4 x over and including 40mm, Cap Head, Allen/ Hexagon Socket Screw/ Bolt, High Tensile Steel, Grade 12.9, Self Colour, DIN 912, ISO 4762

M4, Metric - 4mm Diameter, Standard Coarse Thread - 0.7mm Pitch

Fixaball sells all lengths of M4, Self Colour, Cap, Cylindrical Head, Allen/ Hexagon Socket, Screw/ Bolt, High Tensile Steel, Grade 12.9, at the best internet prices with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

M4 Cap Head, Allen/ Hexagon Socket Screw/ Bolt, High Tensile Steel, Grade 12.9, Self Colour lengths available

(FT - Fully Threaded, PT - Partially Threaded)

M4-0.70x40 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x45 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x50 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x55 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x60 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x65 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x70 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x75 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x80 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x85 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x90 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x100 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x110 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M4-0.70x120 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR





FIXABALL – Specialist Fixings and Fasteners Suppliers

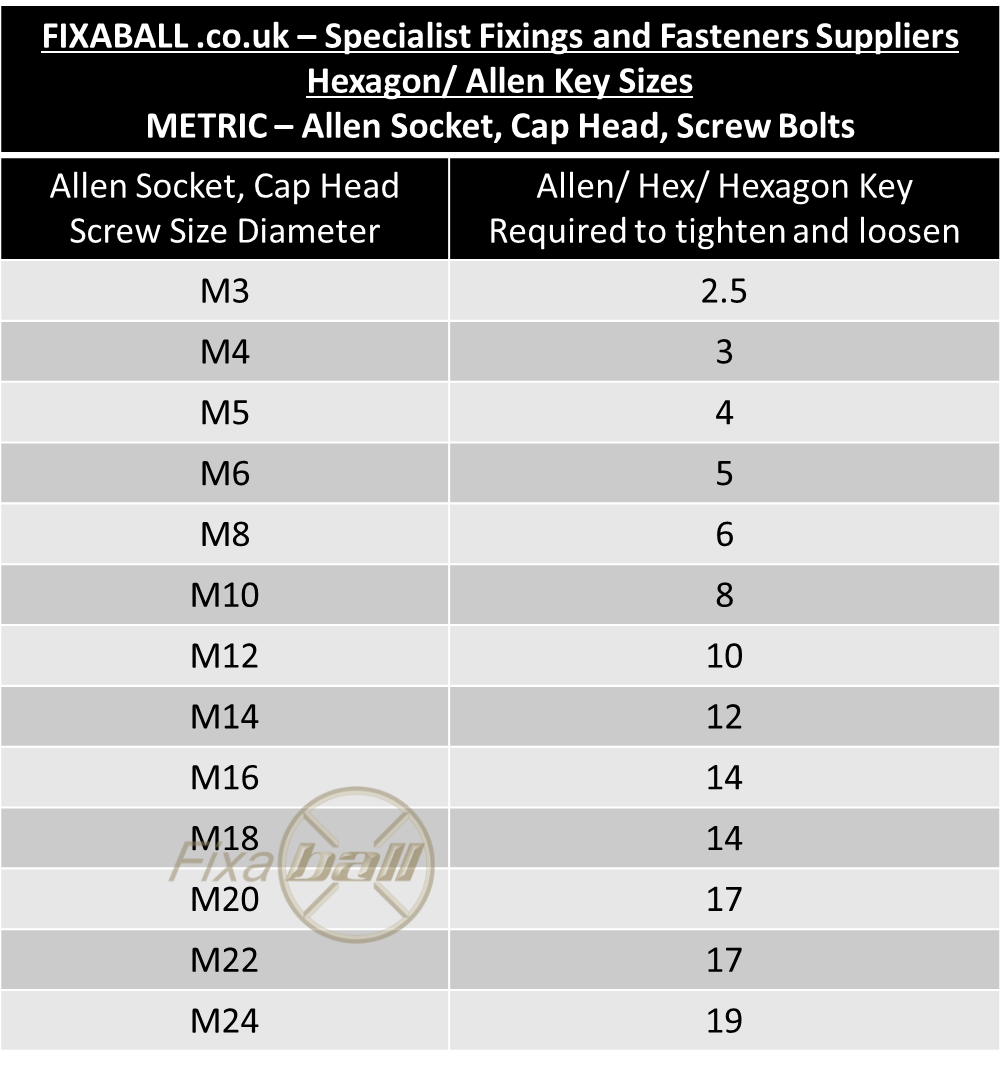

Hexagon/ Allen Key Sizes
METRIC – Allen Socket, Cap Head, Screw Bolts
Allen Socket, Cap Head Screw Size Diameter
Allen/ Hex/ Hexagon Key Required to tighten and loosen
M4
3



Socket Cap Screw/ Bolts come as 'sets' and 'bolts'. The, ‘SET’, term is used to describe a fastener that is fully threaded in lengths up to and around 1 inch (from the underside of the head. Over 1 inch in length the fastener will have a, 'shoulder,' or unthreaded area under the head. This space of unthreaded area confirms that the fastener is now a bolt (cap head, bolt in this case). Some people might simply call them Allen or, 'Allan bolts,' in association with the Allen, Hexagonal Key which is used to tighten and loosen the fastener. So, ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fastener's cylindrical head.

Material Properties

Material/ Finish

Appearance

Level of Corrosion Resistance

Typical Application

High Tensile Steel, Grade 12.9

Self-Colour (black with no surface treatment)

Low, without further surface treatment

No exposure to moisture.

Often Greased/ Oiled

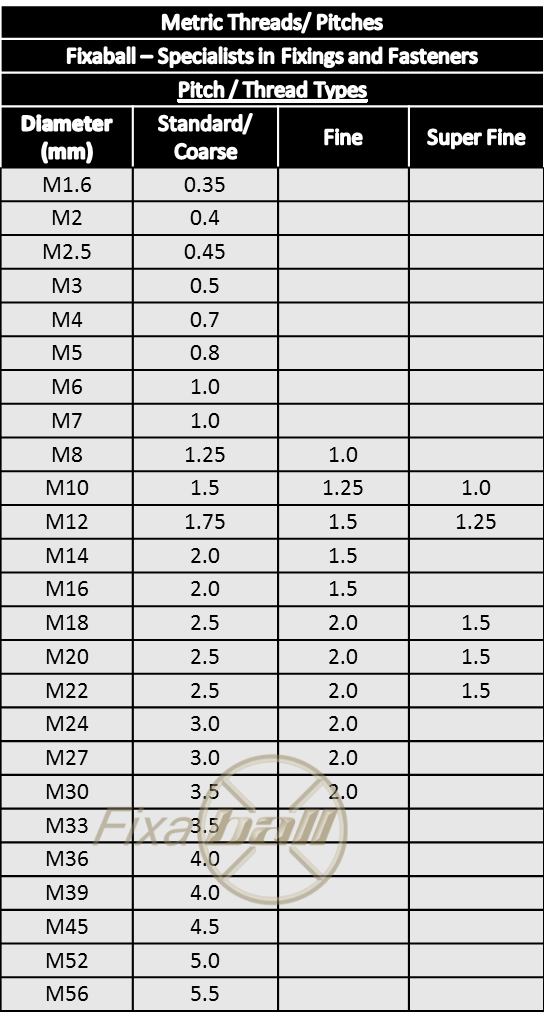

    Metric Coarse and Metric Fine threads are in millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations. Coarse threads are the, 'normal', most common versions.

     Image is for illustrative purposes only.
