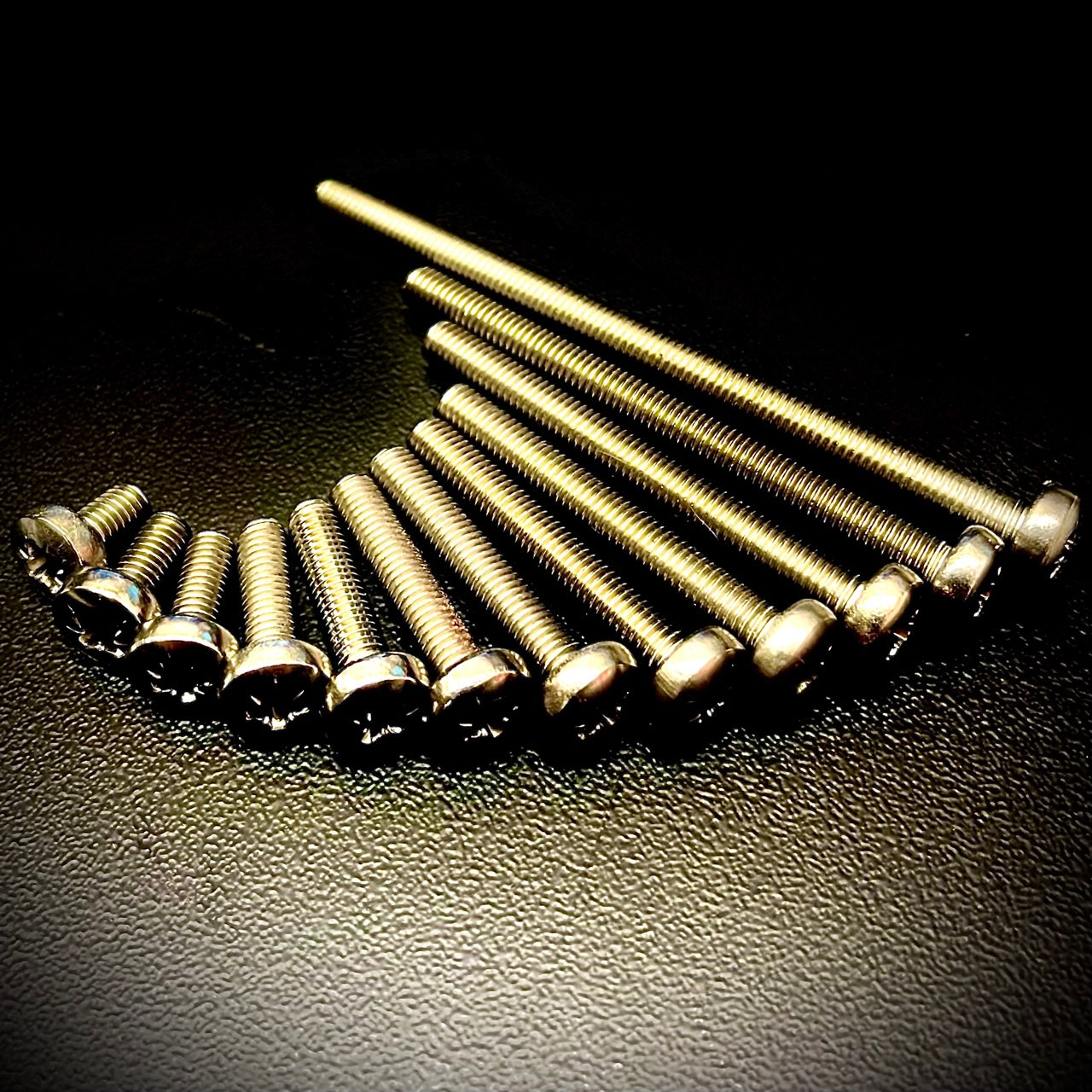

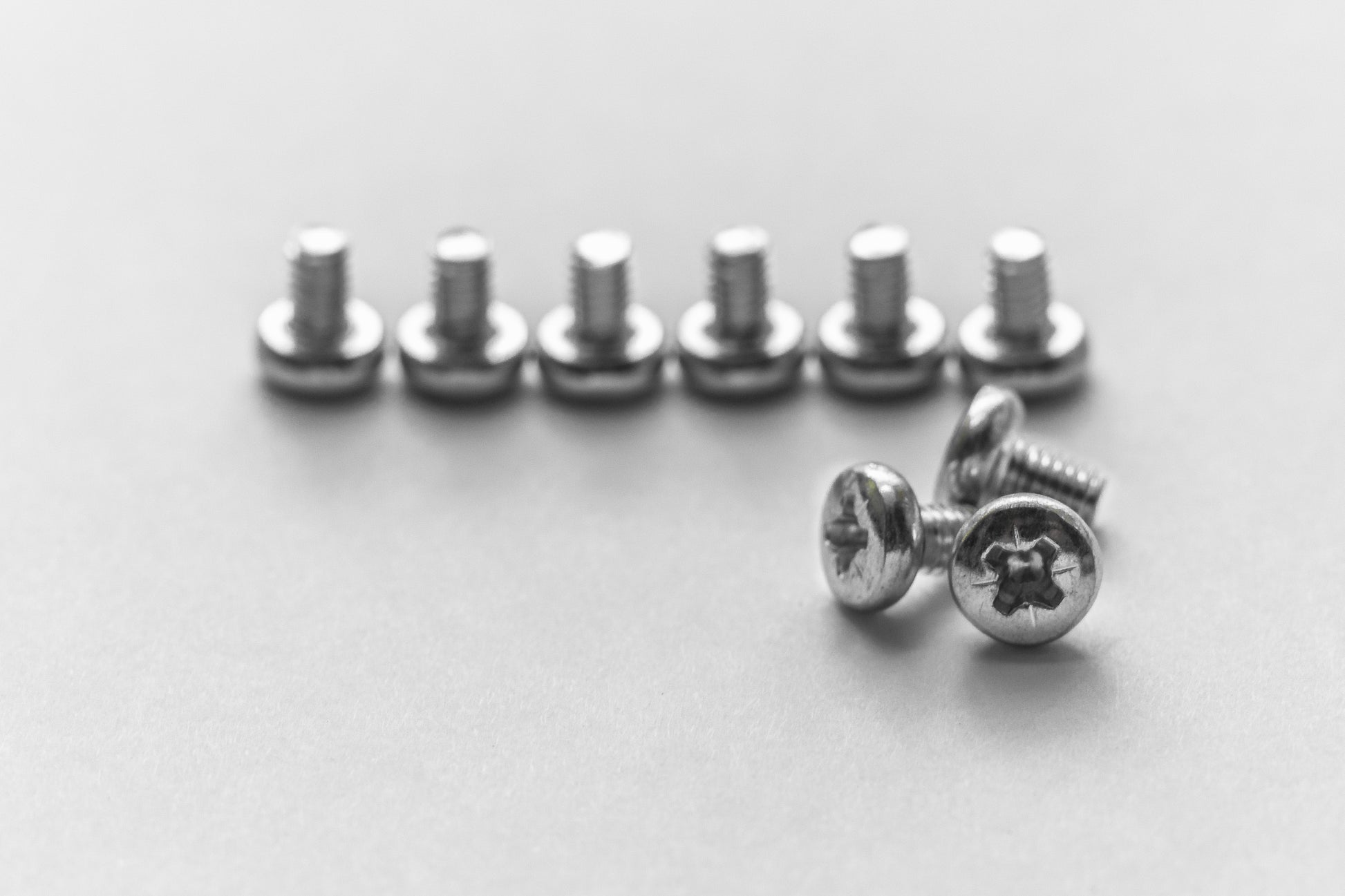

M4 x Under 35mm, Machine Screws, Pozi, Pan, A2/ 304 Stainless Steel, DIN 7985Z.
M4/ 4mm, Machine Screws, Pozi, Countersunk, A2/ 304 Stainless Steel, DIN 965Z.
Fixaball sells all lengths of M4, A2/ 304 Stainless Steel, Pozidrive, Pan Head, Machine Screws at the best internet prices, with free delivery.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please make your 'Length' and, 'No. of Items in Pack' and 'Quantity' of packs selection from the drop down menus.
M4/ 4mm, Machine Screws, Pozi, Pan Head, A2/ 304 Stainless Steel, DIN 7985Z Lengths Available
M4 X 4 POZI PAN MACHINE SCREW DIN 7985Z A2 STAINLESS STEEL |
M4 X 5 POZI PAN MACHINE SCREW DIN 7985Z A2 STAINLESS STEEL |
M4 X 6 POZI PAN MACHINE SCREW DIN 7985Z A2 STAINLESS STEEL |
M4 X 8 POZI PAN MACHINE SCREW DIN 7985Z A2 STAINLESS STEEL |
M4 X 10 POZI PAN MACHINE SCREW DIN 7985Z A2 STAINLESS STEEL |
M4 X 12 POZI PAN MACHINE SCREW DIN 7985Z A2 STAINLESS STEEL |
M4 X 16 POZI PAN MACHINE SCREW DIN 7985Z A2 STAINLESS STEEL |
M4 X 20 POZI PAN MACHINE SCREW DIN 7985Z A2 STAINLESS STEEL |
M4 X 25 POZI PAN MACHINE SCREW DIN 7985Z A2 STAINLESS STEEL |
M4 X 30 POZI PAN MACHINE SCREW DIN 7985Z A2 STAINLESS STEEL |
M4 X 35 POZI PAN MACHINE SCREW DIN 7985Z A2 STAINLESS STEEL |
What is a Machine Screw?
A machine screw is a fastening device similar to a bolt but having a pozidrive or slotted head which allows it to be turned with a screwdriver. It is usually applied to fastening metal components together that are pre threaded and not expected to withstand a heavy load/ force.

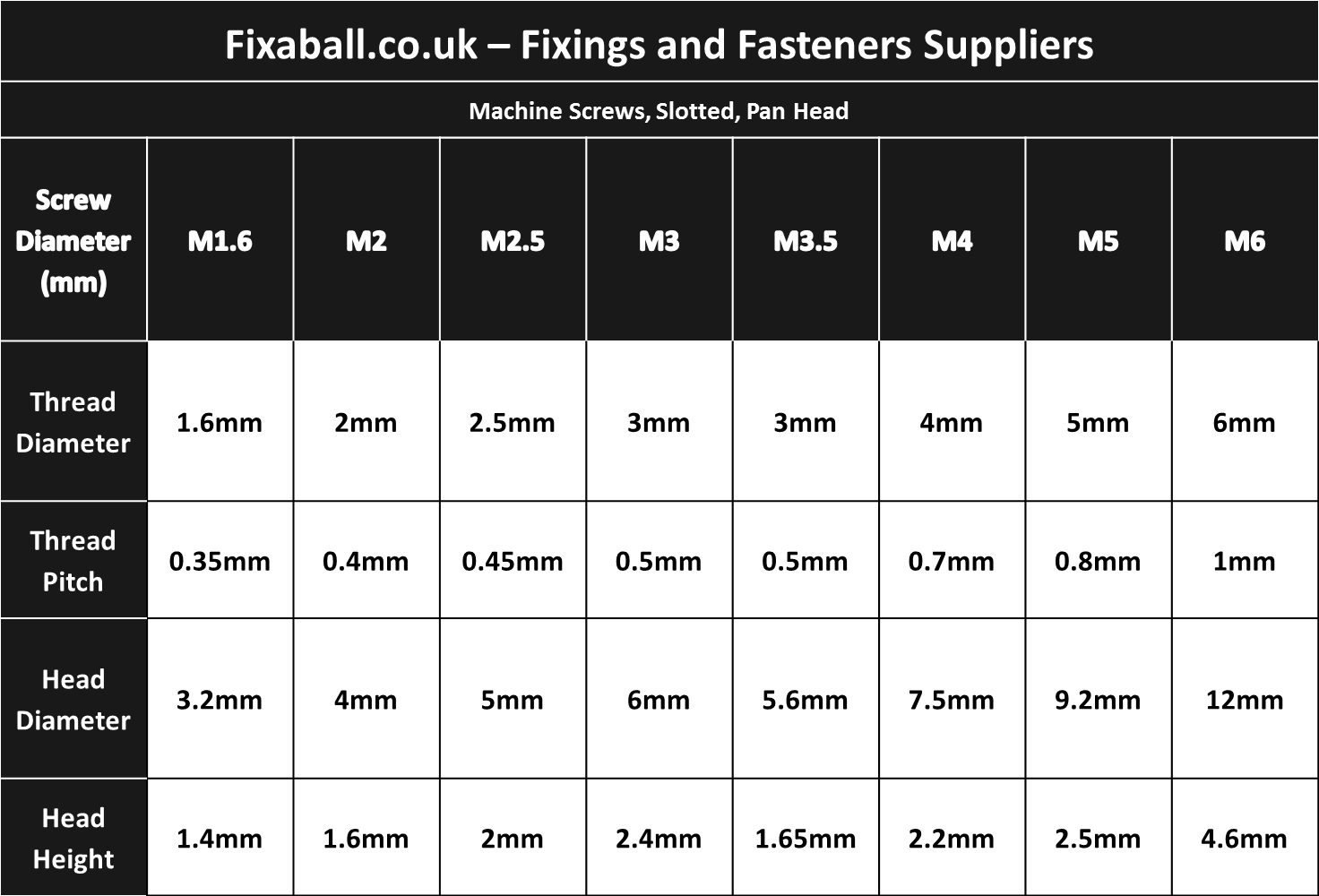

Table to show the common dimensions of the most common diameters
Fixaball – Specialist Fixings and Fasteners Suppliers |
||||||||
Machine Screws, Slotted, Pan Head Dimensions DIN 7985 dimensions |
||||||||
Screw Diameter (mm) |
M1.6 |
M2 |
M2.5 |
M3 |
M3.5 |
M4 |
M5 |
M6 |
Thread Diameter |
1.6mm |
2mm |
2.5mm |
3mm |
3mm |
4mm |
5mm |
6mm |
Thread Pitch |
0.35mm |
0.4mm |
0.45mm |
0.5mm |
0.5mm |
0.7mm |
0.8mm |
1mm |
Head Diameter |
3.2mm |
4mm |
5mm |
6mm |
5.6mm |
7.5mm |
9.2mm |
12mm |
Head Height |
1.4mm |
1.6mm |
2mm |
2.4mm |
1.65mm |
2.2mm |
2.5mm |
4.6mm |
-
Manufactured from A2 Stainless Steel, DIN 7985X
Image is for illustrative purposes only.
