M5 - M10, Mudguard/ Repair/ Penny Washers BZP, Zinc

M5, M6, M8, M10, Mudguard/ Repair/ Penny Washers BZP, Zinc Plated. Fixaball sell sizes of Mudguard/ Repair/ Penny Washers, BZP. Repair Washers have a particularly large outside diameter  Repair Washers are used with...
£2.11

M5, M6, M8, M10, Mudguard/ Repair/ Penny Washers BZP, Zinc Plated.

Fixaball sell sizes of Mudguard/ Repair/ Penny Washers, BZP.

Repair Washers have a particularly large outside diameter

Repair Washers are used with threaded fasteners (for example a bolt and a nut), designed to increase the load distribution.

  • Mudguard (penny) washers have an extra large outer diameter to either spread a load more or to straddle a damaged/ oversized hole.
  • Typically used to spread the tightening load over a greater area than a conventional flat washer.
  • Bright Zinc Plate (BZP) finish offers resistance to corrosion.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'No. of Items in Pack', 'Size' and 'Quantity' of packs selection from the drop down menus.

Mudguard/ Repair/ Penny Washers BZP Sizes Available

Mudguard/ Repair/ Penny Washers BZP - M5 x 20 (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M5 x 25 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M5 x 30 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M6 x 25 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M6 x 30 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M6 x 40 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M6 x 50 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M8 x 25 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M8 x 30 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M8 x 40 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M8 x 50 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M10 x 25 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M10 x 30 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M10 x 40 x (1.5mm thick)
Mudguard/ Repair/ Penny Washers BZP - M10 x 50 x (1.5mm thick)



What is an Engineering Washer?

A washer has multiple purposes depending on it’s’ shape, form and material. Generally speaking, a washer is used to:

  • protect the surface of fastened materials,
  • spread the load/ pressure at the hold points of fastened materials,
  • assist with tightening and loosening of a fastener,
  • control the spacing of connecting components
  • lock and secure nuts in place (shakeproof washers)

Additional Information

A washer is a thin plate (typically disk-shaped) with a hole (typically in the middle) that is normally used to distribute the load of a threaded fastener, such as a screw or nut. Other uses are as a spacer, spring (belleville washer, wave washer), wear pad, preload indicating device, locking device, and to reduce vibration (rubber washer). Washers usually have an outer diameter (OD) about twice the width of their inner diameter (ID).

Washers are usually metal or plastic. High quality bolted joints require hardened steel washers to prevent the loss of pre-load due to Brinelling (permanent indentation) after the torque is applied.

Washers are important for preventing galvanic corrosion, particularly by insulating steel screws from aluminium surfaces and phosphor washers are used for high abrasion and corrosion resistance.

'Type' is not to be confused with 'form' (but often is). The British Standard for Metric Series Metal Washers (BS4320) written in 1968 coined the term 'form'. The forms go from A to D for Bright Metal and denote outside diameter and thickness. They can be summarised as -

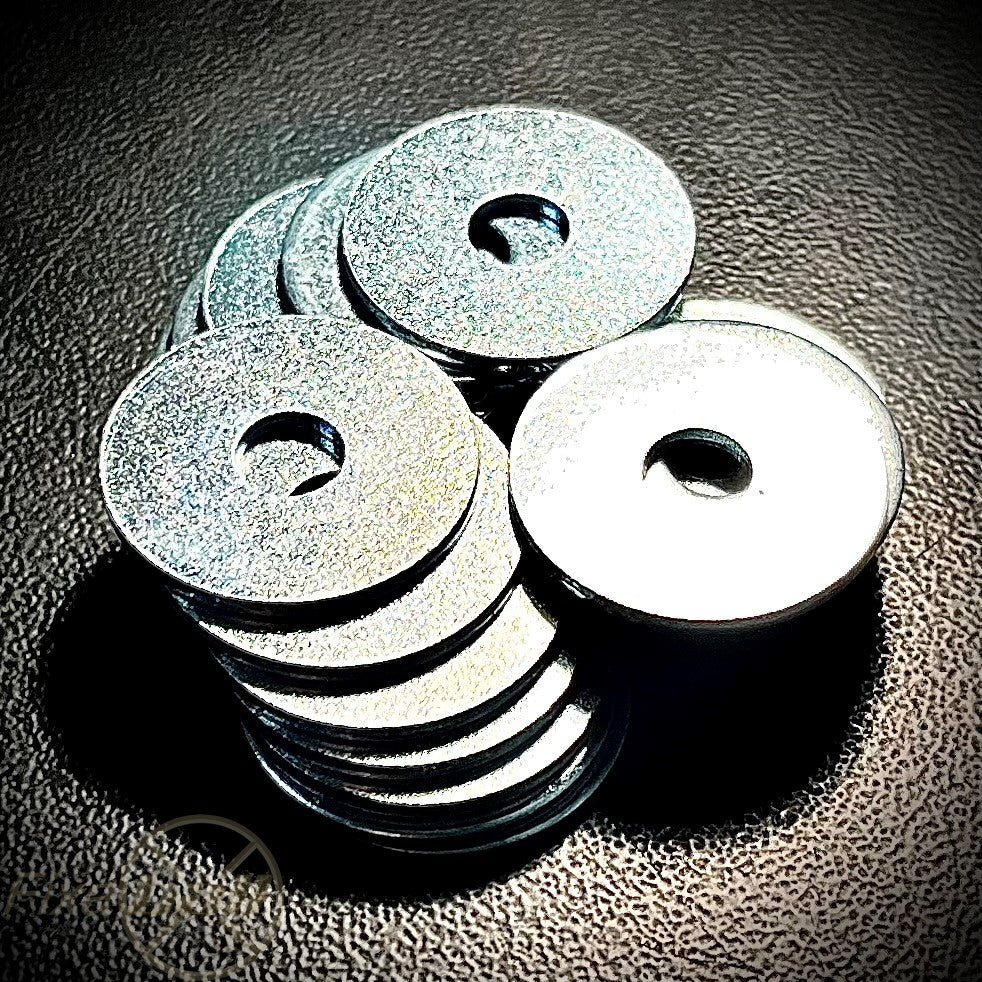

Image is for illustrative purposes only.
