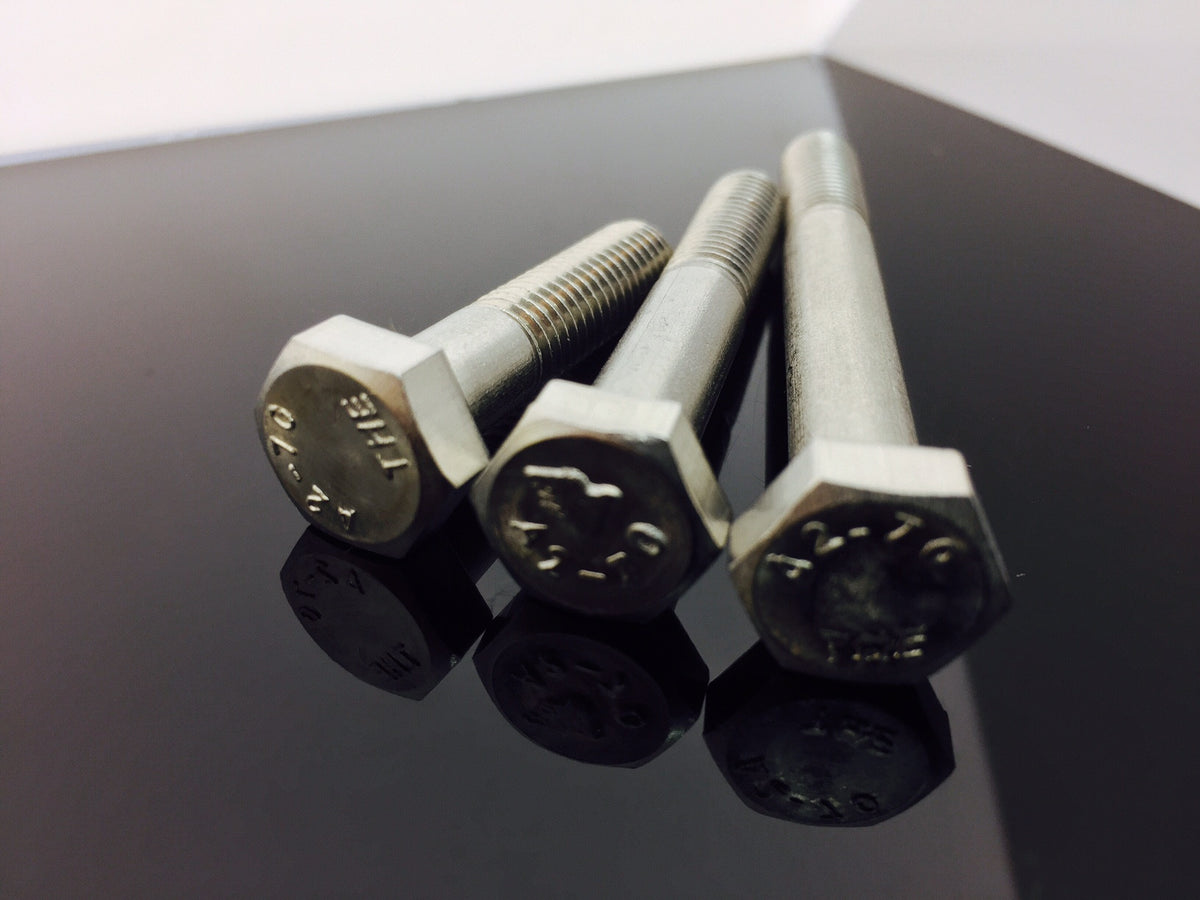

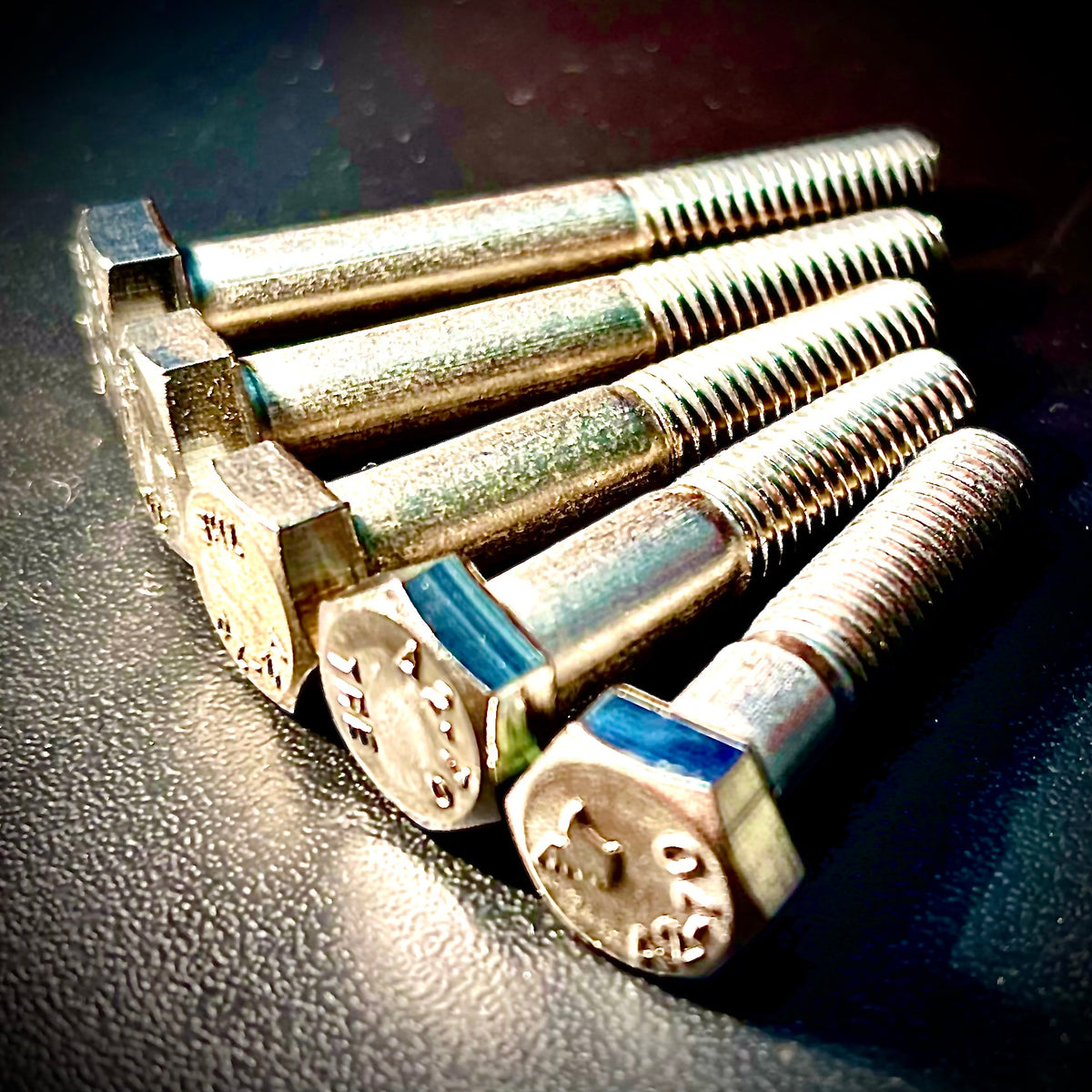

M6 x Under 70mm, Hex Bolt, A2/ 304 Stainless Steel, DIN 931.
M6 x Under 70mm, Hex Head, Bolts, Partially Threaded Bolts in A2-70/ 304 Stainless Steel, DIN 931
Fixaball sells all lengths of M6 Hexagon Bolts in A2-70/ 304 Stainless Steel.

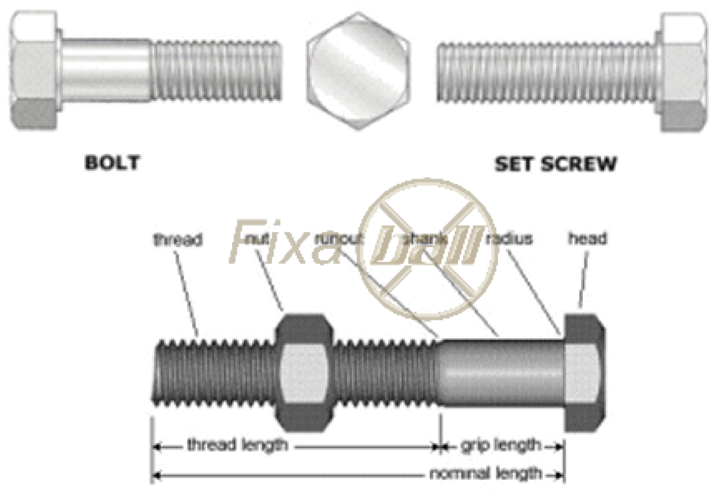

Bolt
Bolt is the term used for a partially threaded fastener, with a head designed to be used with a nut and washer.
Bolt vs Screw
A screw turns into something, a bolt joins several things together from both sides of materials joined. A screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank).
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please choose your, 'No. of Items in Pack', 'Length', and 'Quantity', of packs selection from the drop down menus.
M6, Hex Head, Bolt Lengths available:
| M6 X 25 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 30 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 35 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 40 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 45 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 50 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 55 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 60 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 65 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 70 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 75 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 80 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 85 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 90 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 95 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 100 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 110 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M6 X 120 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
|

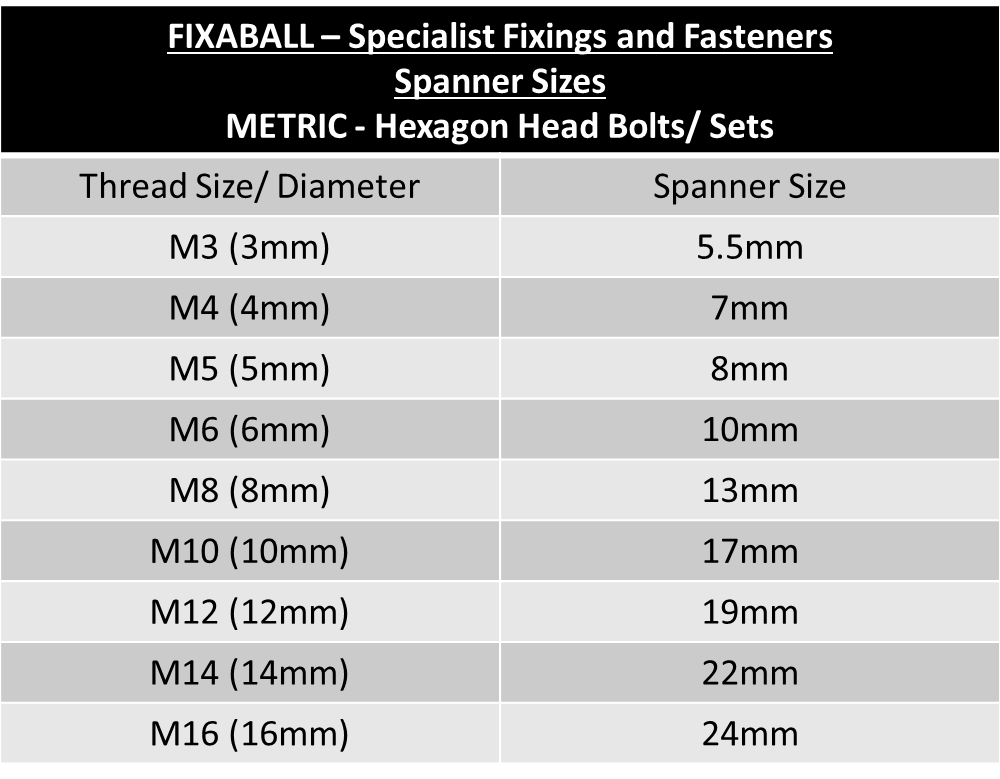

Fixaball – Specialist Fixings and Fasteners Suppliers Spanner Sizes METRIC - Hexagon Head Bolts/ Sets |
|
|
Thread Size/ Diameter |
Spanner Size |
|
M3 (3mm) |
5.5mm |
|
M4 (4mm) |
7mm |
|
M5 (5mm) |
8mm |
|
M6 (6mm) |
10mm |
|
M8 (8mm) |
13mm |
|
M10 (10mm) |
17mm |
|
M12 (12mm) |
19mm |
|
M14 (14mm) |
22mm |
|
M16 (16mm) |
24mm |
METRIC THREADS
Metric Coarse and Metric Fine (M1, M2, M3.... M10, etc.) dimensions are measured in Millimetres (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.
Image is for illustrative purposes only.
