M6, Hex Bolt, A4/ 316 Stainless Steel. DIN 931.
M6 Bolts, Hexagon Head, A4/ 316 Stainless Steel, DIN 931
Fixaball sell all lengths of A4/ 316 hexagon head bolts.
Hexagon Bolt
Bolt is the term used for a partially threaded fastener (part plain shank, bolt), with a hexagon shaped head, designed to be used with a nut and washer.
Material:
A4 Stainless Steel (marine) also known as 316. Marine grade stainless has a very high resistance to corrosion
Thread
Metric Coarse Thread - measured in Millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.
Bolt Thread Length
The thread length of a shoulder bolt/ plain shank bolt tends to be 2.5 times the diameter of the fastener. Please ask for exact measurements if the shoulder is crucial.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please make your, ‘Number of Items in Pack', 'Length', and ‘Quantity’, (of packs) selection from the drop down menus.
A4/ 613 Metric Hex Bolt Lengths available:
| M6 X 25 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 30 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 35 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 40 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 45 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 50 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 55 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 60 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 70 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 80 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 90 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 100 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 110 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 120 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 130 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 140 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 150 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 160 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 170 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 180 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 190 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
| M6 X 200 HEXAGON HEAD BOLT DIN 931 A4-70 STAINLESS STEEL |
|
Metric Threads/ Pitches |
|||
|
Fixaball– Specialists in Fixings and Fasteners |
|||
|
Pitch / Thread Types |
|||
|
Size |
Standard/ Coarse |
Fine |
Super Fine |
|
M1.6 |
0.35 |
||
|
M2 |
0.4 |
||
|
M2.5 |
0.45 |
||
|
M3 |
0.5 |
||
|
M4 |
0.7 |
||
|
M5 |
0.8 |
||
|
M6 |
1.0 |
||
|
M7 |
1.0 |
||
|
M8 |
1.25 |
1.0 |
|
|
M10 |
1.5 |
1.25 |
1.0 |
|
M12 |
1.75 |
1.5 |
1.25 |
|
M14 |
2.0 |
1.5 |
|
|
M16 |
2.0 |
1.5 |
|
|
M18 |
2.5 |
2.0 |
1.5 |
|
M20 |
2.5 |
2.0 |
1.5 |
|
M22 |
2.5 |
2.0 |
1.5 |
|
M24 |
3.0 |
2.0 |
|
|
M27 |
3.0 |
2.0 |
|
|
M30 |
3.5 |
2.0 |
|
|
M33 |
3.5 |
||
|
M36 |
4.0 |
||
|
M39 |
4.0 |
||
|
M45 |
4.5 |
||
|
M52 |
5.0 |
||
|
M56 |
5.5 |
||
Bolt vs Screw
A screw screws into something, a bolt joins several things together from both sides of materials joined. A screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank)

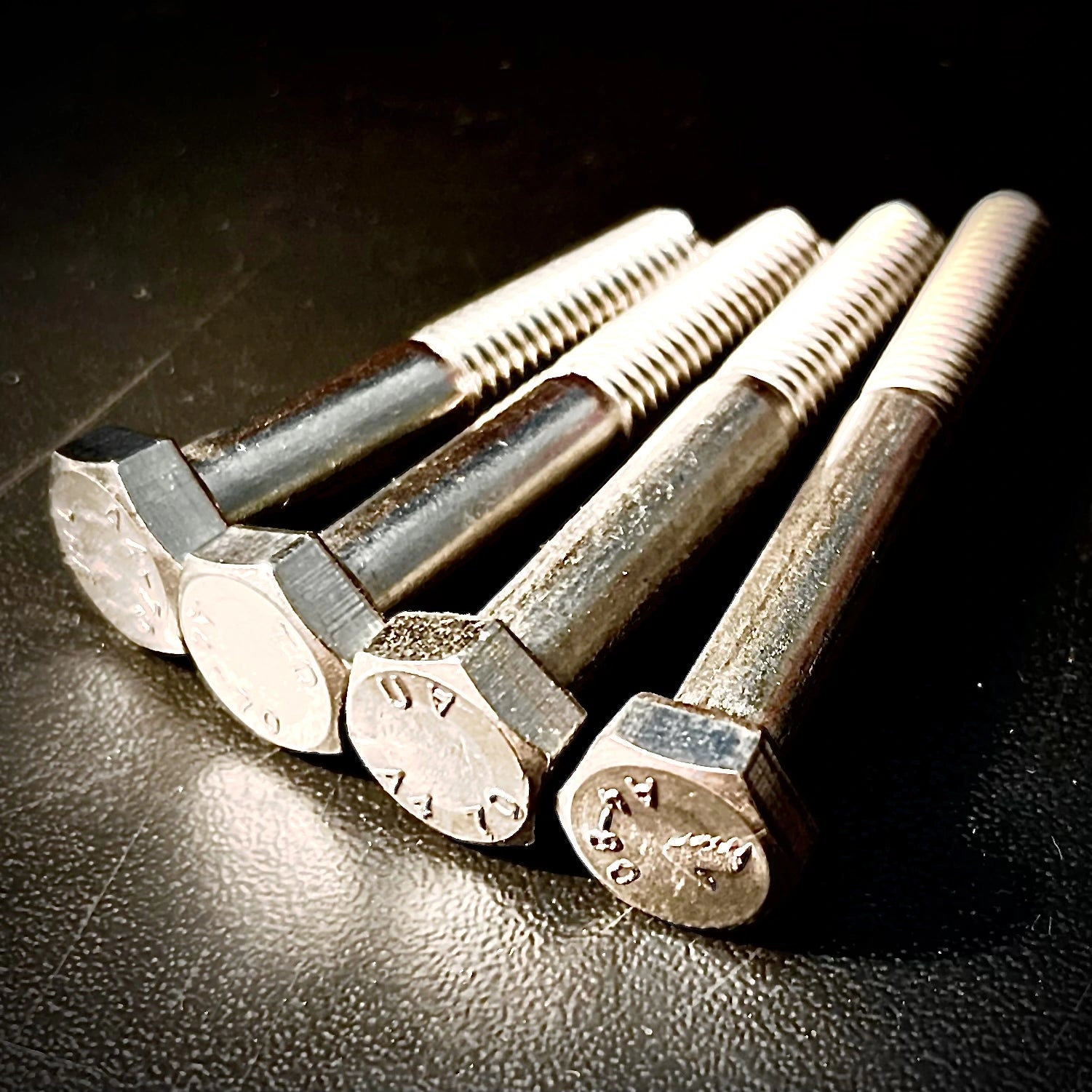

Image is for illustrative purposes only.
