Drop-in Anchor, Setting Tool

M6 M8 M10 M12 M16 M20 Drop In Anchor Setting Tool Zinc

M6 M8 M10 M12 M16 M20 Drop In Anchor Setting Tool Zinc

Regular price £16.88 GBP
Regular price Sale price £16.88 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
QTY
Size of Anchor Setting Tool

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M6, M8, M10, M12. M16, M20. Drop In Anchor, Setting Tool - With and Without Hand Guard Protection

Fixaball sells quality drop-in anchor, setting tools, with and without hand protection.

How to use a Drop-in Anchor setting tool

Use our drop in anchor setting tool to activate your drop in anchor's grip and fix with confidence. Once your expansion, wedge anchor is in position (plopped into the pre-drilled hole) you place the tool, touching the centre of the anchor and strike it square with a hammer. This will force the masonry anchor's, nut downwards, expand the sides and create a secure hold from the bottom of the hole.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'No. of Items in Pack', 'Length' and 'Quantity' of packs, selection from the drop down menus.



Drop In Anchor, Setting Tool - Sizes Available

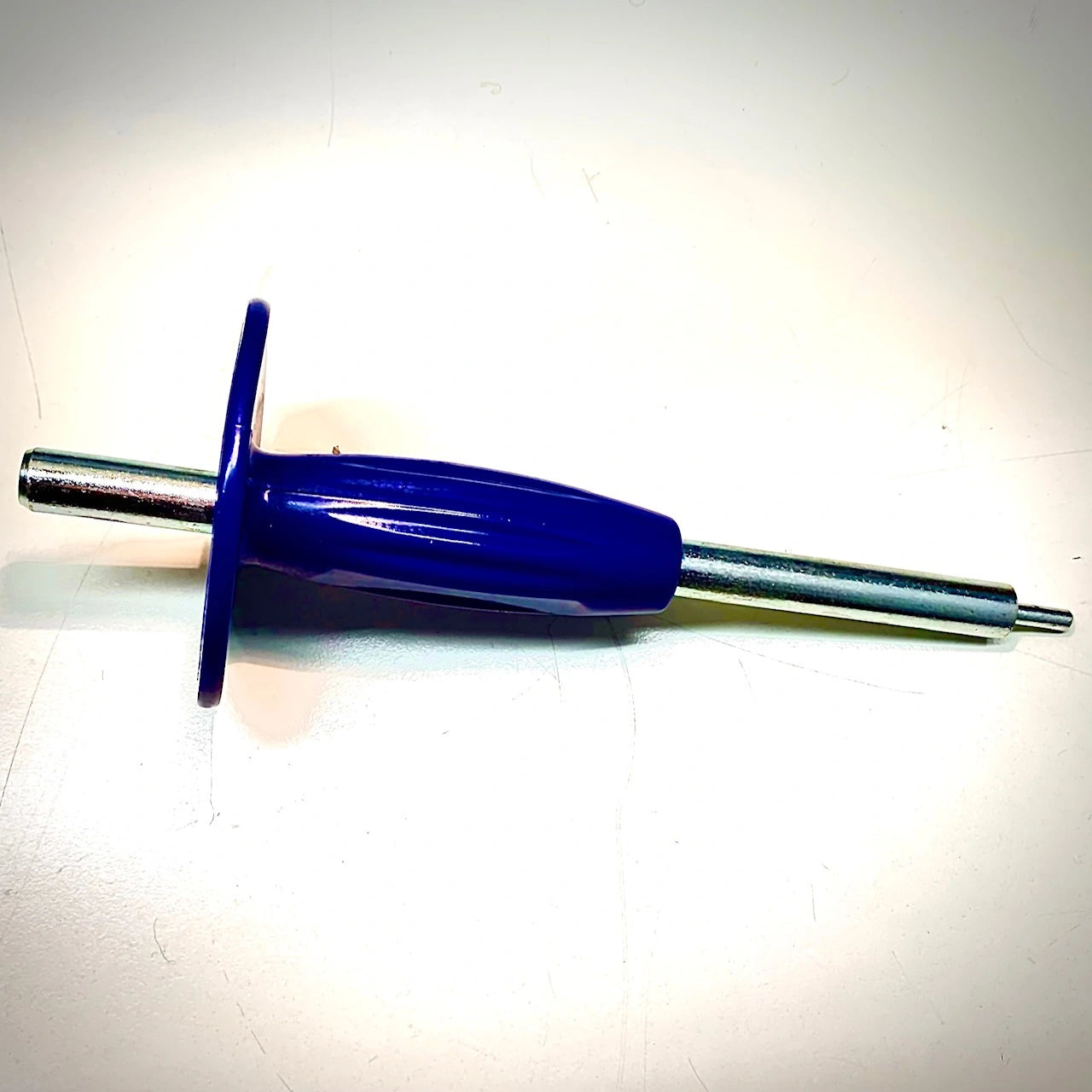

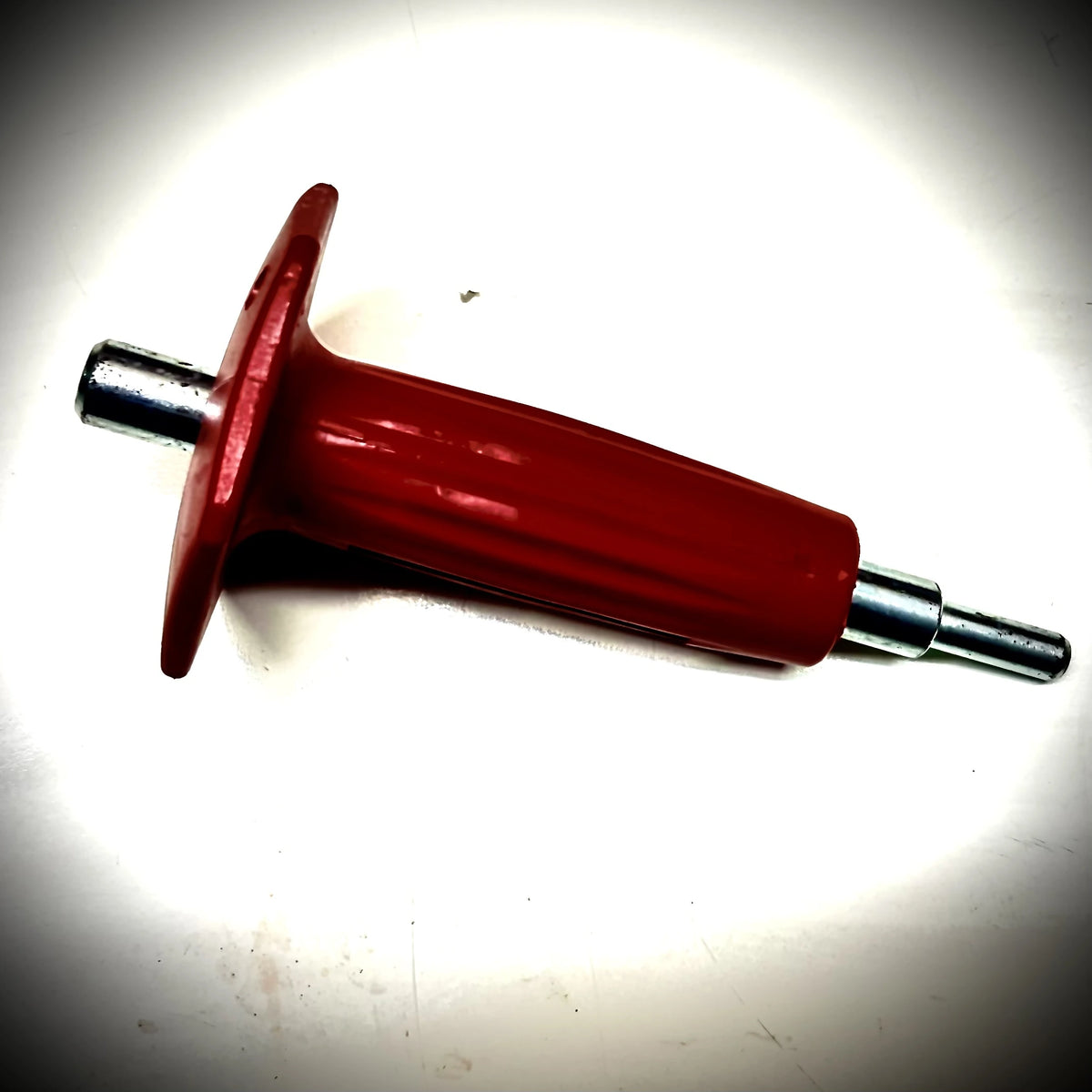

6mm Drop In Anchor Setting Punch. With Hand Guard
8mm Drop In Anchor Setting Punch. With Hand Guard
10mm Drop In Anchor Setting Punch. With Hand Guard
12mm Drop In Anchor Setting Punch. With Hand Guard

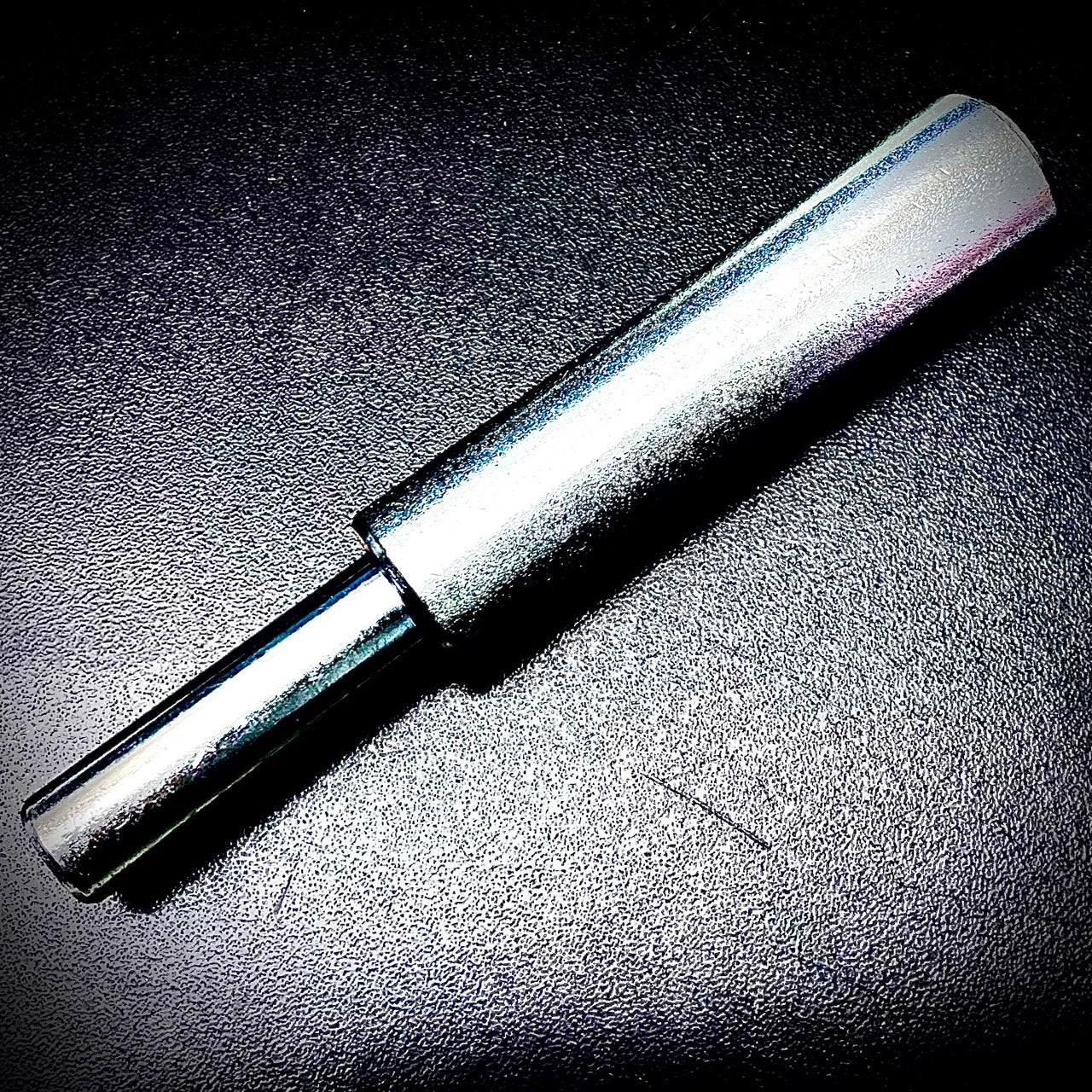

16mm Drop In Anchor Setting Punch. No Hand Guard
20mm Drop In Anchor Setting Punch. No Hand Guard



Drop in Anchor Installation:

  1. Drill a hole in the concrete using a hammer drill and a carbide tipped masonry drill bit, matching the bit size with the outside diameter of the drop-in anchor being used. Make sure the hole depth exceeds the minimum embedment (around 5%)
  2. Drill the correct diameter hole and depth.
  3. Clear the hole of all debris with a brush and blow out pump.
  4. Push the anchor into the hole until it is flush with the surface of the concrete.
  5. Insert the relevant setting tool of the same diameter as the anchor until it makes contact with the cone. Use a hammer to drive the setting tool into the anchor – stop hammering when the expander shoulder rests against the anchor or when it is blocked (in hard concrete).
  6. Tighten to the recommended torque using a torque wrench.



Bolt Length:

When the drop-in anchor is set flush with the base material, the minimum bolt length required equals the internal thread length of the anchor, plus the thickness of the material to be fastened, plus the thickness of any washers to be used.

If the anchor is set deeper into the concrete, adjust the length accordingly, by adding the additional depth to the minimum anchor length.



Anchor Spacing:

The forces on a Drop-In Anchor are transferred to the material in which it is installed. If the anchors are installed too close together, it can cause an interaction of the forces, thus reducing the holding power of the anchors. Minimum spacing between anchors and minimum edge distances for the concrete drop-in anchor are as follows:



Table: Shows important drop-in masonry anchor sizes/ measurements

All Measurements in mm

Screw Diameter

Masonry Drill Diameter

Hole Depth

Minimum Screw Embedment

M6

8

26

11

M8

10

32

13

M10

12

42

17

M12

16

53

22



All specifications are true with correct installation
