M6, Machine Screws, Slotted, Countersunk, Brass, DIN 963.

M6, Machine Screws, Slotted. Countersunk, Brass, DIN 963 Fixaball sells all lengths of M6 countersunk, slotted machine screws in solid brass. A machine screw is a fastening device similar to a bolt but having...
£2.80
Size

M6, Machine Screws, Slotted. Countersunk, Brass, DIN 963

Fixaball sells all lengths of M6 countersunk, slotted machine screws in solid brass.

machine screw is a fastening device similar to a bolt but having a pozidrive or slotted head which allows it to be turned with a screwdriver. It is usually applied to fastening metal components together that are pre threaded and not expected to withstand a heavy load/ force.

Countersunk Screws

A countersunk screw is used to fasten components, leaving a flush surface finish. Their length is measured from the end of the screw to the other, furthest end, at the top of the head.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your size and pack quantity selection from the drop down menus.



M6, Machine Screws, Slotted. Countersunk, Brass, DIN 963 lengths available:

Self Colour DIN 963 M6 x 35 Brass Slot Countersunk
Self Colour DIN 963 M6 x 10 Brass Slot Countersunk
Self Colour DIN 963 M6 x 12 Brass Slot Countersunk
Self Colour DIN 963 M6 x 16 Brass Slot Countersunk
Self Colour DIN 963 M6 x 20 Brass Slot Countersunk
Self Colour DIN 963 M6 x 25 Brass Slot Countersunk
Self Colour DIN 963 M6 x 30 Brass Slot Countersunk



Fixaball – Specialist Fixings and Fasteners Suppliers

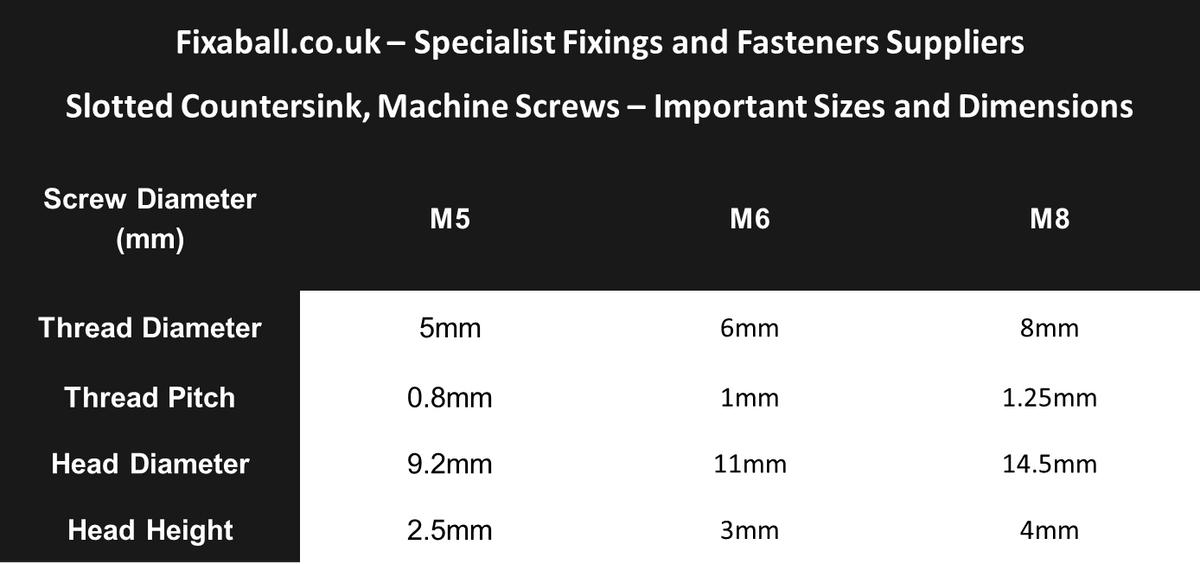

M6 Slotted Countersunk, Machine Screws – Important Sizes and Dimensions

Screw Diameter (mm)

M5

M6

M8

Thread Diameter

5mm

6mm

8mm

Thread Pitch

0.8mm

1mm

1.25mm

Head Diameter

9.2mm

11mm

14.5mm

Head Height

2.5mm

3mm

4mm



  • Manufactured from brass DIN 963

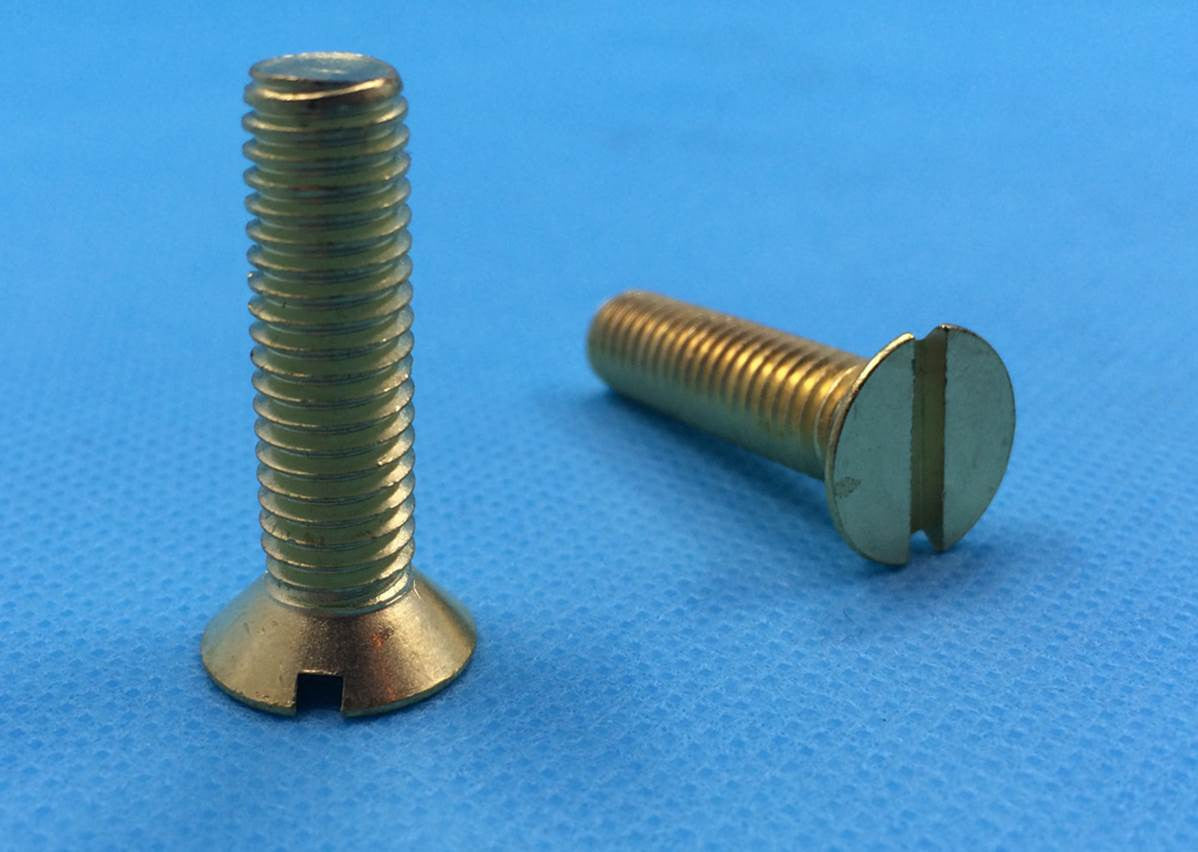

Image is for illustrative purposes only.
