M6 Socket Set Screw/ Grub Screw, Plain Cup End, High Tensile/ 14.9, DIN 916

M6, Socket Set Screw/ Grub Screw, Cup Point, High Tensile, Grade 45H/ 14.9, DIN 916, ISO 4029. Fixaball sells all lengths of M6, grade 14.9, plain cup point, socket set/ grub screws,...
£1.85

M6, Socket Set Screw/ Grub Screw, Cup Point, High Tensile, Grade 45H/ 14.9, DIN 916, ISO 4029.

Fixaball sells all lengths of M6, grade 14.9, plain cup point, socket set/ grub screws, at the best internet prices, with free shipping.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Please make your 'No. of Items in Pack', 'Length' and 'Quantity' of pack selection from the drop down menus.



M6, Socket Set Screw/ Grub Screw, Cup Point, High Tensile, Grade 14.9, DIN 916 Lengths Available:

M6-1.00x6 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x8 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x10 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x12 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x16 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x18 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x20 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x30 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x25 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x35 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x40 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x45 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR
M6-1.00x50 MM SOCKET SET CUP POINT 45H COARSE 45H DIN 916 SELF COLOUR



Set Screw Description

A set screw is a type of screw generally used to secure an object within or against another object, normally not using a nut. The most common examples are securing a pulley or gear to a shaft. Set screws are usually headless (also called blind), meaning that the screw is fully threaded and has no head projecting past the major diameter of the screw thread. If a set screw has a head, the thread will extend all the way to the head (whereas a bolt might have an unthreaded shank between the head and thread). A grub screw (blind set screw), is almost always driven with an internal-wrenching drive, such as a hex socket (Allen), star (Torx), square socket (Robertson), or slot. The set screw passes through a threaded hole in the outer object and is tightened against the inner object to prevent it from moving relative to the outer object. It exerts compressional or clamping force through the bottom tip that projects through the hole.

Allen Key Sizes

M2 x 0.4mm pitch; allen key size 0.9mm.

M2.5 x 0.45mm pitch; allen key size 1.3mm.

M3 x 0.5mm pitch; allen key size 1.5mm.

M4 x 0.7mm pitch; allen key size 2mm.

M5 x 0.8mm pitch; allen key size 2.5mm.

M6 x 1.0mm pitch; allen key size 3mm.

M8 x 1.25mm pitch; allen key size 4mm.

M10 x 1.5mm pitch; allen key size 5mm.

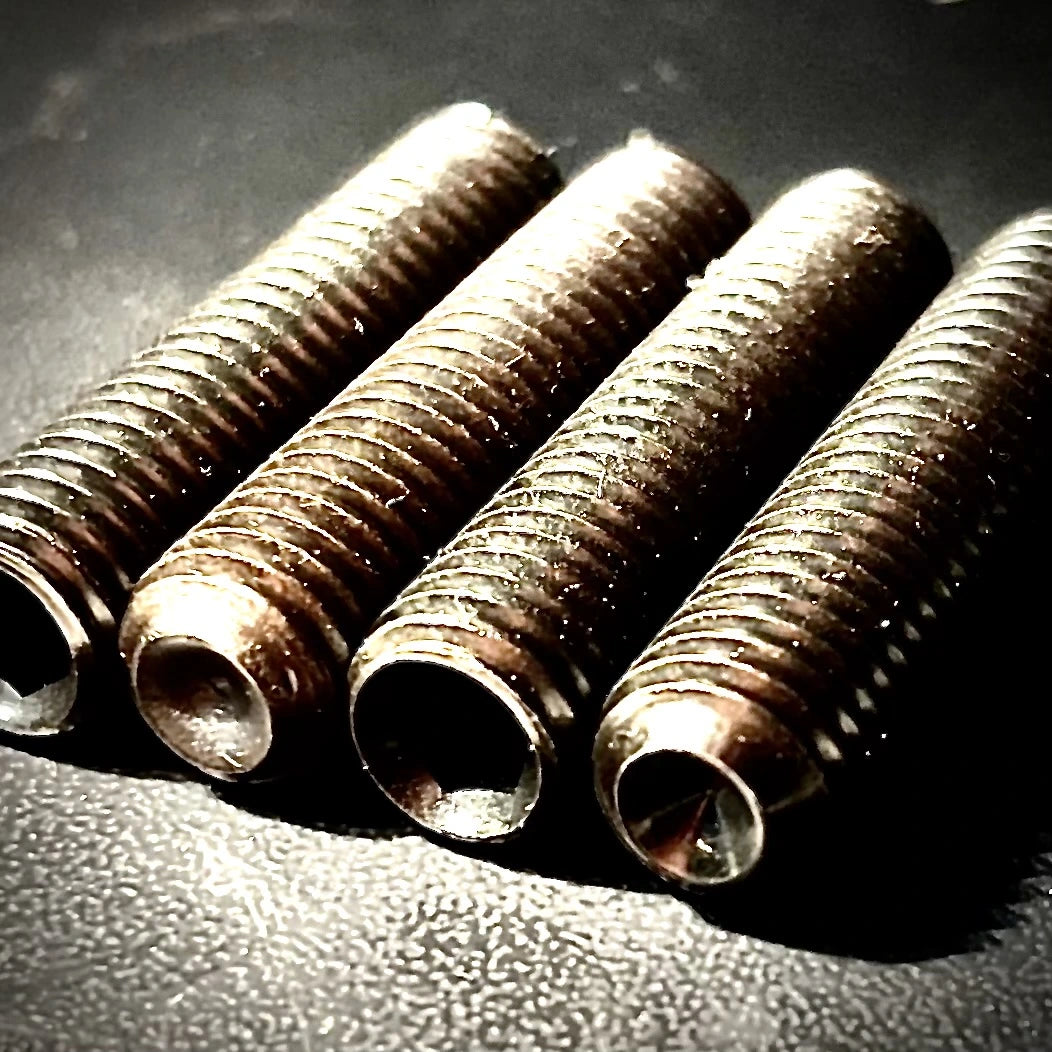

Image is for illustrative purposes only.
