M6 Thread, Socket, Shoulder Caps, High Tensile,12.9, DIN 9841.

M6 Thread, M8 Shoulder Socket Cap Screw/ Bolts, High Tensile, Grade 12.9, DIN 7379, BS 4168, ISO 7379. Fixaball sells all sizes of M6, METRIC, Shoulder, Cap Screw/ Bolts in high tensile, grade12.9, at...
£3.82

M6 Thread, M8 Shoulder Socket Cap Screw/ Bolts, High Tensile, Grade 12.9, DIN 7379, BS 4168, ISO 7379.

Fixaball sells all sizes of M6, METRIC, Shoulder, Cap Screw/ Bolts in high tensile, grade12.9, at the best internet prices, with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

Please make your 'No. of Items in Pack' and 'Diameter of Thread x Length of Shoulder' and 'Quantity' of packs selection from the drop down menus.

Metric M6 Thread, 12.9 Grade, Shoulder Cap Screw Bolt Descriptions

Socket Shoulder Caps Description Thread Type Shoulder Diameter (mm) Thread Diameter (mm) Shoulder Length (mm)
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 5
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 8
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 10
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 12
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 15
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 16
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 20
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 25
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 30
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 35
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 40
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 45
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 50
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 55
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 60
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 65
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 70
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 80
Socket Shoulders | Standard Range METRIC Coarse Thread M8 M6 90

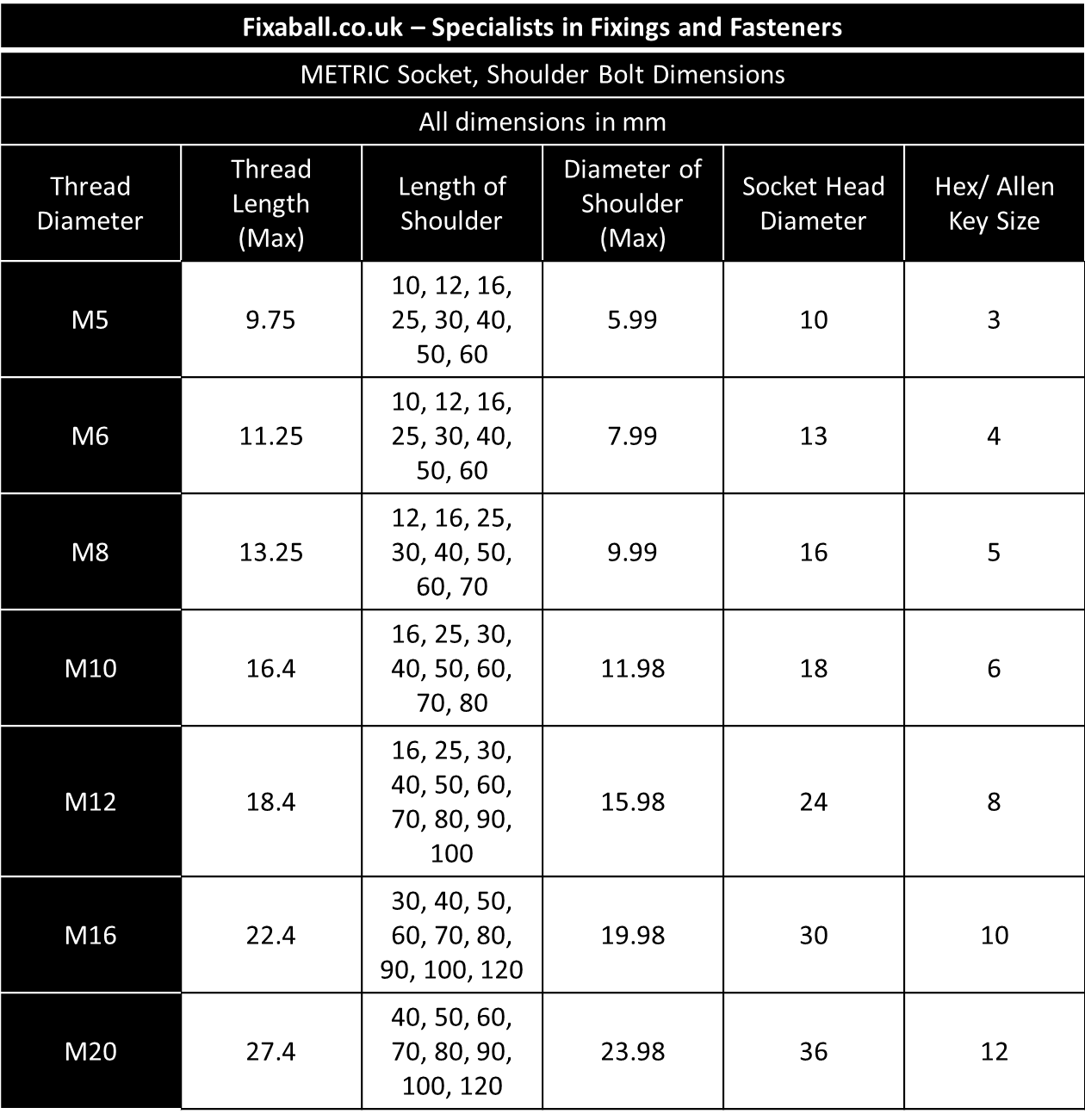

Table: To show metric socket, shoulder bolt dimensions

Fixaball – Specialists in Fixings and Fasteners

METRIC Socket, Shoulder Bolt Dimensions

All dimensions in mm

Thread Diameter

Thread Length

(Max)

Length of Shoulder

Diameter of Shoulder

(Max)

Socket Head Diameter

Hex/ Allen Key Size

M5

9.75

10, 12, 16, 25, 30, 40, 50, 60

5.99

10

3

M6

11.25

10, 12, 16, 25, 30, 40, 50, 60

7.99

13

4

M8

13.25

12, 16, 25, 30, 40, 50, 60, 70

9.99

16

5

M10

16.4

16, 25, 30, 40, 50, 60, 70, 80

11.98

18

6

M12

18.4

16, 25, 30, 40, 50, 60, 70, 80, 90, 100

15.98

24

8

M16

22.4

30, 40, 50, 60, 70, 80, 90, 100, 120

19.98

30

10

M20

27.4

40, 50, 60, 70, 80, 90, 100, 120

23.98

36

12

Material

Blackened alloy steel, high tensile 12.9 (Hardness 38 HRC, tensile strength 1200 N/mm²)

Technical Notes

ISO 7379. Temperature range -50°C to +300°C.

Torque to:

M5 = 7,5Nm. M6 = 13 Nm. M8 = 33 Nm. M10 = 60 Nm. M12 = 120 Nm. M16 = 270 Nm.

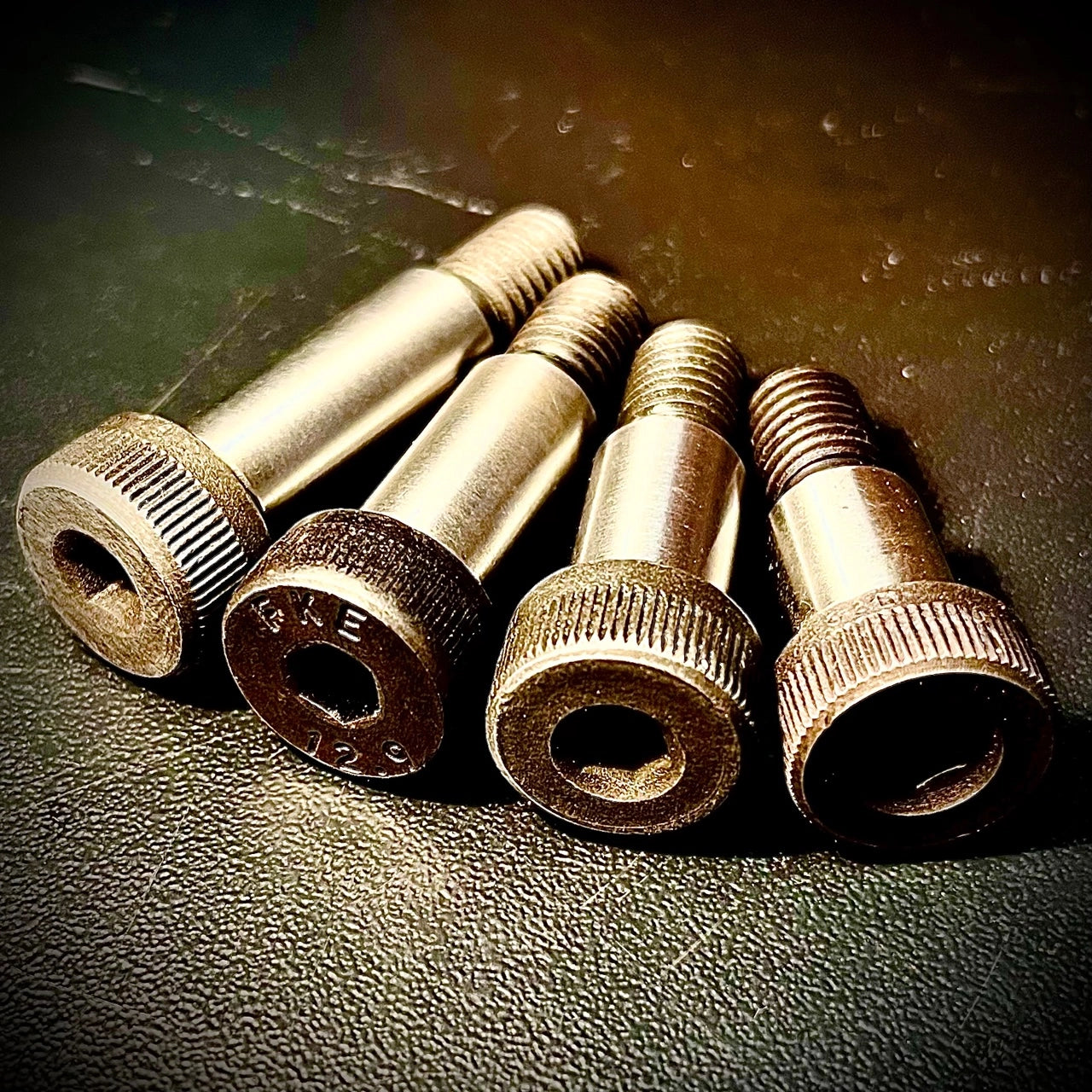

Image is for illustrative purposes only.
