M8/ 8mm, Hex, Coach Screw, A2/ 304 Stainless Steel, Heavy Duty

M8/ 8mm, Hex, Coach Screw, A2/ 304 Stainless Steel, Heavy Duty M8/ 8mm diameter, Hexagon Head, Coach Screw, A2/ 304 Stainless Steel, Heavy Duty, Wood/ Masonry Screw, DIN 571 Fixaball...
£3.31

M8/ 8mm, Hex, Coach Screw, A2/ 304 Stainless Steel, Heavy Duty

M8/ 8mm diameter, Hexagon Head, Coach Screw, A2/ 304 Stainless Steel, Heavy Duty, Wood/ Masonry Screw, DIN 571

Fixaball sells all lengths of A2/ 304 Stainless Steel, 8mm diameter, hexagon headed, heavy duty, coach screws at the best internet prices, with free delivery.

Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout. Packs weighing under 250grams are upgraded to 1st class as much as possible.

Please make your 'No. of Items in Pack',  'Length' and 'Quantity' of packs selection from the drop down menus.

Drive Type: HEX SOCKET

M8/ 8mm diameter, A2/ 304 Stainless Steel, Hexagon Head, Coach Screw Lengths Available

8 X 25 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 30 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 35 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 40 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 45 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 50 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 55 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 60 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 65 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 70 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 75 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 80 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 90 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 100 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 110 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 120 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 130 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 140 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 150 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL
8 X 180 HEXAGON COACH SCREW DIN 571 A2 STAINLESS STEEL



Hex Head Coach Screw Dimensions

Diameter

Pitch

Pilot Hole Needed

Hex Drive Socket Size

M6

2.5

4.5 - 5mm

10mm

M8

3

6.5 - 7mm

13mm

M10

3.5

8.5 – 9mm

17mm

M12

4

10 – 10.5mm

19mm

M16

5

14 – 14.5mm

24mm

M20

6

18mm

30mm



For EXTERNAL use with Wood or with Masonry with the addition of a Plastic Nylon Plug.

CE Approved. A pilot hole maybe required when being used with certain hardwoods to avoid splitting

Conforms to DIN 571 standard.

Length is from tip to underside of the head

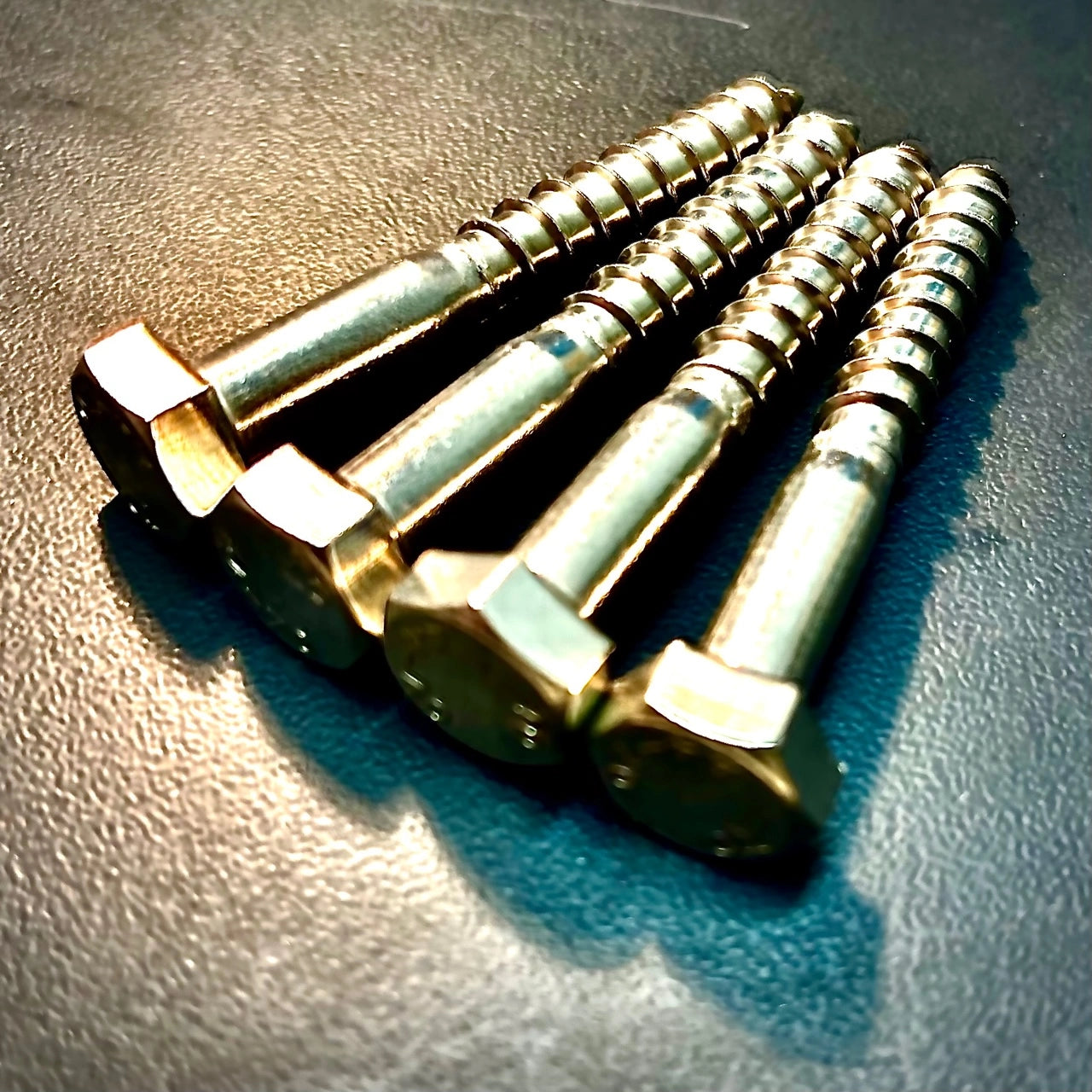

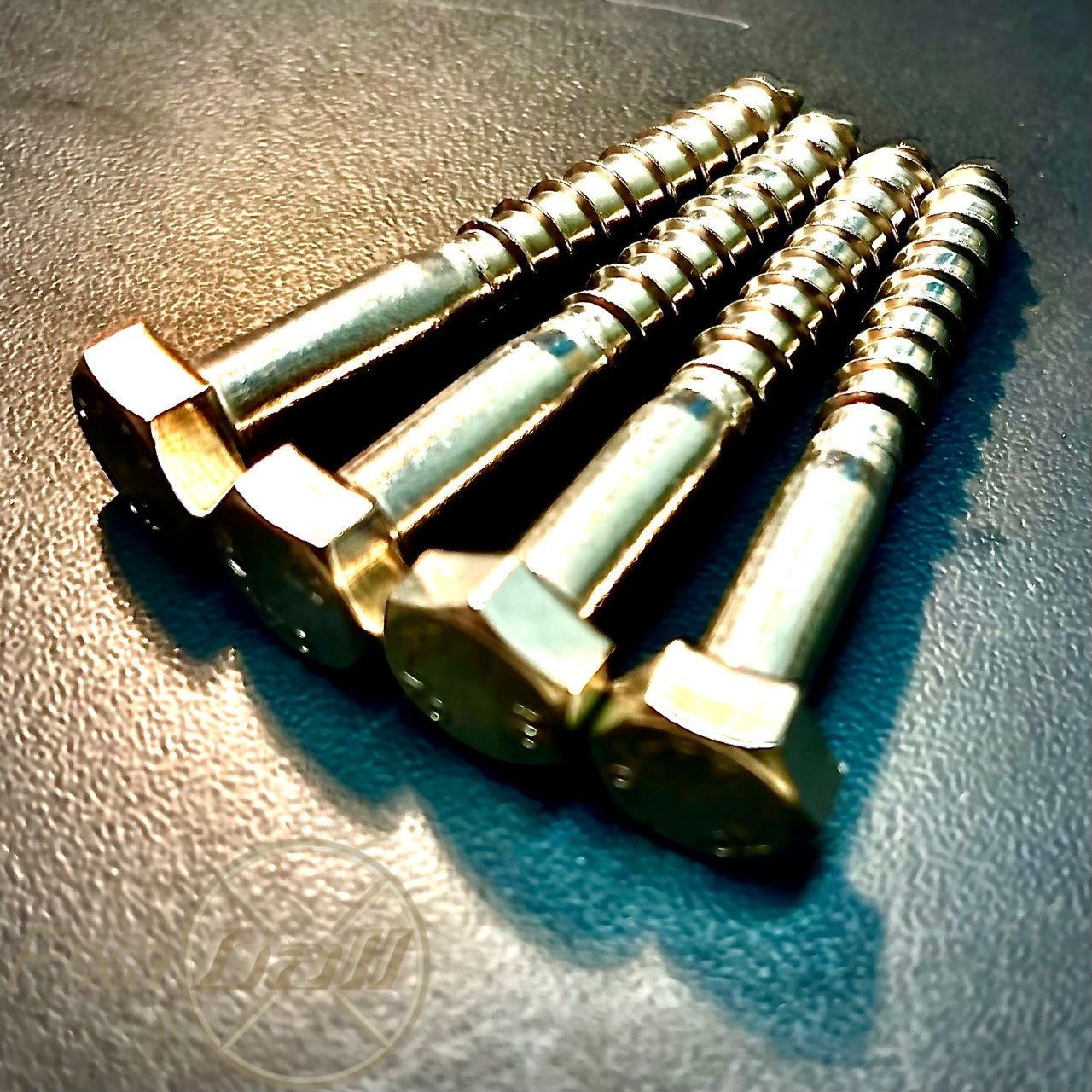

Image is for illustrative purposes only.
